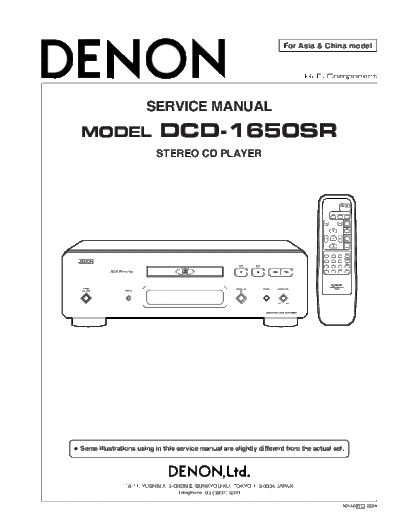

Image preview - the first page of the document



>> Download denon_dcd-1650sr_sm documenatation <<

Text preview - extract from the document

                                                                      For Asia & China model


                                                                             Hi-Fi Component



                      SERVICE MANUAL
MODEL                      DCD-1650SR
                          STEREO CD PLAYER




Some illustrations using in this service manual are slightly different from the actual set.




               16-11, YUSHIMA 3-CHOME, BUNKYOU-KU, TOKYO 113-0034 JAPAN
                                 Telephone: 03 (3837) 5321

                                                                                          X0140 NC 0204
                                                                                                              DCD-1650SR




  SAFETY PRECAUTIONS
  The following check should be performed for the continued protection of the customer and service technician.


  LEAKAGE CURRENT CHECK
  Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
  resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
  power cord is less than 460 kohms, the unit is defective.




SPECIFICATIONS

AUDIO
  No. of Channels:                    2 channels
  Frequency Response:                 2~20,000 Hz
  Dynamic Range:                      100 dB
  Signal-to-noise Ratio:              118 dB
  Harmonic Distortion:                0.0018 % (1 kHz)
  Separation:                         110 dB (1 kHz)
  Wow & Flutter:                      Below measurable limit:
                                      (
