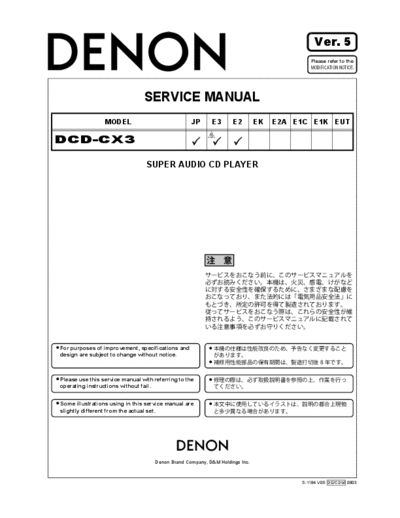

Image preview - the first page of the document
>> Download Service Manual documenatation <<
Text preview - extract from the document
Ver. 5
Please refer to the
MODIFICATION NOTICE.
SERVICE MANUAL
MODEL JP E3 E2 EK E2A E1C E1K EUT
g
DCD-CX3
SUPER AUDIO CD PLAYER
For purposes of improvement, specifications and
design are subject to change without notice.
Please use this service manual with referring to the
operating instructions without fail.
Some illustrations using in this service manual are
slightly different from the actual set.
e
Denon Brand Company, D&M Holdings lnc.
S-1184 V.05 DE/CDM 0803
SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
power cord is less than 460 kohms, the unit is defective.
s LASER RADIATION
Caution - Class 1M visible and invisible laser radiation when open.
Do not view directly with optical instruments.
CAUTION Please heed the points listed below during servicing and inspection.
Heed the cautions! Inspect for safety after servicing!
Spots requiring particular attention when servicing, such Check that all screws, parts and wires removed or discon-
as the cabinet, parts, chassis, etc., have cautions indicated nected for servicing have been put back in their original po-
on labels or seals. Be sure to heed these cautions and the sitions, inspect that no parts around the area that has been
cautions indicated in the handling instructions. serviced have been negatively affected, conduct an insu-
lation check on the external metal connectors and between
Caution concerning electric shock! the blades of the power plug, and otherwise check that
safety is ensured.
(1) An AC voltage is impressed on this set, so touching in-
ternal metal parts when the set is energized could
(Insulation check procedure)
cause electric shock. Take care to avoid electric shock,
Unplug the power cord from the power outlet, disconnect
by for example using an isolating transformer and
the antenna, plugs, etc., and turn the power switch on. Us-
gloves when servicing while the set is energized, un-
ing a 500V insulation resistance tester, check that the in-
plugging the power cord when replacing parts, etc.
sulation resistance between the terminals of the power
(2)There are high voltage parts inside. Handle with extra plug and the externally exposed metal parts (antenna ter-
care when the set is energized. minal, headphones terminal, microphone terminal, input
terminal, etc.) is 1M or greater. If it is less, the set must
Caution concerning disassembly and be inspected and repaired.
assembly!
Though great care is taken when manufacturing parts from
sheet metal, there may in some rare cases be burrs on the
CAUTION Concerning important safety
edges of parts which could cause injury if fingers are
moved across them. Use gloves to protect your hands.
parts
Only use designated parts! Many of the electric and structural parts used in the set
have special safety properties. In most cases these prop-
The set's parts have specific safety properties (fire resis- erties are difficult to distinguish by sight, and using re-
tance, voltage resistance, etc.). For replacement parts, be placement parts with higher ratings (rated power and
sure to use parts which have the same properties. In par- withstand voltage) does not necessarily guarantee that
ticular, for the important safety parts that are marked z on safety performance will be preserved. Parts with safety
wiring diagrams and parts lists, be sure to use the desig- properties are indicated as shown below on the wiring dia-
nated parts. grams and parts lists is this service manual. Be sure to re-
place them with parts with the designated part number.
Be sure to mount parts and arrange
the wires as they were originally! (1) Schematic diagrams ... Indicated by the z mark.
For safety reasons, some parts use tape, tubes or other in- (2) Parts lists ... Indicated by the z mark.
sulating materials, and some parts are mounted away from
Using parts other than the designated
the surface of printed circuit boards. Care is also taken with
parts could result in electric shock, fires or
the positions of the wires inside and clamps are used to
other dangerous situations.
keep wires away from heating and high voltage parts, so
be sure to set everything back as it was originally.
2
DCD-CX3
z
z
z
3
DCD-CX3
DISASSEMBLY
When taking the set apart, open the tray and turn the
power "OFF".
1. Top Panel and Side Panel
(1) Remove 8 top screws, then detach Top Panel.
(2) Remove 4 side screws, then detach Side Panel.
4
DCD-CX3
2. Front Panel Ass'y
(1) Press the tray in to the position at which screws can be
seen through the 2 cuts in the top of the Front Panel.
(Refer to Fig. A)
(2) Remove 2 screws. (Refer to Fig. B)
fig. B
MECHA BRACKET
MECHA HOLDER
fig. A
(3) Remove 3 top screws and bottom 3 screws, then de-
tach the Front Panel Ass'y.
If front panel is abandoned, disassemble according to
below.
5
DCD-CX3
3. SACD Mechanism
(1) Remove 2 screws, then detach Front Angle.
(2) Remove 2 Mecha Bracket screws, then detach SACD
Mechanism.
If SACD Mechanism is abandoned, disassembles
according to Mechanism exploded view.
6
DCD-CX3
ASSEMBLY
When assembling set, close the tray.
1. Front Panel
(1) Put the SACD Mechanism on the chassis.
At this time, the screw of the mechanism is not tight-
ened
(2) 2 screws of Front Angle are tightened.
(3) 6 screws of Front Panel are tightened.
Loader Panel is the parts to which a scratch tends to
be attached. Be fully careful in the case of work.
7
DCD-CX3
2. SACD Mechanism
(1) While forcing the SACD mechanism to the direction of
the arrow , adjust the left and right (the arrow ). 2
screws of the rear are tightened at the position where
the open part of front panel and the space of the both
ends of the tray become equal.
Front Panel Tray
(2) Turn the power "ON", open the tray and turn the power
"OFF".
(3) Press the tray in to the position at which position in
which a screw is tightened can be seen through the 2
cuts in the top of the Front Panel. (Refer to Fig. A)
(4) 2 screws are tightened. (Refer to Fig. B)
fig. B
MECHA BRACKET
MECHA HOLDER
fig. A
8
DCD-CX3
3. Side Panel
(1) 4 screws are tightened forcing Side Panel in the direc-
tion of an arrow.
4. Top Panel
(1) 8 screws of Top Panel are tightened, forcing Side Pan-
el and Top Panel simultaneously to the direction of the
arrow.
9
DCD-CX3
DIAGNOSTICS OF OPTICAL PICKUP
AND REPLACING TRAVERSE UNIT
Make failure diagnostics of the Optical Pickup as follows.
If the laser drive current (Iop) becomes more than 1.5 times
of the initial value, the Optical Pickup should be replaced.
The laser drive current initial value is checked by "Iop
checked Method" of next page.
In case of replacing the Pickup, change the whole part of the
Traverse Unit.
No mechanical adjustment is necessary after the replace-
ment.
Laser drive current initial value:
DVD:
CD:
Disc no read, unsteady playback, etc.
Laser drive current (Iop) check
HF wave form check
(Refer to WAVE FORMS)
Present value exceeds the ini-
tial value by 1.5 times
Traverse Unit replacing
Laser current (Iop) memorizing after replacement
10
DCD-CX3
1. Iop checked Method
Select the laser ON/OFF (CD/DVD) mode of the test
mode, and check the lop value of DVD laser or CD laser.
(See page 16 for test mode.)
1.1. DVD laser current check
(1) Press the or button to display the laser
current value, and then select "T24".
(2) Check the current value of Iop (nnnn).
( : Off, DVD laser, Initial value: Current value: nn.nn [mA])
1.2. CD Laser current check
(1) Press the or button to display the laser
current value, and then select "T22".
(2) Check the current value of Iop (nnnn).
( : Off, CD laser, Initial value: Current value: nn.nn [mA])
2. Note for Handling the Laser Pick-Up
The protection for the damage of laser diode.
If you want to change the optical device unit from any oth-
er units, you must keep the following.
(1) It should be done at the desk already took measures
the static electricity in care of removing the OPU's (Op-
tical device unit) connector cable.
(2) Workers should be put on the "Earth Band".
(3) It should be done to add the solder to the short land to
prevent the broken Laser diode before removing the
24P FFC cable.
(4) Don't touch OPU's connector parts carelessly.
3. Replacement of the Laser Pick-up
(Traverse Unit)
Check the Iop (Laser drive current)
If the present Iop (current) value exceeds.+150% of the
initial value, replace the Traverse unit (Laser Pick-up) with
a new one.
11
DCD-CX3
4. Rewriting the default value of the laser
current
4.1. Store the current value of the laser current
: DVD
(1) Current value "T24" is selected.
(2) Press the button for at least 5 seconds, and
"SAVE?" is displayed.
(3) Press the or button to select the "T23".
(4) Press the button and store the current value
"T23". After "OK?" is displayed, stored value "T23" is
displayed.
(5) Press the button to display the current value
"T24" without storing the current value "T23".
4.2. Store the current value of the laser current
: CD
(1) Current value "T22" is selected.
(2) Press the button for at least 5 seconds, and
"SAVE?" is displayed.
(3) Press the or button to select the "T21".
(4) Press the button and store the current value
"T21". After "OK?" is displayed, stored value "T21" is
displayed.
(5) Press the button to display the current value
"T22" without storing the current value "T21".
12
DCD-CX3
5. Resetting the accumulated laser on
time
To clear the accumulated laser on time, press the
button while the accumulated laser on time is displayed
(TB1, TB2 : For details, see "Test Mode" on page 13.) until
" CLR?" appears at the "nnnnn" position, then press the
or button to select TB3.
If the button is pressed while TB3 is displayed, the
accumulated laser on time of CD and DVD is cleared.
When TB1 or TB2 is selected with the or
button, "nnnnn" is displayed as 0 so you can check.
( : Off, Y 1: CD, 2: DVD, nnnnn: Hour [h])
13
DCD-CX3
HOW TO REPLACE TRAVERSE UNIT
Caution: The optical pickup can be damaged easily
by static electricity charged on human
body. Take necessary anti-static measures
when repairing around the optical pickup.
(Follow the procedure below in reverse order when
reassembling.)
1. Top plate disassembly
(1) Remove 6 screws, then detach Top Plate.
2. Tray disassembly
(1) Insert the stick made from the stainless steel of 2.5
(or thing of equivalent hardness) from the hole of the
Mecha Unit left side.
(2) Check that the stick has touched the side of SLIDE
CAM, from the hole at the left on the Tray. And push in
SLAIDE CAM slowly securely. Don't push the projec-
tion which has attached Spring at this time. (Spring
may be warped)
SLIDE CAM side
(3) Check that the projection of Mecha Frame becomes
position of the photograph, from the hole at the left on
the Tray.
14
DCD-CX3
(4) The Tray can now be pulled out.
(5) Remove 2 screws of the tray rear.
(6) Remove 2 screws, then detach loader panel.
(7) Remove Tray in the arrow direction.
Tray is the parts to which a scratch tends to be
attached. Be fully careful in the case of work.
(8) Check there is grease on the BELT THIRD. If there is
grease on the BELT THIRD, wipe it off with alcohol.
(9) Solder the short-circuit.
3. Traverse Unit disassembly
(1) Remove 15P FFC, 21P FFC, 6P PH and 7P PH WIRE
connecting with from the SACD MODULE P.W.B.
(2) Remove 4 screws then detach SACD MODULE
P.W.B.
(3) Remove 4 screws fixing DAMPER.
(4) Remove Traverse Unit in the arrow direction.
7P PH
6P PH
15P FFC 24P FFC
15
DCD-CX3
+ +AC_ON
Model Name display
H.R.NORMAL operation Heat Run Mode
TOC read playback (DCD-CX3)
title-all of the disc.
OPEN CLOSE or
+
TOC read
B/E com B/E com
It displays repeatedly. H.R.NORMAL display
Ver.display Make Day
+
H.R.SHORT operation + +
TOC read playback
title-end of the disc. SUB com
CD TEST MODE & SERVICE MODE
H.R.SHORT display TEST Mode Ver.display
OPEN CLOSE +
TOC read
16
+
It displays repeatedly.
DCD-CX3
+ +
FL tube
FL all light
H.R.CHACKING operation The display for each grid.
H.R.CHACKING display
(It displays at intervals
TOC read OPEN
of 1 second.)
CLOSE TOC read
It displays repeatedly.
Key & Remocon input mode display
Heat run Error Code Table
The name of the inputted key and
No Error contents FL display remote control code is displayed.
1 Tray Error ERROR 01
2 Bad Disc ERROR 02
3 Search Error ERROR 03
4 Read Error ERROR 04
SERVICE MODE
1. Initial Setting Mode
(1) Procedure
(a) Initialize the CD player when ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
