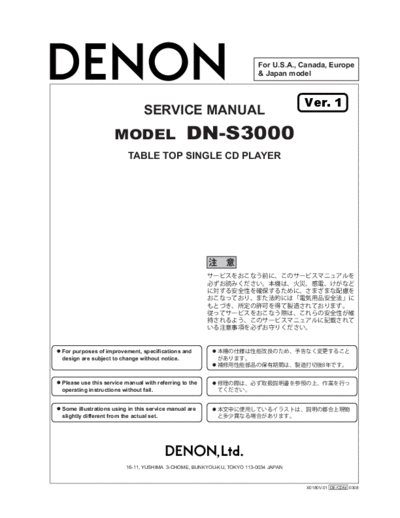

Image preview - the first page of the document
hfe_denon_dn-s3000_service_en


>> Download hfe_denon_dn-s3000_service_en documenatation <<

Text preview - extract from the document
                                                                       For U.S.A., Canada, Europe
                                                                       & Japan model



                                                                                   Ver. 1
                               SERVICE MANUAL
                    MODEL                      DN-S3000
                         TABLE TOP SINGLE CD PLAYER




For purposes of improvement, specifications and
design are subject to change without notice.



Please use this service manual with referring to the
operating instructions without fail.


Some illustrations using in this service manual are
slightly different from the actual set.




                        16-11, YUSHIMA 3-CHOME, BUNKYOU-KU, TOKYO 113-0034 JAPAN



                                                                                    X0180V.01 DE/CDM 0308
                                                                                                      DN-S3000              2



SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.

LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
power cord is less than 460 kohms, the unit is defective.

LASER RADIATION
Do not stare into beam or view directly with optical instruments, class 3A laser product.




                                                                          500V


                                                                                             1M


(1)




(2)




                                                                   (1)

                                                                   (2)




                                                             2
                                                                                                  DN-S3000           3


DISASSEMBLY
(Follow the procedure below in reverse order when reassembling.)

 1. SLIP DISK, SLIP MAT
  (1) Remove a screw and pull out Slip Disc and Slip Mat.


   .




                                                                   Washer
                                                                        Slip Disc


                                                                        Slip Mat

                                                                                    Slip Sheet


                                                                                                 Anti-static Sheet




 2. PLATTER
  (1) Remove Belt from Motor Pully.
  (2) Remove 3 screws and pull out Platter.

       .




                                                                                    Platter
                                                 Belt




                                  Motor Pully




                                                             3
                                                                                                      DN-S3000     4

3. DRIVE UNIT
(1) Remove 4 screws and pull out Drive Unit.
(2) Disconnect Flat cable and Connector.
(3) Detach Drive Unit.




                                        Drive Unit




                                  71

                                                     71




                                Connector
                                                                                Flat cable
                           Drive Unit




  Note:
     Do not pull out aslant to prevent Flat cable damage.
     Do not fail to pull AC cord from wall outlet before disconnect the Flat cable and Connector.
    If AC cord is remained plugged into wall outlet, power is kept supplied in the unit, which may cause danger.

4. COVER UNIT
(1) Remove 5 screws and pull out Cover Unit.
(2) Disconnect Connectors.
(3) Detach Cover unit.


                                                                                                  Cover unit


                                        CX042

    Connector                           CX101




                             CX041



Connector


                               CX031

  Note:
     Do not fail to pull AC cord from wall outlet before disconnect Connectors.
    If AC cord is remained plugged into wall outlet, power is kept supplied in the unit, which may cause danger.


                                                             4
                                                                                             DN-S3000   5

5. SENSOR AND SCALE UNITS OF PLATTER
(1) Remove 2 screws and pull out Sensor Cover and Sensor unit.
(2) Remove a E Ring.
(3) Pull out Scale unit.



                                                                 E Ring

                                       Sensor Cover
                                                                          Scale unit

                                       Sensor unit




6. SENSOR AND SCALE UNITS OF SLIP DISC
(1) Remove 2 screws and pull out Sensor Cover and Sensor unit.
(2) Remove a screw and pull out Scale unit.


                                              Scale unit

                                                                      Sensor Cover




                                                                               Sensor unit



7. POWER PWB
(1) Remove 5 screw and pull out Power PWB.


                                                                          Power PWB




                                                           5
                                                                                 DN-S3000   6

8. DSP PWB UNIT
(1) Remove 9 screws and pull out DSP PWB unit.




                                        DSP PWB unit




9. DRIVE COVER
(1) Remove 4 screws and pull out Drive cover.




                                        Drive cover




10. DRIVE
(1) Move Drive Rack in arrow direction through the Hole on the bottom chassis.
    Loader frame comes out.
(2) Pull up Loader panel while pulling it towards front.
(3) Remove 4 screws and pull out Drive.



                                                    Drive




                                                            6
                                                                                                                                                                                                                                           DN-S3000         7


BLOCK DIAGRAM




      DN-S3000

                                                                                                                                                                                                                    -HB,F1,F2
                                                                                                                                                                                                                    GND,+5



                                                                                              D16~31
                                                                    128M                                                TFS0                          LRCK                                     analog out
                                                                                                                                                                                    AMP
                                                                   SDRAM                                                TCK0                          BCLK         D/A
             ROM                                                    RAM                       ADRESS   ADSP21065L      TXD0A                          MAIN         DIT                                                               PANEL
            DRIVE                                                 32bit BUS                                            TXD0B                                                                    digital out
