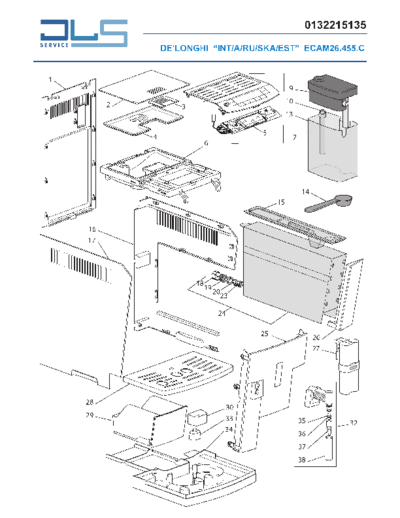

Image preview - the first page of the document
>> Download service documenatation <<
Text preview - extract from the document
0132215135
DE'LONGHI "INT/A/RU/SKA/EST" ECAM26.455.C
1
9
2 10
3
13
5
4 7
6
14
15
16
17
18
19
20
23
24
25
26
27
28
30
29 33 35 32
34
36
37
38
41
39 45
43
40 42
44 46
47
48 49
50
53
54
55
56
57
63
64
65 76
66 59
60
67
68 6162
69
78
81
61
70
73
74
81
61
62 75
77 76
58
79
80
82
83
84
72
87 147
86 148
89 88 151
149
150
71 146
84 91
93
90
94 95
85
96
97
114
128
101
121 129
102 121
84
84 127
99
126 105
104 103
133
111 106 84 113
126 84
112 107 135
108 98
136
125 137
110 124
109 127
123
138
84
140
125 120 143
126 93
144
117 118 145
116 119 130
139
Page 3 of 7
0132215135
DE'LONGHI ECAM26.455.C PRIMADONNA S
A RU INT EST SKA TR ECAM26.455.C
Pos. Code Description
9828300000 PUSH-PUSH
5332224100 BELT
5013251461 CAB CONTATORE-VOLUMETRICO L300(PVC)MCSA
001 5513217471 REAR PANEL
002 7313224991 COVER
003 5313225831 COVER DUST
004 5513216841 COVER
005 IT0263 SEE TECNICAL INFORMATION
006 5313225801 COVER
007 7313226541 CONTROL PANEL ASSEMBLY
009 7313220791 COVER ASSEMBLY
010 5332100800 TUBE
013 5313231231 CARAFE
014 5332169200 MEASURING SPOON
015 5313225791 COVER
016 5513217451 SIDE RIGHT
017 5513217461 SIDE LEFT
018 5313213291 COVER
019 5313235921 GASKET
020 5313214981 FILTER
023 6113210251 SPRING
024 7313220761 TANK
025 5513217441 FRONT PANEL
026 5513217431 FRONT PIECE
027 7313226521 DISTRIBUTING
028 7013211031 CUP PLATE
029 5513217421 CONTAINER
030 5313213551 TRAY
032 IT0312 SEE TECNICAL INFORMATION
033 5313222641 FLOAT
034 5313226961 TRAY
035 5332177500 O-RING
036 5313217751 O-RING
037 5332169300 TUBE LOWER
038 5532154000 TUBE DISTRIBUTING
039 5913212631 KNOB
040 5313225891 COVER
Page 4 of 7
0132215135
DE'LONGHI ECAM26.455.C PRIMADONNA S
A RU INT EST SKA TR ECAM26.455.C
041 5513217201 LED
042 9812631250 SCREW
043 5313227651 COVER
044 7313232331 DIFFUSER KIT
045 5313213191 LEVER
046 6032105300 FILTER
047 5332139500 VALVE
048 5332149100 O-RING
049 6113210131 SPRING
050 5332139600 STOPPER
053 6132112200 SPRING
054 5313213211 PISTON
055 5313213241 RUBBER PAD
056 5313213591 STOPPER
057 7313212631 TROLLEY
058 5313224561 INNER COVER
059 7313214521 REGULATOR
060 6113210161 PIN
061 9820000480 WASHER
062 9813431616 SCREW
063 5313225571 FRAME
064 7313230521 COMPLETE GRINDER
065 5113210211 MICROSWITCH
066 5313231031 SUPPORT
067 5113210371 SWITCH
068 5232114100 CONNECTOR
069 9813431616 SCREW
070 5313213371 FLAP
071 5113211311 PUMP
072 IT0286 SEE TECNICAL INFORMATION
073 6113210201 SPRING
074 5313216281 SUPPORT
075 5313213391 ARM
076 6113210181 SPRING
077 5313213431 RUBBER PAD
078 5313225581 FRAME
079 5313229731 FOOT
080 5513219881 TUBE PTFE L=270 NUT 1BUSHE
Page 5 of 7
0132215135
DE'LONGHI ECAM26.455.C PRIMADONNA S
A RU INT EST SKA TR ECAM26.455.C
081 9813433816 SCREW
082 5013211481 POWER SUPPLY CORD
083 5513219871 TUBE PTFE L=460 NUT 1BUSHE
084 5313217701 O-RING D=3,85
085 5513212871 TUBE PTFE DI2-DE4 L=97 2BUSHES
086 5213216261 TCO
087 5213211161 PROTECTOR
088 6132101300 CLIP
089 5513211371 REGULATOR
090 5313230671 SUPPORT
091 5332199500 TUBE DI=4 L=150
093 5213214061 SENSOR NTC
094 5213214671 FLOWMETER
095 5313236711 TUBE
096 7313225951 TRANSMISSION KIT
097 7313217261 MOTOR ASSEMBLY
098 5313217691 O-RING D=4,5
099 5213218311 SOLENOID VALVE
101 5332170600 BELT
102 5213213981 SENSOR BOARD
103 5213215001 BOARD
104 5132110500 MICROSWITCH
105 5513213101 TUBE PTFE DI2-DE4 L=380 2BUSHES
106 5313227841 TUBE 90
107 5513212901 TUBE PTFE DI2-DE4 L=290 2BUSHES
108 5332239200 CONNECTOR
109 5313225171 CONNECTION
110 5313224491 SUPPORT
111 5213218421 SOLENOID VALVE
112 5313225161 STOPPER
113 5513213761 TUBE PTFE DI2-DE4 L=190 2BUSHES
114 5513212881 TUBE PTFE DI2-DE4 L=270 2BUSHES
116 7313219401 VALVE
117 5313217871 TUBE DI=3 DE=6 L=200
118 5313213021 ARCHIMEDES SCREW
119 5113210211 MICROSWITCH
120 5513214291 GENERATOR
121 5313218351 CONNECTION
Page 6 of 7
0132215135
DE'LONGHI ECAM26.455.C PRIMADONNA S
A RU INT EST SKA TR ECAM26.455.C
123 5013252961 WIRING TCO
124 5013252541 WIRING TCO
125 5332239300 SPACER
126 6113210021 SPRING
127 5513213901 TUBE PTFE DI2-DE4 L=320 2BUSHES
128 5213218321 SOLENOID VALVE
129 5132104100 MICROSWITCH
130 5313218821 SUPPORT MICROSWITCH
133 7313224081 VALVE
135 5332149100 O-RING
136 5313217601 FILTER
137 9812631250 SCREW
138 5313220131 RUBBER PAD
139 7313220841 COUPLING
140 5313220031 O-RING
143 5313221011 O-RING
144 6132101300 CLIP
145 5132104100 MICROSWITCH
146 5232104600 SENSOR REED
147 6213210351 NUT
148 6213211521 BUSH
149 6113211331 CONNECTION
150 6113210741 CONNECTION
151 5213215201 POWER BOARD
Page 7 of 7
