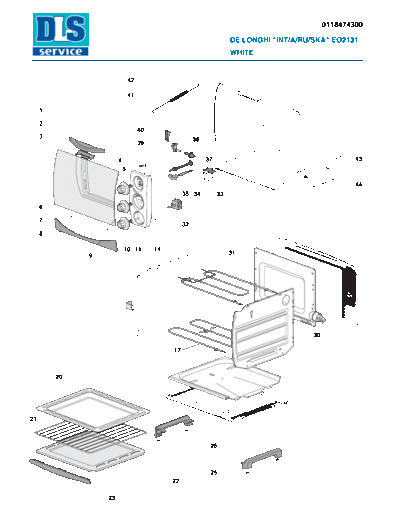

DE'LONGHI INT/A/RU/SKA EO2131 0118474300
Pos. Spare part code Description
5118109000 LAMP PHP T22(E14)240-250V 15W EO12
01 7018128600 FRAME
02 5318142400 HANDLE
03 7018108500 BRACKET
04 5318119800 RUBBER PAD
05 5918145100 THERMOSTAT KNOB
06 5318119900 GLASS
07 ES000 *NOT AVAILABLE
08 7118106900 SUPPORT
09 5918145300 TIMER KNOB
10 5918145200 Change Over Switch KNOB
11 611900 SPRING
14 5918126300 CONTROL PANEL
17 5118116000 Heating Element Low
20 7018127600 DRIP PAN
21 6118102100 GRID
22 6911800168 PLATE
23 5318143300 HANDLE
25 532233 RUBBER PAD
26 5318143400 FOOT
30 5318132700 LAMP HOLDER
31 5118115800 Heating Element Up
32 5218105300 Change Over Switch
33 5211810081 TIMER
34 5118110300 WIRING LAMP
35 5318139700 RED LENS
37 5318123800 EXTENSION
38 5318141900 GEAR
- Pag. 1/2 -
DE'LONGHI INT/A/RU/SKA EO2131 0118474300
Pos. Spare part code Description
39 521073 THERMOSTAT
40 5318127400 BLOCK
41 7018113800 LEVER
42 6118103000 SPRING
43 7018126600 HOUSING
44 5218104800 FUSE
Spare parts list extract from the site on 04-08-2010
- Pag. 2/2 -
