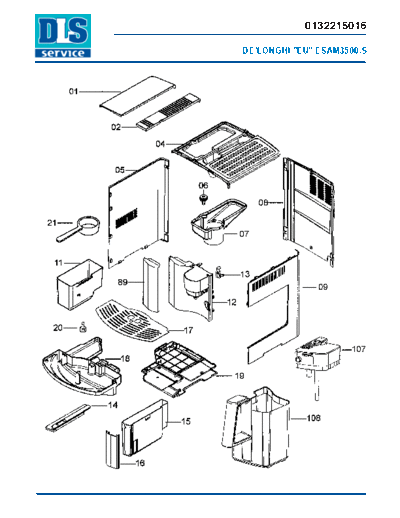

Image preview - the first page of the document
>> Download ESAM3500S documenatation <<
Text preview - extract from the document
0132215016
DE'LONGHI "EU" ESAM3500.S
DE'LONGHI EU ESAM3500.S 0132215016
Pos. Spare part code Description
7313217261 ASSY MOTOR (MOTION) + PULLEY SMALL 230V (SERVICE) ATTENTION CHECK TECHN
001 5332172500 COVER
002 5332172400 COVER
004 7332210300 CLOSURE
005 5332172700 SIDE LEFT
006 5913210471 KNOB
007 5532146600 TANK
008 5332172800 REAR PANEL
009 5332172600 SIDE RIGHT
010 5932113900 CONTROL PANEL
011 5332274500 TRAY
012 7332176800 DOOR ASSY
013 5332142600 HOOK
014 5332145600 COVER
015 7332165800 TANK
016 5332171900 PROFILE
017 6032105000 CUP PLATE
018 5332169700 TRAY
019 5332224900 BOTTOM
020 5332266300 FLOAT
021 5332107900 MEASURING SPOON
027 5532120500 TUBE L=270
028 6132101300 SPRING
030 5032526800 TCO
031 5332142200 SUPPORT
032 5132104100 MICROSWITCH
033 6132104700 SPRING
034 5217100200 SENSOR NTC
- Pag. 1/4 -
DE'LONGHI EU ESAM3500.S 0132215016
Pos. Spare part code Description
035 7313219441 VALVE
036B 5213212811 POWER BOARD
037 5332225700 SUPPORT
038 5132106900 PUMP
039 5232103200 PROTECTOR
040 5532120500 TUBE L=270
043 5132103900 MICROSWITCH
044 5232117900 CONTROL BOARD
048 5332172100 PUSH BUTTON
050 5132103900 MICROSWITCH
050A 5132105400 MICROSWITCH
051 VT205651 FILTER
052 5513212981 FRAME
053 5232110100 BOARD FEELER
054 5232101400 WATER VOLUME METER
055 5232104600 SENSOR REED
062B 7332203600 COMPLETE GRINDER
063 5313217751 O-RING
064 7313213911 GENERATOR
065 5332213000 PIN
066 5332144900 GASKET
067 5332139200 FILTER
068B 7332167200 TRANSMISSION KIT
069 5332148400 VALVE
070 6132106300 SPRING
071 5332142300 BUSH
072 5332142400 BUSH
073 5332170600 BELT
- Pag. 2/4 -
DE'LONGHI EU ESAM3500.S 0132215016
Pos. Spare part code Description
074 5332149100 O-RING
075 6132103500 SPRING
076 5332139800 LEVER
077 7332183900 DIFFUSER KIT
078 9812631250 SCREW
079 6032105300 DIFFUSER
080 5332149100 O-RING
081 5332139600 STOPPER
082 5332139500 VALVE
083 6132106700 SPRING
084 5332140300 PISTON
088B 5232110200 BOARD
089 5332171500 COVER
090 534848 SUPPORT
091 7332166600 SLIDER
092 5232105000 TCO
094 5213210181 SOLENOID VALVE
095 7332196700 HEATING Element ASSY
096 5332170800 GLASS
097 7132102600 FRONT PANEL
098 5332180300 TEMPLATE
099 5332170700 COVER
100 5332170900 KEYBOARD
101 5932113600 PUSH BUTTON
102 5932113700 PUSH BUTTON
103 5932113300 PUSH BUTTON
104 5932113200 PUSH BUTTON
105 5313217701 O-RING
- Pag. 3/4 -
DE'LONGHI EU ESAM3500.S 0132215016
Pos. Spare part code Description
106 5932113800 PUSH BUTTON
107 7332190200 COVER
108 5532127200 TANK
109 5332176500 SUPPORT
110 5213210171 SOLENOID VALVE
111 5532133900 COUPLING
112 5532124900 PIPETTE
Spare parts list extract from the site on 09-09-2010
- Pag. 4/4 -
