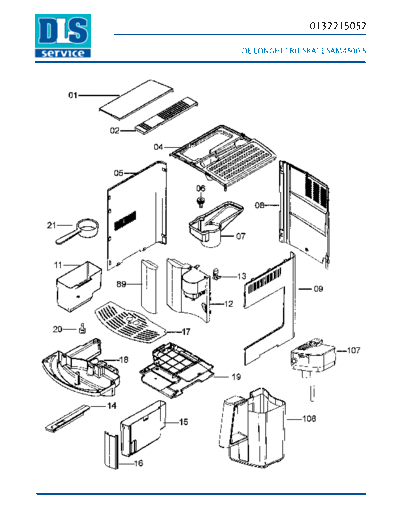

Image preview - the first page of the document
ESAM4500S


>> Download ESAM4500S documenatation <<

Text preview - extract from the document
               0132215052

DE'LONGHI "RU/SKA" ESAM4500.S
                    DE'LONGHI EU - (EST) ESAM4500.S 0132215052
Pos.   Spare part code     Description


       7313217261          ASSY MOTOR (MOTION) + PULLEY SMALL 230V (SERVICE) ATTENTION CHECK TECHN

001    5332187300          COVER

002    5332187200          COVER

004    7332210500          CLOSURE

005    5332187500          SIDE LEFT

006    5913210471          KNOB

007    5532146600          TANK

008    5332187600          REAR PANEL

009    5332187400          SIDE RIGHT

010    5532134100          CONTROL PANEL

011    5332274500          TRAY

012    7332188700          DOOR ASSY

013    5332142600          HOOK

014    5332145600          COVER

015    7332165800          TANK

016    5332203200          PROFILE

017    6032107700          CUP PLATE

018    5332213400          TRAY

019    5332225000          BOTTOM

020    5332266300          FLOAT

021    5332107900          MEASURING SPOON

027    5532129500          TUBE L=335

028    6132101300          SPRING

030    5032526800          TCO

031    5332142200          SUPPORT

032    5132104100          MICROSWITCH

033    6132104700          SPRING

034    5217100200          SENSOR NTC

                                         - Pag. 1/4 -
                    DE'LONGHI EU - (EST) ESAM4500.S 0132215052
Pos.   Spare part code     Description


035    7313219441          VALVE

036B   5232121100          POWER BOARD

037    5332225700          SUPPORT

038    5132106900          PUMP

039    5232103200          PROTECTOR

040    5532120500          TUBE L=270

043    5132110500          MICROSWITCH

044    5213210841          CONTROL BOARD

048    5332218900          PUSH BUTTON

050    5132110500          MICROSWITCH

050A   5132105400          MICROSWITCH

051    VT205651            FILTER

052    5513212981          FRAME

053    5232110100          BOARD FEELER

054    5232101400          WATER VOLUME METER

055    5232104600          SENSOR REED

062B   7332203600          COMPLETE GRINDER

063    5313217751          O-RING

064    7313213901          GENERATOR

065    5332213000          PIN

066    5332144900          GASKET

067    5332139200          FILTER

068B   7332167200          TRANSMISSION KIT

069    5332148400          VALVE

070    6132106900          SPRING

071    5332142300          BUSH

072    5332142400          BUSH

073    5332170600          BELT

                                          - Pag. 2/4 -
                    DE'LONGHI EU - (EST) ESAM4500.S 0132215052
Pos.   Spare part code     Description


074    5332149100          O-RING

075    6132103500          SPRING

076    5332139800          LEVER

077    7332222900          INFUSOR KIT

078    9812631250          SCREW

079    6032105300          DIFFUSER

080    5332149100          O-RING

081    5332139600          STOPPER

082    5332139500          VALVE

083    6132112200          SPRING

084    5332140300          PISTON

088B   5232110200          BOARD

089    5332203400          COVER

090    534848              SUPPORT

091    7332166600          SLIDER

092    5232105000          TCO

094    5213210181          SOLENOID VALVE

095    5532133400          HEATING Element

096    5332195000          GLASS

097    5932124600          FRONT PANEL

099    5332194900          COVER

100    5332195300          KEYBOARD

105    5313217701          O-RING

106    5332219000          PUSH BUTTON

107    7313210921          COVER

108    5532134000          TANK

109    5332202900          SUPPORT

110    5213210171          SOLENOID VALVE

                                         - Pag. 3/4 -
                         DE'LONGHI EU - (EST) ESAM4500.S 0132215052
Pos.      Spare part code               Description


111       5532133900                    COUPLING

112       5532124900                    PIPETTE

Spare parts list extract from the site on 27-07-2010


                                                       - Pag. 4/4 -
