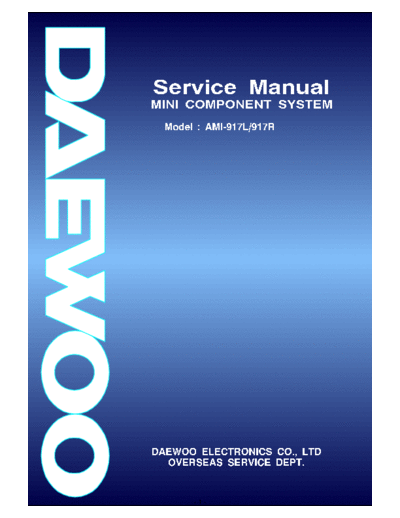

Image preview - the first page of the document
ami-917


>> Download ami-917 documenatation <<

Text preview - extract from the document
                                   FIGURE 1
                      EXAMPLE OF ANTENNA GROUNDING
                              AS PER NATIONAL
                              ELECTRICAL CODE



                                                      ANTENNA
                                                      LEAD IN
                                                      WIRE

                                GROUND
                                CLAMP
PORTABLE
  CART                                                ANTENNA
                                                      DISCHARGE UNIT
WARNING                                               (NEC SECTION 810-20)

                 ELECTRIC
                 SERVICE
                 EQUIPMENT
                                                     GROUNDING CONDUCTORS
                                                     (NEC SECTION 810-21)
                                              GROUND CLAMPS
                                            POWER SERVICE GROUNDING
                                            ELECTRODE SYSTEM
                                            (NEC ART 250, PART H)
           NEC : NATIONAL ELECTRICAL CODE



FIGURE 2
       FM RF SSG                 FM Antenna
                               Terminal(75 ohm)
                   75 ohm Coaxal

                                         SET

    Carrier Frequency : 98MHz
    Output Level : 26dBuV
    Modulation:Audio 1kHZ, 75kHz Deviation




RF Signal Waveform
                                                  VOLT/DIV : 200mV
                                                   TIME/DIV : 50ns




                                               Level : 1.2+0.3Vp-p




Traverse Waveform


                                                                A

  0V

                                                                B
                                                  Output Level
                                                  Measurement                              Input Point
                                                     Point                                                               Scope

                                                     R-CH                        47 kohm

                                                                                               VTVM
                                        Input Level
                                        Measurement
                                        Point

                                                      L-CH                       47 kohm




                                                                                                                 Adjust with Frequency
                                                                                                                  Counter Connected
    Test Tape : MTT-111N(3kHz)                        Frequency Counter
                MTT-5511(Blank)

                                  Set

                                               Output Level
                                               Measurement Point
                                                                                                               Forward          Reverse
                                                                                                                 Side            Side




                                                                                                   Test Tape
                                                                                                   MTT-114N
                                                                                                    (10kHz)
 L-CH                                                                                                             L-CH                 Oscilloscope
 Peak


                                                                                                                  Set                     V    H
                                    within
                   Output Level




                                     1 dB
                                                                    within
                                                                     1 dB
         R-CH                                                                                                                  Output Level
         Peak                                                                                                                  Measurement Point
Screw
Angle
                                                                                                                    Screen Pattern



                                        L-CH      R-CH             Screw Angle                           In Phase 45      90      135 180
                                        Peak      Peak
                                                                                                               Good                 Wrong
 2. EXPLODED VIEW AND MECHANICAL PARTS LIST

u AMI - 917L / 917R




                                          -6-
No.          Parts Name     Parts Code           Description          Q'ty
      WINDOW DOOR A/B       9CD1613900   ACRYL                         1
1
      WINDOW DOOR A/B       9CD1614000   ACRYL                         1
      COVER DOOR A/B        9CD0410200   MIPS                          1
2
      COVER DOOR A/B        9CD0410300   MIPS                          1
      DOOR FRAME A/B        9CD1809400   ABS                           1
3
      DOOR FRAME A/B        9CD1809500   ABS                           1
4     SPRING DOOR EJECT L   9CD30078L0   SUS D0.8                      1
5     SPRING DOOR EJECT R   9CD30078R0   SUS D0.8                      1
6     KNOB VOLUME           9CD1334400   ABS                           1
7     KNOB EQ               9CD1334600   ABS                           1
8     KNOB OPEN             9CD1335900   ABS                           1
9     KNOB FUNCTION         9CD1334300   ACRYL CLEAR                   4
10    KNOB MODE             9CD1334900   ABS                           1
11    KNOB SUPER            9CD1334500   ABS                           1
12    KNOB DISC             9CD1334200   ACRYL MILKY                   1
13    KNOB REC              9CD1334700   ABS                           1
14    WINDOW FLT            9CD1613700   ACRYL                         1
15    BRKT.SIDE             9CD2412900   ABS 1.5GR                     2
16    DECO VR               9CD1002400   MIPS                          1
17    COVER LED             9CD0409700   MIPS WHITE                    1
18    WINDOW DECO           9CD1613800   ACRYL SMOG                    1
      GUIDE FLT             9CD2505900   AMI-317L,AMI-717L             -
19
      GUIDE FLT             9CD2505600   AMI-817L,AMI-917L             1
20    PANEL FRONT           9CD0305900   MIPS                          1
21    DAMPER ASSY           9CDM029800   ABS/ACETAL                    2
22    LOCKER ASSY           9CDM029900   ABS/ACETAL                    2
      CASS.DECK(A/S)        9CD6007000   S/S ADR-2138MW                1
23
      CASS.DECK(A/S)        9CD6006800   S/S ADR-2136SW                -
24    HOLDER PCB DECK       9CD2303600   MIPS 16.5GR(AMI-917L)         2
25    CD DECK MECHA.        9CD6006900   DCC-01B                       1
26    HEAT SINK             9CD4402800   BSP 0.5T                      1
27    DOOR CD               9CD1809300   MIPS                          1
      CHASSIS BOTTOM        9CD0607100   AMI-717L,AMI-817L,AMI-917L    1
28
      CHASSIS BOTTOM        9CD0607500   AMI-317L                      -
      HEAT SINK 1           9CD4404500   AL                            -
      HEAT SINK 3           9CD4404600   AL                            -
29
      HEAT SINK 5           9CD4404700   AL                            -
      HEAT SINK 7           9CD4404300   AL                            1
30    HEAT SINK P           9CD4404200   AL T2.0                       1
31    CUSHION FOOT          9CD4207700   URETHAN FOAM RUBBER           2
      COVER BACK            9CD0409801   MIPS                          -
32    COVER BACK            9CD0409803   MIPS                          -
      COVER BACK            9CD0409804   MIPS                          1
33    WINDOW TOP            9CD1612900   ACRYL SMOG                    1
      COVER TOP             9CD0409600   MIPS                          -
34
      COVER TOP             9CD0409100   MIPS
35    COVER SIDE L          9CD0409200   MIPS                           1
36    COVER SIDE R          9CD0409300   MIPS                           1
37    DECO TOP              9CD1002200   ACRYL CLEAR                    1
38    BRKT.PCB A            9CD2413100   SECC 1.0T                      1
39    FILTER LED            9CD4700700   PC 0.15T                       1
40    PLATE FLT             9CD0909800   PVC SHEET T1.0                 -
41    PLATE FUNCTION        9CD0910000   PVC SHEET T0.5                 1
42    BADGE DAEWOO          9CD1500900   ABS HOT STAMPING               1
43    BRKT.HEAT TR.         9CD2413900   SUS T0.4                       -
44    HOLDER AC CORD        9CD2303300   ABS 4.0GR                      1
      PCB MAIN              9CD6574900   AMI-917L                       1
P1    PCB MAIN              9CD6575200   AMI-317L                       -
      PCB MAIN              9CD6575300   AMI-717,817L                   -
P2    PCB POWER             9CD6575000   AMI-917L                       1
      PCB FRONT             9CD6575100   AMI-917L                       1
P3    PCB FRONT             9CD6575600   AMI-817L                       -
      PCB FRONT             9CD6575900   AMI-317,717L                   -
P4    PCB CD                9CD6574800   AMI-317,717,817,917L           1
P5    PCB DECK              9CD6573400   AMI-917L                       1
P6    PCB LED               9CD6574801   AMI-817L,AMI-917L              1
S1    SCREW TAPTTITE        7173261011   TT2 BIN 2.6X10 MFZN           18
S2    SCREW TAPTTITE        7173301012   TT2 BIN 3.0X10 BK             38
S3    SCREW TAPTTITE        7173301212   TT2 BIN 3.0X12 BK              9
S4    SCREW TAPTTITE        7173400611   TT2 BIN 4X6 MFZN               6
S5    SCREW TAPTTITE        7173300611   TT2 BIN 3X6 MFZN               2
W1    WASHER SCREW          9CD3102400   TT2 BIN 3X10 + D14             1
 3. WIRING DIAGRAM

u AMI - 917L / 917R




                      -8-
 4. BLOCK DIAGRAM

u AMI - 917L / 917R




                      -9-
 5. SCHEMATIC DIAGRAM

u POWER / AMP
  w AMI - 917L / 917R MAIN




                             - 10 -
u POWER / AMP
  w AMI - 917L / 917R POWER




                              - 11 -
u CD
  w AMI - 917L / 917R




                        - 12 -
u TUNER
  w AMI - 917L / 917R




                        - 13 -
u TUNER-FTZ (OPTIONAL)
  w AMI - 917L / 917R




                         - 14 -
u TAPE
  w AMI - 917L / 917R




                        - 15 -
u CONTROL
  w AMI - 917L / 917R




                        - 16 -
                                                                          Q'ty
No        Par ts Name   Parts Code                 Description         917 917                     Location
                                                                       LS    LSR
1    AM RF UNIT         5LR0000826      RBW07VB-K5020                   1      1   L101
2    ANT AM LOOP        5LA180K828      LOOP-7                          1      1   AT101
3    ANTENNA FM         9736806000      2M T-ANT                        1      1   AT102
4    C CERA             CCXB1H101K      50V B 100PF K (TAPPING)         1      1   CC203
5    C CERA             CCXB1H102K      50V B 1000PF K (TAPPING)        3      3   CC001   CC253    CC254
6    C CERA             CCXB1H122K      50V B 1200PF K (TAPPING)        1      1   CC361
7    C CERA             CCXB1H182K      50V B 1800PF K (TAPPING)        4      4   CC801   CC802    CC861     CC862
                                                                                   CC481   CC482    CC711     CC805    CC806
8    C CERA             CCX B1H221K 50V B 220PF K (TAPPING)             7    7
                                                                                   CC865   CC866
 9   C   CERA                           50V   B   2200PF K (TAPPING)    2    2     CC352   CC357
10   C   CERA           CCX   B1H331K   50V   B   330PF K (TAPPING)          1     CC270
11   C   CERA           CCX   B1H472K   50V   B   4700PF K (TAPPING)    3    3     CC213   CC364    CC811
12   C   CERA           CCX   B1H561K   50V   B   560PF K (TAPPING)     2    2     CC210   CC211
13   C   CERA           CCX   B1H562K   50V   B   5600PF K (TAPPING)    3    3     CC358   CC449    CC450
14   C   CERA           CCX   B1H682K   50V   B   6800PF K (TAPPING)    1    1     CC204
                                                                                   CC002 CC004      CC102     CC201    CC205
                                                                                   CC206 CC207      CC209     CC252    CC257
                                                                                   [CC275] CC501     CC502     CC503    CC50
15   C CERA             CCX F1H 103Z 50V F 0.01MF Z (TAPPING)          25    26
                                                                                   CC515 CC521      CC529     CC535    CC536
                                                                                   CC903 CC904      CC905     CC906    CC911
                                                                                   CC912

                                                                                   CC005   CC006    CC101     CC103    CC202
                                                                                   CC251   CC353    CC355     CC356    CC359
                                                                                   CC360   CC362    CC363     CC365    CC366
                                                                                   CC409   CC463    CC464     CC504    CC505
16   C CERA             CCX F1H 104Z 50V F 0.1MF Z                     44    44
                                                                                   CC506   CC511    CC512     CC513    CC526
                                                                                   CC527   CC537    CC544     CC703    CC705
                                                                                   CC708   CC712    CC716     CC721    CC723
                                                                                   CC727   CC804    CC8

                                                                                   CC403   CC701    CC704     CC707    CC709
17   C CERA             CCX F1H 223Z 50V F 0.022MF Z (TAPPING)         12    12    CC715   CC722    CC803     CC863    CC923
                                                                                   CC925   CC941
18   C CERA             CCX F1H 333Z 50V F 0.033MF Z (TAPPING)          1    1     CC812
                                                                                   CC212   CC351    CC354     CC461    CC462
19   C CERA             CCX F1H 473Z 50V F 0.047MF Z (TAPPING)         10    10
                                                                                   CC509   CC522    CC528     CC901    CC902
20   C   CERA           CCZB1E102K      25V B 1000PF K (AXIAL)          3    3     CC520   CC533    CC534
21   C   CERA           CCZB1E151K      25V B 150PF K (AXIAL)           2    2     CC531   CC532
22   C   CERA           CCZB1E152K      25V B 1500PF K (AXIAL)          1    1     CC523
23   C   CERA           CCZB1E222K      25V B 2200PF K (AXIAL)          2    2     CC510   CC516
24   C   CERA           CCZB1E391K      25V B 390PF K (AXIAL)           1    1     CC508
25   C   CERA           CCZB1E472K      25V B 4700PF K (AXIAL)          3    3     CC518   CC542    CC543
26   C   CERA           CCZB1E682K      25V B 6800PF K (AXIAL)          1    1     CC514
27   C   CERA           CCZB1H102K      50V B 1000PF K                  4    4     CC601   CC602    CC603     CC604
28   C   CERA           CCZB1H121K      50V B 120PF K                   2    2     CC613   CC614
29   C   CERA           CCZB1H223K      HIBK 50V 0.022MF K AXL 52       1    1     CC609
30   C   CERA           CCZB1H821K      50V B 820PF K                   4    4     CC605   CC606    CC607     CC608
31   C   CERA           CCZF1H473Z      50V F 0.047MF Z                 1    1     CC631
                                                                                   CC367   CC401    CC402     CC404    CC405
32   C CERA             CXCH1H101J 50V CH 100PF J (TAPPING)            13    13    CC483   CC484    CC710     CC719    CC720
                                                                                   CC724   CC725    CC726
33   C   CERA           CXCH1H120J      50V CH 12PF J (TAPPING)         1    1     CC104
34   C   CERA           CXCH1H150J      50V CH 15PF J (TAPPING)         1    1     CC717
35   C   CERA           CXCH1H180J      50V CH 18PF J (TAPPING)         1    1     CC718
36   C   CERA           CXCH1H220J      50V CH 22PF J (TAPPING)         2    2     CC465   CC466
37   C   CERA           CXCH1H330J      50V CH 33PF J (TAPPING)         5    5     CC255   CC256    CC706     CC713    CC714
38   C   CERA           CXCH1H470J      50V CH 47PF J (TAPPING)              1     CC277
39   C   CERA           CXCH1H509K      CH 50V 5PF K AXL 52MM           4    4     CC807   CC808    CC867     CC868
40   C   CERA           CXCH1H820J      50V CH 82PF J (TAPPING)              1     CC276
41   C   CERA           CZCH1E609K      CH 25V 6PF K AXIAL              1    1     CC519
42   C   CERA           CZCH1E809K      CH 25V 8PF K AXL 52MM           1    1     CC517
43   C   CERA           CZCH1H270J      CH 50V 27PF J AXL 52MM          2    2     CC524   CC525
44   C   CERA           CZCH1H470J      CH 50V 47PF J AX                2    2     CC611   CC612
45   C   ELECTRO        CEXE1C102A      16V RS 1000MF 13X20             1    1     CE515
46   C   ELECTRO        CEXF1A102V      10V RSS 1000MF (10X16) TP       1    1     CE706
47   C   ELECTRO        CEXF1C221V      16V RSS 220MF (8X11.5) TP       5    5     CE507   CE511    CE512    CE513     CE517
                                                                                   CE201   CE214    CE251    CE356     CE506
48   C ELECTRO          CEXF1E101V      25V RSS 100MF (6.3X11) TP      13    13    CE508   CE509    CE510    CE514     CE516
                                                                                   CE524   CE602    CE707
49   C ELECTRO          CEXF1E221V      25V RSS 220MF (8X11.5) TP       5    5     CE102   CE213    CE417    CE463     CE464
50   C ELECTRO          CEXF1E222V      25V RSS 2200MF (16X25) TP       1    1     CE901
                                                                                   CE001   CE203 [CE272]     CE355     CE443
                                                                                   CE444   CE451 CE452       CE518     CE523
51   C ELECTRO          CEXF1E470V      25V RSS 47MF (5X11) TP         21    22    CE601   CE603 CE604       CE631     CE632
                                                                                   CE863   CE864 CE903       CE904     CE905
                                                                                   CE906   CE941
                                                                                   CE206   CE351    CE352    CE411     CE412
                                                                                   CE413   CE414    CE418    CE501     CE504
                                                                                   CE605   CE606    CE607    CE608     CE615
52   C ELECTRO          CEXF1H100V      50V RSS 10MF (5X11) TP         26    26
                                                                                   CE616   CE617    CE618    CE619     CE708
                                                                                   CE807   CE808    CE809    CE867     CE868
                                                                                   CE869
                                                                                   CE810   CE811    CE813    CE815     CE870
53   C ELECTRO          CEXF1H101V      50V RSS 100MF (8X11.5) TP       8    8
                                                                                   CE871   CE921    CE922
                                                                           Q'ty
No         Par ts Name     Parts Code               Description         917 917                     Location
                                                                        LS    LSR
54    C ELECTRO            CEXF1H108V      50V RSS 0.1MF (5X11) TP       3      3   CE613   CE614    CE620
                                                                                    CE205   CE207    CE208    CE209    CE210
55    C ELECTRO            CEXF1H109V      50V RSS 1MF (5X11) TP        11    11    CE211   CE461    CE462    CE609    CE610
                                                                                    CE709
56    C ELECTRO            CEXF1H220V      50V RSS 22MF (5X11) TP        3    3     CE204   CE803    CE804
57    C ELECTRO            CEXF1H228V      50V RSS 0.22MF (5X11) TP      1    1     CE212
                                                                                    CE101   CE401    CE402    CE403    CE404
                                                                                    CE405   CE406    CE407    CE408    CE415
58    C ELECTRO            CEXF1H229V      50V RSS 2.2MF (5X11) TP      20    20
                                                                                    CE416   CE481    CE482    CE621    CE701
                                                                                    CE702   CE801    CE802    CE861    CE862
59    C ELECTRO            CEXF1H330V      50V RSS 33MF (6.3X11) TP      1    1     CE471
60    C ELECTRO            CEXF1H339V      50V RSS 3.3MF (5X11) TP       3    4     CE202   [CE273] CE453 CE454
                                                                                    CE805   CE806 CE865 CE866 CE873
61    C ELECTRO            CEXF1H470V      50V RSS 47MF (6.3X11) TP      7    7
                                                                                    CE923   CE924
62    C ELECTRO            CEXF1H478V      50V RSS 0.47MF (5X11) TP      3    3     CE502   CE503 CE505
                                                                                    CE353   CE354 CE519 CE520 CE521
63    C ELECTRO            CEXF1H479V      50V RSS 4.7MF (5X11) TP       8    8
                                                                                    CE522   CE611 CE612
64    C   ELECTRO          CEYF1E471V      25V   RSS 470MF (10X16)       1    1     CE902
65    C   ELECTRO          CEYF1H332V      50V   RSS 3300MF              2    2     CE821   CE822
66    C   ELECTRO          CEYF1V222V      35V   RSS 2200MF (16X31.5)    2    2     CE881   CE882
67    C   MYLAR            CMXM1H102J      50V   0.001MF J (TP)          4    4     CM611   CM612     CM613    CM614
                                                                                    CM202   CM203     CM204    CM205     CM607
68    C MYLAR              C M X M 1 H 1 0 3 J 50V 0.01MF J (TP)        10    10
                                                                                    CM608   CM901     CM902    CM905     CM906
                                                                                    CM405    CM406    CM407    CM408     CM411
69    C MYLAR              C M X M 1H 104J 50V 0.1MF J                  14    14    CM412    CM413    CM414    CM801     CM802
                                                                                    CM861    CM862    CM903    CM907
70    C MYLAR              CM X M 1H 122J 50V 0.0012MF J                 2    2     CM505    CM506
71    C MYLAR              CMXM1H152K 50V 1500 PF K                      2    2     CM605    CM606
72    C MYLAR              C M X M 1 H 1 5 3 J 50V 0.015MF J (TP)        1    1     CM201
                                                                                    CM401    CM402    CM503    CM600     CM603
73    C MYLAR              CM X M 1H 183J 50V 0.018MF J                  6    6
                                                                                    CM604
74    C MYLAR              CMXM1H223J      50V 0.022MF J                 3    3     CM403    CM404    CM617
75    C MYLAR              CMXM1H273J      50V 0.027 MF J                4    4     CM447    CM448    CM601    CM602
76    C MYLAR              CMXM1H332J      50V 3300 PF J                 2    2     CM615    CM616
77    C MYLAR              CMXM1H333J      50V 0.033MF J (TP)            2    2     CM501    CM504
78    C MYLAR              CMXM1H392J      50V 0.0039MF J                1    1     CM618
79    C MYLAR              CMXM1H562J      50V 5600 PF J                 4    4     CM206   CM207     CM409    CM410
80    C MYLAR              CMXM1H563J      50V 0.056MF J                 4    4     CM443   CM444     CM445    CM446
81    C MYLAR              CMXM1H683J      50V 0.068 MF J                3    3     CM441   CM442     CM502
82    CLIP FUSE            9734600700      FC-5N                         2    2     FC901   FC902
83    COIL BIAS OSC        5L0503K643      SM-10F 5.04MH                 1    1     L603
84    COIL CHOKE           5LC333K804      33MH K                        2    2     L601    L602
85    COIL CHOKE           5LC682K822      6.8MH                         2    2     L204    L205
86    COIL DESCRIMINATOR   5107FBK473      7X7 BLK KSZ-73S               1    1     L203
87    COIL PEAKING         5CPZ100K02      10UH K (AXIAL 3.5MM)          2    2     L001    L251
88    CONN AS              9738824100      2P UL2468 400MM               1    1     CN503
89    CONN AS              9738828500      AWG26 2468 11P 100MM          1    1     CN603
90    CONN AS              9738828600      AWG26 2468 13P 100MM          1    1     CN604
91    CONN AS              9738828700      AWG28 3P SHIELD 220MM         1    1     CN601   CW601
92    CONN AS              9738828800      AWG28 7P SHIELD 100MM         1    1     CN602   CW602
93    CONN AS              9738828900      AWG28 6P 180MM                1    1     CN108   CW108
94    CONN AS              9738829100      AWG24 1007 13P 120MM          1    1     CN106   CW106
95    CONN AS              9738832100      7P 200 P=2.5 BOARDIN          1    1     CN509   CW509
96    CONN AS              9738833100      UL1007 #22 13P 300MM 2.5M     1    1     CN801   CW801
97    CONN AS              9738840800      FFC 16P P1.0X250MM R          1    1     CN501
98    CONN AS              9738840900      FFC 19P P1.25X110MM K         1    1     CN508
99    CONN CARD CABLE      9738833200      FLEX 28P P=1.25 150MM         1    1     CN401
100   CONN PIN             9736407800      53095-1010 10PIN ANGLE        2    2     CN401   CN402
101   CONN WAFER           9736407900      52084-1010 10P BOTTOM         2    2     CW401   CW402
102   CONN WAFER           9736408000      52492-2820 28P BOTTOM         1    1     CW101
103   CONN WAFER           9736408100      52044-2845 SIDE ENTRY         1    1     CW605
104   CONN WAFER           9736408300      52492-1920 19P BOTTOM         1    1     CW702
105   CONN WAFER           9736408400      52045-1945 19P                1    1     CW508
106   CONN WAFER           9CD6258800      2P S2B-XH-A                   1    1     CW101
107   CONN WAFER           9CD6259300      52807-1610                    1    1     CW501
108   CONN WAFER           9CD6259400      2001-WS-12P                   1    1     CW507
109   CONN WAFER           9CD6259500      2001-WS-6P                    1    1     CW503
110   CONN WAFER           9CD6259600      2503-WS-2P                    1    1     CW502
111   CORD AC              9736900200      KKP419C,KLCE-2F,0.75SQURE     1    1     AC901
112   CRYSTAL QUARTZ       5XA32R768-      DT-38 32.768KHZ 20PPM         1    1     XC702
                                                                                    D801    D802     D861    D862     D921
113 DIODE                   D1N4001-       1N4001                        6    6
                                                                                    D922
                                                                                    D811    D812     D813    D814     D871
114 DIODE                   D1N5402-       1N5402                        8    8
                                                                                    D872    D873     D874
115 DIODE                   DRL202--       RL202                         4    4     D901    D902     D903    D904
                                                                                    D201    D401     D402    D403     D404
                                                                                    D501    D502     D601    D602     D603
                                                                                    D604    D605     D606    D607     D608
116 DIODE                   DZN4148-       1N4148 AUTO 52MM             27    27
                                                                                    D609    D610     D705    D706     D707
                                                                                    D803    D804     D805    D806     D905
                                                                                    D906    D907
117 DIODE ZENER             DZTZ12B-       MTZ 12V 26MM TAPPING          1    1     DZ941
                                                                         Q'ty
No         Par ts Name    Parts Code               Description        917 917                   Location
                                                                      LS    LSR
118   DIODE ZENER           DZTZ30B-      MTZ30B                       1      1   DZ931
119   DIODE ZENER         DZTZ3R9B--      MTZ3.9B                      1      1   DZ502
120   DIODE ZENER         DZTZ5R6B--      UZ-5.6B                      3      3   DZ501 DZ503 DZ504
121   DIODE ZENER         DZTZ6R2B--      MTZ6.2B                      1      1   DZ932
122   FILTER              5PPCFAZ077      PCFAZ077                     1      1   CF201
123   FILTER CERA         5PE107MJA-      SFE 10.7MHZ RED              1      1   CF002
124   FILTER CERA         5PE107MS2A      SFE107MS2-A                  1      1   CF001
125   FUSE                5F1CM1031M      UL/CSA 3.1X5.54MM 10A 60V    2      2   F903  F904
126   FUSE GLASS TUBE     5FSGB1622L      SEMKO TL 1.6A 250V MF51      1      1   F901
127   IC                  1BA1450S--      BA1450S                      1      1   IC201
128   IC                  1BA4560N--      BA4560N(H/P AMP)             1      1   IC404
129   IC                  1BU4094BCF      BU4094BCF(SOP16)             2      2   IC706 IC707
130   IC                  1DBL2084--      DBL2084(D/W)                 2      2   IC504 IC506
131   IC                    1L4959--      L4959                        1      1   IC901
132   IC                  1LC72130--      LC72130                      1      1   IC202
133   IC                    1M24C04-      M24C04-BN6                   1      1   IC701
134   IC                  1M51167BFP      M51167BFP (SOP36S)           1      1   IC601
135   IC                  1M65849BFP      M65849BFP(DIP32)             1      1   IC351
136   IC                  1MC4558D--      MC4558D                      2      2   IC402 IC403
137   IC                    1MC7805-      MC 7805 (KA7805)             1      1   IC205
138   IC                  1MSGEQ5A--      MSGEQ5A                      1      1   IC702
139   IC                  1STK41322-      STK-4132-2                   1      1   IC802
140   IC                  1STK41622-      STK4162-2                    1      1   IC801
141   IC                  1TDA7479D-      TDA7479D                            1   IC204
142   IC                  1UPC1330HA      UPC1330HA                    1      1   IC602
143   IC AUDIO              1KA9270-      KA9270                       1      1   IC505
144   IC AUDIO            1TDA7439--      TDA7439                      1      1   IC401
145   IC AUDIO DSP        1KA9282B--      KA9282B                      1      1   IC502
146   IC CHIP             1KA9258D--      KA9258D                      1      1   IC503
147   IC CHIP RF          1KA9220B--      KA9220B                      1      1   IC501
148   IC MICOM            1M38199917      M38199917                    1      1   IC705
149   IC PORT             1BU4094BC-      BU4094BC                     1      1   IC603
150   IC PRE AMP          1TM97CT38P      LTM97CT-38P                  1      1   IC704
151   JACK ANT             9736321900     PAT645                       1      1   J001
152   JACK HEADPHONE       9766319501     HTJ-064-05B GOLD             1      1   J402
153   JACK PIN             9736322600     HSP-242VS-01                 1      1   J802
154   JACK RCA            9CD6313700      S-436P                       1      1   J401
155   JACK SPEAKER         9736320500     CJ-9007-040                  1      1   J801
156   LED                 DLTL16KEE-      LTL- 16KEE(RED)PI3.1         4      4   LD703 LD706 LD709 LD712
                                                                                  LD701 LD702 LD704 LD705 LD707
157 LED                   DLTL16KGE-      LTL- 16KGE(GREEN)PI3.1       8    8
                                                                                  LD708 LD710 LD711
158   LED                 DLTL307EE-      LTL-307EE(RED)PI5            1    2     [LD716] LD717
159   LED                 DLTL307GE-      LTL-307GE(GREEN)PI5          3    3     LD713 LD714 LD715
160   LED                 DLTL87HEE-      LTL-87HEE(RED)PI3            2    2     LD510 LD512
161   LED                 DLTL87HGE-      LTL-87HGE(GREEN)PI3          2    2     LD511 LD513
162   PIN WRAPPING        9713550400      1.0X2.5X15                   4    4     TP501 TP502 TP503 TP504
163   PIN WRAPPING        9716404000      MFZN1.1X1.1 PANASERT         5    5     TP601 TP602 TP603 TP901 TP902
164   R CARBON FILM       RD-2Y229J-      1/2 2.2 OHM J                1    1     R550
165   R CARBON FILM       RD-4Z100J-      1/4 10 OHM J                 2    2     R588  R589
166   R CARBON FILM       RD-4Z101J-      1/4 100 OHM J                4    4     R815  R820  R875  R880
                                                                                  R828  R829  R830  R831  R832
167 R CARBON FILM         RD-4Z103J-      1/4 10K OHM J                6    6
                                                                                  R898
168 R CARBON FILM         RD-4Z124J-      1/4 120K OHM J               2    2     R825  R891
169 R CARBON FILM         RD-4Z221J-      1/4 220 OHM J                1    1     R435
                                                                                  R809   R810   R816   R817   R818
170 R CARBON FILM         RD-4Z222J-      1/4 2.2K OHM J              11    11    R819   R870   R876   R877   R878
                                                                                  R879
171 R CARBON FILM         RD-4Z393J-      1/4 39K OHM J                2    2     R827   R893
                                                                                  R811   R812   R813   R814   R871
172 R CARBON FILM         RD-4Z472J-      1/4 4.7K OHM J               8    8
                                                                                  R872   R873   R874
173   R   CARBON   FILM   RD-   4Z475J-   1/4   4.7M OHM J             1    1     R947
174   R   CARBON   FILM   RD-   4Z562J-   1/4   5.6K OHM J             3    3     R894   R895   R896
175   R   CARBON   FILM   RD-   4Z563J-   1/4   56K OHM J              4    4     R805   R806   R865   R866
176   R   CARBON   FILM   RD-   4Z683J-   1/4   68K OHM J              2    2     R826   R892
177   R   CARBON   FILM   RD-   4Z689J-   1/4   6.8 OHM J              4    4     R821   R822   R823   R824
                                                                                  R004   R009   R206   R255   R545
178 R CARBON FILM         RD-AZ100J-      1/6 10 OHM J                 8    8
                                                                                  R720   R908   R921
                                                                                  R008   R102   R227   R228   R301
                                                                                  R304   R313   R445   R446   R459
179 R CARBON FILM         RD-AZ101J-      1/6 100 OHM J               18    18
                                                                                  R460   R546   R643   R671   R719
                                                                                  R724   R728   R730

                                                                                  R208   R215   R216   R251   R256
                                                                                  R260   R261   R262   R263   R351
                                                                                  R352   R409   R410   R423   R424
                                                                                  R431   R432   R436   R437   R443
                                                                                  R444   R457   R458   R483   R484
                                                                                  R489   R490   R495   R496   R511
180       R CARBON FILM   RD-AZ102J-               1/6 1K OHM J       63    63    R521   R522   R563   R564   R580
                                                                                  R607   R608   R611   R612   R625
                                                                                  R626   R645   R646   R647   R651
                                                                                  R652   R655   R658   R672   R673
                                                                                  R674   R681   R683   R685   R725
                                                                                  R727   R734   R736   R737   R739
                                                                                  R740   R922   R944
                                                                       Q'ty
No         Par ts Name    Parts Code                  Description   917 917                   Location
                                                                    LS    LSR

                                                                                L208   R213   R214   R254   R257
                                                                                R258   R359   R361   R362   R451
                                                                                R452   R467   R468   R579   R615
                                                                                R616   R633   R634   R659   R675
                                                                                R676   R677   R691   R692   R693
181 R CARBON FILM         RD-AZ103J-         1/6 10K OHM J          47
                                                                                R694   R695   R696   R705   R710
                                                                                R721   R722   R732   R735   R738
                                                                                R755   R756   R758   R760   R776
                                                                                R777   R786   R846   R901   R903
                                                                                R905   R923

                                                                                L208   R213   R214   R254   R257
                                                                                R258   R276   R277   R359   R361
                                                                                R362   R451   R452   R467   R468
                                                                                R579   R615   R616   R633   R634
                                                                                R659   R675   R676   R677   R691
182 R CARBON FILM         RD-AZ103J-         1/6 10K OHM J          49
                                                                                R692   R693   R694   R695   R696
                                                                                R705   R710   R721   R722   R732
                                                                                R735   R738   R755   R756   R758
                                                                                R760   R776   R777   R786   R846
                                                                                R901   R903   R905   R923


                                                                                R109   R353   R354   R360   R421
                                                                                R422   R425   R426   R433   R434
                                                                                R439   R440   R453   R454   R455
                                                                                R456   R465   R466   R471   R472
183 R CARBON FILM         RD-AZ104J-         1/6 100K OHM J         39    39
                                                                                R473   R474   R502   R510   R518
                                                                                R519   R548   R549   R567   R568
                                                                                R584   R585   R613   R614   R635
                                                                                R639   R690   R762   R764

184   R   CARBON   FILM   RD-   AZ   105J-   1/6   1M OHM J          5    5     R505   R508   R559   R560   R641
185   R   CARBON   FILM   RD-   AZ   106J-   1/6   10M OHM J         1    1     R717
186   R   CARBON   FILM   RD-   AZ   109J-   1/6   1 OHM J           2    2     R939   R940
187   R   CARBON   FILM   RD-   AZ   121J-   1/6   120 OHM J         1    1     R551
188   R   CARBON   FILM   RD-   AZ   122J-   1/6   1.2K OHM J        3    2     [R753]   R833   R834
                                                                                R259   R509   R523   R531   R532
189 R CARBON FILM         RD-AZ123J-         1/6 12K OHM J          14    14    R533   R538   R539   R557   R558
                                                                                R619   R620   R621   R622
190 R CARBON FILM         RD-AZ124J-         1/6 120K OHM J          1    1     R513
191 R CARBON FILM         RD-AZ151J-         1/6 150 OHM J           2    2     R302   R305
                                                                                R322   R609   R610   R778   R779
192 R CARBON FILM         RD-AZ152J-         1/6 1.5K OHM J         10    10
                                                                                R780   R801   R802   R861   R862
                                                                                R403   R404   R515   R553   R554
193 R CARBON FILM         RD-AZ153J-         1/6 15K OHM J           7    7
                                                                                R653   R654
194 R CARBON FILM         RD-AZ154J-         1/6 150K OHM J          2    2     R503   R525
195 R CARBON FILM         RD-AZ181J-         1/6 180 OHM J           2    2     R303   R306
196 R CARBON FILM         RD-AZ182J-         1/6 1.8K OHM J          5    5     R413   R414   R475   R476   R741
                                                                                R201   R203   R449   R450   R487
197 R CARBON FILM         RD-AZ183J-         1/6 18K OHM J           7    7
                                                                                R488   R526
198 R CARBON FILM         RD-AZ184J-         1/6 180K OHM J          2    2     R504   R723
                                                                                R481   R482   R491   R492   R493
199 R CARBON FILM         RD-AZ220J-         1/6 22 OHM J            7    7
                                                                                R494   R534
200 R CARBON FILM         RD-AZ221J-         1/6 220 OHM J           4    4     R438   R552   R933   R934
                                                                                R211   R212   R253   R264   R405
                                                                                R406   R407   R408   R441   R442
201 R CARBON FILM         RD-AZ222J-         1/6 2.2K OHM J         23    23    R463   R464   R477   R478   R479
                                                                                R480   R581   R682   R684   R686
                                                                                R729   R869   R942
                                                                                R107    R358  R411   R412   R528
202 R CARBON FILM         RD-AZ223J-         1/6 22K OHM J           7    8
                                                                                R530   [R753] R904
203 R CARBON FILM         RD-AZ224J-         1/6 220K OHM J          1    1     R726
                                                                                R307   R316   R769   R771   R773
204 R CARBON FILM         RD-AZ271J-         1/6 270 OHM J           6    6
                                                                                R775
                                                                                R222   R223   R323   R427   R428
205 R CARBON FILM         RD-AZ272J-         1/6 2.7K OHM J          7    7
                                                                                R837   R838
                                                                                R542   R555   R556   R843   R844
206 R CARBON FILM         RD-AZ273J-         1/6 27K OHM J           6    6
                                                                                R845
207 R CARBON FILM         RD-AZ274J-         1/6 270K OHM J          4    4     R447   R448   R627   R628
208 R CARBON FILM         RD-AZ331J-         1/6 330 OHM J           5    5     R007   R308   R315   R317   R687
                                                                                R005   R106   R221   R516   R541
209 R CARBON FILM         RD-AZ332J-         1/6 3.3K OHM J          9    9
                                                                                R543   R640   R839   R840
210 R CARBON FILM         RD-AZ333J-         1/6 33K OHM J           1    1     R759
211 R CARBON FILM         RD-AZ334J-         1/6 330K OHM J          3    3     R718   R761   R763
212 R CARBON FILM         RD-AZ390J-         1/6 39 OHM J            2    2     R765   R784
                                                                                R309   R318   R768   R770   R772
213 R CARBON FILM         RD-AZ391J-         1/6 390 OHM J           6    6
                                                                                R774
214 R CARBON FILM         RD-AZ392J-         1/6 3.9K OHM J          5    5     R415   R416   R469   R470   R529
215 R CARBON FILM         RD-AZ393J-         1/6 39K OHM J           5    5     R520   R537   R572   R586   R587
216 R CARBON FILM         RD-AZ470J-         1/6 47 OHM J            4    5     R003   R209   R252   [R275]   R663
                                                                       Q'ty
No         Par ts Name   Parts Code          Description            917 917                     Location
                                                                    LS    LSR
                                                                                R310    R319    R355     R356     R941
217 R CARBON FILM        RD-AZ471J-   1/6 470 OHM J                  6    6
                                                                                R945
                                                                                R101    R103    R104     R105     R207
                                                                                R210    R547    R561     R562     R565
                                                                                R566    R573    R574     R575     R576
218 R CARBON FILM        RD-AZ472J-   1/6 4.7K OHM J                30    30
                                                                                R577    R578    R582     R583     R605
                                                                                R606    R636    R637     R638     R664
                                                                                R688    R752    R787     R909     R911
219 R CARBON FILM        RD-AZ473J-   1/6 47K OHM J                  5    5     R512    R750    R751     R902     R906
                                                                                R217    R218    R501     R540     R631
220 R CARBON FILM        RD-AZ474J-   1/6 470K OHM J                 7    7
                                                                                R632    R642
221 R CARBON FILM        RD-AZ479J-   1/6 4.7 OHM J                  1    1     R660
                                                                                R311    R320    R569     R570     R571
222 R CARBON FILM        RD-AZ561J-   1/6 560 OHM J                  6    6
                                                                                R689
                                                                                R429    R430    R527     R617     R618
223 R CARBON FILM        RD-AZ562J-   1/6 5.6K OHM J                 7    7
                                                                                R841    R842
                                                                                R485    R486    R514     R517     R644
224 R CARBON FILM        RD-AZ563J-   1/6 56K OHM J                 13    13    R649    R650    R661     R662     R803
                                                                                R804    R863    R864
225 R CARBON FILM        RD-AZ680J-   1/6 68 OHM J                   3    3     R601    R602    R656
                                                                                R006    R629    R630     [R766] R767
226 R CARBON FILM        RD-AZ681J-   1/6 680 OHM J                 11    12    R781    R782    R783      R807  R808
                                                                                R867    R868
227 R CARBON FILM        RD-AZ682J-   1/6 6.8K OHM J                 3    3     R219    R603    R604
228 R CARBON FILM        RD-AZ683J-   1/6 68K OHM J                  3    3     R707    R708    R709
                                                                                R697    R698    R881     R882     R883
229 R CARBON FILM        RD-AZ689J-   1/6 6.8 OHM J                  6    6
                                                                                R884
230   R CARBON FILM      RD-AZ820J-   1/6 82 OHM J                   1    1     R506
231   R CARBON FILM      RD-AZ821J-   1/6 820 OHM J                  2    2     R312    R321
232   R CARBON FILM      RD-AZ822J-   1/6 8.2K OHM J                 4    4     R401    R402  R507       R524
233   R CARBON FILM      RD-AZ823J-   1/6 82K OHM J                  2    2     R535    R536
234   R CEMENT           RX02L228J-   2W 0.22 OHM J                  2    2     R835    R836
235   R FUSIBLE          RF01F4780J   0.47OHM 1W                     2    2     RF901   RF902
236   R SEMI FIXED       RV1417222-   1/10 2.2K OHM B   V6EK-PV1S    1    1     RV601
237   R SEMI FIXED       RV6417223-   VM6CK-PV(1S) B    22K OHM      3    3     RV201   RV501    RV502
238   RESONATOR          5PCSA8MTZ-   CSA8MTZ, 8MHZ                  1    1     XC701
239   RESONATOR CERA     5PCSA16R93   CSA16.93MXZ04                  1    1     XC501
240   SW ENCORDER        5SH162401-   EC16B24204 24P    W/DETENT     1    1     VR702
241   SW RELAY           5SC0201103   HR-CR323 2C-1P    DC12V        1    1     RY901
                                                                                SW701   SW702    SW703     SW704        SW705
                                                                                SW706   SW707    SW708     SW709        SW710
242 SW TACT              5S50101001   KPT-1105A 1C-1P               24    24    SW711   SW712    SW713     SW714        SW715
                                                                                SW716   SW717    SW718     SW719        SW720
                                                                                SW721   SW722    SW723     SW724
243 TR                   TKRA107M-- KRA107M (KSR2006)                4    4     Q003    Q614    Q615      Q616
                                                                                Q613    Q623    Q711      Q712     Q713
244 TR                   TKRA111M-- KRA111-M TAPPING(KSR2010)        8    8
                                                                                Q714    Q715    Q942
245 TR                   TKRC107M-- KRC107-M TAPPING(KSR1006)        5    5     Q607    Q634    Q635      Q636     Q701
                                                                                Q601    Q602    Q605      Q606     Q625
246 TR                   TKRC111M-- KRC111M (KSR1010)                9    9
                                                                                Q638    Q702    Q703      Q705
247   TR                 TKSA928AY-   KSA928A-Y                      2    2     Q501    Q502
248   TR                 TKSC2331Y-   KSC2331Y                       1    1     Q503
249   TR                 TKSR1003--   KSR1003                        1    1     Q504
250   TR                 TKTB1366Y-   KTB1366Y                       1    1     Q944
251   TR                 TZRA107M--   KRA107M (KSR2006)              4    4     Q443    Q453    Q473      Q483
252   TR                 TZRC107M--   KRC107M(AUTO)                  4    4     Q716    Q804    Q901      Q941
253   TR                 TZTA1266Y-   KTA1266Y- (AUTO)(1015Y)        2    2     Q637    Q803
254   TR                 TZTA1273Y-   KTA1273Y(966Y)                 4    4     Q624    Q631    Q632      Q633
255   TR                 TZTA1274Y-   KTA1274Y-                      1    1     Q921
256   TR                 TZTC3194Y-   KTC3194Y                       1    1     Q001
                                                                                Q201    Q202    Q441      Q442     Q451
                                                                                Q452    Q461    Q462      Q471     Q472
257 TR                   TZTC3198Y-   KTC3198Y-(1815Y) (AUTO)       20    20
                                                                                Q505    Q611    Q612      Q621     Q622
                                                                                Q704    Q801    Q802      Q902     Q943
258   TR                 TZTC3205Y-   KTC3205Y (2236Y)               1    1     Q628
259   TR                 TZTD1302Y-   KTD1302Y AUTO                  2    2     Q481  Q482
260   TRANS POWER        5TP8074761   EI=74 230V 50HZ                1    1     PT901
261   TUNER PACK         9737612700   FTA3-503V                      1    1     TU001
262   VFD                DBJ638GK--   BJ638GK                        1    1     FD701
263   WIRE JUMPER        W581GY1005   AWG22 1/0.65 SN 10 AUTO        6    6     F905  F906 L801        L802      L861     L862
264   WIRE JUMPER        W581GY6095   AWG22 1/0.65 SN 6 AUTO         1    1     R002
265   X-TAL              5XA4R332M-   4.332M                         -    1     XC270
266   X-TAL              5XA7R20000   7.2M                           1    1     XC251
