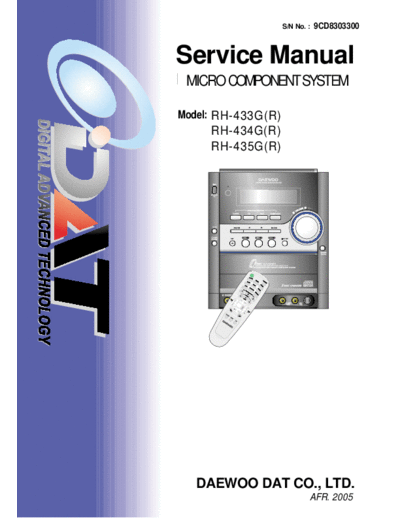

Image preview - the first page of the document
>> Download hfe_daewoo_rh-433g_434g_435g_service_en documenatation <<
Text preview - extract from the document
S/N No. : 9CD8303300
Service Manual
MICRO COMPONENT SYSTEM
Mini Component System
Model: R H - 4 3 3 G ( R )
RH-434G(R)
RH-435G(R)
DEMO
SET STOP
FCS
DAEWOO DAT CO., LTD.
AFR. 2005
FEB. 2004
MICRO COMPONENT SYSTEM
RH-433G(R)
RH-434G(R)
RH-435G(R)
Table of Contents
SAFETY PRECAUTIONS ..................................................................................... 2~3
EXPLODED VIEW AND PARTS LIST .................................................................. 4~5
WIRING DIAGRAM ................................................................................................... 6
BLOCK DIAGRAM .................................................................................................... 7
SCHEMATIC DIAGRAM ..................................................................................... 8~13
! MAIN ................................................................................................................... 8
! AMP ..................................................................................................................... 9
! MP3 CD ............................................................................................................. 10
! FRONT .............................................................................................................. 11
! POWER ............................................................................................................. 12
! JACK ................................................................................................................. 13
PCB PATTERN LAYOUT ................................................................................... 14~19
! MAIN & POWER .......................................................................................... 14/15
! MP3 CD ............................................................................................................. 16
! FRONT ......................................................................................................... 17/18
! POWER ............................................................................................................. 19
ELECTRICAL PART LIST .......................................................................... Appendix
1
Safety Precautions
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE laundry tub, in a wet basement, or near a swimming pool,
THIS APPLIANCE TO RAIN OR MOISTURE. and the like.
2. Carts and Stands - The appliance
CAUTION PORTABLE CART
should be used only with a cart or
RISK OF ELECTRIC SHOCKS stand that is recommended by th
DO NOT OPEN manufacturer.
3. An appliance and cart combination
CAUTION :TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT should be moved with care. Quick
REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS stops, excessive force, and uneven
INSIDE. surfaces may cause the appliance
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. and cart combination to overturn.
Figure 2 4. Wall or Ceiling Mounting - The appli-
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF UNINSULTED "DANGEROUS VOLTAGE" ance should be mounted to a wall or
WITHIN THE PRODUCT'S ENCLOSURE THAT MAY BE ceiling only as recommended by the manufacturer.
SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF 5. Ventilation - The appliance should be situated so that its
ELECTRIC SHOCK TO PERSONS. location or position does not interfere with its proper
ventilation. For example, the appliance should not be situated
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE on a bed, sofa, rug, or similar surface that may block the
(SERVICING) INSTRUCTIONS IN THE LITERATURE ventilation openings; or, placed in a built-in installation, such
ACCOMPANYING THE APPLIANCE. as a bookcase or cabinet that may impede the flow of air
through the ventilation openings.
CAUTION 6. Heat - The appliance should be situated away from heat
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED AC
sources such as radiators, heat registers, stoves, or other
PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE appliances (including amplifiers) that produce heat.
EXPOSURE. 7. Power Sources - The appliance should be connected to a
power supply only of the type described in the operating
LASER SAFETY instructions or as marked on the appliance.
THIS UNIT EMPLOYS A LASER. ONLY QUALIFIED SERVICE PERSONNEL
8. Grounding or Polarization - The precautions that should be
SHOULD REMOVE THE COVER OR ATTEMPT TO SERVICE THIS DEVICE
DUE TO POSSIBLE EYE INJURY. taken so that the grounding or polarization means of an
appliance is not defeated.
CAUTION : USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES 9. Power - Cord Protection - Power-supply cords should be
OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS routed so that they are not likely to be walked on or pinched
RADIATION EXPOSURE. by items placed upon or against them, paying particular
attention to cords at plugs, convenience receptacles, and the
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF
point where they exit from the appliance.
PLUG TO WIDE SLOT, FULLY INSERT.
10.Protective Attachment Plug - If the appliance is equipped with
ATTENTION : POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE an attachment plug having overload protection. This is a
LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPON- safety feature. See Instruction Manual for replacement or
DANTE DE LA PRISE ET POUSSER JUSQU'AU FOND. resetting of protective device. If replacement of the plug is
required, be sure the service technician has used a
replacement plug specified by the manufacturer that has the
Important Safety Instructions same overload protection as the original plug.
- All the safety and operating instructions should be read before 11.Cleaning - The appliance should be cleaned only as
the appliance is operated. recommended by the manufacturer.
- The safety and operating instructions should be retained for 12.Power Lines - An outdoor antenna should be located away
future reference. from power lines.
- All warnings on the appliance and in the operating instructions
should be adhered to.
- All operating and use instructions should be followed.
1. Water and Moisture - The appliance should not be used near
water - for example, near a bathtub, washbowl, kitchen sink,
2
Safety Precautions
13.Outdoor Antenna Grounding - If an outside antenna is 15.Object and Liquid Entry - Care should be taken so that objects
connected to the receiver be sure the antenna system is do not fall and liquids are not spilled into the enclosure through
grounded so as to provide some protection against voltage openings.
surges and built-up static charges. Article 810 of the National 16.Damage Requiring Service - The appliance should be
Electrical Code, ANSI/NFPA 70, provides information with serviced by qualified service personnel when:
regard to proper grounding of the mast and supporting a) The power-supply cord or the plug has been damaged; or
structure, grounding of the lead-in wire to an antenna-dis b) Objects have fallen, or liquid has been spilled into the
charge unit, size of grounding conductors,location of antenna- appliance; or
discharge unit, connection to grounding electrodes and c) The appliance has been exposed to rain; or
requirements for the grounding electrode. See Figure 1. d) The appliance does not appear to operate normally or
exhibits a marked change in performance; or
e) The appliance has been dropped, or the enclosure
EXAMPLE OF ANTENNA
GROUNDING ANTENNA LEAD
damaged.
IN WIRE
17.Servicing - The user should not attempt to service the
appliance beyond that described in the operating instructions.
GROUND CLAMP All other servicing should be referred to qualified service
ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20) personnel.
GROUNDING CONDUCTORS
ELECTRIC (NEC SECTION 810-21)
SERVICE
EQUIPMENT
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
NEC - NATIONAL ELECTRICAL CODE (NEC ART 250 PART H)
14.Non-use Periods - The power cord of the appliance should be
unplugged from the outlet when left unused for a long period
of time.
3
Exploded View and Mechanical Parts List
31
32
S5 S5
30
S5
S4 S5
S5
S4
S5 S5
26 S5
P4 33
S3 S5
S7
S5
S5
19 S5 S5
25 S7
S3
S5
S2 23
P5
S6 28
S5
15 S2
S3
S3 27
17
18
S8 S2
21 S3
24
S3 S2
14
16 17 S3
20
S4 S8
S8
13
14-1
S4
S1 S3
29
S1 S4
P1
6 S4
9
S1
10
71 S1 S4
7 22
1
4
S1 S1
1
S1 S2
S4 P3
11
10
S2
S1
8
S1
P2 S1
5
2
S4
3
12
5
4
Exploded View and Mechanical Parts List
No. Part Code Remark
1 WINDOW FLT 9CD1621900 H/MIRROR 1
2 KNOB VOLUME 9CD1352100 ABS 1 CR Coating
3 DECO VOLUME 9CD1006200 HIPS 1
4 PANEL FRONT 9CD0313200 HIPS 1
5 CUSHION FOOT 9CD4207700 URETHAN 2
6 KNOB FUNCTION 9CD1352200 HIPS 1
7 KNOB CONTROL 9CD1352300 ABS 1 CR Coating
7 KNOB DEMO 9CD1352310 HIPS 1
8 KNOB OPEN 9CD1352600 HIPS 1
9 KNOB POWER 9CD1352400 HIPS 1
10 BRACKET SIDE 9CD2416300 HIPS 2
11 DECO LIGHT 9CD1006300 ACRYL 1
12 KNOB MIC 9CD1345500 MIPS 1
13 BRACKET CD F 9CD24164F0 HIPS 1
14 BRACKET CD B 9CD24164B0 HIPS 1
14-1 BRACKET CD M 9CD24164M0 HIPS 1
15 CD DECK MECHA 9CD6012400 CMP-0629 1
16 RUBBER CD CUSHION 9CD420097B0 HIPS 1
17 RUBBER CD CUSHION 9CD420097G0 HIPS 1
18 CD DECK UNIT 9CD6006900 D-73S 1
19 DOOR CD 9CD1814700 HIPS 1
20 AC CORD STOPER 9CD5700500 66NYLON 1
21 COVER CD 9CD0416800 SECC 1.0T 1
22 CHASSIS BOTTOM 9CD0610400 SECC 1.0T 1
23 BRACKET PCB L 9CD24165L0 SECC 1.0T 1
24 BRACKET PCB R 9CD24165R0 SECC 1.0T 1
25 HEAT SINK PW 9CD4409700 AL 1
26 HEAT SINK 9CD4408700 AL 1
27 TUNER MODULE 9737652001 A'SSY 1 Option
28 COVER BACK 9CD0416700 HIPS 1
29 AC CORD 9736910900 PVC 1 Option
30 VOLT SW 5S30102377 ACRYL 1
31 FAN 9738101700 A'SSY 1 Option
32 TOP COVER 9CD0202700 HIPS 1
33 BRACKET PT 9CD2417700 SECC 1.0T 1
No. Screw Type Part Code
433 434 435
S1 SCREW TAPTTITE 7173261011 TT2 BIN 2.6 X 10 MFZN 15 15 15
S2 SCREW TAPTTITE 7173300611 TT2 BIN 3.0X06 MFZN 10 10 10
S3 SCREW TAPTTITE 7173300811 TT2 BIN 3.0X08 MFZN 11 11 11
S4 SCREW TAPTTITE 7173301011 TT2 BIN 3.0X10 MFZN 14 14 14
S5 SCREW TAPTTITE 7173301012 TT2 BIN 3.0X10 BK 19 19 19
S6 SCREW TAPTTITE 7173301211 TT2 BIN 3.0X12 MFZN 2 2 2
S7 SCREW TAPTTITE 7173400611 TT2 BIN 4.0X6 MFZN 4 4 4
S8 SCREW TAPTTITE 9CD3103600 W/S TT2 BIN 2.6 X 8 4 4 4
No.
P1 PCB FRONT 1
P2 PCB SW 1
P3 PCB CD 1 Option
P4 PCB POWER 1
P5 PCB MAIN 1
5
Wiring Diagram
6
Block Diagram
7
Schematic Diagram
! MAIN
*OPTION TABLE( * MARK )
W/ W/O
KARAOKE KARAOKE
HR425 X O
HR426 X O
0dB 0dB
-87dB -87dB
- -
8
Schematic Diagram
! AMP
* OUTPUT OPTION
* PROTECT CIRCUIT
433 434 435
(20W) (30W) (50W)
IC802 STK433-030 STK433-030 STK433-060
CE811/812 2200/35 2200/50 3300/50
HR814/820 1.8K 1.5K 1.2K
HR815/817 0 ohm 100 0 ohm
9
Schematic Diagram
MP3 CD
10
Schematic Diagram
! FRONT
11
Schematic Diagram
! POWER
12
Schematic Diagram
! JACK
13
P.C.B Pattern Layout
! MAIN & POWER
14
P.C.B Pattern Layout
! MAIN & POWER
15
P.C.B Pattern Layout
! MP3 CD
16
P.C.B Pattern Layout
! FRONT
17
P.C.B Pattern Layout
! FRONT
18
P.C.B Pattern Layout
! JACK
19
PCB MAIN Ass'y [9CDC073600] : RH-435
Loc. Part Code Part Name Description Remark
B100 9CD6593900-01 PCB MAIN 330MM X 197MM
CE101 CEXF1H109V-X C ELECTRO 50V RSS 1MF (5X11) TP
CE102 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X17)
CE103 CEXF1C101V-X C ELECTRO 16V RSS 100MF (6.3X11) TP
CE104 CEXF1H100V-X C ELECTRO 50V RSS 10MF (5X11) TP
CE401 CEXF1H229V-X C ELECTRO 50V RSS 2.2MF (5X11) TP
CE402 CEXF1H229V-X C ELECTRO 50V RSS 2.2MF (5X11) TP
CE403 CEXF1H229V-X C ELECTRO 50V RSS 2.2MF (5X11) TP
CE404 CEXF1H229V-X C ELECTRO 50V RSS 2.2MF (5X11) TP
CE405 CEXF1H229V-X C ELECTRO 50V RSS 2.2MF (5X11) TP
CE406 CEXF1H229V-X C ELECTRO 50V RSS 2.2MF (5X11) TP
CE409 CEXF1H229V-X C ELECTRO 50V RSS 2.2MF (5X11) TP
CE410 CEXF1H229V-X C ELECTRO 50V RSS 2.2MF (5X11) TP
CE411 CEXF1H229V-X C ELECTRO 50V RSS 2.2MF (5X11) TP
CE412 CEXF1H229V-X C ELECTRO 50V RSS 2.2MF (5X11) TP
CE415 CEXF1H229V-X C ELECTRO 50V RSS 2.2MF (5X11) TP
CE416 CEXF1H229V-X C ELECTRO 50V RSS 2.2MF (5X11) TP
CE417 CEXF1H229V-X C ELECTRO 50V RSS 2.2MF (5X11) TP
CE418 CEXF1H229V-X C ELECTRO 50V RSS 2.2MF (5X11) TP
CE419 CEXF1H100V-X C ELECTRO 50V RSS 10MF (5X11) TP
CE420 CEXF1C221V-X C ELECTRO 16V RSS 220MF (6X12) TP
CE421 CEXF1H100V-X C ELECTRO 50V RSS 10MF (5X11) TP
CE422 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X17)
CE482 CEXF1E470V-X C ELECTRO 25V RSS 47MF (5X11) TP
CE802 CEXF1H109V-X C ELECTRO 50V RSS 1MF (5X11) TP
CE805 CEXF1H229V-X C ELECTRO 50V RSS 2.2MF (5X11) TP
CE806 CEXF1H100V-X C ELECTRO 50V RSS 10MF (5X11) TP
CE807 CEXF1H229V-X C ELECTRO 50V RSS 2.2MF (5X11) TP
CE808 CEXF1H100V-X C ELECTRO 50V RSS 10MF (5X11) TP
CE809 CEXF1H100V-X C ELECTRO 50V RSS 10MF (5X11) TP
CE810 CEXF1H101V-X C ELECTRO 50V RSS 100MF (8X12) TP
CE811 CEXF1H332V C ELECTRO 50V RSS 3300MF (26X41)
CE812 CEXF1H332V C ELECTRO 50V RSS 3300MF (26X41)
CE813 CEXF1H100V-X C ELECTRO 50V RSS 10MF (5X11) TP
CE814 CEXF1H101V-X C ELECTRO 50V RSS 100MF (8X12) TP
CE819 CEXF1E470V-X C ELECTRO 25V RSS 47MF (5X11) TP
CE820 CEXF1H109V-X C ELECTRO 50V RSS 1MF (5X11) TP
CM801 CMXM2A104J-X C MYLAR 100V 0.1MF J
CM802 CMXM2A104J-X C MYLAR 100V 0.1MF J
CN101 9736407600 CONN PIN 53095-1310 13PIN BASE
CN103 9728823700 CONN AS FFC 1.25*13*220 D(R) TYPE
CN105 9728827400 CONN AS FFC 1.25*07*230 D(R) TYPE
CN801 9728824100 CONN AS 1007 #22 11P 220MM P=2.5
CW102 9CD6260200 WAFER 52492-2020
CW103 9CD6275500 WAFER 12511HS-13A00
CW105 9CD6259900 WAFER 52492-0720
CW106 2503-WS-07 WAFER 7P 2.5MM
CW803 2001-WS-07 WAFER 7P 2.0MM
CW805 2001-WS-02 WAFER 2P 2.0MM
D812 DIN4001--- DIODE IN4001
FAN001 9738101700 DC Fan SP602512M-03(DC12V, 0.11A)
HC101 HCBK223KBA C CHIP CERA 50V X7R 0.022MF M 1608
HC102 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC103 HCBK223KBA C CHIP CERA 50V X7R 0.022MF M 1608
HC104 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC105 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC106 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC107 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC108 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC109 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
Page 1
Loc. Part Code Part Name Description Remark
HC112 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC113 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608
HC114 HCQK180JBA C CHIP CERA 50V CH 18PF J 1608
HC401 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC402 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC403 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC404 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC405 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC406 HCBK473KBA C CHIP CERA 50V X7R 0.047MF M 1608
HC408 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC409 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC410 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC801 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC806 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC807 HCBK152KBA C CHIP CERA 50V X7R 1500PF K 1608
HC808 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC809 HCQK309JBA C CHIP CERA 50V CH 3PF 1608
HC810 HCBK152KBA C CHIP CERA 50V X7R 1500PF K 1608
HC811 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC812 HCQK309JBA C CHIP CERA 50V CH 3PF 1608
HC813 HCBK472KBA C CHIP CERA 50V X7R 4700PF K 1608
HC814 HCBK333KBA C CHIP CERA 50V X7R 0.033MF M 1608
HCM401 HCBK224KBA C CHIP CERA 50V X7R 0.22MF Z 1608
HCM402 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HCM403 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HCM404 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HCM405 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HCM406 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
HCM407 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
HCM408 HCBK223KBA C CHIP CERA 50V X7R 0.022MF M 1608
HCM409 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HCM410 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HCM805 HCBK273KBA C CHIP CERA 50V X7R 0.027MF M 1608
HCM806 HCBK273KBA C CHIP CERA 50V X7R 0.027MF M 1608
HD101 DZDS160--- DIODE SW CHIP KDS160
HD102 DZDS160--- DIODE SW CHIP KDS160
HD401 HRFT000-BA R CHIP 1/10 0 OHM J 1608
HD801 DZDS160--- DIODE SW CHIP KDS160
HD802 DZDS160--- DIODE SW CHIP KDS160
HD803 DZDS160--- DIODE SW CHIP KDS160
HD804 DZDS160--- DIODE SW CHIP KDS160
HD805 DZDS160--- DIODE SW CHIP KDS160
HD807 DZDS160--- DIODE SW CHIP KDS160
HD808 DZDS160--- DIODE SW CHIP KDS160
HD809 DZDS160--- DIODE SW CHIP KDS160
HD834 DZDS160--- DIODE SW CHIP KDS160
HQ101 TZRC107S-- TR CHIP KRC107S
HQ462 TZTC3875S- TR CHIP KTC3875S
HQ801 TZTC3875S- TR CHIP KTC3875S
HQ802 TZTC3875S- TR CHIP KTC3875S
HQ803 TZRC107S-- TR CHIP KRC107S
HQ804 TZTA1504S- TR CHIP KTA1504Y
HQ805 TZRA107S-- TR CHIP KRA107S
HQ813 TZRA107S-- TR CHIP KRA107S
HQ814 TZRA107S-- TR CHIP KRA107S
HQ815 TZTD1304-- TR CHIP KTD1304
HQ816 TZTD1304-- TR CHIP KTD1304
HR101 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR102 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR106 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR115 HRFT152JBA R CHIP 1/10 1.5K OHM J 1608
Page 2
Loc. Part Code Part Name Description Remark
HR116 HRFT152JBA R CHIP 1/10 1.5K OHM J 1608
HR118 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR119 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR120 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR151 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR161 HRFT106JBA R CHIP 1/10W 10M OHM J 1608
HR162 HRFT334JBA R CHIP 1/10 330K OHM J 1608
HR163 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR164 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR165 HRFT273JBA R CHIP 1/10W 27K OHM J 1608
HR401 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR402 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR403 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR404 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR405 HRFT153JBA R CHIP 1/10 15K OHM J 1608
HR406 HRFT153JBA R CHIP 1/10 15K OHM J 1608
HR407 HRFT153JBA R CHIP 1/10 15K OHM J 1608
HR408 HRFT153JBA R CHIP 1/10 15K OHM J 1608
HR409 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR410 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR411 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR412 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR417 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR418 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR419 HRFT682JBA R CHIP 1/10 6.8K OHM J 1608
HR420 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR421 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR422 HRFT682JBA R CHIP 1/10 6.8K OHM J 1608
HR427 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR428 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR429 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR430 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR431 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR432 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR433 HRFT471JBA R CHIP 1/10 470 OHM J 1608
HR434 HRFT394JBA R CHIP 1/10W 390K OHM J 1608
HR435 HRFT562JBA R CHIP 1/10 5.6K OHM J 1608
HR436 HRFT394JBA R CHIP 1/10W 390K OHM J 1608
HR437 HRFT562JBA R CHIP 1/10 5.6K OHM J 1608
HR438 HRFT683JBA R CHIP 1/10 68K OHM J 1608
HR439 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR440 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR492 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR493 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR494 HRF2220JEA R CHIP 1/2W 22 OHM J 3216
HR497 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR499 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR808 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR813 HRFT563JBA R CHIP 1/10 56K OHM J 1608
HR814 HRFT122JBA R CHIP 1/10 1.2K OHM J 1608
HR815 HRFT000-BA R CHIP 1/10 0 OHM J 1608
HR816 HRFT563JBA R CHIP 1/10 56K OHM J 1608
HR817 HRFT000-BA R CHIP 1/10 0 OHM J 1608
HR819 HRFT563JBA R CHIP 1/10 56K OHM J 1608
HR820 HRFT122JBA R CHIP 1/10 1.2K OHM J 1608
HR821 HRFT563JBA R CHIP 1/10 56K OHM J 1608
HR822 HRFT100JBA R CHIP 1/10 10 OHM J 1608
HR823 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR824 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR825 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR830 HRFT272JBA R CHIP 1/10 2.7K OHM J 1608
Page 3
Loc. Part Code Part Name Description Remark
HR831 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR832 HRFT562JBA R CHIP 1/10 5.6K OHM J 1608
HR833 HRFT273JBA R CHIP 1/10W 27K OHM J 1608
HR835 HRFT272JBA R CHIP 1/10 2.7K OHM J 1608
HR836 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR837 HRFT562JBA R CHIP 1/10 5.6K OHM J 1608
HR838 HRFT273JBA R CHIP 1/10W 27K OHM J 1608
HR858 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR859 HRFT273JBA R CHIP 1/10W 27K OHM J 1608
HR860 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR861 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR879 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR880 HRFT102JBA R CHIP 1/10 1K OHM J 1608
IC101 1LC875D433 IC u-COM LC875D80B-55J9
IC102 1M24C04MN- IC EEPROM M24C04MN SOP
IC401 1BD3872FS- IC FUNCTION ICBD3872FS IC FUNCTION(VOLUME)
IC802 1STK433060 IC POWER STK433-060
J401 9CD6313700 JACK RCA S-436P
J802 9736320500 JACK SPEAKER CJ9007-040
Q806 TZTA1273Y- TR KTA1273Y (A966Y) (KSA928A-Y)
Q821 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q882 TZTC3205Y- TR KTC3205Y (KTC2236Y) AUTO
R120 RD-AZ122J- R CARBON FILM 1/6 1.2K OHM J
R121 RD-AZ223J- R CARBON FILM 1/6 22K OHM J
R122 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
R801 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
R802 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
R803 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
R804 W581GY1505 WIRE JUMPER AWG22 1/0.65 SN 15 AUTO
R805 RN01B479JS R METAL FILM 1W 4.7 OHM J SMALL
R806 RN01B479JS R METAL FILM 1W 4.7 OHM J SMALL
R824 RN01B101JS R METAL FILM 1W 100 OHM J SMALL
R825 RN01B101JS R METAL FILM 1W 100 OHM J SMALL
R829 RN02B228JS R METAL FILM 2W 0.22 OHM J SMALL
R834 RN02B228JS R METAL FILM 2W 0.22 OHM J SMALL
RY801 5SC0201103 SW RELAY HR-CR323 2C-1P DC12V
TH101 DDKSF103HF THERMISTOR DKSF103HF
TU001 9737652101 TUNER MODULE KST-MP001MA0-60D
XC101 5PCST10MTW RESONATOR CERA CST10.00MTW
XC102 5XA32R768C X-TAL C38T 32.768KHz 20PPM
PCB AUX/JACK Ass'y [9CDC073800] : RH-433/4/5
Loc. Part Code Part Name Description Remark
B300 9CD6594200 PCB AUX/JACK 139MM X 163MM
CE301 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11)
CE302 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11)
CE303 CEXF1H108V C ELECTRO 50V RSS 0.1MF (5X11)
CE304 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11)
CE305 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11)
CE306 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11)
CE307 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11)
CE308 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11)
CE309 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11)
CE310 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11)
CE311 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11)
CE312 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11)
CE313 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11)
CE314 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11)
CE315 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11)
CN302 9728823800 CONN AS 1007 #26 7P 280MM P=2.0
CN303 9728828500 CONN AS AWG26 1P 50MM BLK
Page 4
Loc. Part Code Part Name Description Remark
CW301 9CD6278600 WAFER 12511HR-07A01
HC301 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC302 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC303 HCQK681JBA C CHIP CERA 50V CH 680PF J 1608
HC304 HCQK470JBA C CHIP CERA 50V CH 47PF J 1608
HC305 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC306 HCQK471JBA C CHIP CERA 50V CH 470PF J 1608
HC308 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608
HC309 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
HC311 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608
HC312 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
HC313 HCBK473KBA C CHIP CERA 50V X7R 0.047MF M 1608
HC314 HCBK473KBA C CHIP CERA 50V X7R 0.047MF M 1608
HC315 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC316 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC317 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC318 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC319 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HD301 DZDS160--- DIODE SW CHIP KDS160
HQ301 TZTC3875S- TR CHIP KTC3875S
HQ302 TZTC3875S- TR CHIP KTC3875S
HQ303 TZRC111S-- TR CHIP KRC111S
HQ304 TZRC111S-- TR CHIP KRC111S
HQ305 TZRC111S-- TR CHIP KRC111S
HQ306 TZRC111S-- TR CHIP KRC111S
HR301 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR302 HRFT333JBA R CHIP 1/10 33K OHM J 1608
HR303 HRFT333JBA R CHIP 1/10 33K OHM J 1608
HR304 HRFT220JBA R CHIP 1/10 22 OHM J 1608
HR305 HRFT563JBA R CHIP 1/10 56K OHM J 1608
HR306 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR307 HRFT183JBA R CHIP 1/10 18K OHM J 1608
HR308 HRFT563JBA R CHIP 1/10 56K OHM J 1608
HR309 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR310 HRFT183JBA R CHIP 1/10 18K OHM J 1608
HR311 HRF4101JEA R CHIP 1/4W 100 OHM J 3216
HR312 HRF4101JEA R CHIP 1/4W 100 OHM J 3216
HR313 HRFT392JBA R CHIP 1/10 3.9K OHM J 1608
HR314 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR315 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR316 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR317 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR318 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR351 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR352 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR353 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR354 HRFT223JBA R CHIP 1/10 22K OHM J 1608
HR355 HRFT182JBA R CHIP 1/10 1.8K OHM J 1608
HR356 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR357 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR358 HRFT153JBA R CHIP 1/10 15K OHM J 1608
HR359 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR360 HRFT562JBA R CHIP 1/10 5.6K OHM J 1608
HR361 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR362 HRFT562JBA R CHIP 1/10 5.6K OHM J 1608
HR363 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR364 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR365 HRFT562JBA R CHIP 1/10 5.6K OHM J 1608
HR366 HRFT220JBA R CHIP 1/10 22 OHM J 1608
HR367 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR368 HRFT682JBA R CHIP 1/10 6.8K OHM J 1608
Page 5
Loc. Part Code Part Name Description Remark
HR369 HRFT682JBA R CHIP 1/10 6.8K OHM J 1608
HR370 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR382 HRFT393JBA R CHIP 1/10W 39K OHM J 1608
IC301 1NJM4558M- IC CHIP OP AMP NJM4558M
IC302 1NJM4558M- IC CHIP OP AMP NJM4558M
IC303 1BA4560N-- IC H/P AMP BA4560N
J301 9736325300 JACK H/P HTJ-035-18A
J302 9736325300 JACK H/P HTJ-035-18A
J303 9736325300 JACK H/P HTJ-035-18A
VR301 5V1503730B VOL MIC XV09211NPV20F1B50K
PCB MP3CD Ass'y [9CDC074000] : RH-433/4/5(W/OPTICAL)
Loc. Part Code Part Name Description Remark
B500 9CD6594100-01 PCB MP3CD 100X114mm, CM-3
CE500 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11)
CE501 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11)
CE502 CEXP1C101V C ELECTRO 16V REM 100MF
CE503 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11)
CE504 CEXP1C101V C ELECTRO 16V REM 100MF
CE505 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11)
CE506 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11)
CE507 CEXF1E330V C ELECTRO 25V RSS 33MF (5X11)
CE508 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X17)
CE509 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11)
CE510 CEXP1C101V C ELECTRO 16V REM 100MF
CE511 CEXP1C221V C ELECTRO 16V REM 220MF
CE512 CEXP1H109V C ELECTRO 50V REM 1MF (4X7)
CE513 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11)
CE514 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11)
CE515 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11)
CE516 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11)
CE517 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11)
CE518 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11)
CE519 CEXF1E220V C ELECTRO 25V RSS 22MF (5X11)
CE520 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11)
CE521 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11)
CE523 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11)
CE524 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11)
CE525 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11)
CN500 9728823500 CONN AS FFC 1.0*16*80 C(K) TYPE
#26 UL 20080 6P PLUG TO 6P PLUG
CN501 97L8800600-2 CONN AS
PH=2.0 L-250MM
CN502 9728823600 CONN AS FFC 1.25*13*140 D(R) TYPE
CN504 9728823400 CONN AS FFC 1.25*20*320 C(K) TYPE
CN509 9728823900 CONN AS #26/28 7P 330MM P=2.5
CW500 9CD6283200 WAFER FCZ100E-16SS-K
CW501 2001-WS-06 WAFER 6P 2.0MM
CW502 9CD6279200 WAFER 12511HR-13A00
CW504 9CD6279900 WAFER 12511HR-20A00
HC500 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC501 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC502 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC503 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC504 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC505 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC506 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC507 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC508 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC509 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC510 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
HC511 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
Page 6
Loc. Part Code Part Name Description Remark
HC512 HCBK563KBA C CHIP CERA 50V X7R 0.056MF M 1608
HC513 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC514 HCBK563KBA C CHIP CERA 50V X7R 0.056MF M 1608
HC515 HCBK683KBA C CHIP CERA 50V X7R 0.068MF M 1608
HC516 HCBK473KBA C CHIP CERA 50V X7R 0.047MF M 1608
HC517 HCBK472KBA C CHIP CERA 50V X7R 4700PF K 1608
HC519 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC520 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC521 HCBK473KBA C CHIP CERA 50V X7R 0.047MF M 1608
HC522 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC523 HCBK105KBA C CHIP CERA 50V X7R 1MF K 1608
HC524 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC525 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC526 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC527 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608
HC528 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608
HC529 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608
HC530 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608
HC531 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC533 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC534 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC535 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC536 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC537 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC538 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC539 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC540 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC541 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC542 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC544 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC545 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608
HC546 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC549 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC550 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC551 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HD501 DZDS160--- DIODE SW CHIP KDS160
HQ502 TZTA1504S- TR CHIP KTA1504Y
HQ503 TZTC3875S- TR CHIP KTC3875S
HQ504 TZRA107S-- TR CHIP KRA107S
HQ505 TZRC107S-- TR CHIP KRC107S
HQ506 TZTC3875S- TR CHIP KTC3875S
HQ821 TZTD1304-- TR CHIP KTD1304
HQ822 TZTD1304-- TR CHIP KTD1304
HR501 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR502 HRFT151JBA R CHIP 1/10 150 OHM J 1608
HR503 HRFT330JBA R CHIP 1/10 33 OHM J 1608
HR504 HRF2109JEA R CHIP 1/2W 1 OHM J 3216
HR505 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR506 HRFT683JBA R CHIP 1/10 68K OHM J 1608
HR507 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR508 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR509 HRF4229JEA R CHIP 1/4W 2.2 OHM J 3216
HR511 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR512 HRFT682JBA R CHIP 1/10 6.8K OHM J 1608
HR513 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR514 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR515 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR516 HRFT331JBA R CHIP 1/10 330 OHM J 1608
HR517 HRFT470JBA R CHIP 1/10 47 OHM J 1608
HR518 HRFT330JBA R CHIP 1/10 33 OHM J 1608
HR520 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
Page 7
Loc. Part Code Part Name Description Remark
HR521 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR522 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR523 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR524 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR525 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR526 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR527 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR528 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR529 HRFT820JBA R CHIP 1/10 82 OHM J 1608
HR531 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR532 HRFT682JBA R CHIP 1/10 6.8K OHM J 1608
HR533 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR534 HRFT331JBA R CHIP 1/10 330 OHM J 1608
HR535 HRFT820JBA R CHIP 1/10 82 OHM J 1608
HR536 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR537 HRFT471JBA R CHIP 1/10 470 OHM J 1608
HR538 HRFT471JBA R CHIP 1/10 470 OHM J 1608
HR539 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR540 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR541 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR542 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR543 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR544 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR545 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR546 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR547 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR548 HRFT681JBA R CHIP 1/10 680 OHM J 1608
HR549 HRFT681JBA R CHIP 1/10 680 OHM J 1608
HR550 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR551 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR552 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR553 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR554 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR555 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR556 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR557 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR558 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR559 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR560 HRFT339JBA R CHIP 1/10W 3.3 OHM J 1608
HR561 HRFT223JBA R CHIP 1/10 22K OHM J 1608
HR563 HRFT151JBA R CHIP 1/10 150 OHM J 1608
HR564 HRFT682JBA R CHIP 1/10 6.8K OHM J 1608
HR565 HRFT153JBA R CHIP 1/10 15K OHM J 1608
HR566 HRFT682JBA R CHIP 1/10 6.8K OHM J 1608
HR568 HRFT330JBA R CHIP 1/10 33 OHM J 1608
HR569 HRFT153JBA R CHIP 1/10 15K OHM J 1608
HR570 HRFT682JBA R CHIP 1/10 6.8K OHM J 1608
HR571 HRFT225JBA R CHIP 1/10 2.2M OHM J 1608
HR572 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR573 HRF4821JEA R CHIP 1/4W 820 OHM J 3216
HR574 HRF4100JEA R CHIP 1/4W 10 OHM J 3216
HR580 HRFT000-BA R CHIP 1/10 0 OHM J 1608
HR581 HRFT000-BA R CHIP 1/10 0 OHM J 1608
HR586 HRFT000-BA R CHIP 1/10 0 OHM J 1608
HR588 HRFT123JBA R CHIP 1/10 12K OHM J 1608
HR589 HRFT333JBA R CHIP 1/10 33K OHM J 1608
HR590 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR591 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR592 HRFT333JBA R CHIP 1/10 33K OHM J 1608
HR593 HRFT333JBA R CHIP 1/10 33K OHM J 1608
HZ500 DRLZ5R6B-- DIODE ZENER CHIP RLZ5.6B
Page 8
Loc. Part Code Part Name Description Remark
HZ501 DRLZ3R9B-- DIODE ZENER CHIP RLZ3.9B
HZ502 DRLZ5R6B-- DIODE ZENER CHIP RLZ5.6B
IC501 1LC78648E- IC SERVO + DSP LC78648E(CD SERVO+DSP)
IC502 1IP9005--- IC MOTOR DRIVE IP9005 (motor driver)
IC503 1LC78684E- IC MP3 DECORDER LC78684E(mp3 decoder)
IC504 1IP111718- IC REGULATOR IP1117-18
IC506 1HY57V1616 IC SDRAM HY57V1616
Q501 TZTA1273Y- TR KTA1273Y (A966Y) (KSA928A-Y)
Q502 TZSC2331Y- TR KSC2331Y AUTO
Q503 TZSC2331Y- TR KSC2331Y AUTO
Q510 TZTA1273Y- TR KTA1273Y (A966Y) (KSA928A-Y)
TP501 W1-BK75021 WIRE LEAD 1P #22 75MM BK UL 1007
XC501 5PQZTT1693 RESONATOR CERA QZTT16.93MMX(3PIN)
PCB FRONT Ass'y [9CDC073700] : RH-433/4/5
Loc. Part Code Part Name Description Remark
B700 9CD6593800 PCB FRONT 163x122mm
CC701 CCZF1E223Z C CERA HIKF 25V 0.022MF Z (AXIAL)
CC704 CCZF1H104Z C CERA HIKF 50V 0.1MF Z (AXIAL)
CC705 CCZF1H104Z C CERA HIKF 50V 0.1MF Z (AXIAL)
CC706 CCZB1H101K C CERA HIKB 50V 100PF K (AXIAL)
CC707 CCZB1H101K C CERA HIKB 50V 100PF K (AXIAL)
CE701 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11)
CE702 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11)
CE703 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11)
CE704 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11)
CN701 9728824200 CONN AS 1571#28 3P 100MM P=2.0
CW701 9736407700 PIN WAFER 52084-1310 13P BOTTOM
FD701 DHNA10SS36 VFD HNA10SS36
IC701 1PT6315--- IC PT6315
IC703 1354HF---- IC RMC 354HF
LD702 DML3FB23H- LED ML3FB23H-JEC
LD703 DML3FB23H- LED ML3FB23H-JEC
LD704 DML3FB23H- LED ML3FB23H-JEC
LD705 DML3FB23H- LED ML3FB23H-JEC
R701 RD-AZ100J- R CARBON FILM 1/6 10 OHM J
R703 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R704 RD-4Z820J- R CARBON FILM 1/4 82 OHM J
R705 RD-4Z820J- R CARBON FILM 1/4 82 OHM J
R706 RD-4Z820J- R CARBON FILM 1/4 82 OHM J
R707 RD-4Z820J- R CARBON FILM 1/4 82 OHM J
R708 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R709 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R710 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R712 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R713 RD-AZ151J- R CARBON FILM 1/6 150 OHM J
R714 RD-AZ181J- R CARBON FILM 1/6 180 OHM J
R715 RD-AZ271J- R CARBON FILM 1/6 270 OHM J
R716 RD-AZ331J- R CARBON FILM 1/6 330 OHM J
R717 RD-AZ391J- R CARBON FILM 1/6 390 OHM J
R718 RD-AZ471J- R CARBON FILM 1/6 470 OHM J
R719 RD-AZ561J- R CARBON FILM 1/6 560 OHM J
R720 RD-AZ821J- R CARBON FILM 1/6 820 OHM J
R721 RD-AZ152J- R CARBON FILM 1/6 1.5K OHM J
R722 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R723 RD-AZ151J- R CARBON FILM 1/6 150 OHM J
R724 RD-AZ181J- R CARBON FILM 1/6 180 OHM J
R725 RD-AZ271J- R CARBON FILM 1/6 270 OHM J
R726 RD-AZ331J- R CARBON FILM 1/6 330 OHM J
R727 RD-AZ391J- R CARBON FILM 1/6 390 OHM J
R728 RD-AZ471J- R CARBON FILM 1/6 470 OHM J
Page 9
Loc. Part Code Part Name Description Remark
R729 RD-AZ561J- R CARBON FILM 1/6 560 OHM J
R730 RD-AZ821J- R CARBON FILM 1/6 820 OHM J
R732 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R733 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R734 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J
R735 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
SW701 5S50101001 SW TACT KPT-1105A IC-1P
SW702 5S50101001 SW TACT KPT-1105A IC-1P
SW703 5S50101001 SW TACT KPT-1105A IC-1P
SW704 5S50101001 SW TACT KPT-1105A IC-1P
SW705 5S50101001 SW TACT KPT-1105A IC-1P
SW706 5S50101001 SW TACT KPT-1105A IC-1P
SW707 5S50101001 SW TACT KPT-1105A IC-1P
SW708 5S50101001 SW TACT KPT-1105A IC-1P
SW709 5S50101001 SW TACT KPT-1105A IC-1P
SW710 5S50101001 SW TACT KPT-1105A IC-1P
SW711 5S50101001 SW TACT KPT-1105A IC-1P
SW712 5S50101001 SW TACT KPT-1105A IC-1P
SW713 5S50101001 SW TACT KPT-1105A IC-1P
SW714 5S50101001 SW TACT KPT-1105A IC-1P
SW715 5S50101001 SW TACT KPT-1105A IC-1P
SW716 5S50101001 SW TACT KPT-1105A IC-1P
SW717 5S50101001 SW TACT KPT-1105A IC-1P
VR701 5SH1224375 SW ENCODER RE0123PVB25FINB 1-2-24 PCE
PCB POWER Ass'y [9CDC073900] : RH-435
Loc. Part Code Part Name Description Remark
B900 9CD6593901 PCB POWER 330MM X 197MM
CE901 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11)
CE902 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11)
CE903 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11)
CE904 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11)
CE905 CEXF1E470V C ELECTRO 25V RSS ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
