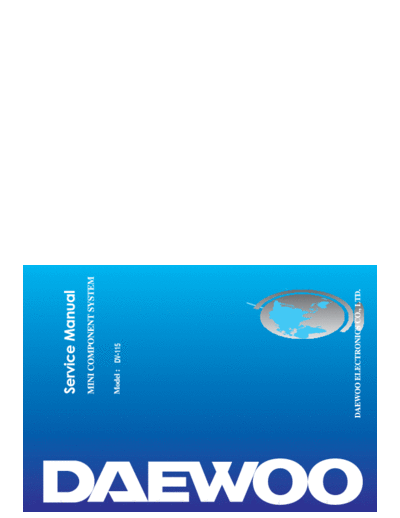

Image preview - the first page of the document
dv-115__e_


>> Download dv-115__e_ documenatation <<

Text preview - extract from the document
DV-115
  9. Schmatic Diagram
Model : DV-115
 -. BLOCK Diagram




                        2
  9. Schmatic Diagram
1) DV-115 Front Schematic Diagram
  -. FRONT




                                    3
  9. Schmatic Diagram
Model : DV-115
 -. DSP-1




                        4
  9. Schmatic Diagram
Model : DV-115
 -. DSP-2




                        5
  9. Schmatic Diagram
Model : DV-115
 -. DSP-3




                        6
  9. Schmatic Diagram
Model : DV-115
 -. MPEG




                        7
  9. Schmatic Diagram
-. Main Schmatic Diagram
   1) Power Schmatic Diagram




                               8
  9. Schmatic Diagram
-. Main Schmatic Diagram
   2) Amp Schmatic Diagram




                             9
  9. Schmatic Diagram
-. Main Schmatic Diagram
   3) Input Schmatic Diagram




                               10
  9. Schmatic Diagram
-. Main Schmatic Diagram
   4) Video Schmatic Diagram




                               11
  9. Schmatic Diagram
-. WIRING Diagram
   1) DV-115 WIRING Diagram




                              12
  9. Schmatic Diagram
Model : DV-115
 -. LEVEL Diagram




                        13
       13. Electrical Parts List                                                                                                                                          13. Electrical Parts List
   Model : DV-115                                                                                                                                                     Model : DV-115

NO PART-NAME       LOCATION     PART-CODE            PART-DESC        REMARKS   NO PART-NAME       LOCATION      PART-CODE         PART-DESC           REMARKS   NO PART-NAME          LOCATION       PART-CODE            PART-DESC        REMARKS   NO PART-NAME     LOCATION      PART-CODE          PART-DESC      REMARKS


1 CORD AC            AC901      9736908600 KE-25 H03VVH2-F 1820MM               50 C ELECTRO        C552L/R      CEXF1H339E 50V RM 3.3MF (5X11) TP               102 C CHIP CERA     C635A/B/C/L/R/W HCQK681JBA 50V CH 680PF J 1608                   154 R CHIP          R504       HRFT750JBA 1/10 75 OHM J 1608
2 CONN FFC           CN913      9728809200 FFC 1.25X17X110MM K                  51 C CHIP CERA        C553       HCQK681JBA 50V CH 680PF J 1608                  103 C CHIP CERA     C636A/B/C/L/R/W HCQK820JBA 50V CH 82PF J 1608                    155 R CHIP          R505       HRFT101JBA 1/10 100 OHM J 1608
3 TUNER MODULE       TU001      9737650201 KST-MB114MA1-0(RDS)                  52 C ELECTRO          C554       CEXF1E101E 25V RM 100MF (6.3X11) TP             104 C ELECTRO           C638W        CEXF1H479E 50V RM 4.7MF (5X11) TP               156 R CHIP          R506       HRFT222JBA 1/10 2.2K OHM J 1608
1 PCB DSP AS         13000      9CDC059000 DV-115                               53 C CHIP CERA        C555       HCQK681JBA 50V CH 680PF J 1608                  105 C ELECTRO        C639A/B/C/L/R   CEXF1H479E 50V RM 4.7MF (5X11) TP               157 R CHIP          R507       HRFT103JBA 1/10 10K OHM J 1608
2 PCB DSP            B001       9CD6583900 170X260                              54 C ELECTRO          C556       CEXF1E101E 25V RM 100MF (6.3X11) TP             106 CONN WAFER          CN501        9CD6264300 52045-1145                           158 R CHIP          R508       HRFT104JBA 1/10 100K OHM J 1608
3 C ELECTRO          C501       CEXF1E470E 25V RM 47MF (5X11)                   55 C CHIP CERA      C557~562     HCQK681JBA 50V CH 680PF J 1608                  107 CONN WAFER          CN502        9728809000 2.0MM 35237-1101 11P                 159 R CHIP        R509~513     HRFT220JBA 1/10W 22 OHM J 1608
4 C CHIP CERA        C502       HCBK104KBA 50V X7R 0.1MF K 1608                 56 C ELECTRO          C563       CEXF1H100E 50V RM 10MF (5X11) TP                108 CONN WAFER          CN503        9728809100 2.0MM 35237-1801 18P                 160 R CHIP          R514       HRFT105JBA 1/10 1M OHM J 1608
5 C CHIP CERA        C503       HCQK220JBA 50V CH 22PF J 1608                   57 C CHIP CERA        C564       HCBK104KBA 50V X7R 0.1MF K 1608                 109 CONN WAFER          CN504        9728811700 2.0MM PH-3A 3P                       161 R CHIP          R515       HRFT104JBA 1/10 100K OHM J 1608
6 C ELECTRO          C504       CEXF1E470E 25V RM 47MF (5X11)                   58 C ELECTRO      C565~566L/R    CEXF1H100E 50V RM 10MF (5X11) TP                110 CONN WAFER          CN505        9728810900 2.0MM PH-5A 5P                       162 R CHIP          R516       HRFT220JBA 1/10W 22 OHM J 1608
7 C CHIP CERA        C505       HCBK104KBA 50V X7R 0.1MF K 1608                 59 C ELECTRO          C566       CEXF1H109E 50V RM 1MF (5X11) TP                 111 DIODE SW CHIP      D501~502      DZDS160--- KDS160                               163 R CHIP          R517       HRFT103JBA 1/10 10K OHM J 1608
8 C CHIP CERA        C506       HCQK220JBA 50V CH 22PF J 1608                   60 C CHIP CERA        C567       HCBK104KBA 50V X7R 0.1MF K 1608                 112 DIODE SW CHIP      D505~507      DZDS160--- KDS160                               164 R CHIP          R518       HRFT102JBA 1/10 1K OHM J 1608
9 C CHIP CERA        C507       HCBK104KBA 50V X7R 0.1MF K 1608                 61 C ELECTRO     C570L/R~571L/R CEXF1H100E 50V RM 10MF (5X11) TP                 113 DIODE SW CHIP        D509        DZDS160--- KDS160                               165 R CHIP        R519~522     HRFT220JBA 1/10W 22 OHM J 1608
10 C CHIP CERA     C508~509     HCQK220JBA 50V CH 22PF J 1608                   62 C CHIP CERA      C572L/R      HCBK102KBA 50V X7R 1000PF K 1608                114 DIODE ZENER       DZ501~502      DZTZ7R5B-- MTZ 7.5B                             166 R CHIP          R524       HRFT332JBA 1/10 3.3K OHM J 1608
11 C ELECTRO         C510       CEXF1H108E 50V RM 0.1MF (5X11) TP               63 C ELECTRO          C578       CEXF1H100E 50V RM 10MF (5X11) TP                115 IC                  IC501        1T0RX178B- T0RX178B (OPTICAL RX)                167 R CHIP          R525       HRFT470JBA 1/10 47 OHM J 1608
12 C CHIP CERA     C511~512     HCBK104KBA 50V X7R 0.1MF K 1608                 64 C ELECTRO     C579A/B/C/L/R/W CEXF1H100E 50V RM 10MF (5X11) TP                116 IC                  IC502        1T0TX178A- T0TX178A (OPTICAL TX)                168 R CHIP        R526~528     HRFT472JBA 1/10 4.7K OHM J 1608
13 C ELECTRO       C513~514     CEXF1E470E 25V RM 47MF (5X11)                   65 C CHIP CERA   C580A/B/C/L/R/W HCQK681JBA 50V CH 680PF J 1608                  117 IC                   IC503       174HCU04-- 74HCU04 (INVERTER)                   169 R CHIP          R529       HRFT103JBA 1/10 10K OHM J 1608
14 C CHIP CERA      C513L/R     HCQK222JBA 50V CH 2200PF J 1608                 66 C CHIP CERA   C581A/B/C/L/R/W HCQK681JBA 50V CH 680PF J 1608                  118 IC                  IC504        1AK4112A-- AK4112A (DIR)                        170 R CHIP          R531       HRFT472JBA 1/10 4.7K OHM J 1608
15 C ELECTRO        C514L/R     CEXF1E101E 25V RM 100MF (6.3X11) TP             67 C ELECTRO     C582A/B/C/L/R/W CEXF1H100E 50V RM 10MF (5X11) TP                119 IC REGULATOR         IC505       1AME1117BG AME1117BCGT (SOT-223)                171 R CHIP          R532       HRFT103JBA 1/10 10K OHM J 1608
16 C CHIP CERA     C515~517     HCBK104KBA 50V X7R 0.1MF K 1608                 68 C CHIP CERA   C583A/B/C/L/R/W HCBK332KBA 50V X7R 3300PF K 1608                120 IC                   IC506       1CS49326-- CS49326 (DD DECODER)                 172 R CHIP          R533       HRFT122JBA 1/10 1.2K OHM J 1608
17 C ELECTRO         C518       CEXF1E470E 25V RM 47MF (5X11)                   69 C CHIP CERA     C584L/R/W     HCQK101JBA 50V CH 100PF J 1608                  121 IC                   IC507       174HC244-- 74HC244 (BUS DRIVER)                 173 R CHIP          R534       HRFT332JBA 1/10 3.3K OHM J 1608
18 C CHIP CERA      C518L/R     HCBK104KBA 50V X7R 0.1MF K 1608                 70 C CHIP CERA      C585L/R      HCQK330JBA 50V CH 33PF J 1608                   122 IC                  IC508        1CS4228A-- CS4228A (CODEC)                      174 R CHIP          R535       HRFT103JBA 1/10 10K OHM J 1608
19 C CHIP CERA       C519       HCBK104KBA 50V X7R 0.1MF K 1608                 71 C CHIP CERA       C585W       HCQK470JBA 50V CH 47PF J 1608                   123 IC REGULATOR         IC509       1AME1117CC AME1117CCCT (TO-252)                 175 R CHIP        R536~537     HRFT220JBA 1/10W 22 OHM J 1608
20 C ELECTRO         C520       CEXF1E470E 25V RM 47MF (5X11)                   72 C ELECTRO       C586L/R/W     CEXF1H100E 50V RM 10MF (5X11) TP                124 IC                   IC510        1CS4341--- CS4341 (DAC)                        176 R CHIP          R538       HRFT103JBA 1/10 10K OHM J 1608
21 C CHIP CERA       C521       HCBK104KBA 50V X7R 0.1MF K 1608                 73 C CHIP CERA        C587       HCQK681JBA 50V CH 680PF J 1608                  125 IC CHIP           IC511~512      1NJM4558M- NJM4558M                             177 R CHIP          R539       HRFT470JBA 1/10 47 OHM J 1608
22 C CHIP CERA     C522~523     HCQK270JBA 50V CH 27PF J 1608                   74 C ELECTRO          C588       CEXF1H100E 50V RM 10MF (5X11) TP                126 IC                IC516~518      1NJM2068-- NJM2068 (OP AMP)                     178 R CHIP          R540       HRFT103JBA 1/10 10K OHM J 1608
23 C ELECTRO         C525       CEXF1H100E 50V RM 10MF (5X11) TP                75 C CHIP CERA        C589       HCQK681JBA 50V CH 680PF J 1608                  127 IC CHIP           IC519~520      1NJM4558M- NJM4558M                             179 R CHIP          R541       HRFT223JBA 1/10 22K OHM J 1608
24 C ELECTRO         C526       CEXF1E470E 25V RM 47MF (5X11)                   76 C ELECTRO          C590       CEXF1H100E 50V RM 10MF (5X11) TP                128 IC                   IC521       1BU4052BCF BU4052                               180 R CHIP        R542L/R      HRFT151JBA 1/10 150 OHM J 1608
25 C CHIP CERA       C527       HCBK104KBA 50V X7R 0.1MF K 1608                 77 C ELECTRO          C591       CEXF1V470E 35V RM 47MF (5X11) TP                129 IC CHIP             IC523        1NJM4558M- NJM4558M                             181 R CHIP        R543L/R      HRFT103JBA 1/10 10K OHM J 1608
26 C ELECTRO         C528       CEXF1E470E 25V RM 47MF (5X11)                   78 C ELECTRO          C592       CEXF1H109E 50V RM 1MF (5X11) TP                 130 IC                   IC524       1M62446FP- M62446FP                             182 R CHIP        R544L/R      HRFT472JBA 1/10 4.7K OHM J 1608
27 C CHIP CERA       C529       HCBK104KBA 50V X7R 0.1MF K 1608                 79 C ELECTRO     C593L/R~594L/R CEXF1H479E 50V RM 4.7MF (5X11) TP                131 IC CHIP           IC525~527      1NJM4558M- NJM4558M                             183 R CHIP        R545L/R      HRFT561JBA 1/10 560 OHM J 1608
28 C CHIP CERA       C530       HCFK224ZCA 50V Y5V 0.22MF Z 2012                80 C ELECTRO          C595       CEXF1H109E 50V RM 1MF (5X11) TP                 132 JACK RCA            JA501        9736324100 JK010055HN                           184 R CHIP        R546L/R      HRFT472JBA 1/10 4.7K OHM J 1608
29 C ELECTRO         C531       CEXF1H229E 50V RM 2.2MF (5X11) TP               81 C ELECTRO     C596A/B/C/L/R/W CEXF1H479E 50V RM 4.7MF (5X11) TP               133 COIL CHIP          L501~502      HLC479J03A 4.7UH CHIP 2012                      185 R CHIP        R548L/R      HRFT102JBA 1/10 1K OHM J 1608
30 C ELECTRO         C532       CEXF1E470E 25V RM 47MF (5X11)                   82 C ELECTRO        C597~598     CEXF1H479E 50V RM 4.7MF (5X11) TP               134 COIL CHIP            L503        HLC229J02A 2.2UH CHIP 1608                      186 R CHIP        R549L/R      HRFT104JBA 1/10 100K OHM J 1608
31 C CHIP CERA       C533       HCBK104KBA 50V X7R 0.1MF K 1608                 83 C CHIP CERA        C599       HCBK822KBA 50V X7R 8200PF K 1608                135 COIL CHIP            L504        HLC104J01A BEAD 120 OHM 100MHZ 2012             187 R CHIP        R550L/R      HRFT102JBA 1/10 1K OHM J 1608
32 C CHIP CERA       C534       HCBK102KBA 50V X7R 1000PF K 1608                84 C ELECTRO          C600       CEXF1H338E 5V RM 0.33MF (5X11) TP               136 COIL CHIP            L505        HLC479J03A 4.7UH CHIP 2012                      188 R CHIP        R555L/R      HRFT473JBA 1/10 47K OHM J 1608
33 C ELECTRO         C535       CEXF1H109E 50V RM 1MF (5X11) TP                 85 C CHIP CERA        C601       HCBK153KBA 50V X7R 0.015MF K 1608               137 COIL CHIP          L506~507      HLC104J01A BEAD 120 OHM 100MHZ 2012             189 R CHIP        R556L/R      HRFT472JBA 1/10 4.7K OHM J 1608
34 C ELECTRO         C536       CEXF1H100E 50V RM 10MF (5X11) TP                86 C CHIP CERA      C602~606     HCQK101JBA 50V CH 100PF J 1608                  138 COIL CHIP          L508L/R       HLC104J01A BEAD 120 OHM 100MHZ 2012             190 R CHIP        R557L/R      HRFT471JBA 1/10 470 OHM J 1608
35 C CHIP CERA       C537       HCBK104KBA 50V X7R 0.1MF K 1608                 87 C ELECTRO          C607       CEXF1H338E 5V RM 0.33MF (5X11) TP               139 R CHIP             L509L/R       HRFT000-BA 1/10 0 OHM 1608                      191 R CHIP          R561       HRFT474JBA 1/10 470K OHM J 1608
36 C ELECTRO         C538       CEXF1H100E 50V RM 10MF (5X11) TP                88 C CHIP CERA        C608       HCBK153KBA 50V X7R 0.015MF K 1608               140 COIL CHIP       L510A/B/C/L/R/W HLC104J01A BEAD 120 OHM 100MHZ 2012              192 R CHIP          R562       HRFT472JBA 1/10 4.7K OHM J 1608
37 C CHIP CERA     C539~540     HCBK104KBA 50V X7R 0.1MF K 1608                 89 C ELECTRO        C609~610     CEXF1H339E 50V RM 3.3MF (5X11) TP               141 COIL CHIP          L511~512      HLC104J01A BEAD 120 OHM 100MHZ 2012             193 R CHIP     R563A/B/C/L/R/W HRFT472JBA 1/10 4.7K OHM J 1608
38 C ELECTRO         C541       CEXF1H229V 50V RSS 2.2MF (5X11) TP              90 C CHIP CERA        C612       HCBK822KBA 50V X7R 8200PF K 1608                142 TR CHIP              Q502        TZRA102S-- KRA102S (10X10)PNP                   194 R CHIP     R564A/B/C/L/R/W HRFT472JBA 1/10 4.7K OHM J 1608
39 C CHIP CERA       C542       HCBK104KBA 50V X7R 0.1MF K 1608                 91 C ELECTRO          C613       CEXF1H100E 50V RM 10MF (5X11) TP                143 TR CHIP            Q503L/R       TZRC231S-- KRC231S                              195 R CHIP     R565A/B/C/L/R/W HRFT472JBA 1/10 4.7K OHM J 1608
40 C ELECTRO         C543       CEXF1H100E 50V RM 10MF (5X11) TP                92 C ELECTRO          C614       CEXF1H108E 50V RM 0.1MF (5X11) TP               144 TR CHIP              Q505        TZRA102S-- KRA102S (10X10)PNP                   196 R CHIP     R566A/B/C/L/R/W HRFT472JBA 1/10 4.7K OHM J 1608
41 C CHIP CERA       C544       HCBK104KBA 50V X7R 0.1MF K 1608                 93 C CHIP CERA      C615~616     HCQK681JBA 50V CH 680PF J 1608                  145 TR CHIP              Q506        TZRC102S-- KRC102S                              197 R CHIP     R567A/B/C/L/R/W HRFT102JBA 1/10 1K OHM J 1608
42 C ELECTRO         C545       CEXF1E470E 25V RM 47MF (5X11)                   94 C ELECTRO        C617~618     CEXF1E101E 25V RM 100MF (6.3X11) TP             146 TR CHIP         Q507A/B/C/L/R/W TZRC231S-- KRC231S                               198 R CHIP     R568A/B/C/L/R/W HRFT104JBA 1/10 100K OHM J 1608
43 C ELECTRO     C546L/R~547L/R CEXF1H100E 50V RM 10MF (5X11) TP                95 C CHIP CERA      C619L/R      HCQK101JBA 50V CH 100PF J 1608                  147 TR FET             Q508L/R        T2SK117--- 2SK117                              199 R CHIP     R569A/B/C/L/R/W HRFT102JBA 1/10 1K OHM J 1608
44 C ELECTRO         C547       CEXF1H109E 50V RM 1MF (5X11) TP                 96 C CHIP CERA      C621~624     HCQK681JBA 50V CH 680PF J 1608                  148 TR CHIP              Q509        TZRA102S-- KRA102S (10X10)PNP                   200 R CHIP       R570L/R/W     HRFT392JBA 1/10 3.9K OHM J 1608
45 C CHIP CERA     C548~549     HCBK104KBA 50V X7R 0.1MF K 1608                 97 C ELECTRO        C625~626     CEXF1E101E 25V RM 100MF (6.3X11) TP             149 TR CHIP              Q510        TZRC102S-- KRC102S                              201 R CHIP        R571L/R      HRFT472JBA 1/10 4.7K OHM J 1608
46 C CHIP CERA      C548L/R     HCQK101JBA 50V CH 100PF J 1608                  98 C CHIP CERA      C627~632     HCQK681JBA 50V CH 680PF J 1608                  150 TR CHIP              Q511        TZRA102S-- KRA102S (10X10)PNP                   202 R CHIP         R571W       HRFT682JBA 1/10 6.8K OHM J 1608
47 C CHIP CERA   C549L/R~550L/R HCQK681JBA 50V CH 680PF J 1608                  99 C CHIP CERA   C633A/B/C/L/R/W HCQK101JBA 50V CH 100PF J 1608                  151 TR CHIP            Q512~513      TZRC231S-- KRC231S                              203 R CHIP     R572L/R~573L/R HRFT153JBA 1/10 15K OHM J 1608
48 C ELECTRO         C550       CEXF1H109E 50V RM 1MF (5X11) TP                 100 C ELECTRO      C634A/B/L/R   CEXF1H100E 50V RM 10MF (5X11) TP                152 R CHIP               R501        HRFT472JBA 1/10 4.7K OHM J 1608                 204 R CHIP         R572W       HRFT562JBA 1/10 5.6K OHM J 1608
49 C CHIP CERA       C552       HCQK101JBA 50V CH 100PF J 1608                  101 C ELECTRO       C634C/W      CEXF1H479E 50V RM 4.7MF (5X11) TP               153 R CHIP               R503        HRFT221JBA 1/10 220 OHM J 1608                  205 R CHIP         R573W       HRFT822JBA 1/10 8.2K OHM J 1608


                                                                           11                                                                                                                                                                    11
            13. Electrical Parts List                                                                                                                                        13. Electrical Parts List
     Model : DV-115                                                                                                                                                       Model : DV-115

NO PART-NAME         LOCATION       PART-CODE            PART-DESC      REMARKS    NO PART-NAME        LOCATION     PART-CODE            PART-DESC         REMARKS   NO PART-NAME        LOCATION    PART-CODE            PART-DESC        REMARKS    NO PART-NAME      LOCATION      PART-CODE          PART-DESC           REMARKS


206 R CHIP           R574L/R/W      HRFT101JBA 1/10 100 OHM J 1608                 9 C CHIP CERA         C949       HCQK101JBA 50V CH 100PF J 1608                   61 R CHIP             R951      HRFT103JBA 1/10 10K OHM J 1608                   12 C ELECTRO        C718        CEXF1E472E 25V RM 4700MF (16X31.5)
207 R CHIP            R575~576      HRFT332JBA 1/10 3.3K OHM J 1608                10 C CHIP CERA        C950       HCBK103KBA 50V X7R 0.01MF K 1608                 62 R CHIP             R952      HRFT224JBA 1/10 220K OHM J 1608                  13 C ELECTRO        C719        CEXF1E102E 25V RM 1000MF (10X20)
208 R CHIP            R577L/R       HRFT622JBA 1/10 6.2K OHM J 1608                11 C ELECTRO          C951       CEXP1H479V 50V REM 4.7MF 4*5                     63 R CHIP             R953      HRFT103JBA 1/10 10K OHM J 1608                   14 C ELECTRO      C720~721      CEXF1E471E 25V RM 470MF (10X12.5)
209 R CHIP              R578        HRFT103JBA 1/10 10K OHM J 1608                 12 C DOUBLE LAYER     C952       CDXC0H479A 0.047F/5.5V 70UA 5RE                  64 R CHIP             R954      HRFT680JBA 1/10 68 OHM J 1608                    15 C MYLAR        C722~724      CMXM2A473J 100V 0.047MF J (TP)
210 R CHIP            R578L/R       HRFT104JBA 1/10 100K OHM J 1608                13 C ELECTRO          C953       CEXP1C470V 16V REM 47MF                          65 R CHIP             R955      HRFT271JBA 1/10 270 OHM J 1608                   16 C ELECTRO        C725        CEXF1C682E 16V RM 6800MF (16X35.5)
211 R CHIP              R579        HRFT222JBA 1/10 2.2K OHM J 1608                14 C CHIP CERA        C954       HCBK103KBA 50V X7R 0.01MF K 1608                 66 R CHIP           R956~958    HRFT103JBA 1/10 10K OHM J 1608                   17 C CERA           C726        CCXF1H104Z 50V F 0.1MF Z
212 R CHIP            R580L/R       HRFT472JBA 1/10 4.7K OHM J 1608                15 C CHIP CERA        C955       HCBK104KBA 50V X7R 0.1MF K 1608                  67 R CHIP             R960      HRFT122JBA 1/10 1.2K OHM J 1608                  18 C ELECTRO        C727        CEXF1C471E 16V RM 470MF (8X11.5)
213 R CHIP              R581        HRFT473JBA 1/10 47K OHM J 1608                 16 C CHIP CERA      C957~959     HCQK101JBA 50V CH 100PF J 1608                   68 R CHIP           R961~962    HRFT152JBA 1/10 1.5K OHM J 1608                  19 C CERA           C728        CCXF1H104Z 50V F 0.1MF Z
214 R CHIP            R582L/R       HRFT104JBA 1/10 100K OHM J 1608                17 C CHIP CERA        C960       HCBK473KBA 50V X7R 0.047MF K 1608                69 R CHIP           R963~964    HRFT272JBA 1/10 2.7K OHM J 1608                  20 C MYLAR        C729~731      CMXM2A473J 100V 0.047MF J (TP)
215 R CHIP            R583L/R       HRFT000-BA 1/10 0 OHM 1608                     18 C ELECTRO          C961       CEXP1H109V 50V REM 1MF 4*5                       70 R CHIP             R965      HRFT472JBA 1/10 4.7K OHM J 1608                  21 C ELECTRO        C740        CEXF1H100E 50V RM 10MF (5X11) TP
216 R CHIP         R584L/R~585L/R HRFT472JBA 1/10 4.7K OHM J 1608                  19 C CHIP CERA        C962       HCBK104KBA 50V X7R 0.1MF K 1608                  71 R CHIP             R968      HRFT122JBA 1/10 1.2K OHM J 1608                  22 C MYLAR      C741A/B/C/L/R   CMXM2A104J 100V 0.1MF J (TP)
217 R CHIP            R586L/R       HRFT104JBA 1/10 100K OHM J 1608                20 C ELECTRO          C963       CEXP1H109V 50V REM 1MF 4*5                       72 R CHIP           R969~970    HRFT152JBA 1/10 1.5K OHM J 1608                  23 C CERA       C742A/B/C/L/R   CCXF1H103Z 50V F 0.01MF Z (TAPPING)
218 R CHIP         R587A/B/C/L/R/W HRFT000-BA 1/10 0 OHM 1608                      21 C CHIP CERA        C964       HCBK473KBA 50V X7R 0.047MF K 1608                73 R CHIP           R971~972    HRFT272JBA 1/10 2.7K OHM J 1608                  24 C ELECTRO        C743        CEXF1H479E 50V RM 4.7MF (5X11) TP
219 R CHIP              R588        HRFT104JBA 1/10 100K OHM J 1608                22 CONN AS            CN901      9728811200 #26 P2.0 4P 160MM UL 1007             74 R CHIP             R973      HRFT472JBA 1/10 4.7K OHM J 1608                  25 C ELECTRO        C744        CEXF1H100E 50V RM 10MF (5X11) TP
220 R METAL FILM        R589        RN-4Z221J- 1/4W 220 OHM J                      23 CONN AS            CN903      9728809700 #26 P2.0 7P 140MM UL 1007             75 R CHIP             R974      HRFT822JBA 1/10 8.2K OHM J 1608                  26 C ELECTRO        C745        CEXF1E101E 25V RM 100MF (6.3X11) TP
221 R CHIP              R590        HRFT751JBA 1/10 750 OHM J 1608                 24 CONN AS            CN904      9728811300 #26 P2.0 6P 170MM UL 1007             76 R CHIP             R975      HRFT101JBA 1/10 100 OHM J 1608                   27 C CERA           C746        CCXF1H473Z 50V F 0.047MF Z (TAPPING)
222 R CHIP            R591~593      HRFT101JBA 1/10 100 OHM J 1608                 25 CONN AS            CN906      9728811500 #26 P2.0 3P 100MM UL 1007             77 R CHIP             R976      HRFT122JBA 1/10 1.2K OHM J 1608                  28 C ELECTRO        C747        CEXF1E101E 25V RM 100MF (6.3X11) TP
223 R CHIP              R594        HRFT152JBA 1/10 1.5K OHM J 1608                26 CONN FFC           CN911      9728809400 FFC 1.25X27X360MM K                   78 R CHIP           R977~978    HRFT152JBA 1/10 1.5K OHM J 1608                  29 C ELECTRO        C751        CEXF1H108E 50V RM 0.1MF (5X11) TP
224 R CHIP            R595L/R       HRFT101JBA 1/10 100 OHM J 1608                 27 CONN FFC           CN912      9728809300 FFC 1.25X11X230MM R                   79 R CHIP           R979~980    HRFT272JBA 1/10 2.7K OHM J 1608                  30 C CERA       C752A/B/C/L/R   CCZB1H471K 50V B 470PF K
225 R CHIP         R596A/B/C/L/R/W HRFT224JBA 1/10 220K OHM J 1608                 28 CONN WAFER         CP901      9CD6264000 52044-1145                            80 R CHIP             R981      HRFT472JBA 1/10 4.7K OHM J 1608                  31 C ELECTRO      C753~754      CEXF1H108E 50V RM 0.1MF (5X11) TP
226 R METAL FILM        R597        RN-4Z221J- 1/4W 220 OHM J                      29 CONN WAFER         CP903      9CD6264200 52044-2745                            81 R CHIP             R982      HRFT822JBA 1/10 8.2K OHM J 1608                  32 C ELECTRO        C755A       CEXF1H229E 50V RM 2.2MF (5X11) TP
227 R CHIP              R598        HRFT103JBA 1/10 10K OHM J 1608                 30 DIODE               D902       DZN4148--- 1N4148 AUTO 52MM                     82 R CHIP             R983      HRFT102JBA 1/10 1K OHM J 1608                    33 C ELECTRO     C755B/C/L/R    CEXF1H229V 50V RSS 2.2MF (5X11) TP
228 R CHIP         R598A/B/C/L/R/W HRFT104JBA 1/10 100K OHM J 1608                 31 DIODE ZENER         D903      DZTZ3R3B-- MTZ 3.3V B                            83 R CHIP             R984      HRFT000-BA 1/10 0 OHM 1608                       34 C CERA       C756A/B/C/L/R   CCZB1H221K 50V B 220PF K
229 R CHIP              R599        HRFT102JBA 1/10 1K OHM J 1608                  32 DIODE               D904       DZN4148--- 1N4148 AUTO 52MM                     84 R CHIP             R987      HRFT103JBA 1/10 10K OHM J 1608                   35 C ELECTRO    C757A/B/C/L/R   CEXF1H330E 50V RM 33MF (5X11) TP
230 R CHIP            R599L/R       HRFT104JBA 1/10 100K OHM J 1608                33 DIODE               D905       DZN4007--- IN4007                               85 SW TACT          SW901~906   5S50101001 KPT-1105A 1C-1P                       36 C CERA       C758A/B/C/L/R   CZCH1H309K CH 50V 3PF K AXL 26MM
231 R CHIP              R600        HRFT474JBA 1/10 470K OHM J 1608                34 DIODE               D906       DZN4148--- 1N4148 AUTO 52MM                     86 SW TACT          SW908~924   5S50101001 KPT-1105A 1C-1P                       37 C CERA       C759A/B/C/L/R   CCXF1H223Z 50V F 0.022MF Z (TAPPING)
232 R CHIP            R601~602      HRFT332JBA 1/10 3.3K OHM J 1608                35 DIODE ZENER         D908      DZTZ6R8B-- MTZ6.8B                               87 VOL ENCODER        VR904     5SH1624368 EC16B241040B                          38 C CERA           C760        CCXF1H223Z 50V F 0.022MF Z (TAPPING)
233 R CHIP         R601A/B/C/L/R/W HRFT101JBA 1/10 100 OHM J 1608                  36 FL DISPLAY         FL901      DHNA11MM37 NHA-11MM37                            88 RESONATOR CERA     X901      5PCST10MTW CST10.00MTW                           39 C ELECTRO        C761        CEXF1H100E 50V RM 10MF (5X11) TP
234 R CHIP         R602A/B/C/L/R/W HRFT473JBA 1/10 47K OHM J 1608                  37 IC MICOM           IC904      1CXP82852- CXP82852-329Q                         1 PCB H/P AS          17000     9CDC0593B0 DV-115                                40 C CERA           C762        CCXF1H223Z 50V F 0.022MF Z (TAPPING)
235 R CHIP          R603A/B/C/L/R   HRFT562JBA 1/10 5.6K OHM J 1608                38 IC RMC MODULE      IC905      1TM97CT38- TM97CT38P                             2 PCB H/P             B001      9CD6583502 242X329                               41 C ELECTRO        C763        CEXF1H100E 50V RM 10MF (5X11) TP
236 R CHIP             R603W        HRFT103JBA 1/10 10K OHM J 1608                 39 R CHIP            L901~903    HRFT000-BA 1/10 0 OHM 1608                       3 C CHIP CERA         C992      HCBK103KBA 50V X7R 0.01MF K 1608                 42 C ELECTRO      C764~765      CEXF1V101E 35V RM 100MF (6.3X11) TP
237 R CHIP          R604A/B/C/L/R   HRFT392JBA 1/10 3.9K OHM J 1608                40 TR                 Q903        TZTC3875-- KTC3875                              4 C CHIP CERA       C993~994    HCBK102KBA 50V X7R 1000PF K 1608                 43 C ELECTRO        C766        CEXF1H100E 50V RM 10MF (5X11) TP
238 R CHIP             R604W        HRFT751JBA 1/10 750 OHM J 1608                 41 TR CHIP            Q904       TZRC102S-- KRC102S                               5 CONN WAFER          CP902     9728808800 2.0MM PH-3AW 3P                       44 C CERA           C767        CCXF1H223Z 50V F 0.022MF Z (TAPPING)
239 R CHIP         R605A/B/C/L/R/W HRFT104JBA 1/10 100K OHM J 1608                 42 R CHIP             R1~37      HRFT104JBA 1/10 100K OHM J 1608                  6 CONN WAFER          CP992     9728808900 2.0MM PH-7A 7P                        45 C ELECTRO        C768        CEXF1V101E 35V RM 100MF (6.3X11) TP
240 R CHIP         R606A/B/C/L/R/W HRFT102JBA 1/10 1K OHM J 1608                   43 R CHIP             R1001      HRFT103JBA 1/10 10K OHM J 1608                   7 DIODE SW CHIP     D911~912     DZDS160--- KDS160                               46 C CERA           C769        CCXF1H223Z 50V F 0.022MF Z (TAPPING)
241 R CHIP              R607        HRFT103JBA 1/10 10K OHM J 1608                 44 R CHIP             R1002      HRFT473JBA 1/10 47K OHM J 1608                   8 JACK HEADPHONE      PH991     9766319502 HTJ-064-05B GOLD                      47 C ELECTRO        C770        CEXF1H100E 50V RM 10MF (5X11) TP
242 R CHIP              R608        HRFT223JBA 1/10 22K OHM J 1608                 45 R CHIP           R1003~1010   HRFT103JBA 1/10 10K OHM J 1608                   1 PCB KEY SW AS       18000     9CDC0593C0 DV-115                                48 C ELECTRO        C771        CEXF1V101E 35V RM 100MF (6.3X11) TP
243 R CHIP             R608W        HRFT102JBA 1/10 1K OHM J 1608                  46 R CHIP           R1011~1013   HRFT473JBA 1/10 47K OHM J 1608                   2 PCB KEY SW          B001      9CD6583503 242X329                               49 C CERA         C772~773      CCXF1H103Z 50V F 0.01MF Z (TAPPING)
244 R CHIP              R609        HRFT122JBA 1/10 1.2K OHM J 1608                47 R CHIP             R1014      HRFT101JBA 1/10 100 OHM J 1608                   3 CONN WAFER          CP906     9728808800 2.0MM PH-3AW 3P                       50 C CERA       C780L/R~785L/R CZCH1H101J CH 50V 100PF J AXL 52MM
245 R CHIP              R610        HRFT000-BA 1/10 0 OHM 1608                     48 R CHIP             R1015      HRFT472JBA 1/10 4.7K OHM J 1608                  4 LED                 D907      DLTL16KEE- LTL-16KEE(RED)PI3.1                   51 C CERA         C786~787      CCXF1H103Z 50V F 0.01MF Z (TAPPING)
246 R CHIP              R611        HRFT183JBA 1/10 18K OHM J 1608                 49 R CHIP           R926~928     HRFT473JBA 1/10 47K OHM J 1608                   5 SW TACT            SW907      5S50101001 KPT-1105A 1C-1P                       52 C CERA         C790~791      CCXF1H104Z 50V F 0.1MF Z
247 R CHIP            R612~619      HRFT000-BA 1/10 0 OHM 1608                     50 R CHIP             R929       HRFT100JBA 1/10 10 OHM J 1608                    1 PCB MAIN AS         10000     9CDC058900 DV-115                                53 C ELECTRO      C792~793      CEXF1H479E 50V RM 4.7MF (5X11) TP
248 R CHIP            R620~627      HRFT103JBA 1/10 10K OHM J 1608                 51 R CHIP             R930       HRFT104JBA 1/10 100K OHM J 1608                  2 PCB MAIN            B001      9CD6583600 247X330                               54 C ELECTRO    C793L/R~794L/R CEXF1H100E 50V RM 10MF (5X11) TP
249 X-TAL               X501        5XE12R288J 12.288MHZ HC-49U                    52 R CHIP           R931~933     HRFT101JBA 1/10 100 OHM J 1608                   3 C ELECTRO           C702      CEXF1E102E 25V RM 1000MF (10X20)                 55 C ELECTRO        C795        CEXF1C682E 16V RM 6800MF (16X35.5)
 1 PCB FRONT AS        15000        9CDC059300 DV-115                              53 R CHIP           R934~936     HRFT220JBA 1/10W 22 OHM J 1608                   4 C CERA AC           C703      CH1BFE472M 4.0KV 4700PF M SD AC250V              56 C CERA       C795A/B/C/L/R   CCZB1H222K 50V HIKB 2200PF K AXL 52M
 2 PCB FRONT            B001        9CD6583500 242X329                             54 R CHIP           R937~940     HRFT101JBA 1/10 100 OHM J 1608                   5 C ELECTRO           C705      CEXF1H100E 50V RM 10MF (5X11) TP                 57 C CERA           C796        CZCH1H101J CH 50V 100PF J AXL 52MM
 3 C CHIP CERA        C932~933      HCBK103KBA 50V X7R 0.01MF K 1608               55 R CHIP            R941~942    HRFT471JBA 1/10 470 OHM J 1608                   6 C MYLAR             C707      CMXM2E104J 250V 0.1MF J                          58 CONN WAFER       CN702       9CD6263900 52045-1745
 4 C CHIP CERA        C934~939      HCQK101JBA 50V CH 100PF J 1608                 56 R CHIP             R943       HRFT473JBA 1/10 47K OHM J 1608                   7 C MYLAR           C709~710    CMXM2E104J 250V 0.1MF J                          59 CONN AS          CN706       9728810400 #18 P3.96 3P 210MM UL1007
 5 C ELECTRO            C940        CEXP1C470V 16V REM 47MF                        57 R CHIP             R944       HRFT471JBA 1/10 470 OHM J 1608                   8 C ELECTRO         C711~712    CEXF1V472E 35V RM 4700MF (18X35.5)               60 CONN AS          CN993       9728809800 #22 P7.92 2P 460MM UL1617
 6 C CHIP CERA          C941        HCBK473KBA 50V X7R 0.047MF K 1608              58 R CHIP           R945~946     HRFT473JBA 1/10 47K OHM J 1608                   9 C ELECTRO           C713      CEXF1J331E 63V RM 330MF (6.3X11)                 61 CONN WAFER       CP502       9728807700 35336-1110 WAFER
 7 C CHIP CERA        C946~947      HCQK101JBA 50V CH 100PF J 1608                 59 R CHIP           R947~948     HRFT102JBA 1/10 1K OHM J 1608                    10 C ELECTRO          C714      CEXF1H109E 50V RM 1MF (5X11) TP                  62 CONN WAFER       CP503       9728807800 35336-1810 WAFER
 8 C CHIP CERA          C948        HCBK103KBA 50V X7R 0.01MF K 1608               60 R CHIP           R949~950     HRFT472JBA 1/10 4.7K OHM J 1608                  11 C MYLAR          C715~717    CMXM2A473J 100V 0.047MF J (TP)                   63 CONN WAFER       CP701       9728808100 GP390-03P-TS-M(W/O CENTER


                                                                              11                                                                                                                                                                 11
         13. Electrical Parts List                                                                                                                                                    13. Electrical Parts List
     Model : DV-115                                                                                                                                                                Model : DV-115

NO PART-NAME             LOCATION       PART-CODE            PART-DESC         REMARKS   NO PART-NAME         LOCATION       PART-CODE         PART-DESC            REMARKS   NO PART-NAME          LOCATION      PART-CODE            PART-DESC         REMARKS   NO PART-NAME       LOCATION    PART-CODE           PART-DESC         REMARKS

64 CONN WAFER              CP702        9728808200 VH-3A (W/O CENTER,RED)                116 TR                  Q704        TZTA1024Y- KTA1024Y (949Y)                       168 R METAL FILM        R767        RN-4Z101J- 1/4 100 OHM J                         38 DIODE SW CHIP   D909~910    DZDS160--- KDS160
65 CONN WAFER              CP703        9728808300 VH-3A (W/O CENTER)                    117 TR                  Q705        TKRC107M-- KRC107-M TAPPING(KSR1006)             169 R CARBON FILM   R772L/R~777L/R RD-AZ471J- 1/6 470 OHM J                          39 IC CHIP           IC901     1NJM4558M- NJM4558M
66 CONN WAFER              CP704        9728808500 VH-3A WAFER                           118 TR                  Q706        TZTA1266Y- KTA1266Y- (AUTO)(1015Y)               170 R CARBON FILM   R778L/R~783L/R RD-AZ275J- 1/6 2.7M OHM J                         40 IC                IC902      1ES56033-- ES56033
67 CONN AS                 CP705        9728810500 #24 P2.0 8P 140MM UL 1007             119 TR                Q707~709      TZTC3199Y- KTC-3199Y TAPING                      171 R CARBON FILM   R784L/R~785L/R RD-AZ104J- 1/6 100K OHM J                         41 IC CHIP           IC903     1NJM4558M- NJM4558M
68 CONN WAFER              CP706        9728807900 5267-02A WAFER                        120 TR                  Q710        TZTA1266Y- KTA1266Y- (AUTO)(1015Y)               172 R CARBON FILM      R786L/R      RD-AZ101J- 1/6 100 OHM J                         42 JACK MIC          JA901     9736324200 H20480060S
69 CONN WAFER              CP707        9728808000 5267-06A WAFER                        121 TR                  Q711        TZTC3200GR KTC3200GR (AUTO)(2240GR)              173 R CARBON FILM      R788L/R      RD-AZ101J- 1/6 100 OHM J                         43 TR                Q901      TZTC3200GR KTC3200GR (AUTO)(2240GR)
70 CONN WAFER              CP708        9728808400 VH-2A WAFER                           122 TR                  Q712        TKRA102M-- KRA 102-M (TAPPING)                   174 R CARBON FILM      R789L/R      RD-AZ104J- 1/6 100K OHM J                        44 TR CHIP          Q905L/R    TZRC231S-- KRC231S
71 CONN AS                 CP710        9728810200 #26 P2.0 6P 120MM UL 1007             123 TR                  Q713        TZTC102M-- KRC102M                               175 R CARBON FILM     R790~792      RD-AZ101J- 1/6 100 OHM J                         45 TR CHIP           Q906      TZRA102S-- KRA102S (10X10)PNP
72 CONN WAFER              CP711        9728808700 2.0MM PH-8A 8P                        124 TR                Q717~720      TZRA102M-- KRA102M(KEC)                          176 R METAL FILM       R793L/R      RN01B331JS 1W 330 OHM J SMALL                    46 TR CHIP           Q907      TZRC104S-- KRC104S
73 CONN WAFER              CP903        9CD6263800 52045-2745                            125 TR                Q721~725      TZRC231M-- KRC231M(KEC)                          177 R CARBON FILM       R799        RD-AZ472J- 1/6 4.7K OHM J                        47 R CHIP            R901      HRFT561JBA 1/10 560 OHM J 1608
74 DIODE                    D701        D1N4007--- IN4007                                126 TR                  Q726        TZTC3200GR KTC3200GR (AUTO)(2240GR)              178 R CARBON FILM   R799A/B/C/L/R   RD-AZ333J- 1/6 33K OHM J                         48 R CHIP            R902      HRFT103JBA 1/10 10K OHM J 1608
75 DIODE ZENER              D702        DZTZ3R3B-- MTZ 3.3V B                            127 TR                  Q727        TZRC102M-- KRC102M(KEC)                          179 SW RELAY            RY701       5SC2001A01 SDT-S-105LMR                          49 R CHIP            R903      HRFT473JBA 1/10 47K OHM J 1608
76 DIODE                  D703~706      D1N4007--- IN4007                                128 TR              Q727A/B/C/L/R   TZTC3199Y- KTC-3199Y TAPING                      180 SW RELAY            RY702       5SC0201103 HR-CR323 2C-1P DC12V                  50 R CHIP            R904      HRFT561JBA 1/10 560 OHM J 1608
77 DIODE                    D707        DZN4148--- 1N4148 AUTO 52MM                      129 TR                  Q730        TKRC107M-- KRC107-M TAPPING(KSR1006)             181 SW RELAY            RY703       5SC0101370 SDT-S-112LMR                          51 R CHIP            R905      HRFT563JBA 1/10 56K OHM J 1608
78 DIODE ZENER              D708        DZTZ15B--- MTZ 15V B                             130 R METAL FILM      R701~702      RN-4Z109J- 1/4 1 OHM J                           182 TRANS POWER         T701        5TP8028855 EI=28X12 8.5V 150MA 230V              52 R CHIP            R906      HRFT392JBA 1/10 3.9K OHM J 1608
79 DIODE                    D709        DKBPC806-- KBPC806                               131 R CARBON FILM       R703        RD-AZ182J- 1/6 1.8K OHM J                        1 PCB MIC AS            16000       9CDC0593A0 DV-115                                53 R CHIP            R908      HRFT103JBA 1/10 10K OHM J 1608
80 DIODE                    D710        D1N4007--- IN4007                                132 R CARBON FILM       R705        RD-AZ221J- 1/6 220 OHM J                         2 PCB MIC               B001        9CD6583501 242X329                               54 R CHIP            R909      HRFT123JBA 1/10 12K OHM J 1608
81 DIODE                D711A/B/C/L/R   DZN4148--- 1N4148 AUTO 52MM                      133 R CARBON FILM       R706        RD-AZ223J- 1/6 22K OHM J                         3 C ELECTRO             C901        CEXF1H479E 50V RM 4.7MF (5X11) TP                55 R CHIP            R910      HRFT103JBA 1/10 10K OHM J 1608
82 DIODE ZENER              D712        DZTZ12B--- MTZ 12V 26MM TAPPING                  134 R METAL FILM        R707        RN-4Z680J- 1/4 68 OHM J                          4 C CHIP CERA           C902        HCQK101JBA 50V CH 100PF J 1608                   56 R CHIP          R911~912    HRFT153JBA 1/10 15K OHM J 1608
83 DIODE ZENER              D713        DZTZ22B--- MTZ 22V B                             135 R CARBON FILM       R708        RD-AZ102J- 1/6 1K OHM J                          5 C ELECTRO             C903        CEXF1H220E 50V RM 22MF (5X11) TP                 57 R CHIP            R913      HRFT123JBA 1/10 12K OHM J 1608
84 DIODE                  D714~717      D1N4007--- IN4007                                136 R METAL FILM      R709~710      RN-4Z109J- 1/4 1 OHM J                           6 C CHIP CERA           C904        HCQK221JBA 50V CH 220PF J 1608                   58 R CHIP            R914      HRFT103JBA 1/10 10K OHM J 1608
85 DIODE                  D718~719      DZN4148--- 1N4148 AUTO 52MM                      137 R CARBON FILM       R711        RD-AZ103J- 1/6 10K OHM J                         7 C ELECTRO             C905        CEXF1H479E 50V RM 4.7MF (5X11) TP                59 R CHIP            R915      HRFT153JBA 1/10 15K OHM J 1608
86 DIODE                  D720~723      D1N4007--- IN4007                                138 R METAL FILM      R715~717      RN-4Z109J- 1/4 1 OHM J                           8 C CHIP CERA           C906        HCBK102KBA 50V X7R 1000PF K 1608                 60 R CHIP            R916      HRFT562JBA 1/10 5.6K OHM J 1608
87 DIODE                    D724        DKBPC806-- KBPC806                               139 R CARBON FILM     R718~719      RD-AZ103J- 1/6 10K OHM J                         9 C ELECTRO             C907        CEXF1H100E 50V RM 10MF (5X11) TP                 61 R CHIP            R917      HRFT123JBA 1/10 12K OHM J 1608
88 DIODE ZENER              D725        DZTZ4R3B-- MTZ4.3B                               140 R CARBON FILM     R720~722      RD-AZ102J- 1/6 1K OHM J                          10 C CHIP CERA          C908        HCBK472KBA 50V X7R 4700PF K 1608                 62 R CHIP            R919      HRFT183JBA 1/10 18K OHM J 1608
89 DIODE                  D726~727      DZN4148--- 1N4148 AUTO 52MM                      141 R METAL FILM    R723A/B/C/L/R   RN01B100JS 1W 10 OHM J SMALL                     11 C ELECTRO            C909        CEXF1H339E 50V RM 3.3MF (5X11) TP                63 R CHIP            R920      HRFT221JBA 1/10 220 OHM J 1608
90 DIODE                    D729        DZN4148--- 1N4148 AUTO 52MM                      142 R METAL FILM    R724A/B/C/L/R   RN01B100JS 1W 10 OHM J SMALL                     12 C CHIP CERA          C910        HCQK561JBA 50V CH 560PF J 1608                   64 R CARBON FILM     R921      RD-4Z331J- 1/4 330 OHM J
91 DIODE ZENER              D730        DZTZ5R6B-- UZ-5.6B                               143 R CARBON FILM   R726A/B/C/L/R   RD-AZ223J- 1/6 22K OHM J                         13 C CHIP CERA          C911        HCBK563KBA 50V X7R 0.056MF K 1608                65 R CHIP            R922      HRFT000-BA 1/10 0 OHM 1608
92 DIODE                  D731~741      DZN4148--- 1N4148 AUTO 52MM                      144 R CARBON FILM       R729        RD-AZ153J- 1/6 15K OHM J                         14 C ELECTRO            C912        CEXF1H100E 50V RM 10MF (5X11) TP                 66 R CHIP          R923L/R     HRFT472JBA 1/10 4.7K OHM J 1608
93 DIODE                  D743~744      DZN4148--- 1N4148 AUTO 52MM                      145 R METAL FILM        R730        RN-4Z473J- 1/4 47K OHM J                         15 C CHIP CERA          C913        HCBK392KBA 50V X7R 3900PF K 1608                 67 R CHIP           R924L/R    HRFT103JBA 1/10 10K OHM J 1608
94 DIODE ZENER              D745        DZTZ9R1B-- TZ-9.1V                               146 R CARBON FILM     R731~732      RD-AZ473J- 1/6 47K OHM J                         16 C CHIP CERA          C914        HCBK563KBA 50V X7R 0.056MF K 1608                68 R CHIP           R925L/R    HRFT472JBA 1/10 4.7K OHM J 1608
95 DIODE                    D746        DZN4148--- 1N4148 AUTO 52MM                      147 R CARBON FILM       R734        RD-4Z473J- 1/4 47K OHM J                         17 C CHIP CERA          C915        HCQK561JBA 50V CH 560PF J 1608                   69 R CHIP            R966      HRFT104JBA 1/10 100K OHM J 1608
96 FUSE GLASS TUBE          F701        5FSGB1022L SEMKO TL 1A 250V MF51                 148 R CARBON FILM       R735        RD-AZ104J- 1/6 100K OHM J                        18 C CHIP CERA        C916~917      HCBK472KBA 50V X7R 4700PF K 1608                 70 R CHIP           R983L/R    HRFT104JBA 1/10 100K OHM J 1608
97 FUSE GLASS TUBE          F702        5FSGB2022L SEMKO TL 2A 250V MF51                 149 R CARBON FILM       R736        RD-4Z473J- 1/4 47K OHM J                         19 C ELECTRO            C918        CEXF1H220E 50V RM 22MF (5X11) TP                 71 R CHIP          R984L/R     HRFT223JBA 1/10 22K OHM J 1608
98 FUSE GLASS TUBE          F703        5FSGB4022L SEMKO TL 4A 250V MF51                 150 R CARBON FILM       R740        RD-AZ102J- 1/6 1K OHM J                          20 C CHIP CERA          C919        HCQK221JBA 50V CH 220PF J 1608                   72 R CHIP            R985      HRFT102JBA 1/10 1K OHM J 1608
99 HOLDER FUSE CLIP      FC701~706      9734600800 PI5.2 - REEL                          151 R CARBON FILM   R742A/B/C/L/R   RD-AZ102J- 1/6 1K OHM J                          21 CLECTRO              C920        CEXF1C221E RM 16V 220MF 6.3X11 TAT               73 R CHIP            R986      HRFT474JBA 1/10 470K OHM J 1608
100 TERMINAL GND          G701~702      9CD6450500 SNP 0.3T                              152 R CARBON FILM       R743        RD-AZ474J- 1/6 470K OHM J                        22 C CHIP CERA        C921~923      HCBK104KBA 50V X7R 0.1MF K 1608                  74 VR ROTARY        VR901      5V1503727B RK09K1110303 50KB
101 IC REGULATOR           IC701        1K1A7805AP K1A7805AP                             153 R CARBON FILM       R745        RD-AZ102J- 1/6 1K OHM J                          23 C ELECTRO            C924        CEXF1E101E 25V RM 100MF (6.3X11) TP              75 VR ROTARY        VR903      5V1503727B RK09K1110303 50KB
102 IC PROTECTOR           IC702        11CPN15--- ICP-N15                               154 R CARBON FILM       R747        RD-AZ474J- 1/6 470K OHM J                        24 C ELECTRO            C925        CEXF1H100E 50V RM 10MF (5X11) TP                 1 PCB MPEG AS        14000     9CDC059100 DV-115
103 IC REGULATOR           IC703        1K1A7812AP K1A7812AP                             155 R CARBON FILM       R750        RD-AZ102J- 1/6 1K OHM J                          25 CLECTRO              C926        CEXF1C221E RM 16V 220MF 6.3X11 TAT               2 PCB MPEG           B001      9CD6584000 91X147
104 IC                     IC704        1K1A7912AP KIA7912AP (MOLD)                      156 R CARBON FILM       R751        RD-AZ474J- 1/6 470K OHM J                        26 C CHIP CERA          C927        HCBK103KBA 50V X7R 0.01MF K 1608                 3 COIL BEAD        BD401~406   58C0000116 HC-3550R
105 IC REGULATOR           IC705        1K1A7805AP K1A7805AP                             157 R CARBON FILM   R754A/B/C/L/R   RD-AZ182J- 1/6 1.8K OHM J                        27 CLECTRO              C928        CEXF1C221E RM 16V 220MF 6.3X11 TAT               4 C CHIP CERA        C401      HCBK104KBA 50V X7R 0.1MF K 1608
106 IC POWER               IC709        1STK402250 STK 402-250                           158 R CARBON FILM   R755A/B/C/L/R   RD-AZ563J- 1/6 56K OHM J                         28 C CHIP CERA          C929        HCBK103KBA 50V X7R 0.01MF K 1608                 5 C CHIP CERA      C402~403    HCQK220JBA 50V CH 22PF J 1608
107 IC POWER               IC710        1STK402050 STK 402-050                           159 R CARBON FILM   R756A/B/C/L/R   RD-AZ563J- 1/6 56K OHM J                         29 C CHIP CERA         C930L/R      HCBK102KBA 50V X7R 1000PF K 1608                 6 C CHIP CERA        C404      HCBK104KBA 50V X7R 0.1MF K 1608
108 IC OP AMP              IC711        1NJM4558D- NJM4558D                              160 R CARBON FILM   R757A/B/C/L/R   RD-AZ202J- 1/6 2K OHM J                          30 C ELECTRO           C931L/R      CEXF1H479E 50V RM 4.7MF (5X11) TP                7 C ELECTRO          C405      CEXF1E101E 25V RM 100MF (6.3X11) TP
109 IC SWITCH              IC712        1NJU7313AM NJU7313AM (SW ARRAY SOP)              161 R CARBON FILM   R758A/B/C/L/R   RD-AZ202J- 1/6 2K OHM J                          31 C ELECTRO            C967        CEXF1H108E 50V RM 0.1MF (5X11) TP                8 C CHIP CERA      C406~407    HCBK104KBA 50V X7R 0.1MF K 1608
110 JACK SPK TERMINAL      JA701        9736324300 P40420428P                            162 R METAL FILM    R759A/B/C/L/R   RN01B228JS 1W 0.22 OHM J SMALL                   32 C ELECTRO           C968L/R      CEXF1H100E 50V RM 10MF (5X11) TP                 9 C ELECTRO          C408      CEXF1H100E 50V RM 10MF (5X11) TP
111 JACK SPK TERMINAL      JA702        9736324400 P40620702P                            163 R METAL FILM      R760~761      RN-4Z101J- 1/4 100 OHM J                         33 C CHIP CERA          C969        HCBK103KBA 50V X7R 0.01MF K 1608                 10 C CHIP CERA       C409      HCBK105KBA 50V X7R 1MF K 1608
112 AC OUTLET              JA703        9736324500 A302D0061P                            164 R CARBON FILM     R762~763      RD-AZ103J- 1/6 10K OHM J                         34 CONN AS              CN905       9728811400 P2.0 3P 270MM SHIELD                  11 C CHIP CERA     C410~412    HCBK104KBA 50V X7R 0.1MF K 1608
113 JACK RCA             JA704~705      9736323600 JK0600460                             165 R CARBON FILM       R764        RD-AZ203J- 1/6 20K OHM J                         35 CONN WAFER           CP904       9728808600 2.0MM PH-6AW 6P                       12 C ELECTRO         C413      CEXF1E101E 25V RM 100MF (6.3X11) TP
114 COIL SPRING         L723A/B/C/L/R   5L00000732 PI10X1.0X7T (R) CW                    166 R METAL FILM        R765        RN-4Z101J- 1/4 100 OHM J                         36 CONN AS              CP907       9728809500 #26 P2.0 8P 180MM UL 1007             13 C CHIP CERA       C414      HCBK104KBA 50V X7R 0.1MF K 1608
115 TR                      Q702        TKRC107M-- KRC107-M TAPPING(KSR1006)             167 R CARBON FILM       R766        RD-AZ203J- 1/6 20K OHM J                         37 DIODE ZENER          D901        DZTZ5R6B-- UZ-5.6B                               14 C ELECTRO         C415      CEXF1E101E 25V RM 100MF (6.3X11) TP


                                                                                    11                                                                                                                                                                        11
       13. Electrical Parts List                                                                                                                                  13. Electrical Parts List
   Model : DV-115                                                                                                                                               Model : DV-115

NO PART-NAME     LOCATION    PART-CODE           PART-DESC         REMARKS   NO PART-NAME          LOCATION    PART-CODE            PART-DESC         REMARKS   NO PART-NAME       LOCATION    PART-CODE            PART-DESC         REMARKS

15 C CHIP CERA     C416      HCBK102KBA 50V X7R 1000PF K 1608                67 IC RESET             IC408     1K1A7039AF KIA7039AF                             2 PCB REGURATOR      B001      9CD6583602 247X330
16 C CHIP CERA     C417      HCBK473KBA 50V X7R 0.047MF K 1608               68 IC ATAPI I/F         IC409      1ZR36701-- ZR36701P                             3 C ELECTRO          C734      CEXF1C471V 16V RSS 470MF (10X12.5)BK
17 C CHIP CERA     C418      HCQK220JBA 50V CH 22PF J 1608                   69 IC VIDEO ENCODER     IC410      1CS4955--- CS4955                               4 C CERA             C735      CCXF1H104Z 50V F 0.1MF Z
18 C CHIP CERA     C419      HCBK104KBA 50V X7R 0.1MF K 1608                 70 IC REGULATOR         IC411     1AME1117CC AME1117CCCT (TO-252)                  5 C ELECTRO          C738      CEXF1C471V 16V RSS 470MF (10X12.5)BK
19 C CHIP CERA     C420      HCQK330JBA 50V CH 33PF J 1608                   71 JACK ATAPI           JK401     9736324700 40P ATAPI                             6 C CERA             C739      CCXF1H104Z 50V F 0.1MF Z
20 C CHIP CERA   C421~423    HCBK104KBA 50V X7R 0.1MF K 1608                 72 COIL CHIP            L401      HLC279J03A 2.7UH CHIP 3216                       7 CONN WAFER        CN701      9728808700 2.0MM PH-8A 8P
21 C ELECTRO       C424      CEXF1E101E 25V RM 100MF (6.3X11) TP             73 COIL CHIP          L402~407    HLC189J02A 1.8UH CHIP 3216                       8 IC REGULATOR     IC706~707   1K1A7805AP K1A7805AP
22 C CHIP CERA   C425~429    HCBK104KBA 50V X7R 0.1MF K 1608                 74 CONN WAFER          PN401      9728810700 2.0MM PH-11AW 11P                     9 TR               Q731~732    TZTA1046Y- KTA1046Y
23 C ELECTRO       C430      CEXF1E101E 25V RM 100MF (6.3X11) TP             75 CONN WAFER          PN402      9728810800 2.0MM PH-4A 4P                        10 R METAL FILM    R727~728    RN-4Z100J- 1/4 10 OHM J
24 C CHIP CERA   C431~434    HCBK104KBA 50V X7R 0.1MF K 1608                 76 CONN AS             PN403      9728810100 #24 P2.0 5P 120MM UL 1007             1 PCB VIDEO AS      11000      9CDC0589A0 DV-115
25 C CHIP CERA   C437~441    HCQK150JBA 50V CH 15PF J 1608                   77 CABLE ATAPI         PN404      9728811100 ATAPI CABLE 40P 250MM                 2 PCB VIDEO          B001      9CD6583601 247X330
26 C CHIP CERA     C442      HCBK104KBA 50V X7R 0.1MF K 1608                 78 R CHIP             R401~402    HRFT472JBA 1/10 4.7K OHM J 1608                  3 C CERA             C851      CZCH1H101J CH 50V 100PF J AXL 52MM
27 C ELECTRO       C443      CEXF1E101E 25V RM 100MF (6.3X11) TP             79 R CHIP               R404      HRFT472JBA 1/10 4.7K OHM J 1608                  4 C CERA           C852~853    CCXF1H103Z 50V F 0.01MF Z (TAPPING)
28 C CHIP CERA   C444~446    HCBK104KBA 50V X7R 0.1MF K 1608                 80 R CHIP               R405      HRFT181JBA 1/10 180 OHM J 1608                   5 C ELECTRO        C854~856    CEXF1E470E 25V RM 47MF (5X11)
29 C CHIP CERA   C447~458    HCQK150JBA 50V CH 15PF J 1608                   81 R CHIP             R406~411    HRFT472JBA 1/10 4.7K OHM J 1608                  6 C ELECTRO        C857~858    CEXF1A471E 10V RM 470ME (6.3X11)
30 C ELECTRO       C459      CEXF1E101E 25V RM 100MF (6.3X11) TP             82 R CHIP               R412      HRFT102JBA 1/10 1K OHM J 1608                    7 C ELECTRO          C867      CEXF1E101E 25V RM 100MF (6.3X11) TP
31 C CHIP CERA   C460~461    HCBK104KBA 50V X7R 0.1MF K 1608                 83 R CHIP             R413~416    HRFT103JBA 1/10 10K OHM J 1608                   8 C CERA             C868      CCXF1H473Z 50V F 0.047MF Z (TAPPING)
32 C ELECTRO       C462      CEXF1E101E 25V RM 100MF (6.3X11) TP             84 R CHIP               R420      HRFT229JCA 1/10 2.2 OHM J 2012                   9 CONN AS           CP851      9728810300 #26 P2.0 11P 220MM UL1007
33 C CHIP CERA     C467      HCQK221JBA 50V CH 220PF J 1608                  85 R CHIP               R422      HRFT330JBA 1/10 33 OHM J 1608                    10 CONN WAFER       CP852      9728808600 2.0MM PH-6AW 6P
34 C CHIP CERA     C468      HCQK330JBA 50V CH 33PF J 1608                   86 R CHIP               R423      HRFT472JBA 1/10 4.7K OHM J 1608                  11 DIODE           D851~855    DZN4148--- 1N4148 AUTO 52MM
35 C CHIP CERA     C469      HCQK221JBA 50V CH 220PF J 1608                  87 R CHIP               R424      HRFT330JBA 1/10 33 OHM J 1608                    12 IC SWITCH         IC851      1LA7952--- LA7952
36 CLECTRO         C470      CEXF1C221E RM 16V 220MF 6.3X11 TAT              88 R CHIP               R425      HRFT220JBA 1/10W 22 OHM J 1608                   13 JACK RCA         JA851      9736323700 JE0200596N
37 C CHIP CERA     C473      HCBK104KBA 50V X7R 0.1MF K 1608                 89 R CHIP             R426~427    HRFT330JBA 1/10 33 OHM J 1608                    14 JACK S VIDEO     JA852      9736324000 C50160272N
38 C ELECTRO       C474      CEXF1E101E 25V RM 100MF (6.3X11) TP             90 R CHIP               R428      HRFT820JBA 1/10 82 OHM J 1608                    15 JACK RCA         JA853      9736323800 JE0301645N
39 C CHIP CERA   C475~477    HCBK104KBA 50V X7R 0.1MF K 1608                 91 R CHIP               R429      HRFT562JBA 1/10 5.6K OHM J 1608                  16 JACK RCA         JA854      9736323900 JE0301645G
40 C ELECTRO       C478      CEXF1E101E 25V RM 100MF (6.3X11) TP             92 R CHIP               R430      HRFT102JBA 1/10 1K OHM J 1608                    17 TR              Q851~852    TZTC3199Y- KTC-3199Y TAPING
41 C CHIP CERA     C479      HCQK221JBA 50V CH 220PF J 1608                  93 R CHIP               R431      HRFT220JBA 1/10W 22 OHM J 1608                   18 TR              Q853~854    TKRC107M-- KRC107-M TAPPING(KSR1006)
42 C CHIP CERA     C480      HCQK330JBA 50V CH 33PF J 1608                   94 R CHIP               R432      HRFT102JBA 1/10 1K OHM J 1608                    19 R CARBON FILM     R851      RD-AZ104J- 1/6 100K OHM J
43 C CHIP CERA     C481      HCQK221JBA 50V CH 220PF J 1608                  95 R CHIP             R433~434    HRFT220JBA 1/10W 22 OHM J 1608                   20 R CARBON FILM     R852      RD-AZ221J- 1/6 220 OHM J
44 CLECTRO         C482      CEXF1C221E RM 16V 220MF 6.3X11 TAT              96 R CHIP             R435~436    HRFT820JBA 1/10 82 OHM J 1608                    21 R CARBON FILM   R853~855    RD-AZ750J- 1/6 75 OHM J
45 C CHIP CERA     C483      HCQK221JBA 50V CH 220PF J 1608                  97 R CHIP               R437      HRFT220JBA 1/10W 22 OHM J 1608                   22 R CARBON FILM     R856      RD-AZ680J- 1/6 68 OHM J
46 C CHIP CERA     C484      HCQK330JBA 50V CH 33PF J 1608                   98 R CHIP               R449      HRFT101JBA 1/10 100 OHM J 1608                   23 R CARBON FILM     R857      RD-AZ473J- 1/6 47K OHM J
47 C CHIP CERA     C485      HCQK221JBA 50V CH 220PF J 1608                  99 R CHIP             R453~454    HRFT470JBA 1/10 47 OHM J 1608                    24 R CARBON FILM     R858      RD-AZ391J- 1/6 390 OHM J
48 CLECTRO         C486      CEXF1C221E RM 16V 220MF 6.3X11 TAT              100 R CHIP              R457      HRFT000-BA 1/10 0 OHM 1608                       25 R CARBON FILM     R859      RD-AZ680J- 1/6 68 OHM J
49 C CHIP CERA     C487      HCQK221JBA 50V CH 220PF J 1608                  101 R CHIP            R458~466    HRFT472JBA 1/10 4.7K OHM J 1608                  26 R CARBON FILM     R860      RD-AZ473J- 1/6 47K OHM J
50 C CHIP CERA     C488      HCQK330JBA 50V CH 33PF J 1608                   102 R CHIP            R469~471    HRFT472JBA 1/10 4.7K OHM J 1608                  27 R CARBON FILM     R861      RD-AZ391J- 1/6 390 OHM J
51 C CHIP CERA     C489      HCQK221JBA 50V CH 220PF J 1608                  103 R CHIP              R472      HRFT103JBA 1/10 10K OHM J 1608                   28 R CARBON FILM     R862      RD-AZ473J- 1/6 47K OHM J
52 CLECTRO         C490      CEXF1C221E RM 16V 220MF 6.3X11 TAT              104 R CHIP              R473      HRFT402FBA 1/10 4.0K OHM F 1608(1%)              29 R CARBON FILM     R878      RD-AZ332J- 1/6 3.3K OHM J
53 C CHIP CERA     C491      HCQK221JBA 50V CH 220PF J 1608                  105 R CHIP            R474~475    HRFT101JBA 1/10 100 OHM J 1608
54 C CHIP CERA     C492      HCQK330JBA 50V CH 33PF J 1608                   106 R CHIP            R476~481    HRFT750JBA 1/10 75 OHM J 1608
55 C CHIP CERA     C493      HCQK221JBA 50V CH 220PF J 1608                  107 R ARRAY           RA401~402   HRTT8X103J MNR 14X0ABJ 470 (10KX4)
56 CLECTRO         C494      CEXF1C221E RM 16V 220MF 6.3X11 TAT              108 R ARRAY            RA403      HRTT8X472J MNR 14X0ABJ 470 (4.7KX4)
57 C CHIP CERA     C495      HCQK221JBA 50V CH 220PF J 1608                  109 R ARRAY           RA404~406   HRTT8X181J MNR 14X0ABJ 470 (180X4)
58 C CHIP CERA     C496      HCQK330JBA 50V CH 33PF J 1608                   110 R ARRAY           RA406~410   HRTT8X220J MNR 14X0ABJ 470 (22X4)
59 C CHIP CERA     C497      HCQK221JBA 50V CH 220PF J 1608                  111 X-TAL               X401      5XE16M000J 16MHZ HC-49/U (RADIAL)
60 CLECTRO         C498      CEXF1C221E RM 16V 220MF 6.3X11 TAT              112 X-TAL               X402      5XE27M000C 27MHZ HC-49/U 20PPM 30PF
61 IC MICOM        IC401      1C1610---- C1610                               1 PCB POWER SW AS       19000     9CDC0593D0 DV-115
62 IC DECODER      IC402     1ZR36710-- ZR36710 DFP                          2 PCB POWER SW          B001      9CD6583505 242X329
63 IC SDRAM        IC403     1HY57V1616 HY57V1616                             3 C CERA AC            C991      CH1BFE472M 4.0KV 4700PF M SD AC250V
64 IC ROM        IC404~405   1A290021L- A290021L                              4 CONN WAFER          CP993      9728808200 VH-3A (W/O CENTER,RED)
65 IC SRAM         IC406     11S61C1024 IS61C1024/L                          5 SW POWER SPST         S991      5S40101369 SDDL-005-S PUSH
66 IC EEPROM       IC407     1XC24C02-- XC24C02                              1 PCB REG AS            12000     9CDC0589B0 DV-115




                                                                        11                                                                                                                                                             11



◦ Jabse Service Manual Search 2020 ◦ Jabse Pravopis ◦ Other service manual resources online : FixyaeServiceinfo
