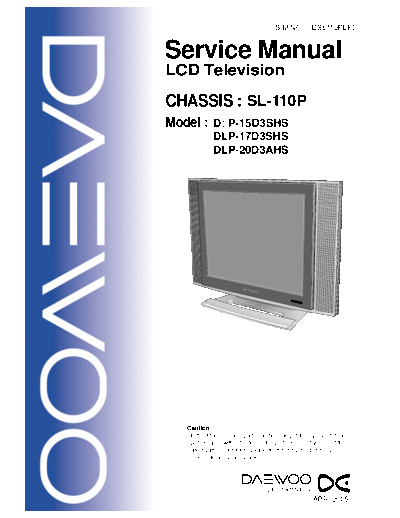

Image preview - the first page of the document
>> Download sl110p_849 documenatation <<
Text preview - extract from the document
S/M NO. : DSL110PEF0
Service Manual
LCD Television
CHASSIS : SL-110P
Model : D P-15D3SHS
DLP-17D3SHS
DLP-20D3AHS
Caution
: In this Manual, some parts can be changed for improving. their
performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Parts Price List)in
Service Information Center.
APR. 2005
Contents
I. Parts with the exception of MODULE
1. Safety Precaution 3
2. Product Specification 4
3. Block Diagram 7
3-1 PCB Structure
3-2 Power Tree
3-3 Signal Block Diagram
4. Description of video circuit 10
5. Schematic Diagram 20
6. PCB Data 29
6-1 DLP-15/17D3SHS 29
6-2 DLP-20D3SHS 31
7. SL-110P Service Data 33
8. Trouble Shooting 40
9. Service Part List 53
9-1 DLP-15D3SHS Service Part List 53
9-2 Difference List of SL-110P 60
10. Adapter 61
11. Inverter 62
12. Exploded View 64
12-1 DLP-15D3SHS 64
12-2 DLP-17D3SHS 65
12-3 DLP-20D3AHS 66
13. SOFTWARE INSTALL
14. SOFT UPGRADE
-2-
1. Safety Precautions
1. Safety Precautions
(1) When moving or laying down a LCD Set, at least two people must work together. Avoid any
impact towards the LCD Set.
(2) Do not leave a broken LCD Set on for a long time. To prevent any further damages, after
checking the condition of the broken Set, make sure to turn the power (AC) off.
(3) When opening the BACK COVER, you must turn off power (AC) to prevent any electric
shock.
(4) When loosening screws, check the position and type of the screw. Sort out the screws and
store them separately for reassembling. Because screws holding PCBs are working as
electric circuit grounding, make sure to check if any screw is missing when assembling /
reassembling. Do not leave any screws inside the set.
(5) A LCD Set contains different kinds of connector cables. When connecting or disconnecting
cables, check the direction and position of the cable beforehand.
(6) Connect/disconnect the connectors slowly with care especially FFC (film) cables and FPC
cables. Do not connect or disconnect Picture 1-1. Panel Gas Exhaust Tube
connectors instantaneously with force, and
handle them carefully for reassembling.
(7) Connectors are designed so that if the number of pins or the direction does not match,
connectors will not fit. When having problem in plugging the connectors, check their kind,
position, and direction.
-3-
2. Product Specification
2-1. SPECIFICATION
Model DLP-15D3SHS DLP-17D3SHS DLP-20D3AHS
CHASSIS NO SL-110P SL110P SL-110P
Country Europe Europe Europe
Remote controller R-47B02 R-47B02 R-47B02
LCD Panel
LCD Type TN (Samaung) TN (Samsung) TN (AIO)
Screen Size 15" (38 ) 17" (43 ) 20" (50.8 )
Aspect Ratio 4:3 15 : 9 4:3
Resolution 1024 768 (XGA) 1280 768 (WXGA) 800 600 (SVGA)
Pixel Pitch 0.297 0.297 0.2895 0.2895 0.51 0.51
Brightness 400 cd/ 400 cd/ 500 cd/
Contrast ratio 400 : 1 450 : 1 500 : 1
Viewing Angle (U/D/R/L) 60 / 65 / 70 / 70 50 / 60 / 70 / 70 60 / 60 / 80 / 80
Response Time 25 25 16
TV System
Color System PAL / SECAM PAL / SECAM PAL / SECAM
Receiving System PAL B/G, I/I', D/K, L-SECAM, PAL B/G, I/I', D/K, L-SECAM, PAL B/G, I/I', D/K, L-SECAM
L'-SECAM L'-SECAM L'-SECAM
Tuning Method FVS FVS FVS
Tuner PATBF19D (PARTSNIC) PATBF19D (PARTSNIC) PATBF19D (PARTSNIC)
VHF : VHF : VHF :
BAND : CH2 ~ CH4 BAND : CH2 ~ CH4 BAND : CH2 ~ CH4
BAND : CH5 ~ CH12 BAND : CH5 ~ CH12 BAND : CH5 ~ CH12
Reception Channel CABLE BAND : S1' ~ S3', CABLE BAND : S1' ~ S3', CABLE BAND : S1' ~ S3',
S1 ~ S20 S1 ~ S20 S1 ~ S20
UHF : UHF : UHF :
HYPER BAND : S21 ~ S41 HYPER BAND : S21 ~ S41 HYPER BAND : S21 ~ S41
BAND , : CH21 ~ CH69 BAND , : CH21 ~ CH69 BAND , : CH21 ~ CH69
PIF : PIF : PIF :
38.9 (B/G, D/K, I/i', L), 38.9 (B/G, D/K, I/i', L), 38.9 (B/G, D/K, I/i', L),
34.2 (L ) 34.2 (L ) 34.2 (L )
SIF : SIF : SIF :
33.4 (B/G), 32.4 (D/K, L), 33.4 (B/G), 32.4 (D/K, L), 33.4 (B/G), 32.4 (D/K, L),
32.9 (I/I'), 41.0 (L') 32.9 (I/I'), 41.0 (L') 32.9 (I/I'), 41.0 (L')
IF & SubCarier S-subcarrier : S-subcarrier : S-subcarrier :
5.5 / 5.85 (NICAM) / 5.5 / 5.85 (NICAM) / 5.5 / 5.85 (NICAM) /
5.74 (2-Carrier) 5.74 (2-Carrier) 5.74 (2-Carrier)
Color-subcarrier : Color-subcarrier : Color-subcarrier :
4.43 (PAL), 4.25 / 4.43 (PAL), 4.25 / 4.43 (PAL), 4.25 /
4.40625 (SECAM) 4.40625 (SECAM) 4.40625 (SECAM)
Audio System Mono / Stereo / Dual Mono / Stereo / Dua Mono / Stereo / Dua
Channel Memory 99 Channel, Auto Preset 99 Channel, Auto Preset 99 Channel, Auto Preset
Input
TV Input 75 Ohm external input terminal 75 Ohm external input terminal 75 Ohm external input terminal
(DIN Standard) (DIN Standard) (DIN Standard)
A/V (R,G,B / COMPOSITE) Scart Jack 1 Scart Jack 1 Scart Jack 1
S-Video Input S-VHS (Y/C) 1 S-VHS (Y/C) 1 S-VHS (Y/C) 1
COMPOSITE COMPOSITE COMPOSITE
Video / Audio (NTSC, PAL, SECAM, NTSC4.43) (NTSC, PAL, SECAM, NTSC4.43) (NTSC, PAL, SECAM, NTSC4.43)
RCA Jack 1, Audio L/R 1 RCA Jack 1, Audio L/R 1 RCA Jack 1, Audio L/R 1
COMPONENT COMPONENT COMPONENT
Component / Audio (Y, Pb/Cb, Pr/Cr, 480i ~ 1080i) (Y, Pb/Cb, Pr/Cr, 480i ~ 1080i) (Y, Pb/Cb, Pr/Cr, 480i ~ 1080i)
RCA Jack 1 RCA Jack 1 RCA Jack 1
Audio L/R 1 Audio L/R 1 Audio L/R 1
PC Input VGA ~ XGA VGA ~ WXGA VGA ~ SVGA
15Pin D-SUB Jack 1 15Pin D-SUB Jack 1 15Pin D-SUB Jack 1
PC Audio Input Stereo Jack 1 Stereo Jack 1 Stereo Jack 1
Output
Video / Audio Scart Jack 1 Scart Jack 1 Scart Jack 1
Headphone 3.5 Mini Stereo Jack 1 3.5 Mini Stereo Jack 1 3.5 Mini Stereo Jack 1
-4-
Product Specification
Other Features
Comb Filter 2D 2D 2D
CTI
LTI
OSD 17 Languages 17 Languages 17 Languages
TELETEXT 10 Page memory TOP / FLOF 10 Page memory TOP / FLOF 10 Page memory TOP / FLOF
Audio Output 5W (2.5+2.5W) 5W (2.5+2.5W) 5W (2.5+2.5W)
(10%THD, 60%MOD at 1kHZ) (10%THD, 60%MOD at 1kHZ) (10%THD, 60%MOD at 1kHZ)
Speaker 5 2 5 2 5 2
Aspect ratio control 16 : 9 / ZOOM 4 : 3 / ZOOM 16 : 9 / ZOOM
Auto Power off
Wake up
Sleep time 15/30/45/60/90/120 min 15/30/45/60/90/120 min 15/30/45/60/90/120 min
Wall mount hole VESA compatible VESA compatible VESA compatible
Power Consumption
Max 34 W 40W 50W
Stand-by 3W under 3W under 3W under
Power supply DC 12V DC 12V DC 15V
External Adaptor External Adaptor External Adaptor
Power Source AC 100-240V AC 100-240V AC 100-240V
50 / 60 50 / 60 50 / 60
Dimension (W H D)
Set dimension (with Stand) (463 345 215) (544 358 215) (608 403 215)
Tilt (Front / Back) 5" / 15" 5" / 15" 5" / 15"
Weight (with Stand) 6.25 7.2 10.95
USER CONTROL & ACCESSORIES
POWER TV/VIDEO MENU POWER TV/VIDEO MENU POWER TV/VIDEO MENU
Control Button (Set) VOL. DOWN VOL. UP VOL. DOWN VOL. UP VOL. DOWN VOL. UP
PR. DOWN(On) PR. UP(On) PR. DOWN(On) PR. UP(On) PR. DOWN(On) PR. UP(On)
Remote Controller (32keys) POWER MUTE PR. UP POWER MUTE PR. UP POWER MUTE PR. UP
PR. DOWN VOL. UP PR. DOWN VOL. UP PR. DOWN VOL. UP
VOL. DOWN MENU VOL. DOWN MENU VOL. DOWN MENU
NORMAL RED GREEN NORMAL RED GREEN NORMAL RED GREEN
YELLOW CYAN TELETEXT YELLOW CYAN TELETEXT YELLOW CYAN TELETEXT
SLEEP ASPECT PC SLEEP ASPECT PC SLEEP ASPECT PC
TV/AV S.MODE RECALL TV/AV S.MODE RECALL TV/AV S.MODE RECALL
TXT keys 0 ~ 9 Digit keys TXT keys 0 ~ 9 Digit keys TXT keys 0 ~ 9 Digit keys
Instruction AC Adapter Instruction AC Adapter Instruction AC Adapter
Accessories AC Power Remote Controller AC Power Remote Controller AC Power Remote Controller
Battery (AAA 2) Battery (AAA 2) Battery (AAA 2)
-5-
Product Specification
2-2. Available Input Signal
(1) PC input
Stamdard Resolution (Mode) V Frequency (Hz) H frequency (KHz) 15 inch 17 inch 20inch
640 480 66 35
MAC
832 624 75 49.73
(2) Component input
- 480i/ 60 Hz
- 480p / 60 Hz
- 576i / 50 Hz
- 576p / 50 Hz
- 720p / 60 Hz
- 1080i / 50 Hz
- 1080i / 60 Hz
(3) Video input
- NTSC-M/4.43
- PAL / SECAM
-6-
7
8
3-3. SIGNAL BLOCK DIAGRAM
SCL1 SDA1
SCL1 SDA1 MAIN IC VCTI FLASH
(IC29) SST39VF800A
(IC11)
IR
TV SAW IF KEY LOGIC IC SW
TUNER MICOM
RF FILTER PROCESS 74LV273 (IC40) (5- Line)
TXD
RXD
TXD SCAL ER
Vide o In pu t CVBS TTX& PW113 (IC13) EEPROM SCL2
VIDEO RXD MICOM
RCA (JP8 ) CAPTION 24LC16 (IC38) SDA2
TV (RGB)
BACK
GHS
END
VIDEO TV (HV) GVS
S-VIDEO Input Y/C
DECOD DISPLAY
S-VHS (JP5) -ER DECODER EEPROM SCL1 15inch : XGA (S/S)
24LC16(IC31) G PIXEL
SDA1 P PROCE- 17inch : WXGA (S/S)
SCART(JP11) RGB, CVBS O SSOR
MAIN (L,R) GCLK
(Only Europ e) SOUND PROCESSOR R
H.P (L,R) GCOAST T TO LCD
RGB MODULE
SCART L, R SCL2 24bit
AUDIO D
SDA2 SCAL ER RGB
L, R DHS LVDS
AV AUDIO PC(RGB) 24bit & CL T P
A_SEL0 A_SEL1 MODE
G COAST EL-LV385 DATA
SW IC & OSD O
COMP1 AUDIO L L C OMP1
DVS (IC7) 8bit
4052 L H PC R
COMP2 AUDIO
(IC33) SW H L COMP2 T CLK 2bit
H H AV De-in terlace r
PC AUDIO
TV MDIN-150 (IC22) DCLK
L : COMP1,2 L : PC RGB
(RGB),
H : TV H : TV/COMP1,2 24bit COLOR
COMP V SPACE
TV (RGB) ADC (YPbPr), VHS P
L : COMP2 SW IC SW IC EXPAND
H : COMP1 MST9883 24bit C De- C O
PI5V330 PI5V330 -ER
(IC16) S int erlace S VVS R
(IC9) (IC34)
COMP1 ( YPbPr) SW IC GCLK C pro cesso r C T
LCD ON
PI5V330 VCLK
COMP2 (Y PbPr) (IC5) GHS
SW INVERTER
SW SW GVS 4-Lamp
PC ( RGB) Dimming
SDRAM Int erface cab le
(15"/ 17")
TV (HV) SW IC SCL2 SDA2 6- Lamp
TV/C OMP ADC SEL MODE
4052 L L PC SCL2 cable (20" )
PC(HV) (IC2) SW L H X
H L X SDA2
H H AV SDRAM
IS42S3200B-6T
MAIN (L)
SOUND AMP (IC23)
TDA1517 (IC30) SPEAKER
SOUND AMP SCL1
MAIN (R) SPEAKER CXA1315
TDA1517 (IC25) SOUND MUTE
(IC26)
SDA1
SOUND AMP H- PHONE
H.P ( L,R)
KA45 58 (IC36)
9
4. Description of video circuit
SL-110P video circuit :
Process various input signals to produce Output Signal for LCD
panel(15" : 1024 768, 17" : 1280 768, 20" : 800 600).
Introduction for main IC
4-1. IC29 (The VCT 49xxI)
: IC family of high-quality single chip TV processors
-10-
Description of video circuit
1) DRX
Overview of DRX
The Digital Receiver Front-end (DRX) performs the entire multi-standard Quasi Split Sound
(QSS) TV IF processing, AGC, video demodulation, and generation of the second sound IF
(SIF) requiring only one SAW filter.
All control functions and status registers are accessible via I2C bus interface. Therefore, it
simplifies the design of high-quality, highly standardized IF stages.
For pre-filtering, one 8-MHz channel SAW filter must be used.
