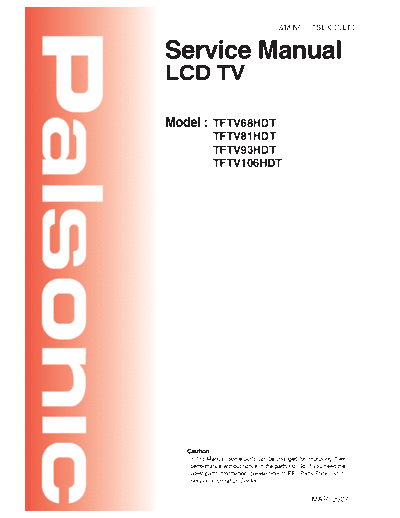

Image preview - the first page of the document
SL300V(PALSONIC)


>> Download SL300V(PALSONIC) documenatation <<

Text preview - extract from the document
         S/M NO. : TSL300VEF0




TFTV68HDT
TFTV81HDT
TFTV93HDT
TFTV106HDT




                 MAR. 2007
                                       Contents
1. Safety Precaution                                              3

2. Preliminary Troubleshooting                                     4

3. Product Specification                                           5
   1) Standard of Product                                          5
   2) Available Input Signal                                       6
   3) Available PIP Mode                                           6

4. Service Remote Controller                                       7
   1) Key Arrangement                                              7
   2) EEPROM Data                                                  8

5. Block Diagram                                                  11

6. Hardware Troubleshooting : Digital Board                       12

7. Hardware Troubleshooting : SMPS                                16
   1) FEL-3237A : TFTV68HDT, TFTV81HDT, TFTV93HDT                 16
   2) FEL-42C1 : TFTV106HDT                                       18

8. Bill Of Materials                                              20
   1) TFTV68HDT                                                   20
   2) Differental Materials Besides Mechanical Parts              29

9. How to S/W Upgrade Tools                                       30
   1) Requirements                                                30
   2) Outline of the S/W upgrade tool, which is DTV_Updater.exe   30
   3) How to upgrade decoder of LCD TV                            31
   4) How to upgrade PIC micom of LCD TV                          35

10. Schematics : Digital Board                                    40

11. Schematics : SMPS                                             49
   1) FEL-3237A : TFTV68HDT, TFTV81HDT, TFTV93HDT                 49
   2) FEL-42C1 : TFTV106HDT                                       50

12. Mechanical Development Figure                                 51
  1) TFTV68HDT                                                    51
  2) TFTV81HDT                                                    52
  3) TFTV93HDT                                                    53
  4) TFTV106HDT                                                   54




                                              -2-
1. Safety Precaution

(1) When moving or laying down a LCD Set, at least two people must work together. Avoid any
    impact towards the LCD Set.

(2) Do not leave a broken LCD Set on for a long time. To prevent any further damages, after
    checking the condition of the broken Set, make sure to turn the power (AC) off.

(3) When opening the BACK COVER, you must turn off power (AC) to prevent any electric
    shock.

(4) When loosening screws, check the position and type of the screw. Sort out the screws and
    store them separately for reassembling. Because screws holding PCBs are working as
    electric circuit grounding, make sure to check if any screw is missing when assembling /
    reassembling. Do not leave any screws inside the set.

(5) A LCD Set contains different kinds of connector cables. When connecting or disconnecting
    cables, check the direction and position of the cable beforehand.

(6) Connect/disconnect the connectors slowly with care especially FFC (film) cables and FPC
    cables. Do not connect or disconnect connectors instantaneously with force, and handle
    them carefully for reassembling.

(7) Connectors are designed so that if the number of pins or the direction does not match,
    connectors will not fit. When having problem in plugging the connectors, check their kind,
    position, and direction.




                                              -3-
2. Preliminary Troubleshooting

1) LCD TV does not response or remote controller does not work.
   - Check the power cord to be plugged.
   - Check the battery of the remote controller.

2) Sound is discontinuous or broken sometimes.
   - Check if [SOUND] -> [AVC] is [ON].
   - Set the sound effect into 'F Mono'.
   - Set the [SOUND] -> [DTV Volume] into proper value.
   - [DTV Volume] is enabled only in digital program.

3) Picture of digital program is sometimes broken and sound is discontinuous.
   - Digital program has a little problem because of signal receiving status.
   - Check if the RF cable is correctly connected.
   - Ask for the broadcasting station if the RF cable connection has no problem.

4) Picture of analog program is noisy.
   - Check the RF cable connection.
   - Check if [Picture] -> [Noise Reduction] is ON.
   - Change the [Install] -> [Programme Setup] -> [Fine] value.

5) Sound is not generated in HDMI mode.
   - Reconnect HDMI jack.
   - DVI signal has no sound. Check the output signal of device to be connected to LCD TV.
   - If you want to use DVI-HDMI cable, you should also connect audio cable into the LCD TV.

6) In spite of 'Auto Setup', picture size is not completely adapted to the screen.
   - Check if the input signal is available.
   - Ensure that the desktop has no black area.
   - Some errors (picture position problem) will be occurred according to certain video card.
     In this case, you should adjust 'Frequency' control.

7) In spite of 'Auto Setup', picture is not clear.
   - Adjust 'Phase' control.




                                                     -4-
3. Product Specification

1) Standard of Product

                     Features         TFTV68HDT             TFTV81HDT              TFTV93HDT              TFTV106HDT

   LCD Panel       Panel Model       LTA260W3_L01          LTA320WT-LF2          LC370WX1-SL01          LC420WX5-SLA1
                   Screen Size            68 cm                   81 cm               93 cm                  106 cm
                   Aspect Ratio           16 : 9                  16 : 9               16 : 9                 16 : 9
                    Resolution         1366 X 768               1366 X 768          1366 X 768             1366 X 768
                                         (WXGA)                  (WXGA)              (WXGA)                  (WXGA)
                    Pixel Pitch        0.42150 mm           0.51075 mm             0.60000 mm              0.68100 mm
                  Contrast Ratio     3000 : 1 (MAX)        3000 : 1 (MAX)         3000 : 1 (MAX)         3000 : 1 (MAX)

   TV System        Receiving            DVB-T                    DVB-T               DVB-T                   DVB-T
                     System             PAL-B/G                  PAL-B/G             PAL-B/G                 PAL-B/G
                                        PAL-B/H                  PAL-B/H             PAL-B/H                 PAL-B/H
                                       NTSC (AV)                NTSC (AV)           NTSC (AV)              NTSC (AV)

  LVDS Cable                             FI-E30S                 FI-E30S          FL-X30SSL-HF           FL-X30SSL-HF

   LVDS B+                                 +5V                     +5V                 +12V                   +12V

Input Connector         RF           50 Ohm Coaxial       50 Ohm Coaxial         50 Ohm Coaxial          50 Ohm Coaxial
                  S-Video / Video           2                       2                    2                      2
                   Component            RCA X 2                  RCA X 2             RCA X 2                 RCA X 2
                     PC RGB             D-Sub X 1               D-Sub X 1           D-Sub X 1               D-Sub X 1
                    PC Audio        3.5 mm Mini - Jack   3.5 mm Mini - Jack     3.5 mm Mini - Jack      3.5 mm Mini - Jack
                      HDMI                  1                       1                    1                      1

    Output            SPDIF           Optical - Jack        Optical - Jack         Optical - Jack         Optical - Jack
   Connector       Headphone                X                       X                    X                      X
                   Monitor - out            1                       1                    1                      1

 Sound Output          Max.               10W                     10W                  10W                     10W

 Power Module         Model            FEL-3237A                FEL-3237A           FEL-3237A               FEL-42C1

    Power              Max.               110W                    155W                 195W                   198W
 Consumption      Power Source         220-240V~                220-240V~           220-240V~               220-240V~
                                        50-60Hz                  50-60Hz             50-60Hz                 50-60Hz
   Dimension      Set Dimension     674 x 550 x 240 mm   806 x 626.5 x 240 mm   940 x 720 x 328.7 mm   1060 x 823 x 328 mm
  (W x H x D)      (with stand)
                  Set Dimension     674 x 496 x 114 mm   806 x 574.5 x 110 mm   940 x 655 x 129 mm     1060 x 758 x 132.5 mm
                  (without stand)

  Owing to our policy of continuous improvement, specifications may change.




                                                          -5-
Product Specification


2) Available Input Signal

   INTERFACE               SOURCE              VF             INTERFACE          SOURCE           VF
         RF               PAL-B/G, B/H         50Hz             HDMI             640x480          60Hz
                             DVB-T             50Hz                              640x480          75Hz
     VIDEO                PAL-B/G, B/H         50Hz                              800x600          60Hz
                            PAL-60             60Hz                              800x600          72Hz
                            NTSC-M             60Hz                              800x600          75Hz
                           NTSC-443            60Hz                           1024x768            60Hz
    S-VIDEO               PAL-B/G, B/H         50Hz                           1024x768            70Hz
                            PAL-60             60Hz                           1024x768            75Hz
                            NTSC-M             60Hz                           1280x1024           60Hz
                           NTSC-443            60Hz                           1360x768            60Hz
  COMPONENT                   480i             60Hz                               480p            60Hz
                             480p              60Hz                               576p            50Hz
                              576i             50Hz                               720p            50Hz
                             576p              50Hz                               720p            60Hz
                             720p              50Hz                               1080i           50Hz
                             720p              60Hz                               1080i           60Hz
                             1080i             50Hz
                             1080i             60Hz
         PC                 640x480            60Hz
                            640x480            75Hz
                            800x600            60Hz
                            800x600            72Hz
                            800x600            75Hz
                           1024x768            60Hz
                           1024x768            70Hz
                           1024x768            75Hz
                           1280x1024           60Hz
                           1360x768            60Hz




3) Available PIP Mode

  MODE        Analog RF     Digital RF   VIDEO 1      VIDEO 2     COMP 1   COMP 2          HDMI     PC
   ATV           X              X          X             X             O     O              X       X
   DTV           X              X          O            O              O     O              X       X
  VIDEO 1        X              O          X             X             X     X              X       X
  VIDEO 2        X              O          X             X             X     X              X       X
  COMP 1         O              O          X             X             X     X              X       X
  COMP 2         O              O          X             X             X     X              X       X
   HDMI          X              X          X             X             X     X              X       X
    PC           X              X          X             X             X     X              X       X




                                                        -6-
4. Service Remote Controller

1) Key Arrangement


            ChSet

            Recall
                                  Volume
          HEAT-RUN
                                    PQ
           SVPPX                 Hotel Lock

            MPEG                 PreScale

                                    W/B
            MISC
                                   Reset
           Pattern




                           -7-
Service Remote Controller


2) EEPROM Data

Key            Content                     Default Value                    Description
S2    ChSet    Panel Model         SS32                    Current LCD Panel
               EDID & Ch Set       0                       EDID & CH Update
S3    Volume   Volume Test         0                       Don't Care
S4    SVPPX    PAL Sub Brt         0x20                    ATV Bright Control
               PAL Sub Cont        0x80                    ATV Contrast Control
               AV Sub Brt          0x20                    Video Bright Control
               AV Sub Cont         0x80                    Video Contrast Control
               Video Sub Cb Sat    0x80                    Video Cb Color
               Video Sub Cr Sat    0x80                    Video Cr Color
               Video Sub Hue       0x0                     Video Hue
               Video YC Delay      0x0                     Video YC Delay
               Pedestal            ON                      Pedestal Level ON/OFF
               Chroma AGC          0x8A                    Sub Carrier AGC
               CVBS AGC            ON                      CVBS AGC
               Anti-alias          OFF                     Anti-alias ON/OFF
               PC G Clamp          0x44                    PC G Clamp Level Control
               PC B Clamp          0x44                    PC B Clamp Level Control
               PC R Clamp          0x44                    PC R Clamp Level Control
               PC G Gain           0x50                    PC G Gain Control
               PC B Gain           0x50                    PC B Gain Control
               PC R Gain           0x50                    PC R Gain Control
               Com 480i Y Clamp    0x30                    480i Y Clamp Level Control
               Com 480i Pb Clamp   0x200                   480i Pb Clamp Level Control
               Com 480i Pr Clamp   0x200                   480i Pr Clamp Level Control
               Com 480i Y Gain     0x50                    480i Y Gain Control
               Com 480i Pb Gain    0x50                    480i Pb Gain Control
               Com 480i Pr Gain    0x50                    480i Pr Gain Control
               Com HD Y Clamp      0x30                    480p~ Y Clamp
               Com HD Pb Clamp     0x200                   480p~ Pb Clamp
               Com HD Pr Clamp     0x200                   480p~ Pr Clamp
               Com HD Y Gain       0x50                    480p~ Y Clamp
               Com HD Pb Gain      0x50                    480p~ Pb Clamp
               Com HD Pr Gain      0x50                    480p~ Pr Clamp
               Sync Threshold      0x0                     Component Sync Slicing Level Control
S5    PQ       Dp B/L Cont         0                       Black & White Contrast
               Main CVBS Cont      128                     Main Picture CVBS Contrast
               Main CVBS Bright    128                     Main Picture CVBS Brightness
               Main DTV Cont       128                     Main Picture DTV Contrast
               Main DTV Bright     112                     Main Picture DTV Brightness
               Main HDMI Cont      128                     Main Picture HDMI Contrast
               Main HDMI Bright    128                     Main Picture HDMI Brightness
               Main Comp PC Cont 130                       Main Picture COMP & PC Contrast


                                                     -8-
Service Remote Controller




Key                Content                       Default Value                     Description
                   Main Comp PC Bright   120                     Main Picture COMP & PC Brightness
                   PIP CVBS Cont         128                     Sub Picture CVBS Contrast
                   PIP CVBS Bright       138                     Sub Picture CVBS Bright
                   PIP DTV Cont          138                     Sub Picture DTV Contrast
                   PIP DTV Bright        128                     Sub Picture DTV Brightness
                   PIP COMP Cont         128                     Sub Picture COMP Contrast
                   PIP COMP Bright       128                     Sub Picture COMP Brightness
                   Dp Hue                64                      Main Picture Tint Control
                   Main V Delay          8                       Main Picture Cr Delay
                   Main U Delay          8                       Main Picture Cb Delay
                   Sub V Delay           8                       Sub Picture Cr Delay
                   Sub U Delay           8                       Sub Picture Cb Delay
                   Peaking               38                      Peaking Control
                   APL Enable            ON                      APL Enable
                   APL Luma Factor       192                     APL Luma Factor
                   APL Gain              128                     APL Gain
                   Filter                0                       Band Pass Filter
                   Gamma Enable          ON                      Gamma Enable
S6    Hotel Lock   CH Preset Lock        OFF                     Auto Programme function ON/OFF
                   Volume Max            100                     Max Volume
                   AV Lock               OFF                     AV Lock ON/OFF
                   Child Lock            OFF                     Child Lock ON/OFF
                   RF Auto               YES                     Auto shutdown without signal at RF
S7    MPEG         DTV V Size            100                     Don't Care
                   DTV H Size            93                      Don't Care
                   DIAHighThreshold Y    0                       Don't Care
                   DIAHighThreshold C    0                       Don't Care
                   DIALowThreshold Y     0                       Don't Care
                   DIALowThreshold Y     0                       Don't Care
S8    WB           Bias R                31                      R Bias
                   Bias G                31                      G Bias
                   Bias B                34                      B Bias
                   Gain R                22                      R Gain
                   Gain G                32                      G Gain
                   Gain B                30                      B Gain
                   Sub Brt               31                      Don't Care
                   Sub Cont              0                       Don't Care
                   Contrast-R            1.039                   Don't Care
                   Contrast-G            1.078                   Don't Care
                   Contrast-B            1.070                   Don't Care
S9    PreScale     SC Pscale             22                      Don't Care
                   FM Pscale             24                      Don't Care


                                                           -9-
Service Remote Controller




Key             Content                           Default Value                        Description
                Stereo ID               10                            Don't Care
                Dimming(LCD)            255                           Don't Care
                SSC Enable              ON                            Spread Spectrum ON/OFF
                SSC Delta               0                             Don't Care
                SSC posi                0                             Don't Care
                SSC nega                0                             Don't Care
                BBE Level               48                            BBE Level
                MVOICE Level            96                            MVOICE Level
                Sound Delay(ms)         40                            Sound Delay
S10   MISC      Panel Model             SS32                          Current LCD Panel
                EDID Update             OFF                           EDID Update
                Model                   SL-300V                       Chassis
                S/W Version             SL-300V_##_####_L######V#DP   Decoder S/W Version
                Micom Version           SL-300V_L######V##M           PIC Micom S/W Version
                Micom Update            OFF                           Micom Update Mode
                OS_DbgPrintf            OFF                           Debugging Mode
                Digital Signal Status   OFF                           Digital Signal Status
                Digital Index Status    OFF                           Don't Care
                RF Software Update      OFF                           RF S/W Update Mode
                S1 HeatRun Enable       OFF                           HeatRun Enable Mode
                Digital Index level     0                             Don't Care
S11   Pattern   Test Pattern            0                             Don't Care
S12   Reset     Factory Reset           0                             Factory Reset
                Eeprom Reset            0                             EEPROM Reset





◦ Jabse Service Manual Search 2020 ◦ Jabse Pravopis ◦ Other service manual resources online : FixyaeServiceinfo
