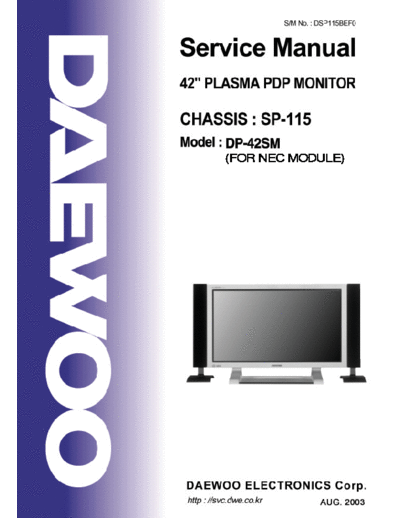

Image preview - the first page of the document
DAEWOO DP-42 SM


>> Download DAEWOO DP-42 SM documenatation <<

Text preview - extract from the document
(FOR NEC MODULE)
            CONTENTS


1. COMMENTS
2. SAFETY PRECAUTION
3. PRODUCT SPECIFICATION
4. BLOCK DIAGRAM
5. AV BLOCK DESCRIPTION
6. LVDS SPECIFICATIONS
7. SERVICE MODE (VIDEO PCB INITIAL DATA)
8. SOFTWARE UPGRADE METHOD
9. POWER ADJUSTMENTS
10.ASSEMBLY LIST
11.PDP MODULE CHECK POINT
  11-1. Flow Chart
  11-2. Serial Number
  11-3. Panel Crack
  11-4. Flexible Cable
  11-5. Connectors
  11-6. Tester Checking
  11-7. Strip Defect
  11-8. Vertical Line
  11-9. Horizontal Line
12. EXPLODED VIEW




                     1
1. COMMENTS




This paper is the additional service manual for the
DP-42SM/WM/GM using the NEC panel.

Other service contents with the exception of this
manual are same as the existing service manual
(DP-42SM/WM/GM). The existing service manual
was made for ORION panel.




                         2
2. Saf ety Precautions

(1) When moving or laying down a PDP Set, at least two people must be working.
Avoid any impact towards the PDP Set.

(2) Do not leave the broken PDP Set on for a long time. To prevent any further
damages, after check the broken Set's condition, make sure to turn the power
(AC) off.

(3) When opening the BACK COVER, turn off the power (AC) to prevent electric
shock. When a PDP is on, high voltage and high current exist inside the Set.

(4) When loosening screws, check the connecting position and type of the
screw. Sort out the screws and store them separately. Because screws holding
PCB are working as electric circuit GROUNDING, make sure to check if any
screw is missing when assembling.

(5) If you open the BACK COVER, you will see a Panel Gas Exhaust Tube.If this
part is damaged, entire PDP PANEL must be replaced. Therefore, when working,
be careful not to damage this part.

(6) A PDP Set contains different kind of connector cables. When connecting or
disconnecting connector cables, check the direction and position of the cable
beforehand.

(7) When disconnecting connectors, unplug the connectors slowly with care.
Especially when connecting/disconnecting FFC (film) cables or FPC cables, do
not unplug the connectors too much instantaneously or strongly, and always
handle the cables with care.

(8) Connectors are designed so that if the number of pins or the direction does
not match, connectors will not fit. When having problem in plugging the
connectors, make sure to check their kind, position, and direction.




                                            3
3. Product Specification

         ITEM               SPECIFICATION                  REMARK
1. GENERAL
1-1. MODEL NO            DSP-4280NVS
1-2. CHASSIS NO          SP-115
1-3. SCREEN SIZE         42"(16:9)
1-4. COUNTRY             WORLD WIDE
1-5. RESOLUTION          853(H) X 480(V)
1-6. REMOCON TYPE        R-V28A (E)
1-7. SAFETY STANDARD     UL, C-UL, CE, CB, FCC(CLASS B),
                         CE(CLASS B)
 2. MECHANICAL
 2-1. APPEARANCE
  1) WITHOUT STAND       WxHxD=1,039 x 628 x 80 mm
  2) WITH STAND          WxHxD=1,039 x 725 x 320 mm
  3) CARTON BOX          WxHxD=1,256 x 800 x 327 mm
 2-2. WEIGHT
  1) WITHOUT STAND       29.9 Kg
  2) WITH STAND          36.8 Kg

3. ELECTRICAL
3-1. VIDEO INPUT         COMPOSITE(NTSC, PAL, SECAM,
                         PAL-M/N, NTSC4.43) &
                         S-VHS(50/60Hz Y/C) 2SETS
3-2. DTV/DVD INPUT       1080 i, 720P, 480P , 480i
                          (Y, Pb/Cb, Pr/Cr COMPONENT
                         SIGNAL) 2SETS
3-3. PC INPUT            VGA ~ UXGA (15 PIN D-SUB) 1SET
3-4. SOUND INPUT         VIDEO 2SETS, DTV/DVD 2SETS,
                         PC 1SET
3-4. SPEAKER OUTPUT      8W(R) + 8W(L)
3-5. POWER REQUIREMENT   AC 100V~240V, 50/60Hz
3-6. POWER CONSUMPTION   320W
3-8. RS-232 CONTROL      RS-232(FOR SOFTWARE UPGRADE)
3-9. FUNCTION
 1) SCALING              PC: H/V SIZE & POSITION ADJUST
                         VIDEO/DTV/DVD:NOMAL,16:9,
                         PANORAMA,ENLARGE LB,ENLARGE
                         LBS
 2) ZOOM                 20 SCALE ZOOM & PANING
 3) OSD                  SUPPORT 11 LANGUAGES
 4) OTHERS               STILL, SLEEP MODE,SOUND MODE


                              4
4. OPTICAL
             ITEM               SPECIFICATION                 REMARK
4-2. ASPECT RATIO            16:9
4-3. NUMBER OF PIXELS        853(H)X480(V)
4-4. DISPLAY COLOR           16.77 MILLION COLOR (8BIT RGB)
4-5. PIXEL PITCH             1.08(H)X1.08(V)
4-6. PEAK LUMINANCE          300cd/m
