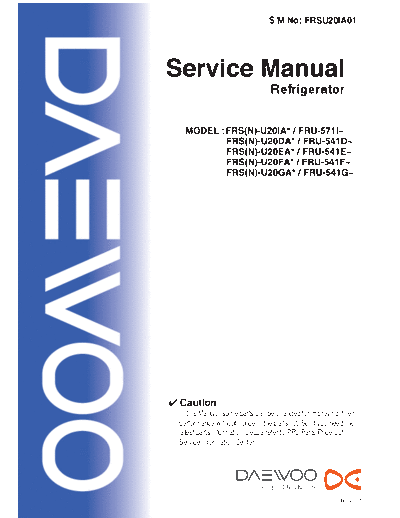

Image preview - the first page of the document
FRSU20DAV


>> Download FRSU20DAV documenatation <<

Text preview - extract from the document
                                    S/M No: FRSU20IA01




                                    Refrigerator




4 Caution
 : In this Manual, some parts can be changed for improving, their
   performance without notice in the parts list. So, if you need the
   latest parts information,please refer to PPL(Parts Price List) in
   Service Information Center




                                                            July . 2005
                                        CONTENTS
1. WARNINGS AND PRECAUTIONS FOR SAFETY --------------------------------------------                                2
2. EXTERNAN VIEW
2-1. External Size -----------------------------------------------------------------------------------------       3
2-2. Name of Each Parts ---------------------------------------------------------------------------------          6
3. SPECIFICATION ---------------------------------------------------------------------------------------           11
4. OPERATION AND FUNCTIONS -------------------------------------------------------------------                     14
5. CIRCUIT OPERATION
5-1. Power Circuit Diagram -----------------------------------------------------------------------------           34
5-2. Function of Each Sensor --------------------------------------------------------------------------            35
5-3. Relay Function ---------------------------------------------------------------------------------------        37
5-4. Fan Function -----------------------------------------------------------------------------------------        39
6. DIAGRAM
6-1. Wiring Diagram ---------------------------------------------------------------------------------------        40
 6-2. Circuit Diagram of Main PCB ---------------------------------------------------------------------            42
7. COMPONENT LOCATE VIEW ---------------------------------------------------------------------                     46
8. HOW TO CHECK EACH PARTS
8-1. Hose Ice Maker Tube -------------------------------------------------------------------------------           48
8-2. Bracket Geared Motor ------------------------------------------------------------------------------           49
8-3. Dispenser Micro Switch ----------------------------------------------------------------------------           50
8-4. Dispenser Solenoid Valve -------------------------------------------------------------------------            51
 8-5. Main PCB ----------------------------------------------------------------------------------------------      52
 8-6. Ice Maker ----------------------------------------------------------------------------------------------     53
9. TROUBLE DIAGNOSIS
9-1. Power Failure -----------------------------------------------------------------------------------------       56
9-2. Freezer Compartment ------------------------------------------------------------------------------            57
9-3. Refrigerator Compartment -------------------------------------------------------------------------            63
 9-4. Operation Noise of Refrigerator ------------------------------------------------------------------           67
 9-5. Door -----------------------------------------------------------------------------------------------------   74
10. COOLING CYCLE HEAVY REPAIR
10-1. Summary of Heavy Repair -----------------------------------------------------------------------              75
10-2. Precaution during Heavy Repair ---------------------------------------------------------------               76
10-3. Practical Work for Heavy Repair ---------------------------------------------------------------              77
10-4. Standard Regulations for Heavy Repair ------------------------------------------------------                 79
10-5. Brazing Reference Drawing ---------------------------------------------------------------------              80
11. INSTALLATION GUIDE
11-1. Installation Preparation ---------------------------------------------------------------------------         81
11-2. If the Refrigerator can not enter the Door ----------------------------------------------------              82
11-3. Refrigerator Leveling & Door Adjustment ----------------------------------------------------                 84
11-4. Water Line Installation ----------------------------------------------------------------------------         85
11-5. Dispenser Water Flow ----------------------------------------------------------------------------            87
12. EXPLODED VIEW & PARTS LIST
12-1. FRS(N)-U20IA --------------------------------------------------------------------------------------  88
12-2. FRS(N)-U20DA ------------------------------------------------------------------------------------- 98
12-3. FRS(N)-U20EA ------------------------------------------------------------------------------------- 109
12-4. FRS(N)-U20FA ------------------------------------------------------------------------------------- 120
 12-4. FRS(N)-U20GA ------------------------------------------------------------------------------------- 131




                                                            1
1. WARNINGS AND PRECAUTIONS FOR SAFETY


   Please observe the following safety precautions in order to use safely and correctly the refrigerator
   and to prevent accident and danger during repair.

   1. Be care of an electric shock. Disconnect power cord from wall outlet and wait for more than
      three minutes before replacing PCB parts.
     Shut off the power whenever replacing and repairing electric components.

   2. When connecting power cord, please wait for more than five minutes after power cord was
      disconnected from the wall outlet.

   3. Please check if the power plug is pressed down by the refrigerator against the wall.
      If the power plug was damaged, it may cause fire or electric shock.

   4. If the wall outlet is over loaded, it may cause fire.
     Please use its own individual electrical outlet for the refrigerator.

   5. Please make sure the outlet is properly earthed, particularly in wet or damp area.

   6. Use standard electrical components when replacing them.

   7. Make sure the hook is correctly engaged.
     Remove dust and foreign materials from the housing and connecting parts.

   8. Do not fray, damage, machine, heavily bend, pull out or twist the power cord.

   9. Please check the evidence of moisture intrusion in the electrical components.
     Replace the parts or mask it with insulation tapes if moisture intrusion was confirmed.

   10. Do not touch the icemaker with hands or tools to confirm the operation of geared motor.

   11. Do not let the customers repair, disassemble and reconstruct the refrigerator for themselves.
     It may cause accident, electric shock, or fire.

   12. Do not store flammable materials such as ether, benzene, alcohol, chemicals, gas, or
       medicine in the refrigerator.

   13. Do not put flower vase, cup, cosmetics, chemicals, etc., or container with full of water
       on the top of the refrigerator.

   14. Do not put glass bottles with full of water into the freezer.
      The contents shall freeze and break the glass bottles.

   15. When you scrap the refrigerator, please disconnect the door gasket first and scrap it
       where children are not accessible.




                                                          2
2. EXTERNAL VIEWS
2-1. External Size
  FRS(N)-U20IA




                     3
 FRS(N)-U20DA / FRS(N)-U20EA




                               4
 FRS(N)-U20FA / FRS(N)-U20GA




                               5
2-2. Name of Each Parts
  FRS(N)-U20IA



  1                                                                              6

  2

                                                                                 7
  3                                                                              8


                                                                                 9
  4
                                                                                 10


  5
                                                                                 11
                                                                                 12




                       Freezer Compartment            Refrigerator Compartment
               1. Freezer light                  6. Dairy pocket
               2. Freezer pocket                 7. Refrigerator light
               3. Ice tray                       8. Chilled case
               4. Freezer shelf                  9. Refrigerator shelf
               5. Freezer case                   10. Movable Egg case
                                                 11. Refrigerator pocket
                                                 12. Refrigerator case




                                             6
 FRS(N)-U20DA



1                                                                            7

2

                                                                             8

3                                                                            9

                                                                             10
4


                                                                             11
5

                                                                             12
6




                   Freezer Compartment            Refrigerator Compartment
           1. Ice cubes storage case         7. Dairy pocket

           2. Freezer light                  8. Refrigerator light
           3. Water/Ice dispenser            9. Refrigerator shelf
           4. Freezer shelf                  10. Movable egg case
           5. Freezer pocket                 11. Refrigerator pocket
           6. Freezer case                   12. Refrigerator case




                                         7
 FRS(N)-U20EA



1                                                                            7

2

                                                                             8

3                                                                             9
                                                                             10
4
                                                                             11
                                                                             12
5
                                                                             13

6                                                                            14




                   Freezer Compartment            Refrigerator Compartment
           1. Ice cubes storage case         7. Dairy pocket
           2. Freezer light                  8. Refrigerator light
           3. Water/Ice dispenser            9. Shelf wine (option)
           4. Freezer shelf                  10. Refrigerator shelf
           5. Freezer pocket                 11. Movable egg case
           6. Freezer case                   12. Refrigerator case
                                             13. Refrigerator pocket
                                             14. Magic cool zone




                                         8
 FRS(N)-U20FA



1                                                                            7
2
                                                                             8
                                                                             9
3
                                                                             10

4
                                                                             11

5                                                                            12


6                                                                            13




                   Freezer Compartment            Refrigerator Compartment
           1. Ice cubes storage case         7. Dairy pocket
           2. Freezer light                  8. Refrigerator light
           3. Water/Ice dispenser            9. Refrigerator shelf
           4. Freezer shelf                  10. Homebar pocket
           5. Freezer pocket                 11. Movable egg case
           6. Freezer case                   12. Refrigerator pocket
                                             13. Refrigerator case




                                         9
 FRS(N)-U20GA



1                                                                             7
2                                                                             8
                                                                              9
3
                                                                              10

4                                                                             11
                                                                              12
                                                                              13
5
                                                                              14

6                                                                             15




                   Freezer Compartment             Refrigerator Compartment
           1. Ice cubes storage case          7. Dairy pocket
           2. Freezer light                   8. Refrigerator light
           3. Water/Ice dispenser             9. Shelf wine (option)
           4. Freezer shelf                   10. Refrigerator shelf
           5. Freezer pocket                  11. Homebar pocket
           6. Freezer case                    12. Movable egg case
                                              13. Refrigerator pocket
                                              14. Refrigerator case
                                              15. Magic cool zone




                                         10
3. SPECIFICATION
3-1. Specification

                      Item                                               Specification

                                             FRS(N)-       FRS(N)-        FRS(N)-         FRS(N)-         FRS(N)-
                   Model Name
                                              U20IA        U20DA          U20EA           U20FA           U20GA

                                 Total       570 Li        541 Li          525 Li           541Li          536 Li
       ISO Gross
         Volume                Freezer       209 Li        184 Li          178 Li           184 Li         184 Li
           (Li)
                             Refrigerator    361 Li        357 Li          337 Li           357 Li         352 Li

                                 Total       537 Li        504 Li          504 Li           504 Li         500 Li
    ISO Storage
      Volume                   Freezer       198 Li        170 Li          170 Li           170 Li         170 Li
        (Li)
                             Refrigerator    339 Li        334 Li          334 Li           334 Li         330 Li

                     Weight                  104kg         113kg           115kg            115kg          117kg

              External Dimension
                                                              903 mm x 734.5mm x 1790 mm
            (Width x Depth x Height)

                     Evaporator                                            Fin Type
   C
   Y                 Condenser                                        Fan Cooling System
   C
   L                    Dryer                                        Molecular Sieve XH-9
   E
                    Capillary Tube                                  ID0.7
