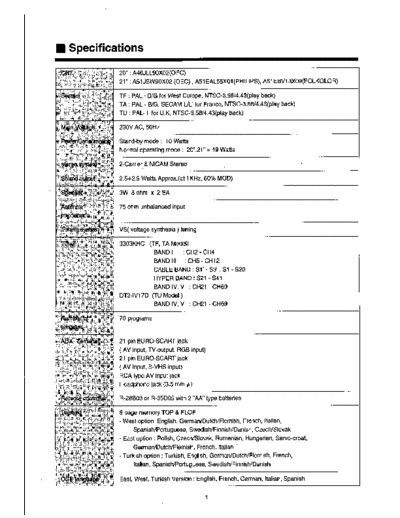

Image preview - the first page of the document
basicline-bl-21t9st


>> Download basicline-bl-21t9st documenatation <<

Text preview - extract from the document
     Electrical Parts List
        Components marked with this symbol must only be replaced by a component having
        identical physical characteristics.




LOC.       PART-CODE            PART-NAME                  PART-DESCRIPTION              REMARK
ZTR10    48B3228B03         TRANSMITTER REMOCON      R-28B03
30       47P7500001         BATTERY                  AAM 1.5V
ZCG10    48519A5210         CRT GROUND AS            2101H-1015-1P
ZDC10    58G0000074         COIL DEGAUSING           DC-2070
10000    48586A1617         MANUAL INSTRUCTION       ALL
V901     48A96321P1         CRT BARE                 A51JSW90X
ZMP10    PSMPMS0027         PCB MAIN MANUAL AS       DTT-21T1TF
A001     4859801693         PCB MAIN                 330X246 S1B
C101     CEXF1E470V         C ELECTRO                25V RSS 47MF (5X11) TP
C102     CEXF1H479V         C ELECTRO                50V RSS 4.7MF (5X11) TP
C103     CEXF1H479V         C ELECTRO                50V RSS 4.7MF (5X11) TP
C104     CEXF1H100V         C ELECTRO                50V RSS 10MF (5X11) TP
C106     CEXF1E330V         C ELECTRO                25V RSS 33MF (5X11) TP
C107     CMXM2A104J         C MYLAR                  100V 0.1MF J (TP)
C301     CMXM2A103J         C MYLAR                  100V 0.01MF J (TP)
C302     CCXB1H152K         C CERA                   50V B 1500PF K (TAPPING)
C303     CMXM2A104J         C MYLAR                  100V 0.1MF J (TP)
C401     CCXB3D221K         C CERA                   2KV B 220PF K (TAPPING)
C402     CMYH3C602J         C MYLAR                  1.6KV BUP 6000PF J
C403     CEXF2C339V         C ELECTRO                160V RSS 3.3MF (8X16) TP
C404     CMYE2D304J         C MYLAR                  200V PU 0.3MF J
C405     CEXF1E471V         C ELECTRO                25V RSS 470MF (10X16) TP
C406     CCXB2H102K         C CERA                   500V B 1000PF K (TAPPING)
C407     CEXF2C470V         C ELECTRO                160V RSS 47MF (13X25) TP
C408     CCXB2H102K         C CERA                   500V B 1000PF K (TAPPING)
C409     CXSL2H470J         C CERA                   500V SL 47PF J (TAPPING)
C410     CCXB3A102K         C CERA                   1KV B 1000PF K (TAPPING)
C411     CEXF2E330V         C ELECTRO                250V RSS 33MF (13X25) TP
C412     CMXM2A104J         C MYLAR                  100V 0.1MF J (TP)
C413     CEXF1H100V         C ELECTRO                50V RSS 10MF (5X11) TP
C414     CCXB2H222K         C CERA                   500V B 2200PF K (TAPPING)
C415     CEXF1E101V         C ELECTRO                25V RSS 100MF (6.3X11) TP
C417     CMXM2A102J         C MYLAR                  100V 1000PF J (TP)
C501     CMXM2A473J         C MYLAR                  100V 0.047MF J (TP)
C502     CEXF1H229V         C ELECTRO                50V RSS 2.2MF (5X11) TP
C503     CMXM2A223J         C MYLAR                  100V 0.022MF J TP
C504     CEXF1E101V         C ELECTRO                25V RSS 100MF (6.3X11) TP
C505     CMXM2A223J         C MYLAR                  100V 0.022MF J TP
C506     CMXM2A473J         C MYLAR                  100V 0.047MF J (TP)


                                                55
LOC.    PART-CODE      PART-NAME            PART-DESCRIPTION        REMARK
C507   CMXM2A104J   C MYLAR             100V 0.1MF J (TP)
C508   CMXM2A104J   C MYLAR             100V 0.1MF J (TP)
C509   CMXM2A104J   C MYLAR             100V 0.1MF J (TP)
C510   CMXM2A104J   C MYLAR             100V 0.1MF J (TP)
C511   CMXM2A104J   C MYLAR             100V 0.1MF J (TP)
C512   CEXF1E101V   C ELECTRO           25V RSS 100MF (6.3X11) TP
C513   CMXM2A223J   C MYLAR             100V 0.022MF J TP
C514   CEXF1H109V   C ELECTRO           50V RSS 1MF (5X11) TP
C515   CEXF1H109V   C ELECTRO           50V RSS 1MF (5X11) TP
C516   CMXL2E104K   C MYLAR             250V MEU 0.1MF K
C517   CEXF1H109V   C ELECTRO           50V RSS 1MF (5X11) TP
C518   CMXM2A223J   C MYLAR             100V 0.022MF J TP
C519   CMXM2A104J   C MYLAR             100V 0.1MF J (TP)
C520   CEXF1E470V   C ELECTRO           25V RSS 47MF (5X11) TP
C521   CMXM2A104J   C MYLAR             100V 0.1MF J (TP)
C522   CMXB1H224J   C MYLAR             50V EU 0.22MF J (TP)
C523   CEXF1E470V   C ELECTRO           25V RSS 47MF (5X11) TP
C524   CMXM2A223J   C MYLAR             100V 0.022MF J TP
C525   CEXF1H100V   C ELECTRO           50V RSS 10MF (5X11) TP
C601   CMXM2A104J   C MYLAR             100V 0.1MF J (TP)
C602   CEXF1H470V   C ELECTRO           50V RSS 47MF (6.3X11) TP
C603   CMXM2A104J   C MYLAR             100V 0.1MF J (TP)
C604   CEXF1H100V   C ELECTRO           50V RSS 10MF (5X11) TP
C605   CEXF1H220V   C ELECTRO           50V RSS 22MF (5X11) TP
C606   CEXF1H100V   C ELECTRO           50V RSS 10MF (5X11) TP
C607   CEXF1E102V   C ELECTRO           25V RSS 1000MF (13X20) TP
C609   CEXF1H109V   C ELECTRO           50V RSS 1MF (5X11) TP
C610   CEXF1H479V   C ELECTRO           50V RSS 4.7MF (5X11) TP
C611   CEXF1H479V   C ELECTRO           50V RSS 4.7MF (5X11) TP
C612   CEXF1H100V   C ELECTRO           50V RSS 10MF (5X11) TP
C614   CMXM2A104J   C MYLAR             100V 0.1MF J (TP)
C615   CEXF1H100V   C ELECTRO           50V RSS 10MF (5X11) TP
C616   CEXF1H339V   C ELECTRO           50V RSS 3.3MF (5X11) TP
C617   CMXM2A104J   C MYLAR             100V 0.1MF J (TP)
C618   CEXF1H109V   C ELECTRO           50V RSS 1MF (5X11) TP
C619   CEXF1H109V   C ELECTRO           50V RSS 1MF (5X11) TP
C620   CEXF1H109V   C ELECTRO           50V RSS 1MF (5X11) TP
C621   CEXF1H109V   C ELECTRO           50V RSS 1MF (5X11) TP
C622   CMXM2A104J   C MYLAR             100V 0.1MF J (TP)
C623   CEXF1H100V   C ELECTRO           50V RSS 10MF (5X11) TP
C625   CEXF1E470V   C ELECTRO           25V RSS 47MF (5X11) TP
C626   CEXF1H479V   C ELECTRO           50V RSS 4.7MF (5X11) TP
C627   CEXF1H100V   C ELECTRO           50V RSS 10MF (5X11) TP

                                   56
LOC.    PART-CODE      PART-NAME             PART-DESCRIPTION        REMARK
C628   CEXF1E470V   C ELECTRO            25V RSS 47MF (5X11) TP
C629   CEXF1H479V   C ELECTRO            50V RSS 4.7MF (5X11) TP
C630   CEXF1H100V   C ELECTRO            50V RSS 10MF (5X11) TP
C631   CEXF1E470V   C ELECTRO            25V RSS 47MF (5X11) TP
C701   CEXF1E470V   C ELECTRO            25V RSS 47MF (5X11) TP
C702   CEXF1H109V   C ELECTRO            50V RSS 1MF (5X11) TP
C703   CMXM2A104J   C MYLAR              100V 0.1MF J (TP)
C704   CMXM2A104J   C MYLAR              100V 0.1MF J (TP)
C705   CEXF1H470V   C ELECTRO            50V RSS 47MF (6.3X11) TP
C706   CEXF1E470V   C ELECTRO            25V RSS 47MF (5X11) TP
C707   CEXF1H100V   C ELECTRO            50V RSS 10MF (5X11) TP
C708   CEXF1H109V   C ELECTRO            50V RSS 1MF (5X11) TP
C709   CEXF1E470V   C ELECTRO            25V RSS 47MF (5X11) TP
C710   CEXF1E470V   C ELECTRO            25V RSS 47MF (5X11) TP
C711   CMXM2A333J   C MYLAR              100V 0.033MF J (TP)
C712   CMXB1H224J   C MYLAR              50V EU 0.22MF J (TP)
C713   CXCH1H309C   C CERA               50V CH 3PF C
C801   CL1JB3474K   C LINE ACROSS        AC250V 0.47MF U/C/SNDF/SV
C803   CCXF3A472Z   C CERA               1KV F 4700PF Z (T)
C804   CCXF3A472Z   C CERA               1KV F 4700PF Z (T)
C805   CEYM2G121T   C ELECTRO            400V LWF 120MF (25X50)
C806   CCXB3D471K   C CERA               2KV B 470PF K (TAPPING)
C807   CCXB3A102K   C CERA               1KV B 1000PF K (TAPPING)
C808   CEXF2A100V   C ELECTRO            100V RSS 10MF (6.3X11) TP
C809   CEXF1E221V   C ELECTRO            25V RSS 220MF (8X11.5) TP
C810   CEXF1V221V   C ELECTRO            35V RSS 220MF (10X12.5)TP
C812   CEXF1E222V   C ELECTRO            25V RSS 2200MF (16X25) TP
C814   CCXR3A102K   C CERA               HIKR 1KV 1000PF K 125C
C815   CCXB3A681K   C CERA               1KV B 680PF K (TAPPING)
C816   CEXF2C101C   C ELECTRO            160V RUS 100MF (16X25) TP
C817   CEXF2C101C   C ELECTRO            160V RUS 100MF (16X25) TP
C818   CEXF1E222V   C ELECTRO            25V RSS 2200MF (16X25) TP
C819   CEXF1E102V   C ELECTRO            25V RSS 1000MF (13X20) TP
C820   CEXF1H100V   C ELECTRO            50V RSS 10MF (5X11) TP
C821   CEXF1E101V   C ELECTRO            25V RSS 100MF (6.3X11) TP
C822   CEXF1E470V   C ELECTRO            25V RSS 47MF (5X11) TP
C823   CEXF1E101V   C ELECTRO            25V RSS 100MF (6.3X11) TP
C824   CH1FFE472M   C CERA AC            4.0KV 4700PF M KD AC250V
C825   CEXF1E101V   C ELECTRO            25V RSS 100MF (6.3X11) TP
C904   CMXL2E104K   C MYLAR              250V MEU 0.1MF K
C905   CMXL2E104K   C MYLAR              250V MEU 0.1MF K
C906   CMXL2E104K   C MYLAR              250V MEU 0.1MF K
C907   CCXB1H561K   C CERA               50V B 560PF K (TAPPING)

                                    57
LOC.    PART-CODE      PART-NAME            PART-DESCRIPTION      REMARK
C908   CCXB1H561K   C CERA              50V B 560PF K (TAPPING)
C909   CCXB1H561K   C CERA              50V B 560PF K (TAPPING)
C910   CEXF1E470V   C ELECTRO           25V RSS 47MF (5X11) TP
C911   CCYB3D472K   C CERA              2KV B 4700PF K
CC01   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC02   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC03   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC04   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC05   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC06   HCQK220JCA   C CHIP CERA         50V CH 22PF J 2012
CC07   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC08   HCQK151JCA   C CHIP CERA         50V CH 150PF J 2012
CC09   HCQK820JCA   C CHIP CERA         50V CH 82PF J 2012
CC10   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC11   HCQK220JCA   C CHIP CERA         50V CH 22PF J 2012
CC12   HCQK100DCA   C CHIP CERA         50V CH 10PF D 2012
CC13   HCFK104ZCA   C CHIP CERA         50V Y5V 0.1MF Z 2012
CC14   HCFK104ZCA   C CHIP CERA         50V Y5V 0.1MF Z 2012
CC15   HCFK104ZCA   C CHIP CERA         50V Y5V 0.1MF Z 2012
CC16   HCQK221JCA   C CHIP CERA         50V CH 220PF J 2012
CC17   HCQK180JCA   C CHIP CERA         50V CH 18PF J 2012
CC18   HCFK104ZCA   C CHIP CERA         50V Y5V 0.1MF Z 2012
CC19   HCBK472KCA   C CHIP CERA         50V X7R 4700PF K 2012
CC20   HCBK222KCA   C CHIP CERA         50V X7R 2200PF K 2012
CC21   HCBK472KCA   C CHIP CERA         50V X7R 4700PF K 2012
CC22   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC23   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC24   HCFK104ZCA   C CHIP CERA         50V Y5V 0.1MF Z 2012
CC26   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC27   HCFK104ZCA   C CHIP CERA         50V Y5V 0.1MF Z 2012
CC28   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC29   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC30   HCBK153KCA   C CHIP CERA         50V X7R 0.015MF K 2012
CC31   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC32   HCBK153KCA   C CHIP CERA         50V X7R 0.015MF K 2012
CC33   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC34   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC36   HCQK471JCA   C CHIP CERA         50V CH 470PF J 2012
CC37   HCQK331JCA   C CHIP CERA         50V CH 330PF J 2012
CC38   HCQK471JCA   C CHIP CERA         50V CH 470PF J 2012
CC39   HCQK391JCA   C CHIP CERA         50V CH 390PF J 2012
CC40   HCQK391JCA   C CHIP CERA         50V CH 390PF J 2012
CC41   HCQK471JCA   C CHIP CERA         50V CH 470PF J 2012

                                   58
LOC.    PART-CODE      PART-NAME            PART-DESCRIPTION     REMARK
CC42   HCQK471JCA   C CHIP CERA         50V CH 470PF J 2012
CC43   HCFK103ZCA   C CHIP CERA         50V Y5V 0.01MF Z 2012
CC44   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC45   HCQK509DCA   C CHIP CERA         50V CH 5PF D 2012
CC46   HCQK509DCA   C CHIP CERA         50V CH 5PF D 2012
CC47   HCFK104ZCA   C CHIP CERA         50V Y5V 0.1MF Z 2012
CC48   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC49   HCQK470JCA   C CHIP CERA         50V CH 47PF J 2012
CC50   HCQK220JCA   C CHIP CERA         50V CH 22PF J 2012
CC52   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC53   HCQK680JCA   C CHIP CERA         50V CH 68PF J 2012
CC54   HCFK103ZCA   C CHIP CERA         50V Y5V 0.01MF Z 2012
CC55   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC56   HCQK220JCA   C CHIP CERA         50V CH 22PF J 2012
CC57   HCQK220JCA   C CHIP CERA         50V CH 22PF J 2012
CC58   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC59   HCQK391JCA   C CHIP CERA         50V CH 390PF J 2012
CC60   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC61   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC62   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC65   HCBK333KCA   C CHIP CERA         50V X7R 0.033MF K 2012
CC66   HCFK103ZCA   C CHIP CERA         50V Y5V 0.01MF Z 2012
CC67   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC68   HCQK390JCA   C CHIP CERA         50V CH 39PF J 2012
CC69   HCQK360JCA   C CHIP CERA         50V CH 36PF J 2012
CC70   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC71   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC72   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC73   HCFK104ZCA   C CHIP CERA         50V Y5V 0.1MF Z 2012
CC74   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC75   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC76   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC77   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC78   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC79   HCBQ561JCA   C CHIP CERA         50V CH 560PF J 2012
CC80   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC81   HCQK561JCA   C CHIP CERA         50V CH 560PF J 2012
CC82   HCFK104ZCA   C CHIP CERA         50V Y5V 0.1MF Z 2012
CC83   HCQK121JCA   C CHIP CERA         50V CH 120PF J 2012
CC84   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC86   HCBK102KCA   C CHIP CERA         50V X7R 1000PF K 2012
CC88   HCQK121JCA   C CHIP CERA         50V CH 120PF J 2012
CC89   HCQK331JCA   C CHIP CERA         50V CH 330PF J 2012

                                   59
LOC.    PART-CODE         PART-NAME            PART-DESCRIPTION    REMARK
CC90   HCBK102KCA   C CHIP CERA            50V X7R 1000PF K 2012
CC91   HCBK102KCA   C CHIP CERA            50V X7R 1000PF K 2012
CC92   HCQK101JCA   C CHIP CERA            50V CH 100PF J 2012
CC93   HCQK101JCA   C CHIP CERA            50V CH 100PF J 2012
CC94   HCQK101JCA   C CHIP CERA            50V CH 100PF J 2012
CC96   HCBK152KCA   C CHIP CERA            50V X7R 1500PF K 2012
CC97   HCBK152KCA   C CHIP CERA            50V X7R 1500PF K 2012
CC98   HCFK104ZCA   C CHIP CERA            50V Y5V 0.1MF Z 2012
CC99   HCQK150JCA   C CHIP CERA            50V Y5V 15PF J 2012
CV01   CMXM2A102J   C MYLAR                100V 1000PF J (TP)
CV02   CMXM2A104J   C MYLAR                100V 0.1MF J (TP)
D101   D1N4148---   DIODE                  1N4148 (TAPPING)
D301   DUZ5R1BM--   DIODE ZENER            UZ-5.1BM
D401   DBYV95C---   DIODE                  BYV95C (TAPPING)
D402   DBYV95C---   DIODE                  BYV95C (TAPPING)
D403   DBYV95C---   DIODE                  BYV95C (TAPPING)
D404   DBYV95C---   DIODE                  BYV95C (TAPPING)
D405   DUZ5R1BM--   DIODE ZENER            UZ-5.1BM
D406   D1N4148---   DIODE                  1N4148 (TAPPING)
D407   D1N4148---   DIODE                  1N4148 (TAPPING)
D408   DBY228----   DIODE                  BY228 (TAPPING)
D501   DMTZ5R1B--   DIODE ZENER            MTZ 5.1-B (TAPPING)
D503   D1N4148---   DIODE                  1N4148 (TAPPING)
D504   D1N4148---   DIODE                  1N4148 (TAPPING)
D701   D1N4148---   DIODE                  1N4148 (TAPPING)
D702   D1N4148---   DIODE                  1N4148 (TAPPING)
D703   D1N4148---   DIODE                  1N4148 (TAPPING)
D704   D1N4148---   DIODE                  1N4148 (TAPPING)
D705   DUZ6R2BM--   DIODE ZENER            UZ-6.2BM 6.2V
D706   DUZ6R2BM--   DIODE ZENER            UZ-6.2BM 6.2V
D709   DKLR114L--   LED                    KLR114L
D711   DUZ6R2BM--   DIODE ZENER            UZ-6.2BM 6.2V
D712   DUZ6R2BM--   DIODE ZENER            UZ-6.2BM 6.2V
D801   D1S1888---   DIODE                  1S1888 (TAPPING)
D802   D1S1888---   DIODE                  1S1888 (TAPPING)
D803   D1S1888---   DIODE                  1S1888 (TAPPING)
D804   D1S1888---   DIODE                  1S1888 (TAPPING)
D805   DBYV95C---   DIODE                  BYV95C (TAPPING)
D806   DBYV95C---   DIODE                  BYV95C (TAPPING)
D807   DBYV95C---   DIODE                  BYV95C (TAPPING)
D808   DBYV95C---   DIODE                  BYV95C (TAPPING)
D811   DBYV95C---   DIODE                  BYV95C (TAPPING)
D812   DBYV95C---   DIODE                  BYV95C (TAPPING)

                                      60
LOC.     PART-CODE        PART-NAME            PART-DESCRIPTION      REMARK
D813    DBYW95C---   DIODE                 BYW95C (TAPPING)
D901    D1N4148---   DIODE                 1N4148 (TAPPING)
D902    D1N4148---   DIODE                 1N4148 (TAPPING)
D903    D1N4148---   DIODE                 1N4148 (TAPPING)
D904    D1N4148---   DIODE                 1N4148 (TAPPING)
D905    DUZ6R2BM--   DIODE ZENER           UZ-6.2BM 6.2V
DV01    DUZ6R2BM--   DIODE ZENER           UZ-6.2BM 6.2V
DV02    DUZ6R2BM--   DIODE ZENER           UZ-6.2BM 6.2V
DV03    DUZ6R2BM--   DIODE ZENER           UZ-6.2BM 6.2V
DV04    DUZ6R2BM--   DIODE ZENER           UZ-6.2BM 6.2V
DV05    DUZ6R2BM--   DIODE ZENER           UZ-6.2BM 6.2V
DV06    DUZ6R2BM--   DIODE ZENER           UZ-6.2BM 6.2V
DV07    DUZ6R2BM--   DIODE ZENER           UZ-6.2BM 6.2V
DV08    DUZ6R2BM--   DIODE ZENER           UZ-6.2BM 6.2V
DV09    DUZ6R2BM--   DIODE ZENER           UZ-6.2BM 6.2V
DV11    DUZ6R2BM--   DIODE ZENER           UZ-6.2BM 6.2V
DV12    DUZ6R2BM--   DIODE ZENER           UZ-6.2BM 6.2V
DV13    DUZ6R2BM--   DIODE ZENER           UZ-6.2BM 6.2V
DV14    DUZ6R2BM--   DIODE ZENER           UZ-6.2BM 6.2V
DV15    DUZ6R2BM--   DIODE ZENER           UZ-6.2BM 6.2V
DV16    DUZ6R2BM--   DIODE ZENER           UZ-6.2BM 6.2V
DV17    DUZ6R2BM--   DIODE ZENER           UZ-6.2BM 6.2V
DV19    D1N4148---   DIODE                 1N4148 (TAPPING)
F801    5FSCB4022R   FUSE CERA             SEMKO F4AH 4A 250V MF51
F801A   4857415001   CLIP FUSE             PFC5000-0702
F801B   4857415001   CLIP FUSE             PFC5000-0702
I301    1TDA8356--   IC VERTICAL           TDA8356
I301A   4857024617   HEAT SINK             AL EX
I301B   7174301011   SCREW TAPPTITE        TT2 RND 3X10 MFZN
I501    1TDA8374A-   IC VCD                TDA8374A
I503    1TDA4665V4   IC DELAY              TDA4665/V4
I601    1TDA1519B-   IC AMP                TDA1519B
I601A   4857025401   HEAT SINK             A1050P-H24 T2
I601B   7174300811   SCREW TAPPTITE        TT2 RND 3X8 MFZN
I602    1MSP3410D-   IC AUDIO              MSP3410D
I604    1TDA4445B-   IC                    TDA4445B
I701    1DW5255S2-   IC MICOM              DW5255S2
I702    124LC08B--   IC MEMORY             24LC08B
I703    1TFMW5380-   IC PREAMP             TFMW5380
I704    1UPC574J--   IC                    UPC574J
I801    1STRS5707-   IC POWER              STR-S5707
I802    1TDA8138--   IC REGULATOR          TDA8138
I802A   4857025401   HEAT SINK             A1050P-H24 T2

                                      61
LOC.     PART-CODE       PART-NAME               PART-DESCRIPTION      REMARK
I802B   7174300811   SCREW TAPPTITE          TT2 RND 3X8 MFZN
I803    1KA7808---   IC REGULATOR            KA7808
I901    1TDA6106Q-   IC AMP                  TDA6106Q
I902    1TDA6106Q-   IC AMP                  TDA6106Q
I903    1TDA6106Q-   IC AMP                  TDA6106Q
JP01    4859102130   JACK EARPHONE           YSC-1537
JV01    4859200401   SOCKET RGB              SR-21A1 (ANGLE TYPE)
JV02    4859200401   SOCKET RGB              SR-21A1 (ANGLE TYPE)
JV03    4859108450   JACK PIN BOARD          YSC03P-4120-14A
L101    5CPZ470K02   COIL PEAKING            47UH K (AXIAL 3.5MM)
L102    5CPZ100K02   COIL PEAKING            10UH K (AXIAL 3.5MM)
L103    58C9780027   COIL CHOKE              TRF-1201B (0.97 UH)
L301    5CPZ100K04   COIL PEAKING            10UH 10.5MM K (LAL04TB)
L302    5CPZ100K04   COIL PEAKING            10UH 10.5MM K (LAL04TB)
L401    5CPZ109M04   COIL PEAKING            1UH 10.5MM M (LAL04TB)
L404    58H0000016   COIL H-LINEARITY        L-102 (102UH)
L501    58E0000S39   COIL AFT                TRF-A003
L601    5CPZ479K02   COIL PEAKING            4.7UH K (AXIAL 3.5MM)
L602    5CPZ479K02   COIL PEAKING            4.7UH K (AXIAL 3.5MM)
L603    5CPZ479K02   COIL PEAKING            4.7UH K (AXIAL 3.5MM)
L604    5CPZ479K02   COIL PEAKING            4.7UH K (AXIAL 3.5MM)
L605    5CPZ479K02   COIL PEAKING            4.7UH K (AXIAL 3.5MM)
L607    58M38R9006   COIL DET                TRF-1490
L608    5CPZ100K04   COIL PEAKING            10UH 10.5MM K (LAL04TB)
L609    5CPZ100K04   COIL PEAKING            10UH 10.5MM K (LAL04TB)
L610    5CPZ100K04   COIL PEAKING            10UH 10.5MM K (LAL04TB)
L701    5CPZ689K02   COIL PEAKING            6.8UH K (AXIAL 3.5MM)
L801    5PLF24A1--   FILTER LINE             LF-24A1
L802    5MC0000100   COIL BEAD               MD-5 (HC-3550)
L805    58C9430599   COIL CHOKE              AZ-9004Y(94MH)
L806    5MC0000100   COIL BEAD               MD-5 (HC-3550)
LV01    5CPZ109M04   COIL PEAKING            1UH 10.5MM M (LAL04TB)
LV02    5CPZ109M04   COIL PEAKING            1UH 10.5MM M (LAL04TB)
LV03    5CPZ109M04   COIL PEAKING            1UH 10.5MM M (LAL04TB)
LV04    5CPZ109M04   COIL PEAKING            1UH 10.5MM M (LAL04TB)
LV06    5CPZ109M04   COIL PEAKING            1UH 10.5MM M (LAL04TB)
LV07    5CPZ109M04   COIL PEAKING            1UH 10.5MM M (LAL04TB)
LV09    5CPZ109M04   COIL PEAKING            1UH 10.5MM M (LAL04TB)
LV10    5CPZ109M04   COIL PEAKING            1UH 10.5MM M (LAL04TB)
LV11    5CPZ109M04   COIL PEAKING            1UH 10.5MM M (LAL04TB)
M351    4853530901   HOLDER LED              HIPS BK
M721    4857235402   SHIELD CASE             SPTH-C T0.25
P101    485923162S   CONN WAFER              YW025-03 (STICK)

                                        62
LOC.    PART-CODE        PART-NAME            PART-DESCRIPTION       REMARK
P401   4859240120   CONN WAFER            YFW500-06
P402   485923172S   CONN WAFER            YW025-04 (STICK)
P501   485923192S   CONN WAFER            YW025-06 (STICK)
P601   485923172S   CONN WAFER            YW025-04 (STICK)
P801   4859242220   CONN WAFER            YFW800-02
P802   4859242220   CONN WAFER            YFW800-02
P901   4850706S02   CONN AS               YH025-06+YST025+ULW=400
P902   4850704S04   CONN AS               YH025-04+YST025+ULW=400
P903   4859275220   CONN WAFER            YF254-05R (ANGLE)
P904   4859262120   CONN WAFER            YFW800-01
PWC1   4859903110   CORD POWER AS         CW4232+BL102NG+TUBE=2500
A000   4859903511   CORD POWER            CW4232 H03VVH2-F=2250
Q301   TKTC3198Y-   TR                    KTC3198Y
Q401   T2SD1207T-   TR                    2SD1207-T (TAPPING)
Q402   T2SD2499--   TR                    2SD2499
Q501   TKTC3198Y-   TR                    KTC3198Y
Q502   TKTC3198Y-   TR                    KTC3198Y
Q601   TKTC3198Y-   TR                    KTC3198Y
Q602   TKTC3198Y-   TR                    KTC3198Y
Q603   TKTC3198Y-   TR                    KTC3198Y
Q604   TKTC3197--   TR                    KTC3197 (TP)
Q605   TKTC3198Y-   TR                    KTC3198Y
Q701   TKTC3202Y-   TR                    KTC3202Y (TP)
Q702   TKTC3198Y-   TR                    KTC3198Y
Q703   TKTC3198Y-   TR                    KTC3198Y
Q704   TKTC3198Y-   TR                    KTC3198Y
Q705   TKTC3198Y-   TR                    KTC3198Y
Q706   TKTC3198Y-   TR                    KTC3198Y
Q707   TKTA1266Y-   TR                    KTA1266Y (TP)
Q708   TKTA1266Y-   TR                    KTA1266Y (TP)
Q709   TKTA1266Y-   TR                    KTA1266Y (TP)
Q710   TKTC3198Y-   TR                    KTC3198Y
Q801   TKTC3198Y-   TR                    KTC3198Y
Q802   TKTC3198Y-   TR                    KTC3198Y
Q901   TKTA1266Y-   TR                    KTA1266Y (TP)
QV01   TKTC3198Y-   TR                    KTC3198Y
QV02   TKTA1266Y-   TR                    KTA1266Y (TP)
R101   RD-AZ122J-   R CARBON FILM         1/6 1.2K OHM J
R301   RD-2Z153J-   R CARBON FILM         1/2 15K OHM J
R302   RD-AZ302J-   R CARBON FILM         1/6 3K OHM J
R303   RD-4Z229J-   R CARBON FILM         1/4 2.2 OHM J
R304   RD-4Z229J-   R CARBON FILM         1/4 2.2 OHM J
R305   RD-2Z271J-   R CARBON FILM         1/2 270 OHM J

                                     63
LOC.    PART-CODE       PART-NAME             PART-DESCRIPTION      REMARK
R306   RD-AZ472J-   R CARBON FILM         1/6 4.7K OHM J
R307   RD-4Z822J-   R CARBON FILM         1/4 8.2K OHM J
R308   RD-4Z223J-   R CARBON FILM         1/4 22K OHM J
R401   RD-4Z272J-   R CARBON FILM         1/4 2.7K OHM J
R402   RD-4Z399J-   R CARBON FILM         1/4 3.9 OHM J
R404   RD-4Z153J-   R CARBON FILM         1/4 15K OHM J
R406   RF01Y109JA   R FUSIBLE             1W 1 OHM J A CURVE
R409   RD-4Z102J-   R CARBON FILM         1/4 1K OHM J
R410   RD-2Z273J-   R CARBON FILM         1/2 27K OHM J
R411   RS01Z103J-   R M-OXIDE FILM        1W 10K OHM J (TAPPING)
R412   RS01Z561J-   R M-OXIDE FILM        1W 560 OHM J (TAPPING)
R413   RD-AZ303J-   R CARBON FILM         1/6 30K OHM J
R414   RD-AZ303J-   R CARBON FILM         1/6 30K OHM J
R501   RD-4Z109J-   R CARBON FILM         1/4 1 OHM J
R502   RD-AZ101J-   R CARBON FILM         1/6 100 OHM J
R503   RD-AZ682J-   R CARBON FILM         1/6 6.8K OHM J
R504   RD-AZ303J-   R CARBON FILM         1/6 30K OHM J
R505   RD-AZ472J-   R CARBON FILM         1/6 4.7K OHM J
R507   RD-AZ102J-   R CARBON FILM         1/6 1K OHM J
R508   RD-AZ102J-   R CARBON FILM         1/6 1K OHM J
R509   RD-AZ335J-   R CARBON FILM         1/6 3.3M OHM J
R601   RD-2Z151J-   R CARBON FILM         1/2 150 OHM J
R602   RD-2Z151J-   R CARBON FILM         1/2 150 OHM J
R603   RD-AZ101J-   R CARBON FILM         1/6 100 OHM J
R604   RD-AZ101J-   R CARBON FILM         1/6 100 OHM J
R606   RD-AZ103J-   R CARBON FILM         1/6 10K OHM J
R608   RD-AZ102J-   R CARBON FILM         1/6 1K OHM J
R701   RD-4Z101J-   R CARBON FILM         1/4 100 OHM J
R702   RD-4Z109J-   R CARBON FILM         1/4 1 OHM J
R703   RS02Z562J-   R M-OXIDE FILM        2W 5.6K OHM J (TAPPING)
R704   RS02Z562J-   R M-OXIDE FILM        2W 5.6K OHM J (TAPPING)
R705   RD-4Z333J-   R CARBON FILM         1/4 33K OHM J
R706   RD-4Z100J-   R CARBON FILM         1/4 10 OHM J
R708   RD-AZ122J-   R CARBON FILM         1/6 1.2K OHM J
R709   RD-AZ122J-   R CARBON FILM         1/6 1.2K OHM J
R710   RD-AZ122J-   R CARBON FILM         1/6 1.2K OHM J
R711   RD-AZ333J-   R CARBON FILM         1/6 33K OHM J
R712   RD-AZ103J-   R CARBON FILM         1/6 10K OHM J
R713   RD-AZ101J-   R CARBON FILM         1/6 100 OHM J
R714   RD-AZ101J-   R CARBON FILM         1/6 100 OHM J
R716   RD-AZ102J-   R CARBON FILM         1/6 1K OHM J
R717   RD-AZ472J-   R CARBON FILM         1/6 4.7K OHM J
R718   RD-AZ472J-   R CARBON FILM         1/6 4.7K OHM J

                                     64
LOC.    PART-CODE       PART-NAME             PART-DESCRIPTION      REMARK
R719   RD-AZ103J-   R CARBON FILM         1/6 10K OHM J
R720   RD-AZ391J-   R CARBON FILM         1/6 390 OHM J
R801   DEC180M290   POSISTOR              ECPCC180M290
R802   RX10B339JN   R CEMENT              10W 3.3 OHM J BENCH 4P
R803   RS02Z473J-   R M-OXIDE FILM        2W 47K OHM J (TAPPING)
R804   RF02Z568J-   R FUSIBLE             2W 0.56 OHM J (TAPPING)
R805   RS01Z360J-   R M-OXIDE FILM        1W 36 OHM J (TAPPING)
R806   RD-4Z102J-   R CARBON FILM         1/4 1K OHM J
R807   RD-4Z222J-   R CARBON FILM         1/4 2.2K OHM J
R808   RD-4Z220J-   R CARBON FILM         1/4 22 OHM J
R809   RD-4Z104J-   R CARBON FILM         1/4 100K OHM J
R822   RS01Z473J-   R M-OXIDE FILM        1W 47K OHM J (TAPPING)
R824   RS01Z120J-   R M-OXIDE FILM        1W 12 OHM J (TAPPING)
R825   RC-2Z565J-   R CARBON COMP         1/2 5.6M OHM J
R826   RD-4Z101J-   R CARBON FILM         1/4 100 OHM J
R827   RD-4Z362J-   R CARBON FILM         1/4 3.6K OHM J
R828   RD-AZ473J-   R CARBON FILM         1/6 47K OHM J
R829   RD-AZ103J-   R CARBON FILM         1/6 10K OHM J
R830   RD-AZ122J-   R CARBON FILM         1/6 1.2K OHM J
R831   RS02Z620J-   R M-OXIDE FILM        2W 62 OHM J (TAPPING)
R832   RS02Z620J-   R M-OXIDE FILM        2W 62 OHM J (TAPPING)
R901   RD-AZ202J-   R CARBON FILM         1/6 2K OHM J
R902   RD-AZ202J-   R CARBON FILM         1/6 2K OHM J
R903   RD-AZ202J-   R CARBON FILM         1/6 2K OHM J
R904   RD-AZ162J-   R CARBON FILM         1/6 1.6K OHM J
R905   RD-AZ162J-   R CARBON FILM         1/6 1.6K OHM J
R906   RD-AZ162J-   R CARBON FILM         1/6 1.6K OHM J
R907   RD-4Z104J-   R CARBON FILM         1/4 100K OHM J
R908   RD-4Z104J-   R CARBON FILM         1/4 100K OHM J
R909   RD-4Z104J-   R CARBON FILM         1/4 100K OHM J
R910   RC-2Z152J-   R CARBON COMP         1/2 1.5K OHM J
R911   RC-2Z152J-   R CARBON COMP         1/2 1.5K OHM J
R912   RC-2Z152J-   R CARBON COMP         1/2 1.5K OHM J
R913   RD-AZ223J-   R CARBON FILM         1/6 22K OHM J
RC01   HRFT183JCA   R CHIP                1/10 18K OHM J 2012
RC02   HRFT682JCA   R CHIP                1/10 6.8K OHM J 2012
RC03   HRFT333JCA   R CHIP                1/10 33K OHM J 2012
RC04   HRFT104JCA   R CHIP                1/10 100K OHM J 2012
RC05   HRFT104JCA   R CHIP                1/10 100K OHM J 2012
RC06   HRFT102JCA   R CHIP                1/10 1K OHM J 2012
RC07   HRFT479JCA   R CHIP                1/10 4.7 OHM J 2012
RC08   HRFT471JCA   R CHIP                1/10 470 OHM J 2012
RC09   HRFT152JCA   R CHIP                1/10 1.5K OHM J 2012

                                     65
LOC.     PART-CODE       PART-NAME            PART-DESCRIPTION   REMARK
RC100   HRFT750JCA   R CHIP               1/10 75 OHM J 2012
RC101   HRFT750JCA   R CHIP               1/10 75 OHM J 2012
RC102   HRFT750JCA   R CHIP               1/10 75 OHM J 2012
RC10    HRFT102JCA   R CHIP               1/10 1K OHM J 2012
RC11    HRFT182JCA   R CHIP               1/10 1.8K OHM J 2012
RC12    HRFT102JCA   R CHIP               1/10 1K OHM J 2012
RC13    HRFT101JCA   R CHIP               1/10 100 OHM J 2012
RC14    HRFT101JCA   R CHIP               1/10 100 OHM J 2012
RC15    HRFT331JCA   R CHIP               1/10 330 OHM J 2012
RC16    HRFT470JCA   R CHIP               1/10 47 OHM J 2012
RC17    HRFT101JCA   R CHIP               1/10 100 OHM J 2012
RC18    HRFT101JCA   R CHIP               1/10 100 OHM J 2012
RC19    HRFT101JCA   R CHIP               1/10 100 OHM J 2012
RC20    HRFT102JCA   R CHIP               1/10 1K OHM J 2012
RC21    HRFT104JCA   R CHIP               1/10 100K OHM J 2012
RC22    HRFT479JCA   R CHIP               1/10 4.7 OHM J 2012
RC23    HRFT394JCA   R CHIP               1/10 390K OHM J 2012
RC24    HRFT102JCA   R CHIP               1/10 1K OHM J 2012
RC25    HRFT470JCA   R CHIP               1/10 47 OHM J 2012
RC26    HRFT153JCA   R CHIP               1/10 15K OHM J 2012
RC29    HRFT393JCA   R CHIP               1/10 39K OHM J 2012
RC30    HRFT100JCA   R CHIP               1/10 10 OHM J 2012
RC31    HRFT121JCA   R CHIP               1/10 120 OHM J 2012
RC32    HRFT222JCA   R CHIP               1/10 2.2K OHM J 2012
RC33    HRFT563JCA   R CHIP               1/10 56K OHM J 2012
RC34    HRFT272JCA   R CHIP               1/10 2.7K OHM J 2012
RC35    HRFT223JCA   R CHIP               1/10 22K OHM J 2012
RC36    HRFT103JCA   R CHIP               1/10 10K OHM J 2012
RC37    HRFT123JCA   R CHIP               1/10 12K OHM J 2012
RC38    HRFT472JCA   R CHIP               1/10 4.7K OHM J 2012
RC39    HRFT153JCA   R CHIP               1/10 15K OHM J 2012
RC40    HRFT472JCA   R CHIP               1/10 4.7K OHM J 2012
RC41    HRFT683JCA   R CHIP               1/10 68K OHM J 2012
RC42    HRFT103JCA   R CHIP               1/10 10K OHM J 2012
RC43    HRFT103JCA   R CHIP               1/10 10K OHM J 2012
RC44    HRFT223JCA   R CHIP               1/10 22K OHM J 2012
RC45    HRFT102JCA   R CHIP               1/10 1K OHM J 2012
RC46    HRFT102JCA   R CHIP               1/10 1K OHM J 2012
RC47    HRFT103JCA   R CHIP               1/10 10K OHM J 2012
RC48    HRFT153JCA   R CHIP               1/10 15K OHM J 2012
RC49    HRFT222JCA   R CHIP               1/10 2.2K OHM J 2012
RC50    HRFT751JCA   R CHIP               1/10 750 OHM J 2012
RC51    HRFT101JCA   R CHIP               1/10 100 OHM J 2012

                                     66
LOC.    PART-CODE       PART-NAME            PART-DESCRIPTION   REMARK
RC52   HRFT103JCA   R CHIP               1/10 10K OHM J 2012
RC53   HRFT202JCA   R CHIP               1/10 2K OHM J 2012
RC54   HRFT272JCA   R CHIP               1/10 2.7K OHM J 2012
RC55   HRFT622JCA   R CHIP               1/10 6.2K OHM J 2012
RC56   HRFT123JCA   R CHIP               1/10 12K OHM J 2012
RC57   HRFT100JCA   R CHIP               1/10 10 OHM J 2012
RC58   HRFT103JCA   R CHIP               1/10 10K OHM J 2012
RC59   HRFT332JCA   R CHIP               1/10 3.3K OHM J 2012
RC60   HRFT332JCA   R CHIP               1/10 3.3K OHM J 2012
RC61   HRFT103JCA   R CHIP               1/10 10K OHM J 2012
RC62   HRFT103JCA   R CHIP               1/10 10K OHM J 2012
RC63   HRFT103JCA   R CHIP               1/10 10K OHM J 2012
RC64   HRFT103JCA   R CHIP               1/10 10K OHM J 2012
RC65   HRFT473JCA   R CHIP               1/10 47K OHM J 2012
RC66   HRFT333JCA   R CHIP               1/10 33K OHM J 2012
RC67   HRFT333JCA   R CHIP               1/10 33K OHM J 2012
RC68   HRFT333JCA   R CHIP               1/10 33K OHM J 2012
RC69   HRFT333JCA   R CHIP               1/10 33K OHM J 2012
RC70   HRFT912JCA   R CHIP               1/10 9.1K OHM J 2012
RC71   HRFT101JCA   R CHIP               1/10 100 OHM J 2012
RC72   HRFT101JCA   R CHIP               1/10 100 OHM J 2012
RC73   HRFT822JCA   R CHIP               1/10 8.2K OHM J 2012
RC74   HRFT682JCA   R CHIP               1/10 6.8K OHM J 2012
RC75   HRFT682JCA   R CHIP               1/10 6.8K OHM J 2012
RC76   HRFT100JCA   R CHIP               1/10 10 OHM J 2012
RC77   HRFT913JCA   R CHIP               1/10 91K OHM J 2012
RC78   HRFT564JCA   R CHIP               1/10 560K OHM J 2012
RC79   HRFT473JCA   R CHIP               1/10 47K OHM J 2012
RC80   HRFT472JCA   R CHIP               1/10 4.7K OHM J 2012
RC81   HRFT333JCA   R CHIP               1/10 33K OHM J 2012
RC82   HRFT333JCA   R CHIP               1/10 33K OHM J 2012
RC83   HRFT472JCA   R CHIP               1/10 4.7K OHM J 2012
RC84   HRFT472JCA   R CHIP               1/10 4.7K OHM J 2012
RC85   HRFT472JCA   R CHIP               1/10 4.7K OHM J 2012
RC86   HRFT472JCA   R CHIP               1/10 4.7K OHM J 2012
RC87   HRFT472JCA   R CHIP               1/10 4.7K OHM J 2012
RC88   HRFT472JCA   R CHIP               1/10 4.7K OHM J 2012
RC89   HRFT472JCA   R CHIP               1/10 4.7K OHM J 2012
RC90   HRFT473JCA   R CHIP               1/10 47K OHM J 2012
RC91   HRFT473JCA   R CHIP               1/10 47K OHM J 2012
RC92   HRFT750JCA   R CHIP               1/10 75 OHM J 2012
RC93   HRFT102JCA   R CHIP               1/10 1K OHM J 2012
RC94   HRFT223JCA   R CHIP               1/10 22K OHM J 2012

                                    67
LOC.     PART-CODE         PART-NAME            PART-DESCRIPTION        REMARK
RC95    HRFT121JCA   R CHIP                 1/10 120 OHM J 2012
RC96    HRFT473JCA   R CHIP                 1/10 47K OHM J 2012
RC97    HRFT473JCA   R CHIP                 1/10 47K OHM J 2012
RC98    HRFT103JCA   R CHIP                 1/10 10K OHM J 2012
RC99    HRFT103JCA   R CHIP                 1/10 10K OHM J 2012
RV06    RD-4Z750J-   R CARBON FILM          1/4 75 OHM J
RV07    RD-AZ102J-   R CARBON FILM          1/6 1K OHM J
RV08    RD-AZ750J-   R CARBON FILM          1/6 75 OHM J
RV09    RD-AZ101J-   R CARBON FILM          1/6 100 OHM J
RV10    RD-AZ750J-   R CARBON FILM          1/6 75 OHM J
RV11    RD-AZ101J-   R CARBON FILM          1/6 100 OHM J
RV12    RD-AZ750J-   R CARBON FILM          1/6 75 OHM J
RV13    RD-AZ101J-   R CARBON FILM          1/6 100 OHM J
RV14    RD-AZ102J-   R CARBON FILM          1/6 1K OHM J
RV15    RD-AZ101J-   R CARBON FILM          1/6 100 OHM J
RV16    RD-AZ101J-   R CARBON FILM          1/6 100 OHM J
RV17    RD-AZ101J-   R CARBON FILM          1/6 100 OHM J
SCT1    4859303030   SOCKET CRT             ISMM03S
SF01    5PG3962M--   FILTER SAW             G 3962-M
SF03    5PG9251M--   FILTER SAW             G 9251-M
SP01    4858305220   SPEAKER                3W 8 OHM MSF-2D30SB02U
SP01A   4850704S13   CONN AS                YH025-04+YST025+USW=600
SP02    4858305220   SPEAKER                3W 8 OHM MSF-2D30SB02U
SW01    5S50101090   SW TACT                SKHV17910A
SW02    5S50101090   SW TACT                SKHV17910A
SW03    5S50101090   SW TACT                SKHV17910A
SW04    5S50101090   SW TACT                SKHV17910A
SW05    5S50101090   SW TACT                SKHV17910A
SW801   5S40101143   SW PUSH                PS3-22SP (P.C.B)
T401    50D10A2---   TRANS DRIVE            TD-10A2
T402    50H0000177   FBT                    HST1142.5057
T802    50M0000099   TRANS SMPS             SMT2084.0014D
TU01    4859714430   TUNER VARACTOR         3303KHC-3X1289
X501    5XE4R4336E   CRYSTAL QUARTZ         HC-49/U 4.433619MHZ 30PPM
X502    5XE3R5795E   CRYSTAL QUARTZ         HC-49/U 3.579545MHZ 30PPM
X601    5XE18R432E   CRYSTAL QUARTZ         HC-49/U 18.43200MHZ 30PPM
X701    5XE18R000E   CRYSTAL QUARTZ         HC-49/U 18.000MHZ 30PPM
Z101    5PMKT40MA-   FILTER CERA            MKT40MA100P
ZSP10   PSSPPW0027   SPEAKER AS             DTT-21T1TF




                                       68
    The Different Parts for CRT(CP-380)
NO LOC. NAME              20 (ORION)       21 (ORION)      21 (PHILIPS)    21 (POLKOLOR)
1    V901   CRT           A48JLL90X01      A51JSW90X02     A51EAL55X01     A51EBV13X9
                          48A96420P1       48A96321P1      4859607660      485962160
2    C401   C CERA        2KV 470PF        2KV 220PF       2KV 470PF       2KV 220PF
                          CCXB3D471K       CCXB3D221K      CCXB3D471K      CCXB3D221K
3    C402   C MYLAR       1.6KV 7500PF     1.6KV 6000PF    1.6KV 7500PF    1.6KV 6900PF
                          CMYH3C752J       CMYH3C602J      CMYH3C752J      CMYH3C692J
4    C404   C MYLAR       200V 0.47MF      200V 0.3MF      200V 0.51MF     200V 0.27MF
                          CMYB2D474K       CMYE2D304J      CMYE2D514J      CMYE2D274J
5    L404   COIL          L-102                                            TRL-341G
            H-LINEARITY   58H0000016                                       58H0000040
6    L806   COIL BEAD                      MD-5
                                           5MC0000100
7    L807   COIL BEAD     MD-5                             MD-5
                          5MC0000100                       5MC0000100
8    P401A CONN AS                                         35135-06+HS
                                                           30052+ULW=500
                                                           4850706S10
9    R302   R C-FILM      1/6W 2.4K        1/6W 3K         1/6W 3.3K       1/6W 2.7K
                          RD-AZ242J-       RD-AZ302J-      RD-AZ332J-      RD-AZ272J-
10   R406   R FUSIBLE     1W 2.4A(F)       1W 1A(F)        1W 2.7A(F)      1W 1.2A(F)
                          RF01Y249JA       RF01Y109JA      RF01Y279JA      RF01Y129JA
11   R827   R C-FILM      1.4W 4.7K        1.4W 3.6K       1.4W 4.7K
                          RD-4Z472J-       RD-4Z362J-      RD-4Z472J-
12   SCT1   SOCKET CRT    ISMM03S
                          4859303030
13   SCT2   SOCKET CRT                                     ISHS-09S
                                                           4859302930
14   ZCG10 CRT GND AS     2001H-1015P-1P   2101H-1015-1P
                          48519A5010       48519A5210
15   ZDC10 COIL           DC-2050          DC-2070
            DEGAUSSING    58G0000086       58G0000074




                                             69
     The Different Parts for System(CP-380)
NO LOC. NAME                     TF                TK                TU                TA
1     J501   WIRE COPPER                                        AWG22 1/0.65TIN
                                                                COATING
                                                                85801065GY
2     J502   WIRE COPPER   AWG22 1/0.65TIN
                           COATING
                           85801065GY
3     J054   WIRE COPPER                     AWG22 1/0.65 TIN
                                             COATING
                                             85801065GY
4     J055   WIRE COPPER                                                          AWG22 1/0.65 TIN
                                                                                  COATING
                                                                                  85801065GY
5     J805   C ELECTRO     400V 120MF        450V 150MF         400V 120MF
                           CEYM2G121T        CEYM2G151P         CEYM2G121T
6     D601   DIODE                                                                1SS85TA
                                                                                  D1SS85TA
7     D902   DIODE                                                                1SS85TA
                                                                                  D1SS85TA
8     I501   IC VCD        TDA8374A                                               TDA8374
                           1TDA8374A--                                            1TDA8374A--
9     I502   IC                              TDA8395                              TDA8375
                                             1TDA8395--                           1TDA8395--
10    I603   IC                                                                   TDA4445B
                                                                                  1TDA4445B--
11    PWC1 CORD POWER      CW4232+BL102NG    KKP419C+BL102NG    CW3222/240V 5A    CW4232+BL102NG
             AS            +TUBE=2500        +TUBE=2100         +HOUS=2200        +TUBE=2500
                           4859903110        4859902910         4859905110        4859903110
12    SF01   FILTER SAW    G3962M                               K3953M            G3962M
                           5PG3962M--                           5PK3953M--        5PG3962M--
13    SF02   FILTER SAW                                                           L9461M
                                                                                  5PL9461M--
14    SF03   FILTER SAW    G9251M            K9260M                               G925M
                           5PG9251M--        5PK9260M--                           5PG9251M--
15    TU01   TUNTER        3303KHC                              DT2-1V17D         3303KHC
             VARACTOR      4859714430                           4859716130        4859714430
16    Z101   FILTER CERA   MKT40MA100P                          MKT40MA100P
                           5PMKT40MA                            5PMKT40MA




                                              70
CP-380 CHASSIS SCHEMATIC DIAGRAM




                                   45
WAVE FORMS




             46



◦ Jabse Service Manual Search 2020 ◦ Jabse Pravopis ◦ Other service manual resources online : FixyaeServiceinfo
