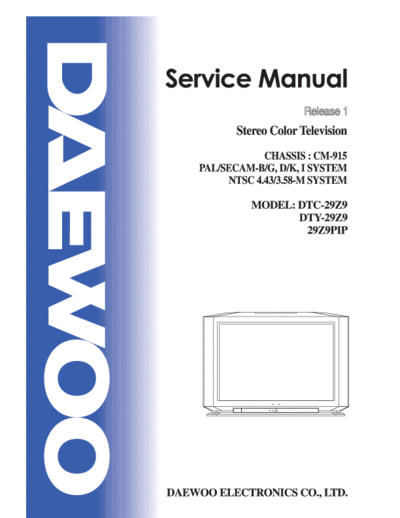

Image preview - the first page of the document
CM-915


>> Download CM-915 documenatation <<

Text preview - extract from the document
     Safety Instruction

 NOTE
      BEFORE SERVICING THIS CHASSIS READ THE "X-RAY RADIATION PRECAUTIONS",
      "SAFETY PRECAUTIONS"AND " PRODUCT SAFETY NOTICE"BELOW.



 X-RAY RADIATION PRECAUTIONS
1. Excessive high voltage can produce potentially hazard-          of the high voltage recorded as a part of the service
   ous X-RAY RADIATION. To avoid such hazards, the                 recorded as a part of the service records. It is important
   high voltage must not exceed the specified limit. The           to use an accurate and reliable high voltage meter.
   nominal value of the high voltage of this receiver is        2. The only source of X-RAY RADIATION in this TV
   29kV(29" at max beam current. The high voltage must
             )                                                     receiver is the picture tube. For continuous RADIATION
   not, under any circumstances, exceed 30.5kV(29"     ).          protection, the replacement tube must be exactly the
   Each time a receiver requires servicing, the high volt-         same type tube as specified in the "   PART LIST"  .
   age should be checked. It is recommended the reading

 SAFETY PRECAUTIONS
1. Potentials of high voltage are present when this             2. If any FUSE in this TV receiver is blown, replace it will
   receiver is operating. Operation of the receiver outside        the FUSE specified in the "   PART LIST"   .
   the cabinet or with the back cover removed involves a        3. When replacing a high wattage resistor (oxide metal
   shock hazard from the receiver.                                 film resistor) in circuit board, keep the resistor 10mm
 1) Servicing should not be attempted by anyone who is             away from circuit board.
   not thoroughly familiar with the precautions necessary       4. Keep wires away from high voltage or high temperature
   when working on high voltage equipment.                         components.
 2) Always discharge the picture tube to avoid the shock        5. This receiver must operate between AC100~240 volts,
   harzard before removing the anode cap.                          50/60Hz. NEVER connect to DC supply or any other
 3) Discharge the high potential of the picture tube before        power or frequency.
   handling the tube. The picture tube is highly evacuated
   and if broken, glass fragments will be violently expelled.

 PRODUCT SAFETY
Many electrical and mechanical parts in this chassis have       ments, electrical components having such features are
special safety-related characteristics.                         identified by designated symbol       on the " PART LIST" .
These characteristics are often passed unnoticed by a           Before replacing any of these components, read the "  PART
visual inspection and the X-RAY RADIATION protection            LIST"in this manual carefully.
afforded by them cannot necessarily be obtained by using        The use of substitute replacement part which do not have
replacement components rated for higher voltage, wattage,       the same safety characteristics as specified in the "PART
etc.                                                            LIST"may created X-RAY RADIATION.
Replacement parts which have these special safety char-
acteristics are identified in this manual and its supple-
Block Diagram




                -3-
  Part List (DTC-29Z9WPT)
CAUTION
        " "is safety component, so it must be used the same component.



Loc        Part_Cd          Part_Name                 Part_Desc               Loc        Part_Cd         Part_Name                   Part_Desc
ZZ100   48B2830F31   TRANSMITTER REMOCON   R-30F31                             SP02   48A8305200   SPEAKER SYSTEM         SS-40110F01 15W 8 OHM
ZZ110   PTACPWD167   ACCESSORY AS          DTC-29Z9WPT                         V901   4859616360   CRT                    A68KVR030X001(BT) AX
  100   4850Q00810   BATTERY               R6P/LN                             V901A   4856015830   SCREW CRT FIX          L=32
 M821   4858213800   BAG INSTRUCTION       L.D.P.E T0.05X250X400              V901B   4856215402   WASHER RUBBER          CR T2.0
ZZ120   PTBCSHD167   COVER BACK AS         DTC-29Z9WPT                        ZZ200   PTFMSJD167   MASK FRONT AS          DTC-29Z9WPT
 M211   4852151201   COVER BACK            HIPS BK                             M201   4852067001   MASK FRONT             HIPS BK
 M541   4855415800   SPEC PLATE            150ART P/E FILM (C/TV)             ZZ202   PTU2MSD167   PCB UNION2 MANUAL AS   DTC-29Z9WPT
 M781   4857817611   CLOTH BLACK           FELT 200X20X0.7                     DE01   DSR54MVW3-   LED                    SPR54 MVW RED/GREEN
 M782   4857817610   CLOTH BLACK           FELT 300X20X0.7                     DE02   DKLG114L--   LED                    KLG-114L
 M783   4857817630   CLOTH BLACK           FELT 400X20X0.7                     DF01   DSLR34MC3-   LED                    SLR-342MC (GREEN)
ZZ130   PTPKCPD167   PACKING AS            DTC-29Z9WPT                         DF02   DSLR34MC3-   LED                    SLR-342MC (GREEN)

 M641   6520010100   STAPLE PIN            18M/M J D O                         DF03   DSLR34MC3-   LED                    SLR-342MC (GREEN)

 M681   4856812400   BAND                  18MM X 3M                           DF04   DSLR34MC3-   LED                    SLR-342MC (GREEN)

 M801   4858053800   BOX CARTON            SW-4                                DF05   DSLR34MC3-   LED                    SLR-342MC (GREEN)

 M811   4858186500   PAD                   EPS 29Z9                            DF06   DSLR34MC3-   LED                    SLR-342MC (GREEN)

 M821   4858215600   BAG P.E               PE FOAM T0.5X1550X1270              DF07   DSLR34MC3-   LED                    SLR-342MC (GREEN)

ZZ131   58G0000094   COIL DEGAUSSING       DC-2901                             DF08   DSLR34MC3-   LED                    SLR-342MC (GREEN)

ZZ132   48519A4210   CRT GROUND NET        2901H-1015-2P                       DF09   DSLR34MC3-   LED                    SLR-342MC (GREEN)

ZZ140   PTCACAD167   CABINET AS            DTC-29Z9WPT                         DF10   DSLR34MC3-   LED                    SLR-342MC (GREEN)

M191A   4851936200   SPKR PANEL AS         2324501+7820600+7820900             DF13   DSLR34MC3-   LED                    SLR-342MC (GREEN)

M191B   4851936100   BUTTON CTRL           2324800+2324901+2325001             DF14   DSLR34MC3-   LED                    SLR-342MC (GREEN)

M211A   7122401612   SCREW TAPPING         T2S TRS 4X16 MFZN BK                HP01   4859105240   JACK PHONO             LGT1516-0100

M211B   7122401612   SCREW TAPPING         T2S TRS 4X16 MFZN BK                IE01   1DHR38N---   IC PREAMP              DHR38N

M211C   7122401612   SCREW TAPPING         T2S TRS 4X16 MFZN BK                IF01   1SAA1064--   IC                     SAA1064

M211D   7122401612   SCREW TAPPING         T2S TRS 4X16 MFZN BK                JP05   4859105450   JACK PIN BOARD         YSC03P-4120-9S
M211E   7122401612   SCREW TAPPING         T2S TRS 4X16 MFZN BK                JP06   4859105340   JACK S-VHS             YKF51-5359

 M291   4852933100   INDICATOR LED         PMMA                                M231   4852319902   PANEL AV               HIPS BK CORE 'B'

M291A   7128301212   SCREW TAPPING         T2S WAS 3X12 MFZN BK               M231A   7128301212   SCREW TAPPING          T2S WAS 3X12 MFZN BK
 M351   97P4602700   CLAMP CORD            NYLON 66 BLK 5280N                  M491   4854938901   BUTTON                 ABS CLEAR
 M481   4854853701   BUTTON POWER          ABS BK                              M591   4855930021   DECO AV                PVC

M481A   7128301212   SCREW TAPPING         T2S WAS 3X12 MFZN BK               P205A   4856812001   TIE CABLE              NYLON66 DA100
M491A   7122401612   SCREW TAPPING         T2S TRS 4X16 MFZN BK               P602A   4856812001   TIE CABLE              NYLON66 DA100
 M551   4855535801   DECO SENSOR           HIPS BK                            PA204   4850705S12   CONNECTOR              YH025-05+YST025+ULW=500
 M55A   7128301212   SCREW TAPPING         T2S WAS 3X12 MFZN BK               PA205   4850706S18   CONNECTOR              YH025-06+YST025+USW=500
 M561   48556174SD   MARK BRAND            SILVER DIA-CUTTING                 PA602   4850703S19   CONNECTOR              YH025-03+YST025+ULW=300

 M564   4856816300   CLAMP WIRE            NYLON 6 (V0)                        PAF3   4850705S12   CONNECTOR              YH025-05+YST025+ULW=500
M601A   4856016100   SCREW SPECIAL         SWRM                               PAF3A   4856812001   TIE CABLE              NYLON66 DA100
M601B   4856016100   SCREW SPECIAL         SWRM                                PC11   4859236420   CONN WAFER             YAW025-07

 M671   4856716000   SPRING                SWPA PIE0.5                        PC11A   4850707N08   CONNECTOR              YH025-07+YST025+ULW=800
 M672   4856812001   TIE CABLE             NYLON66 DA100                      PC11B   4856812001   TIE CABLE              NYLON66 DA100
 SP01   48A8305300   WOOFER SYSTEM         SS-130A01 10W 8 OHM                PPS1    4850702S11   CONNECTOR              BL102NG+MXH40058-02=600

SP01A   4858313810   SPEAKER               AS525-1-9W 20W 8 OHM           PPS1A       4856812001   TIE CABLE              NYLON66 DA100




                                                                     - 76 -
Loc         Part_Cd            Part_Name                Part_Desc                Loc        Part_Cd        Part_Name                 Part_Desc
SW801    5S40202142   SW POWER PUSH          ME-7 (70063-072)                     I701   1M37270EFS   IC                  M37270EFSP
ZZ200    PTU2JRD167   PCB UNION2 RADIAL AS   DTC-29Z9WPT                          I702   1AT24C16PC   IC                  AT24C16-10PC

 CE01    CEXF1H100V   C ELECTRO              50V RSS 10MF (5X11) TP               I703   PTP2SW4900   HEAT SINK ASS`Y     1PQ09RF11- + 7174300811
 CF01    CEXF1C101A   C ELECTRO              16V RSM 100MF (6.3X7) TP             I703   1PQ09RF11-   IC REGULATOR        PQ09RF11
SWF2     5S50101Z90   SW TACT                SKHV10910A                          I703A   4857024900   HEAT SINK           AL EX

SWF3     5S50101Z90   SW TACT                SKHV10910A                          I703B   7174300811   SCREW TAPPTITE      TT2 RND 3X8 MFZN
SWF4     5S50101Z90   SW TACT                SKHV10910A                           I704   1KA7805---   IC REGULATOR        KA7805
SWF5     5S50101Z90   SW TACT                SKHV10910A                           I708   1KA7808---   IC REGULATOR        KA7808

SWF7     5S50101Z90   SW TACT                SKHV10910A                           L105   58C5580019   COIL CHOKE          TRF-9225 (0.55UH)
SWF8     5S50101Z90   SW TACT                SKHV10910A                           L106   58M38R9S06   COIL DET            TRF-1490 (STICK)
ZZ200    PTU2JAD167   PCB UNION2 AXIAL AS    DTC-29Z9WPT                          L511   58Q0000090   COIL DELAY LINE     G286LAIS-K5367

 A001    4859805060   PCB UNION 2            197X108(197X246/8)                  M361A   7122401412   SCREW TAPPING       T2S TRS 4X14 MFZN BK
 CE02    CBZF1H104Z   C CERA SEMI            50V F 0.1MF Z                       M361B   7128301212   SCREW TAPPING       T2S WAS 3X12 MFZN BK
 CF02    CBZF1H104Z   C CERA SEMI            50V F 0.1MF Z                        M381   4853812800   FRAME MAIN PCB      FR HIPS BK

 DF11    DMTZ10C---   DIODE ZENER            MTZ-10C (TAPPING)                   M381B   7128301212   SCREW TAPPING       T2S WAS 3X12 MFZN BK

 DF12    DMTZ10C---   DIODE ZENER            MTZ-10C (TAPPING)                   M381C   4853529901   HOLDER CORD         HIPS BK

 JF01    85801065GY   WIRE COPPER            AWG22 1/0.65 TIN COATING            M381D   7122401412   SCREW TAPPING       T2S TRS 4X14 MFZN BK

 JF02    85801065GY   WIRE COPPER            AWG22 1/0.65 TIN COATING            M381E   7128301011   SCREW TAPPING       T2S WAS 3X10 MFZN

 JF03    85801065GY   WIRE COPPER            AWG22 1/0.65 TIN COATING             M681   4856818400   CLAMP SUPPORT       NYLON 66

 JF04    85801065GY   WIRE COPPER            AWG22 1/0.65 TIN COATING             M791   4857913303   RUBBER CUSHION      FR RUBBER SPONGE

 JF05    85801065GY   WIRE COPPER            AWG22 1/0.65 TIN COATING             P503   4859267420   CONN WAFER          BMW250-10

 RE14    RD-4Z202J-   R CARBON FILM          1/4 2K OHM J                         P605   4859267120   CONN WAFER          BMW250-07

 RE15    RD-4Z511J-   R CARBON FILM          1/4 510 OHM J                        P701   4859267120   CONN WAFER          BMW250-07

 RE16    RD-4Z511J-   R CARBON FILM          1/4 510 OHM J                        P702   4859267120   CONN WAFER          BMW250-07

 RF01    RD-AZ103J-   R CARBON FILM          1/6 10K OHM J                        P707   4859249620   CONN WAFER          YF254-10

 RF02    RD-AZ332J-   R CARBON FILM          1/6 3.3K OHM J                       P708   4859249920   CONN WAFER          YF254-13

 RF03    RD-AZ472J-   R CARBON FILM          1/6 4.7K OHM J                       P709   4859249620   CONN WAFER          YF254-10

 RF04    RD-AZ472J-   R CARBON FILM          1/6 4.7K OHM J                       PP01   4859281320   CONN WAFER          TAC-L18X-A1
 RF05    RD-AZ332J-   R CARBON FILM          1/6 3.3K OHM J                       PP02   4859281320   CONN WAFER          TAC-L18X-A1

 RF17    RD-AZ101J-   R CARBON FILM          1/6 100 OHM J                        PT11   4859249320   CONN WAFER          YF254-07

 RF18    RD-AZ101J-   R CARBON FILM          1/6 100 OHM J                        PT21   4859249620   CONN WAFER          YF254-10
ZZ290    PTMPMSD167   PCB MAIN MANUAL AS     DTC-29Z9WPT                          R710   RA-85X103J   R ARRAY             5P(4) 1/8 10K OHM J

 C603    CEYF1H222V   C ELECTRO              50V RSS 2200MF (18X35.5)             R717   RA-85X103J   R ARRAY             5P(4) 1/8 10K OHM J

 C721    CN4XB-101M   C ARRAY                5P(4) 100PF M 50V 2.54MM             R727   RA-86X103J   R ARRAY             6P(5) 1/8 10K OHM J
  I501   1TDA8844N2   IC VIDEO               TDA8844/N2                           R749   RA-86X103J   R ARRAY             6P(5) 1/8 10K OHM J

  I504   1KA393----   IC LOGIC               KA393                                SF01   5PK6266K--   FILTER SAW          K6266K

  I505   1TDA9176--   IC LTI                 TDA9176                              SF03   5PK9252M--   FILTER SAW          K9252M
  I507   1AN5862K--   IC                     AN5862K                              U101   4859715930   TUNER VARACTOR      ENV59D15G3

  I601   PTC2SW3335   HEAT SINK ASS`Y        1TDA2616-- + 7128301011              U102   4859715930   TUNER VARACTOR      ENV59D15G3
  I601   1TDA2616--   IC                     TDA2616                             U102A   4859003750   PLUG PHONE AS       PLUG+CABLE
                                                                                                                          1365AWG26=150B
I601A    4857023335   HEAT SINK              AL EX T3.0
                                                                                 U102B   4859003750   PLUG PHONE AS       PLUG+CABLE
I601B    7128301011   SCREW TAPPING          T2S WAS 3X10 MFZN                                                            1365AWG26=150B
  I602   1MSP3410D-   IC AUDIO               MSP3410D                             U103   4850M02510   MODULE RF           ENPE797
  I604   1TDA4445B-   IC                     TDA4445B                             X601   5XE18R432E   CRYSTAL QUARTZ      HC-49/U 18.43200MHZ 30PPM
  I606   1UPC1406HA   IC                     UPC 1406HA                           X701   5XE8R0000E   CRYSTAL QUARTZ      HC-49/U 8.000000MHZ 30PPM
  I608   1KA4558---   IC AMP                 KA4558                              ZZ200   PTMPJ0D167   PCB MAIN (RHU) AS   DTC-29Z9WPT



                                                                        - 77 -
Loc           Part_Cd         Part_Name               Part_Desc                   Loc       Part_Cd         Part_Name            Part_Desc
 C111      CEXF1C102V   C ELECTRO            16V RSS 1000MF (10X20) TP             C511   CMXM2A223J   C MYLAR          100V 0.022MF J TP
C130       CEXF1E471V   C ELECTRO            25V RSS 470MF (10X16) TP             C512    CMXM2A223J   C MYLAR          100V 0.022MF J TP

C133       CEXF1E471V   C ELECTRO            25V RSS 470MF (10X16) TP             C513    CMXM2A223J   C MYLAR          100V 0.022MF J TP
C134       CEXF1C102V   C ELECTRO            16V RSS 1000MF (10X20) TP            C514    CMXM2A104J   C MYLAR          100V 0.1MF J (TP)
C647       CEXF1V102V   C ELECTRO            35V RSS 1000MF (13X25) TP            C515    CMXM2A104J   C MYLAR          100V 0.1MF J (TP)

C648       CEXF1V102V   C ELECTRO            35V RSS 1000MF (13X25) TP            C518    CMXB1H332J   C MYLAR          50V 3300PF J (TP)
C675       CEXF1C471V   C ELECTRO            16V RSS 470MF (10X12.5)TP            C519    CMXM2A104J   C MYLAR          100V 0.1MF J (TP)
C701       CEXF1C102V   C ELECTRO            16V RSS 1000MF (10X20) TP            C520    CEXF1E221V   C ELECTRO        25V RSS 220MF (8X11.5) TP

C715       CEXF1C471V   C ELECTRO            16V RSS 470MF (10X12.5)TP            C521    CMXM2A223J   C MYLAR          100V 0.022MF J TP
C763       CEXF1C102V   C ELECTRO            16V RSS 1000MF (10X20) TP            C522    CEXF1H109V   C ELECTRO        50V RSS 1MF (5X11) TP
C764       CEXF1C102V   C ELECTRO            16V RSS 1000MF (10X20) TP            C523    CMXM2A103J   C MYLAR          100V 0.01MF J (TP)

C767       CEXF1C102V   C ELECTRO            16V RSS 1000MF (10X20) TP            C524    CEXF1H109V   C ELECTRO        50V RSS 1MF (5X11) TP
C769       CEXF1C102V   C ELECTRO            16V RSS 1000MF (10X20) TP            C525    CMXB1H472J   C MYLAR          50V EU 4700PF J (TP)
C771       CEXF1C102V   C ELECTRO            16V RSS 1000MF (10X20) TP            C526    CCXB1H102K   C CERA           50V B 1000PF K (TAPPING)

C772       CEXF1C102V   C ELECTRO            16V RSS 1000MF (10X20) TP            C527    CCXB1H102K   C CERA           50V B 1000PF K (TAPPING)

ZZ200      PTMPJBD167   PCB MAIN M-10 AS     DTC-29Z9WPT                          C530    CMXL2E104K   C MYLAR          250V MEU 0.1MF K

      10   2TM14006LB   TAPE MASKING         3M #232 6.0X2000M                    C531    CEXF1H229V   C ELECTRO        50V RSS 2.2MF (5X11) TP

 P101      485923162S   CONN WAFER           YW025-03 (STICK)                     C532    CMXM2A223J   C MYLAR          100V 0.022MF J TP

 P102      485923162S   CONN WAFER           YW025-03 (STICK)                     C533    CMXM2A104J   C MYLAR          100V 0.1MF J (TP)

 P501      485923192S   CONN WAFER           YW025-06 (STICK)                     C542    CEXF1E101V   C ELECTRO        25V RSS 100MF (6.3X11) TP

 P502      485923162S   CONN WAFER           YW025-03 (STICK)                     C551    CMXM2A104J   C MYLAR          100V 0.1MF J (TP)

 P601      485923172S   CONN WAFER           YW025-04 (STICK)                     C553    CMXM2A104J   C MYLAR          100V 0.1MF J (TP)

 P602      485923162S   CONN WAFER           YW025-03 (STICK)                     C554    CMXM2A104J   C MYLAR          100V 0.1MF J (TP)

 P603      485923162S   CONN WAFER           YW025-03 (STICK)                     C555    CMXM2A104J   C MYLAR          100V 0.1MF J (TP)

 P604      485923162S   CONN WAFER           YW025-03 (STICK)                     C558    CMXM2A104J   C MYLAR          100V 0.1MF J (TP)

 P703      485923182S   CONN WAFER           YW025-05 (STICK)                     C560    CMXM2A104J   C MYLAR          100V 0.1MF J (TP)

 P712      485923202S   CONN WAFER           YW025-07 (STICK)                     C561    CEXF1C101A   C ELECTRO        16V RSM 100MF (6.3X7) TP

R763       RS02Z270J-   R M-OXIDE FILM       2W 27 OHM J (TAPPING)                C562    CCXB2H221K   C CERA           500V B 220PF K (TAPPING)
R764       RS02Z150JS   R M-OXIDE FILM       2W 15 OHM J SMALL                    C563    CBXF1H104Z   C CERA SEMI      50V F 0.1MF Z (TAPPING)

ZZ200      PTMPJRD167   PCB MAIN RADIAL AS   DTC-29Z9WPT                          C571    CEXF1E470V   C ELECTRO        25V RSS 47MF (5X11) TP

C132       CEXF1H479V   C ELECTRO            50V RSS 4.7MF (5X11) TP              C572    CEXF1E470V   C ELECTRO        25V RSS 47MF (5X11) TP
C136       CEXF1H470V   C ELECTRO            50V RSS 47MF (6.3X11) TP             C573    CEXF1E101V   C ELECTRO        25V RSS 100MF (6.3X11) TP

C138       CEXF1H479V   C ELECTRO            50V RSS 4.7MF (5X11) TP              C575    CEXF1E470V   C ELECTRO        25V RSS 47MF (5X11) TP

C142       CEXF1H470V   C ELECTRO            50V RSS 47MF (6.3X11) TP             C588    CEXF1E470V   C ELECTRO        25V RSS 47MF (5X11) TP
C162       CEXF1H100V   C ELECTRO            50V RSS 10MF (5X11) TP               C590    CMXM2A102J   C MYLAR          100V 1000PF J (TP)

C163       CEXF1H479V   C ELECTRO            50V RSS 4.7MF (5X11) TP              C591    CEXF1H470V   C ELECTRO        50V RSS 47MF (6.3X11) TP

C164       CXCH1H680J   C CERA               50V CH 68PF J (TAPPING)              C592    CEXF1E101V   C ELECTRO        25V RSS 100MF (6.3X11) TP
C165       CEXF1E101V   C ELECTRO            25V RSS 100MF (6.3X11) TP            C595    CMXM2A473J   C MYLAR          100V 0.047MF J (TP)

C171       CEXF1E101V   C ELECTRO            25V RSS 100MF (6.3X11) TP            C596    CMXM2A104J   C MYLAR          100V 0.1MF J (TP)
C502       CMXM2A473J   C MYLAR              100V 0.047MF J (TP)                  C601    CEXF1H229V   C ELECTRO        50V RSS 2.2MF (5X11) TP
C503       CEXF1E101V   C ELECTRO            25V RSS 100MF (6.3X11) TP            C602    CEXF1E101V   C ELECTRO        25V RSS 100MF (6.3X11) TP

C504       CEXF1H229V   C ELECTRO            50V RSS 2.2MF (5X11) TP              C604    CMXM2A104J   C MYLAR          100V 0.1MF J (TP)
C506       CEXF1E221V   C ELECTRO            25V RSS 220MF (8X11.5) TP            C605    CEXF1H229V   C ELECTRO        50V RSS 2.2MF (5X11) TP
C508       CMXM2A473J   C MYLAR              100V 0.047MF J (TP)                  C606    CMXM2A682J   C MYLAR          100V 6800PF J (TP)

C509       CMXB1H224J   C MYLAR              50V EU 0.22MF J (TP)                 C609    CEXF1H100V   C ELECTRO        50V RSS 10MF (5X11) TP
C510       CMXM2A473J   C MYLAR              100V 0.047MF J (TP)                  C614    CEXF1H100V   C ELECTRO        50V RSS 10MF (5X11) TP




                                                                         - 78 -
Loc      Part_Cd         Part_Name            Part_Desc                   Loc           Part_Cd        Part_Name                Part_Desc
C615   CEXF1E101V   C ELECTRO        25V RSS 100MF (6.3X11) TP            D131       1UPC574J--   IC                  UPC574J
C616   CMXM2A104J   C MYLAR          100V 0.1MF J (TP)                    D132       1UPC574J--   IC                  UPC574J

C617   CEXF1H100V   C ELECTRO        50V RSS 10MF (5X11) TP                I706      1K1A7042AP   IC REGULATOR        KIA7042AP
C618   CEXF1H339V   C ELECTRO        50V RSS 3.3MF (5X11) TP               L705      5CPX220J--   COIL PEAKING        22UH J (RADIAL)
C619   CMXM2A104J   C MYLAR          100V 0.1MF J (TP)                    Q102       TKTC3197--   TR                  KTC3197 (TP)

C622   CEXF1H479V   C ELECTRO        50V RSS 4.7MF (5X11) TP              Q103       TKTC3198Y-   TR                  KTC3198Y
C623   CEXF1H479V   C ELECTRO        50V RSS 4.7MF (5X11) TP              Q501       TKTC3198Y-   TR                  KTC3198Y
C624   CMXM2A104J   C MYLAR          100V 0.1MF J (TP)                    Q502       TKTC3198Y-   TR                  KTC3198Y

C625   CMXM2A104J   C MYLAR          100V 0.1MF J (TP)                    Q503       TKTA1266Y-   TR                  KTA1266Y (TP)
C626   CMXM2A104J   C MYLAR          100V 0.1MF J (TP)                    Q504       TKTA1266Y-   TR                  KTA1266Y (TP)
C627   CEXF1H100V   C ELECTRO        50V RSS 10MF (5X11) TP               Q505       TKTA1266Y-   TR                  KTA1266Y (TP)

C630   CXCH1H509D   C CERA           50V CH 5PF D (TAPPING)               Q571       TKTC3198Y-   TR                  KTC3198Y
C631   CXCH1H509D   C CERA           50V CH 5PF D (TAPPING)               Q573       TKTC3198Y-   TR                  KTC3198Y
C633   CEXF1E101V   C ELECTRO        25V RSS 100MF (6.3X11) TP            Q575       TKTC3198Y-   TR                  KTC3198Y

C643   CCXF1H103Z   C CERA           50V F 0.01MF Z (TAPPING)             Q576       TKTA1266Y-   TR                  KTA1266Y (TP)

C644   CEXF1E101V   C ELECTRO        25V RSS 100MF (6.3X11) TP            Q577       TKTC3198Y-   TR                  KTC3198Y

C645   CEXF1H479V   C ELECTRO        50V RSS 4.7MF (5X11) TP              Q578       TKTC3198Y-   TR                  KTC3198Y

C649   CMXB1H224J   C MYLAR          50V EU 0.22MF J (TP)                 Q579       TKTC3198Y-   TR                  KTC3198Y

C650   CEXF1H470V   C ELECTRO        50V RSS 47MF (6.3X11) TP             Q580       TKTC3198Y-   TR                  KTC3198Y

C652   CMXB1H224J   C MYLAR          50V EU 0.22MF J (TP)                 Q590       TKTC3198Y-   TR                  KTC3198Y

C653   CMXM2A682J   C MYLAR          100V 6800PF J (TP)                   Q591       TKTC3198Y-   TR                  KTC3198Y

C660   CEXF1E101V   C ELECTRO        25V RSS 100MF (6.3X11) TP            Q592       TKTC3198Y-   TR                  KTC3198Y

C661   CMXM2A103J   C MYLAR          100V 0.01MF J (TP)                   Q596       TKTA1266Y-   TR                  KTA1266Y (TP)

C662   CMXM2A103J   C MYLAR          100V 0.01MF J (TP)                   Q604       TKTC3198Y-   TR                  KTC3198Y

C665   CEXF1H479V   C ELECTRO        50V RSS 4.7MF (5X11) TP              Q605       TKTC3198Y-   TR                  KTC3198Y

C666   CEXF1H479V   C ELECTRO        50V RSS 4.7MF (5X11) TP              Q607       TKTC3198Y-   TR                  KTC3198Y

C667   CEXF1E470V   C ELECTRO        25V RSS 47MF (5X11) TP               Q608       TKTC3198Y-   TR                  KTC3198Y

C668   CEXF1E470V   C ELECTRO        25V RSS 47MF (5X11) TP               Q701       TKTC3198Y-   TR                  KTC3198Y
C676   CEXF1E101V   C ELECTRO        25V RSS 100MF (6.3X11) TP            Q702       TKTC3198Y-   TR                  KTC3198Y

C677   CMXM2A104J   C MYLAR          100V 0.1MF J (TP)                    Q771       TKTC3198Y-   TR                  KTC3198Y

C680   CEXF1E101V   C ELECTRO        25V RSS 100MF (6.3X11) TP            Q772       TKTC3198Y-   TR                  KTC3198Y
C681   CEXF1H479V   C ELECTRO        50V RSS 4.7MF (5X11) TP              Q773       TKTC3198Y-   TR                  KTC3198Y

C682   CEXF1H100V   C ELECTRO        50V RSS 10MF (5X11) TP               R569       RV5426501P   R SEMI FIXED        EVN-DJAA03 500 OHM

C683   CEXF1H100V   C ELECTRO        50V RSS 10MF (5X11) TP               R579       RV5426102P   R SEMI FIXED        EVN-DJAA03B13 1K OHM B
C684   CEXF1H479V   C ELECTRO        50V RSS 4.7MF (5X11) TP               X501      5XEX4R436C   CRYSTAL QUARTZ      HC-49U 4.433619M 20PP TA

C685   CEXF1H100V   C ELECTRO        50V RSS 10MF (5X11) TP                X502      5XEX3R579C   CRYSTAL QUARTZ      HC-49U 3.579545M (TP)

C686   CEXF1H479V   C ELECTRO        50V RSS 4.7MF (5X11) TP              ZZ200      PTMPJAD167   PCB MAIN AXIAL AS   DTC-29Z9WPT
C688   CEXF1H229V   C ELECTRO        50V RSS 2.2MF (5X11) TP                    10   2TM14006LB   TAPE MASKING        3M #232 6.0X2000M

C703   CEXF1H229V   C ELECTRO        50V RSS 2.2MF (5X11) TP               A001      4859803296   PCB MAIN            246X330
C710   CEXF1H479V   C ELECTRO        50V RSS 4.7MF (5X11) TP              C120       CCZF1E103Z   C CERA              25V F 0.01MF Z (AXIAL)
C716   CXCH1H120J   C CERA           50V CH 12PF J (TAPPING)              C121       CCZF1E103Z   C CERA              25V F 0.01MF Z (AXIAL)

C717   CXCH1H240J   C CERA           50V CH 24PF J (TAPPING)              C122       CCZF1E103Z   C CERA              25V F 0.01MF Z (AXIAL)
C731   CEXF1H100V   C ELECTRO        50V RSS 10MF (5X11) TP               C124       85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING
C768   CBXF1H104Z   C CERA SEMI      50V F 0.1MF Z (TAPPING)              C161       CCZF1E103Z   C CERA              25V F 0.01MF Z (AXIAL)

C770   CBXF1H104Z   C CERA SEMI      50V F 0.1MF Z (TAPPING)              C166       CCZF1E103Z   C CERA              25V F 0.01MF Z (AXIAL)
C780   CBXF1H104Z   C CERA SEMI      50V F 0.1MF Z (TAPPING)              C167       CZSL1H470J   C CERA              50V SL 47PF J (AXIAL)




                                                                 - 79 -
Loc        Part_Cd           Part_Name             Part_Desc                 Loc        Part_Cd           Part_Name              Part_Desc
C168    CZSL1H470J   C CERA              50V SL 47PF J (AXIAL)               D503    D1N4003---   DIODE               1N4003 (TAPPING)
C169    CCZF1E103Z   C CERA              25V F 0.01MF Z (AXIAL)              D504    DMTZ5R6B--   DIODE ZENER         MTZ 5.6-B (TAPPING)

C170    CZSL1H220J   C CERA              50V SL 22PF J (AXIAL)               D505    DUZ9R1BM--   DIODE ZENER         UZ-9.1BM 9.1V
C174    CCZF1E103Z   C CERA              25V F 0.01MF Z (AXIAL)              D506    D1N4148---   DIODE               1N4148 (TAPPING)
C505    CCZF1E223Z   C CERA              25V F 0.022MF Z (AXIAL)             D507    DMTZ5R6B--   DIODE ZENER         MTZ 5.6-B (TAPPING)

C507    CCZF1E223Z   C CERA              25V F 0.022MF Z (AXIAL)             D509    DUZ9R1BM--   DIODE ZENER         UZ-9.1BM 9.1V
C516    CZCH1H130J   C CERA              50V CH 13PF J                       D601    DMTZ5R6B--   DIODE ZENER         MTZ 5.6-B (TAPPING)
C517    CZCH1H150J   C CERA              50V CH 15PF J (AXIAL)               D602    DMTZ5R6B--   DIODE ZENER         MTZ 5.6-B (TAPPING)

C552    CBZF1H104Z   C CERA SEMI         50V F 0.1MF Z                       D603    DUZ5R1BM--   DIODE ZENER         UZ-5.1BM
C556    CCZF1E103Z   C CERA              25V F 0.01MF Z (AXIAL)              D604    D1N4148---   DIODE               1N4148 (TAPPING)
C557    CBZF1H104Z   C CERA SEMI         50V F 0.1MF Z                       D605    D1N4148---   DIODE               1N4148 (TAPPING)

C559    CBZR1C152M   C CERA              16V Y5R 1500PF M (AXIAL)            D606    D1N4148---   DIODE               1N4148 (TAPPING)
C574    CBZF1H104Z   C CERA SEMI         50V F 0.1MF Z                       D607    DMTZ10C---   DIODE ZENER         MTZ-10C (TAPPING)
C589    CBZF1H104Z   C CERA SEMI         50V F 0.1MF Z                       D670    D1N4148---   DIODE               1N4148 (TAPPING)

C594    CCZB1H561K   C CERA              50V B 560PF K                       D671    D1N4148---   DIODE               1N4148 (TAPPING)

C610    CCZB1H391K   C CERA              50V B 390PF K (AXIAL)               D672    D1N4148---   DIODE               1N4148 (TAPPING)

 C611   CCZB1H102K   C CERA              50V B 1000PF K (AXIAL)              D701    DMTZ5R6B--   DIODE ZENER         MTZ 5.6-B (TAPPING)

C620    CCZB1H471K   C CERA              50V B 470PF K (AXIAL)               D703    D1N4148---   DIODE               1N4148 (TAPPING)

C621    CCZB1H471K   C CERA              50V B 470PF K (AXIAL)               D705    DUZ6R2BM--   DIODE ZENER         UZ-6.2BM 6.2V

C629    CCZF1E103Z   C CERA              25V F 0.01MF Z (AXIAL)              D706    DUZ6R2BM--   DIODE ZENER         UZ-6.2BM 6.2V

C632    CBZF1H104Z   C CERA SEMI         50V F 0.1MF Z                       D707    DUZ6R2BM--   DIODE ZENER         UZ-6.2BM 6.2V

C641    CCZB1H102K   C CERA              50V B 1000PF K (AXIAL)              D710    DMTZ5R6B--   DIODE ZENER         MTZ 5.6-B (TAPPING)

C642    CCZB1H102K   C CERA              50V B 1000PF K (AXIAL)               D711   DMTZ5R6B--   DIODE ZENER         MTZ 5.6-B (TAPPING)

C663    CCZB1H101K   C CERA              50V B 100PF K (AXIAL)               D719    D1N4148---   DIODE               1N4148 (TAPPING)

C664    CCZB1H101K   C CERA              50V B 100PF K (AXIAL)               D721    DMTZ5R6B--   DIODE ZENER         MTZ 5.6-B (TAPPING)

C672    CBZF1H104Z   C CERA SEMI         50V F 0.1MF Z                       D798    DUZ6R2BM--   DIODE ZENER         UZ-6.2BM 6.2V

C702    CBZF1H104Z   C CERA SEMI         50V F 0.1MF Z                       D799    DUZ6R2BM--   DIODE ZENER         UZ-6.2BM 6.2V

C705    CCZB1H102K   C CERA              50V B 1000PF K (AXIAL)               J001   85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING
C706    CZCH1H120J   C CERA              50V CH 12PF J (AXIAL)                J002   85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING

C707    CZCH1H120J   C CERA              50V CH 12PF J (AXIAL)                J004   85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING

 C711   CCZB1H102K   C CERA              50V B 1000PF K (AXIAL)         J006 ~J014   85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING
C714    CBZF1H104Z   C CERA SEMI         50V F 0.1MF Z                  J016~J021    85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING

C720    CCZB1H101K   C CERA              50V B 100PF K (AXIAL)          J024~J065    85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING
C732    CBZF1H104Z   C CERA SEMI         50V F 0.1MF Z                        J067   85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING
C740    CCZF1E103Z   C CERA              25V F 0.01MF Z (AXIAL)               J069   85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING

C762    CBZF1H104Z   C CERA SEMI         50V F 0.1MF Z                  J071~J095    85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING
C766    CBZF1H104Z   C CERA SEMI         50V F 0.1MF Z                        J098   85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING
C773    CBZF1H104Z   C CERA SEMI         50V F 0.1MF Z                        J100   85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING

C799    CCZF1E103Z   C CERA              25V F 0.01MF Z (AXIAL)         J102~J109    85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING
D102    D1N4148---   DIODE               1N4148 (TAPPING)               J112~J124    85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING
D103    D1SS85TA--   DIODE               1SS85TA                        J127~J137    85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING

D104    D1N4003---   DIODE               1N4003 (TAPPING)               J139~J170    85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING
D133    D1N4148---   DIODE               1N4148 (TAPPING)                     J172   85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING
D134    D1N4148---   DIODE               1N4148 (TAPPING)                     J173   85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING

D501    DUZ6R2BM--   DIODE ZENER         UZ-6.2BM 6.2V                        J174   85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING
D502    DUZ8R2BM--   DIODE ZENER         UZ-8.2B (8.2V)                       J175   85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING




                                                                    - 80 -
  Loc          Part_Cd        Part_Name            Part_Desc                  Loc        Part_Cd        Part_Name            Part_Desc
    J177    85801065GY   WIRE COPPER      AWG22 1/0.65 TIN COATING            R182    RD-AZ271J-   R CARBON FILM    1/6 270 OHM J
    J178    85801065GY   WIRE COPPER      AWG22 1/0.65 TIN COATING            R183    RD-AZ271J-   R CARBON FILM    1/6 270 OHM J

    J180    85801065GY   WIRE COPPER      AWG22 1/0.65 TIN COATING            R185    RD-AZ101J-   R CARBON FILM    1/6 100 OHM J
    J181    85801065GY   WIRE COPPER      AWG22 1/0.65 TIN COATING            R195    RD-AZ102J-   R CARBON FILM    1/6 1K OHM J
    J182    85801065GY   WIRE COPPER      AWG22 1/0.65 TIN COATING            R196    RD-AZ102J-   R CARBON FILM    1/6 1K OHM J

    J185    85801065GY   WIRE COPPER      AWG22 1/0.65 TIN COATING            R197    RD-4Z229J-   R CARBON FILM    1/4 2.2 OHM J
    J186    85801065GY   WIRE COPPER      AWG22 1/0.65 TIN COATING            R500    RD-AZ472J-   R CARBON FILM    1/6 4.7K OHM J
    J187    85801065GY   WIRE COPPER      AWG22 1/0.65 TIN COATING            R501    RD-AZ821J-   R CARBON FILM    1/6 820 OHM J

    J188    85801065GY   WIRE COPPER      AWG22 1/0.65 TIN COATING            R502    RD-AZ102J-   R CARBON FILM    1/6 1K OHM J

J190~J229   85801065GY   WIRE COPPER      AWG22 1/0.65 TIN COATING            R503    RD-AZ101J-   R CARBON FILM    1/6 100 OHM J

J231~J273   85801065GY   WIRE COPPER      AWG22 1/0.65 TIN COATING            R504    RD-AZ101J-   R CARBON FILM    1/6 100 OHM J

J276~J286   85801065GY   WIRE COPPER      AWG22 1/0.65 TIN COATING            R505    RD-4Z479J-   R CARBON FILM    1/4 4.7 OHM J

J288~J298   85801065GY   WIRE COPPER      AWG22 1/0.65 TIN COATING            R506    RD-AZ102J-   R CARBON FILM    1/6 1K OHM J

    L107    5CPZ150K02   COIL PEAKING     15UH K (AXIAL 3.5MM)                R507    RD-AZ101J-   R CARBON FILM    1/6 100 OHM J

    L502    5CPZ569K02   COIL PEAKING     5.6UH K (AXIAL 3.5MM)               R508    RD-AZ101J-   R CARBON FILM    1/6 100 OHM J

    L503    5CPZ569K02   COIL PEAKING     5.6UH K (AXIAL 3.5MM)               R510    RD-AZ101J-   R CARBON FILM    1/6 100 OHM J

    L504    5CPZ569K02   COIL PEAKING     5.6UH K (AXIAL 3.5MM)                R511   RD-AZ101J-   R CARBON FILM    1/6 100 OHM J

    L590    5CPZ569K02   COIL PEAKING     5.6UH K (AXIAL 3.5MM)               R512    RD-AZ101J-   R CARBON FILM    1/6 100 OHM J

    L601    5CPZ479K02   COIL PEAKING     4.7UH K (AXIAL 3.5MM)               R513    RD-AZ103J-   R CARBON FILM    1/6 10K OHM J

    L602    5CPZ479K02   COIL PEAKING     4.7UH K (AXIAL 3.5MM)               R514    RD-AZ102J-   R CARBON FILM    1/6 1K OHM J

    L608    5CPZ479K02   COIL PEAKING     4.7UH K (AXIAL 3.5MM)               R515    RD-AZ102J-   R CARBON FILM    1/6 1K OHM J

    L701    5CPZ569K02   COIL PEAKING     5.6UH K (AXIAL 3.5MM)               R516    RD-AZ102J-   R CARBON FILM    1/6 1K OHM J

    L702    5CPZ569K02   COIL PEAKING     5.6UH K (AXIAL 3.5MM)               R517    RD-AZ104J-   R CARBON FILM    1/6 100K OHM J

   R104     RD-AZ910J-   R CARBON FILM    1/6 91 OHM J                        R518    RD-AZ102J-   R CARBON FILM    1/6 1K OHM J

   R106     RD-AZ391J-   R CARBON FILM    1/6 390 OHM J                       R520    RD-AZ332J-   R CARBON FILM    1/6 3.3K OHM J

   R121     RD-AZ221J-   R CARBON FILM    1/6 220 OHM J                       R521    RD-AZ101J-   R CARBON FILM    1/6 100 OHM J

   R123     RD-AZ562J-   R CARBON FILM    1/6 5.6K OHM J                      R522    RD-AZ101J-   R CARBON FILM    1/6 100 OHM J

   R124     RD-AZ472J-   R CARBON FILM    1/6 4.7K OHM J                      R524    RD-AZ153J-   R CARBON FILM    1/6 15K OHM J

   R125     RD-AZ122J-   R CARBON FILM    1/6 1.2K OHM J                      R525    RN-AZ3902F   R METAL FILM     1/6 39K OHM F

   R127     RD-AZ122J-   R CARBON FILM    1/6 1.2K OHM J                      R526    RD-AZ273J-   R CARBON FILM    1/6 27K OHM J

   R128     RD-AZ270J-   R CARBON FILM    1/6 27 OHM J                        R527    RD-AZ101J-   R CARBON FILM    1/6 100 OHM J

   R129     RD-AZ563J-   R CARBON FILM    1/6 56K OHM J                       R528    RD-AZ101J-   R CARBON FILM    1/6 100 OHM J

   R130     RD-AZ562J-   R CARBON FILM    1/6 5.6K OHM J                      R529    RD-AZ101J-   R CARBON FILM    1/6 100 OHM J

   R138     RD-AZ103J-   R CARBON FILM    1/6 10K OHM J                       R530    RD-AZ562J-   R CARBON FILM    1/6 5.6K OHM J

   R157     RD-AZ123J-   R CARBON FILM    1/6 12K OHM J                       R531    RD-AZ102J-   R CARBON FILM    1/6 1K OHM J

   R158     RD-AZ822J-   R CARBON FILM    1/6 8.2K OHM J                      R532    RD-AZ101J-   R CARBON FILM    1/6 100 OHM J

   R165     RD-AZ102J-   R CARBON FILM    1/6 1K OHM J                        R533    RD-AZ101J-   R CARBON FILM    1/6 100 OHM J

   R166     RD-AZ102J-   R CARBON FILM    1/6 1K OHM J                        R535    RD-AZ561J-   R CARBON FILM    1/6 560 OHM J

   R168     RD-AZ123J-   R CARBON FILM    1/6 12K OHM J                       R536    RD-AZ561J-   R CARBON FILM    1/6 560 OHM J

   R169     RD-AZ822J-   R CARBON FILM    1/6 8.2K OHM J                      R537    RD-AZ561J-   R CARBON FILM    1/6 560 OHM J

   R176     RD-AZ472J-   R CARBON FILM    1/6 4.7K OHM J                      R538    RD-AZ101J-   R CARBON FILM    1/6 100 OHM J

   R177     RD-AZ472J-   R CARBON FILM    1/6 4.7K OHM J                      R539    RD-AZ101J-   R CARBON FILM    1/6 100 OHM J

   R178     RD-AZ472J-   R CARBON FILM    1/6 4.7K OHM J                      R540    RD-AZ101J-   R CARBON FILM    1/6 100 OHM J

   R179     RD-AZ102J-   R CARBON FILM    1/6 1K OHM J                        R541    RD-AZ101J-   R CARBON FILM    1/6 100 OHM J

   R180     RD-AZ820J-   R CARBON FILM    1/6 82 OHM J                        R542    RD-AZ101J-   R CARBON FILM    1/6 100 OHM J

   R181     RD-AZ271J-   R CARBON FILM    1/6 270 OHM J                       R544    RD-AZ333J-   R CARBON FILM    1/6 33K OHM J




                                                                     - 81 -
Loc       Part_Cd        Part_Name            Part_Desc            Loc        Part_Cd        Part_Name            Part_Desc
R545   RD-4Z472J-   R CARBON FILM    1/4 4.7K OHM J                R597    RD-AZ103J-   R CARBON FILM    1/6 10K OHM J
R546   RD-AZ223J-   R CARBON FILM    1/6 22K OHM J                 R598    RD-AZ101J-   R CARBON FILM    1/6 100 OHM J

R547   RD-AZ223J-   R CARBON FILM    1/6 22K OHM J                 R599    RD-4Z479J-   R CARBON FILM    1/4 4.7 OHM J
R548   RD-AZ913J-   R CARBON FILM    1/6 91K OHM J                 R601    RD-AZ472J-   R CARBON FILM    1/6 4.7K OHM J
R549   RD-AZ203J-   R CARBON FILM    1/6 20K OHM J                 R602    RD-AZ101J-   R CARBON FILM    1/6 100 OHM J

R550   RD-AZ101J-   R CARBON FILM    1/6 100 OHM J                 R604    RD-AZ472J-   R CARBON FILM    1/6 4.7K OHM J
R551   RD-AZ101J-   R CARBON FILM    1/6 100 OHM J                 R605    RD-AZ101J-   R CARBON FILM    1/6 100 OHM J
R552   RD-AZ222J-   R CARBON FILM    1/6 2.2K OHM J                R608    RD-4Z829J-   R CARBON FILM    1/4 8.2 OHM J

R553   RD-AZ202J-   R CARBON FILM    1/6 2K OHM J                  R609    RD-4Z829J-   R CARBON FILM    1/4 8.2 OHM J
R554   RD-AZ101J-   R CARBON FILM    1/6 100 OHM J                 R610    RD-AZ102J-   R CARBON FILM    1/6 1K OHM J
R555   RD-AZ202J-   R CARBON FILM    1/6 2K OHM J                   R611   RD-AZ102J-   R CARBON FILM    1/6 1K OHM J

R556   RD-AZ102J-   R CARBON FILM    1/6 1K OHM J                  R625    RD-AZ223J-   R CARBON FILM    1/6 22K OHM J
R557   RD-AZ101J-   R CARBON FILM    1/6 100 OHM J                 R627    RD-AZ103J-   R CARBON FILM    1/6 10K OHM J
R558   RD-AZ302J-   R CARBON FILM    1/6 3K OHM J                  R628    RD-4Z471J-   R CARBON FILM    1/4 470 OHM J

R561   RD-AZ433J-   R CARBON FILM    1/6 43K OHM J                 R629    RD-AZ101J-   R CARBON FILM    1/6 100 OHM J

R562   RD-AZ433J-   R CARBON FILM    1/6 43K OHM J                 R630    RD-4Z471J-   R CARBON FILM    1/4 470 OHM J

R563   RD-AZ101J-   R CARBON FILM    1/6 100 OHM J                 R642    RD-AZ101J-   R CARBON FILM    1/6 100 OHM J

R564   RD-AZ223J-   R CARBON FILM    1/6 22K OHM J                 R643    RD-AZ101J-   R CARBON FILM    1/6 100 OHM J

R565   RD-AZ472J-   R CARBON FILM    1/6 4.7K OHM J                R644    RD-4Z479J-   R CARBON FILM    1/4 4.7 OHM J

R566   RD-AZ474J-   R CARBON FILM    1/6 470K OHM J                R650    RD-2Z473J-   R CARBON FILM    1/2 47K OHM J

R567   RD-AZ101J-   R CARBON FILM    1/6 100 OHM J                 R651    RD-2Z273J-   R CARBON FILM    1/2 27K OHM J

R568   RD-AZ151J-   R CARBON FILM    1/6 150 OHM J                 R661    RD-AZ473J-   R CARBON FILM    1/6 47K OHM J

R570   RD-AZ102J-   R CARBON FILM    1/6 1K OHM J                  R662    RD-AZ473J-   R CARBON FILM    1/6 47K OHM J

R572   RD-AZ222J-   R CARBON FILM    1/6 2.2K OHM J                R663    RD-AZ473J-   R CARBON FILM    1/6 47K OHM J

R573   RD-AZ102J-   R CARBON FILM    1/6 1K OHM J                  R664    RD-AZ473J-   R CARBON FILM    1/6 47K OHM J

R574   RD-AZ512J-   R CARBON FILM    1/6 5.1K OHM J                R665    RD-AZ472J-   R CARBON FILM    1/6 4.7K OHM J

R575   RD-AZ102J-   R CARBON FILM    1/6 1K OHM J                  R666    RD-AZ223J-   R CARBON FILM    1/6 22K OHM J

R576   RD-4Z479J-   R CARBON FILM    1/4 4.7 OHM J                 R667    RD-AZ221J-   R CARBON FILM    1/6 220 OHM J
R577   RD-AZ102J-   R CARBON FILM    1/6 1K OHM J                  R668    RD-AZ104J-   R CARBON FILM    1/6 100K OHM J

R578   RD-AZ271J-   R CARBON FILM    1/6 270 OHM J                 R669    RD-AZ221J-   R CARBON FILM    1/6 220 OHM J

R581   RD-AZ101J-   R CARBON FILM    1/6 100 OHM J                 R670    RD-AZ104J-   R CARBON FILM    1/6 100K OHM J
R582   RD-AZ105J-   R CARBON FILM    1/6 1M OHM J                  R671    RD-AZ472J-   R CARBON FILM    1/6 4.7K OHM J

R583   RD-AZ102J-   R CARBON FILM    1/6 1K OHM J                  R672    RD-AZ223J-   R CARBON FILM    1/6 22K OHM J

R584   RD-AZ472J-   R CARBON FILM    1/6 4.7K OHM J                R677    RD-AZ101J-   R CARBON FILM    1/6 100 OHM J
R585   RD-AZ272J-   R CARBON FILM    1/6 2.7K OHM J                R678    RD-AZ101J-   R CARBON FILM    1/6 100 OHM J

R586   RD-AZ330J-   R CARBON FILM    1/6 33 OHM J                  R681    RD-AZ392J-   R CARBON FILM    1/6 3.9K OHM J

R587   RD-AZ102J-   R CARBON FILM    1/6 1K OHM J                  R682    RD-AZ333J-   R CARBON FILM    1/6 33K OHM J
R588   RD-AZ333J-   R CARBON FILM    1/6 33K OHM J                 R683    RD-AZ103J-   R CARBON FILM    1/6 10K OHM J

R589   RD-AZ122J-   R CARBON FILM    1/6 1.2K OHM J                R684    RD-AZ103J-   R CARBON FILM    1/6 10K OHM J
R590   RD-AZ103J-   R CARBON FILM    1/6 10K OHM J                 R685    RD-AZ472J-   R CARBON FILM    1/6 4.7K OHM J
R591   RD-AZ103J-   R CARBON FILM    1/6 10K OHM J                 R686    RD-AZ151J-   R CARBON FILM    1/6 150 OHM J

R592   RD-AZ102J-   R CARBON FILM    1/6 1K OHM J                  R699    RD-AZ101J-   R CARBON FILM    1/6 100 OHM J
R593   RD-AZ101J-   R CARBON FILM    1/6 100 OHM J                 R701    RD-AZ102J-   R CARBON FILM    1/6 1K OHM J
R594   RD-AZ224J-   R CARBON FILM    1/6 220K OHM J                R702    RD-AZ102J-   R CARBON FILM    1/6 1K OHM J

R595   RD-AZ101J-   R CARBON FILM    1/6 100 OHM J                 R703    RD-AZ103J-   R CARBON FILM    1/6 10K OHM J
R596   RD-AZ103J-   R CARBON FILM    1/6 10K OHM J                 R704    RD-AZ102J-   R CARBON FILM    1/6 1K OHM J




                                                          - 82 -
Loc        Part_Cd        Part_Name               Part_Desc                  Loc           Part_Cd        Part_Name                 Part_Desc
R705    RD-AZ102J-   R CARBON FILM       1/6 1K OHM J                              20   2193011101   SOLDER WIRE         RS 60-1.2 1.6A
R707    85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING                  30   2291050615   FLUX SOLDER         DF-2012U

R708    RD-AZ102J-   R CARBON FILM       1/6 1K OHM J                              40   2291050301   FLUX SOLVENT        IM-1000
 R711   RD-AZ102J-   R CARBON FILM       1/6 1K OHM J                              50   2291140501   WAX COVER
R712    RD-AZ102J-   R CARBON FILM       1/6 1K OHM J                        C915       CEXF2C470V   C ELECTRO           160V RSS 47MF (13X25) TP

R714    RD-AZ103J-   R CARBON FILM       1/6 10K OHM J                       C916       CEXF2C100V   C ELECTRO           160V RSS 10MF (10X16) TP
R715    RD-AZ472J-   R CARBON FILM       1/6 4.7K OHM J                      C917       CEXF2C100V   C ELECTRO           160V RSS 10MF (10X16) TP
R716    RD-AZ102J-   R CARBON FILM       1/6 1K OHM J                        C920       CEXF2C470V   C ELECTRO           160V RSS 47MF (13X25) TP

R719    RD-AZ151J-   R CARBON FILM       1/6 150 OHM J                       C923       CMYL2G104J   C MYLAR             400V MEU 0.1MF J
R720    RD-AZ392J-   R CARBON FILM       1/6 3.9K OHM J                      C924       CEXF2E100V   C ELECTRO           250V RSS 10MF (10X20) TP
R724    RD-AZ272J-   R CARBON FILM       1/6 2.7K OHM J                      C927       CEXF1C102V   C ELECTRO           16V RSS 1000MF (10X20) TP

R725    RD-AZ272J-   R CARBON FILM       1/6 2.7K OHM J                      C932       CMYL2G104J   C MYLAR             400V MEU 0.1MF J
R726    RD-AZ272J-   R CARBON FILM       1/6 2.7K OHM J                      C940       CMYL2G104J   C MYLAR             400V MEU 0.1MF J
R729    RD-AZ152J-   R CARBON FILM       1/6 1.5K OHM J                      C942       CEXF2E220V   C ELECTRO           250V RSS 22MF (13X20) TP

R730    RD-AZ103J-   R CARBON FILM       1/6 10K OHM J                       C946       4SG0D00103   SPARK GAP           S-23 900V-1.5KV

R732    RD-AZ102J-   R CARBON FILM       1/6 1K OHM J                        C947       4SG0D00103   SPARK GAP           S-23 900V-1.5KV

R733    RD-AZ102J-   R CARBON FILM       1/6 1K OHM J                        C948       4SG0D00103   SPARK GAP           S-23 900V-1.5KV

R735    RD-AZ472J-   R CARBON FILM       1/6 4.7K OHM J                      C949       CCYB3D472K   C CERA              2KV B 4700PF K

R736    RD-AZ102J-   R CARBON FILM       1/6 1K OHM J                         I901      1TDA6101Q-   IC VIDEO AMP        TDA6101Q

R737    RD-AZ102J-   R CARBON FILM       1/6 1K OHM J                         I902      1TDA6101Q-   IC VIDEO AMP        TDA6101Q

R738    RD-AZ563J-   R CARBON FILM       1/6 56K OHM J                        I903      1TDA6101Q-   IC VIDEO AMP        TDA6101Q

R739    RD-AZ101J-   R CARBON FILM       1/6 100 OHM J                       M900       4856812001   TIE CABLE           NYLON66 DA100

R740    RD-AZ101J-   R CARBON FILM       1/6 100 OHM J                        P904      4859205620   CONN WAFER          LW-0640-03

R741    RD-AZ103J-   R CARBON FILM       1/6 10K OHM J                        P906      4859238620   CONN WAFER          YPW500-02

R743    RD-AZ102J-   R CARBON FILM       1/6 1K OHM J                        PA901      4850706S18   CONNECTOR           YH025-06+YST025+USW=500

R744    RD-AZ102J-   R CARBON FILM       1/6 1K OHM J                        PA902      4850705S04   CONNECTOR           YH025-05+YST025+ULW=400

R745    RD-AZ103J-   R CARBON FILM       1/6 10K OHM J                       PA903      4850703S44   CONNECTOR           YH025-03+YST025+ULW=500

R748    RD-AZ102J-   R CARBON FILM       1/6 1K OHM J                        PA905      4850704S04   CONNECTOR           YH025-04+YST025+ULW=400
R750    RD-AZ331J-   R CARBON FILM       1/6 330 OHM J                       Q907       PTA2SW6900   HEAT SINK ASS`Y     TKTA1659Y- + 7174300811

R751    RD-AZ331J-   R CARBON FILM       1/6 330 OHM J                       0001-      TKTA1659Y-   TR                  KTA 1659-Y

R752    RD-AZ331J-   R CARBON FILM       1/6 330 OHM J                       000A-      4857026900   HEAT SINK           AL EX
R753    RD-AZ222J-   R CARBON FILM       1/6 2.2K OHM J                      000B-      7174300811   SCREW TAPPTITE      TT2 RND 3X8 MFZN

R754    RD-AZ102J-   R CARBON FILM       1/6 1K OHM J                        Q908       PTB2SW6900   HEAT SINK ASS`Y     TKTC4370Y- + 7174300811

R755    RD-4Z101J-   R CARBON FILM       1/4 100 OHM J                       0000A      4857026900   HEAT SINK           AL EX
R759    RD-AZ511J-   R CARBON FILM       1/6 510 OHM J                       0000B      7174300811   SCREW TAPPTITE      TT2 RND 3X8 MFZN

R761    RD-AZ272J-   R CARBON FILM       1/6 2.7K OHM J                       001--     TKTC4370Y-   TR                  KTC 4370-Y

R778    RD-AZ102J-   R CARBON FILM       1/6 1K OHM J                        R901       RF-4Y229J-   R FUSIBLE           1/4W 2.2 OHM J
R779    RD-AZ102J-   R CARBON FILM       1/6 1K OHM J                        R906       RD-AZ223J-   R CARBON FILM       1/6 22K OHM J

R783    RD-AZ272J-   R CARBON FILM       1/6 2.7K OHM J                      R907       RD-AZ273J-   R CARBON FILM       1/6 27K OHM J
R791    RD-4Z103J-   R CARBON FILM       1/4 10K OHM J                       R925       RS01Y471J-   R M-OXIDE FILM      1W 470 OHM J
R792    RD-4Z103J-   R CARBON FILM       1/4 10K OHM J                       R932       RS01Y101J-   R M-OXIDE FILM      1W 100 OHM J

R793    RD-AZ103J-   R CARBON FILM       1/6 10K OHM J                       R946       RS02Y221J-   R M-OXIDE FILM      2W 220 OHM J
R794    RD-AZ103J-   R CARBON FILM       1/6 10K OHM J                       SCT1       4859302830   SOCKET CRT          ISH-02S
R795    RD-AZ102J-   R CARBON FILM       1/6 1K OHM J                        ZZ200      PTCPJRD167   PCB CRT RADIAL AS   DTC-29Z9WPT

R799    RD-AZ102J-   R CARBON FILM       1/6 1K OHM J                        C901       CXCH1H240J   C CERA              50V CH 24PF J (TAPPING)
ZZ300   PTCPMSD167   PCB CRT MANUAL AS   DTC-29Z9WPT                         C903       CXCH1H240J   C CERA              50V CH 24PF J (TAPPING)




                                                                    - 83 -
Loc           Part_Cd           Part_Name              Part_Desc                 Loc        Part_Cd           Part_Name             Part_Desc
C904       CEXF1E101V   C ELECTRO           25V RSS 100MF (6.3X11) TP            D924    DRGP15J---   DIODE               RGP15J
C905       CCXF1H103Z   C CERA              50V F 0.01MF Z (TAPPING)             D925    DUZ9R1BM--   DIODE ZENER         UZ-9.1BM 9.1V

C906       CCXF1H103Z   C CERA              50V F 0.01MF Z (TAPPING)             D926    DUZ9R1BM--   DIODE ZENER         UZ-9.1BM 9.1V
C907       CCXF1H103Z   C CERA              50V F 0.01MF Z (TAPPING)             D927    DUZ9R1BM--   DIODE ZENER         UZ-9.1BM 9.1V
C908       CCXB1H102K   C CERA              50V B 1000PF K (TAPPING)              J901   85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING

C909       CEXF1H479V   C ELECTRO           50V RSS 4.7MF (5X11) TP               J903   85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING
C910       CEXF1H479V   C ELECTRO           50V RSS 4.7MF (5X11) TP               J904   85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING
 C911      CXCH1H101J   C CERA              50V CH 100PF J (TAPPING)              J905   85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING

C912       CXCH1H101J   C CERA              50V CH 100PF J (TAPPING)              J906   85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING
C913       CCXB2H101K   C CERA              500V B 100PF K (TAPPING)              J908   85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING
C914       CCXE2H472P   C CERA              500V E 4700PF P (TAPPING)             J909   85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING

C918       CCXE2H472P   C CERA              500V E 4700PF P (TAPPING)             J910   85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING
C922       CCXB2H471K   C CERA              500V B 470PF K (TAPPING)              J911   85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING
C925       CEXF2E229V   C ELECTRO           250V RSS 2.2MF (8X11.5)TP             J912   85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING

C928       CEXF1E101V   C ELECTRO           25V RSS 100MF (6.3X11) TP             J913   85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING

C929       CMXM2A104J   C MYLAR             100V 0.1MF J (TP)                     J914   85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING

C930       CMXM2A104J   C MYLAR             100V 0.1MF J (TP)                     J916   85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING

C935       CMXM2A104J   C MYLAR             100V 0.1MF J (TP)                     J919   85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING

C936       CMXM2A104J   C MYLAR             100V 0.1MF J (TP)                     J920   85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING

C937       CCXB2H471K   C CERA              500V B 470PF K (TAPPING)              J921   85801065GY   WIRE COPPER         AWG22 1/0.65 TIN COATING

C938       CMXM2A104K   C MYLAR             100V 0.1MF K (TP)                     L902   5MC0000100   COIL BEAD           HC-3550

C939       CMXM2A104K   C MYLAR             100V 0.1MF K (TP)                     L903   5MC0000100   COIL BEAD           HC-3550

C941       CCXB2H471K   C CERA              500V B 470PF K (TAPPING)              L904   5MC0000100   COIL BEAD           HC-3550

C950       CEXF1E470V   C ELECTRO           25V RSS 47MF (5X11) TP               R902    RD-AZ222J-   R CARBON FILM       1/6 2.2K OHM J

 L901      5CPX470J--   COIL PEAKING        47UH J (RADIAL)                      R903    RD-AZ182J-   R CARBON FILM       1/6 1.8K OHM J

Q901       TKTC3198Y-   TR                  KTC3198Y                             R904    RD-AZ102J-   R CARBON FILM       1/6 1K OHM J

Q902       TKTC3198Y-   TR                  KTC3198Y                             R905    RD-AZ222J-   R CARBON FILM       1/6 2.2K OHM J

Q903       TKTC3198Y-   TR                  KTC3198Y                             R908    RD-AZ333J-   R CARBON FILM       1/6 33K OHM J
Q904       TKTC3198Y-   TR                  KTC3198Y                             R909    RD-AZ471J-   R CARBON FILM       1/6 470 OHM J

Q905       TKTA1266Y-   TR                  KTA1266Y (TP)                        R910    RD-AZ471J-   R CARBON FILM       1/6 470 OHM J

Q906       TKTC3198Y-   TR                  KTC3198Y                              R911   RD-AZ471J-   R CARBON FILM       1/6 470 OHM J
ZZ200      PTCPJAD167   PCB CRT AXIAL AS    DTC-29Z9WPT                          R912    RD-4Z470J-   R CARBON FILM       1/4 47 OHM J

      10   2TM14006LB   TAPE MASKING        3M #232 6.0X2000M                    R913    RD-AZ182J-   R CARBON FILM       1/6 1.8K OHM J

 A001      4859824813   PCB CRT             165X120(330X246/4)D1B                R914    RD-AZ102J-   R CARBON FILM       1/6 1K OHM J
C951       CZCH1H130J   C CERA              50V CH 13PF J                        R915    RD-AZ473J-   R CARBON FILM       1/6 47K OHM J

C952       CZCH1H130J   C CERA              50V CH 13PF J                        R916    RD-AZ223J-   R CARBON FILM       1/6 22K OHM J

C953       CZCH1H130J   C CERA              50V CH 13PF J                        R917    RD-AZ222J-   R CARBON FILM       1/6 2.2K OHM J
D901       D1N4148---   DIODE               1N4148 (TAPPING)                     R918    RD-4Z100J-   R CARBON FILM       1/4 10 OHM J

D902       D1N4148---   DIODE               1N4148 (TAPPING)                     R919    RD-AZ820J-   R CARBON FILM       1/6 82 OHM J
D903       D1N4148---   DIODE               1N4148 (TAPPING)                     R920    RD-AZ820J-   R CARBON FILM       1/6 82 OHM J
D904       D1N4148---   DIODE               1N4148 (TAPPING)                     R921    RD-AZ152J-   R CARBON FILM       1/6 1.5K OHM J

D905       D1N4003---   DIODE               1N4003 (TAPPING)                     R922    RD-AZ683J-   R CARBON FILM       1/6 68K OHM J
D906       D1N4003---   DIODE               1N4003 (TAPPING)                     R923    RD-AZ683J-   R CARBON FILM       1/6 68K OHM J
D920       DRGP15J---   DIODE               RGP15J                               R924    RD-AZ122J-   R CARBON FILM       1/6 1.2K OHM J

D921       DRGP15J---   DIODE               RGP15J                               R926    RD-AZ122J-   R CARBON FILM       1/6 1.2K OHM J
D923       DRGP15J---   DIODE               RGP15J                               R927    RD-4Z123J-   R CARBON FILM       1/4 12K OHM J




                                                                        - 84 -
Loc           Part_Cd        Part_Name                   Part_Desc                 Loc          Part_Cd           Part_Name              Part_Desc
R928       RD-2Z680J-   R CARBON FILM         1/2 68 OHM J                          C840     CMXM2A334J   C MYLAR             100V 0.33MF J BULK
R929       RD-2Z279J-   R CARBON FILM         1/2 2.7 OHM J                         C848     CH1BFE472M   C CERA AC           AC400V 4700PF M U/C/V

R930       RD-2Z680J-   R CARBON FILM         1/2 68 OHM J                          C882     CMYH3C122J   C MYLAR             1.6KV BUP 1200PF J
R931       RD-AZ152J-   R CARBON FILM         1/6 1.5K OHM J                        C886     CMYE2D103J   C MYLAR             200V PU 0.01MF J
R933       RN-AZ2001F   R METAL FILM          1/6 2.0K OHM F                        D401     DRGP30J---   DIODE               RGP30J

R934       RN-AZ2001F   R METAL FILM          1/6 2.0K OHM F                        D402     DRGP30J---   DIODE               RGP30J
R935       RN-AZ2001F   R METAL FILM          1/6 2.0K OHM F                        D406     DRGP30J---   DIODE               RGP30J
R936       RN-AZ2001F   R METAL FILM          1/6 2.0K OHM F                        D801     PTA2SW4614   HEAT SINK ASS`Y     DPBS606GU- + 7174301211

R937       RN-AZ2001F   R METAL FILM          1/6 2.0K OHM F                        D801     DPBS606GU-   DIODE BRIDGE        PBS606G
R938       RN-AZ2001F   R METAL FILM          1/6 2.0K OHM F                       D801A     4857024614   HEAT SINK           AL EX (NO ANODIZING)
R939       RN-2Z2003F   R METAL FILM          1/2 200.0K OHM F                     D801B     7174301211   SCREW TAPPTITE      TT2 RND 3X12 MFZN

R940       RN-2Z2003F   R METAL FILM          1/2 200.0K OHM F                      D803     DEGP50D---   DIODE               EGP50D (TAPPING)
R941       RN-2Z2003F   R METAL FILM          1/2 200.0K OHM F                      D813     PTP2SW6900   HEAT SINK ASS`Y     DFMLG12S-- + 7174301011
R942       RC-2Z102K-   R CARBON COMP         1/2 1K OHM K                               1   DFMLG12S--   DIODE               FML-G12S

R943       RC-2Z102K-   R CARBON COMP         1/2 1K OHM K                         0000A     4857026900   HEAT SINK           AL EX

R944       RC-2Z102K-   R CARBON COMP         1/2 1K OHM K                         0000B     7174301011   SCREW TAPPTITE      TT2 RND 3X10 MFZN

R945       RD-2Z279J-   R CARBON FILM         1/2 2.7 OHM J                         D819     PTP2SW6900   HEAT SINK ASS`Y     DFMLG12S-- + 7174301011

R951       RD-2Z102J-   R CARBON FILM         1/2 1K OHM J                               1   DFMLG12S--   DIODE               FML-G12S

R952       RD-4Z105J-   R CARBON FILM         1/4 1M OHM J                         0000A     4857026900   HEAT SINK           AL EX

R955       RN-AZ6800F   R METAL FILM          1/6 680 OHM F                        0000B     7174301011   SCREW TAPPTITE      TT2 RND 3X10 MFZN

R956       RN-AZ1301F   R METAL FILM          1/6 1.3K OHM F                        D824     PTS2SW6900   HEAT SINK ASS`Y     DFMLG16S-- + 7128301011

R962       85801065GY   WIRE COPPER           AWG22 1/0.65 TIN COATING                   1   DFMLG16S--   DIODE               FML-G16S

R965       RC-2Z102K-   R CARBON COMP         1/2 1K OHM K                         0000A     4857026900   HEAT SINK           AL EX

R967       RN-2Z2003F   R METAL FILM          1/2 200.0K OHM F                     0000B     7128301011   SCREW TAPPING       T2S WAS 3X10 MFZN

R969       RN-2Z2003F   R METAL FILM          1/2 200.0K OHM F                      D825     PTP2SW6900   HEAT SINK ASS`Y     DFMLG12S-- + 7174301011

R971       RN-2Z2003F   R METAL FILM          1/2 200.0K OHM F                           1   DFMLG12S--   DIODE               FML-G12S

ZZ400      PTPWMSD167   PCB POWER MANUAL AS   DTC-29Z9WPT                          0000A     4857026900   HEAT SINK           AL EX

      10   2193102005   SOLDER BAR            SN:PB=63:47 S63S-1320                0000B     7174301011   SCREW TAPPTITE      TT2 RND 3X10 MFZN
      20   2193011101   SOLDER WIRE           RS 60-1.2 1.6A                        D831     DDG3------   DIODE               DG3

      30   2291050615   FLUX SOLDER           DF-2012U                              F801     5F3GB6322L   FUSE GLASS TUBE     V/S TL 6.3A 250V MF51

      40   2291050301   FLUX SOLVENT          IM-1000                               I301     PTA2SW7501   HEAT SINK ASS`Y     1TDA8351-- + 7174301011
      50   2291140501   WAX COVER



◦ Jabse Service Manual Search 2020 ◦ Jabse Pravopis ◦ Other service manual resources online : FixyaeServiceinfo
