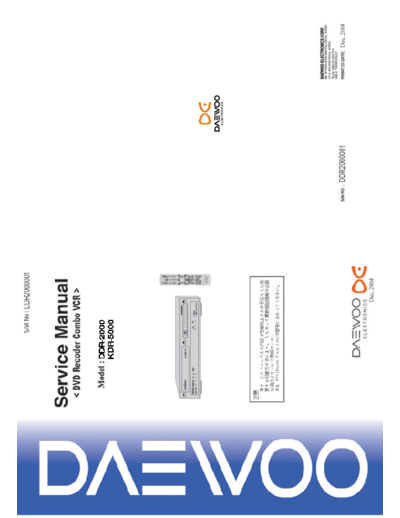

Image preview - the first page of the document
DAEWOO_DDR-2000_KDR-5000_DVD-VCR_Combo


>> Download DAEWOO_DDR-2000_KDR-5000_DVD-VCR_Combo documenatation <<

Text preview - extract from the document
DDR-2000
KDR-5000
    .........................................................................................................................................................................
.............................................................................................................................................................................
    .........................................................................................................................................................................
                         ....................................................................................................................................................
             ................................................................................................................................................................




                                                                                    1
SECTION                                               DVD+RW RECORDER                               REMARK                 SYSTEM
GENERAL                                                                                                                     Recorded Program Search                         O                                     - Index Picture
 DAEWOO Model                                         DF-N72D1J-BS                                                          REC Bit Rate Selection                          O                                     - By GUI & RCU key
 Description                                          DVDR / VCR Combo                                                      DVD data full
 Target Area                                          JAPAN                                                                   - Record (Include T.REC, & OTR)               Stop                                  - Warning message such as DISC FULLl
 Mass Production                                      2004, November                                                        System information                              O
 Safety Regulation                                    S-MARK                                                                Code free Method                                O
 Power Plug                                           2 Pin ( For Japan)                                                    Factory set (E2PROM)                            X
 Operation temperature                                5-35 degree C                                                         Dealer s lock                                   X
 Power Consumption                                                                                                         USER INTERFACE & OPERATION
    - Maximum                                         34 W                                                             -    Language                                        2 LANGUAGE                            JAPAN, ENGLISH
Operate                                               30 W                                                                  Letter Color                                    refer to UIS
    - Stand-By(power off)                             2.87 W                                                                Blue Back                                       refer to UIS
 Power Failure Compensation                           1 Min                                                                 Super Impose Data Display                       O
 Power Print on Rear Panel                            AC 120V, 60Hz                                                         Disk Type displayed OSD / Front Panel Display   O/O
 Set Weight (Net)                                      6.6 Kg                                       - Lite on loader        Screen saver On/Off                             X
 Set Size (WxHxD)                                                                                                           Company LOGO                                    DAEWOO
   - wihtout leg                                      430 x 91 x 362.5                                                      Parental lock                                   O                                     - By Setup menu
   - with leg                                         430 x 103 x 362.5                                                     Upgradeable Flash Memory Capability             O
 Stuffing Quantity                                                                                                          Yes-DVD                                         X
 - 20 ft                                              600 EA                                                               TIMER
 - 40 ft                                              1260 EA                                                               Date Recognized Period                          2000~2099
 - 40 ft (HQ)                                         1365 EA                                                               Number of Timer Recording                       8 Events / 1 Month
DVD Recording Features                                                                                                      Clock display method                            12 Hour
VIDEO                                                                                                                       Manual Clock Setting                            O
 Video Recording Format                               +R /+RW                                                               Auto Clock Setting                              O
 Video Recording Compress Format                      MPEG II                                                               Auto Daylight Saving Time                       X
 Horizontal Resolution ( line input )                                                                            Timer Recording System
                                                      HQ/SP : 500 Lines (DVD+R/RW)                                          - General                                       O
                                                      EP/SLP : 250 Lines (DVD+R/RW)                                         - VCR +                                         O
                                                                                                                 - EPG                                           X
 Screen size(MPEG encoder)                            HQ/SP: 720x576 (DVD+R/RW)                                             One Touch Recording                             O
                                                      EP/SLP : 360x576 (DVD+R/RW)                                           - Recording Time Display Method                 Recording Hours
                                                                                                                      - Maximum Time for Recording                    Max. 6 Hours for SLP, 1 Hour for HQ   - with 4.7 GB single layer disc
                                                      HQ/SP : 720x480 (DVD+R/RW)                                            AV LINK                                         X
                                                      EP/SLP : 360x480 (DVD+R/RW)                                           Just Recording                                  O
                                                      352x240 (VCD)                                                         Daily Recording                                 O
 Video DAC                                            10bit                                                                 Weekday Recording                               O
 Recording Rate (Mb/s) & Recording Hour with 4.7 GB   HQ : 9.5 Mb/s, 60min/SP : 5.1 Mb/s, 120min                            Weekly Recording                                O
                                                      EP : 2.5 Mb/s, 240min/SLP : 1.7Mb/s, 360min                           Timer Recording Contents Display                O
 Video Line Input                                     NTSC                                                                  Timer Recording Contents Correct                O
AUDIO                                                                                                                       Method to Timer Recording                       Auto Start when Power-On
 Audio Recording Format                               MPEG I Layer II                                                         Warning&Selection when Power-Off
 Sampling Rate                                        48 KHz                                                                Timer Recording Start Timing                    On Time                               - Set turns on eariler than Recording time
 Audio ADC/DAC                                        24bit                                                                 Priority on Overlap Timer Recording             Chosen by customer                    - Conflict message will be shown up on the screen
 S/N Ratio ( line input )                             90 dB weighted                                                        Guide Setup                                     O                                     - Interactive
 Dynamic range ( line input )                         85 dB                                                                 Initial Partial Guide Setup                     O                                     - After first AC mains input or default setting by menu
 Digital output                                       DTS, AC3, MP2                                                        DVD Playback Features
Broadcasting Tuner                                                                                                         DVD MODULE
 Broadcasting System                                  NTSC-M                                                                Manufactruer of FEM (Front End Module)          Lite On
 Channel Selection Method                             Programmable F/S                                                      Interface                                       ATAPI
 Band                                                 UHF/VHF                                                               Opitical P/U                                    Sanyo
 Total Channel Number                                 113 channel                                                           FE Chip                                         MT1828
 - ANTEAN                                             62 channel (Ch 1~62)                                                  BE chip type Numbers                            DMN-8602
 - CABLE                                              51 channel (C 13~63)                                                 PLAYABLE DISC TYPE
 - Selection Knob                                     CH (...), 0-9                                                         DVD Type : DVD / DVD+RW / DVD+R /               Yes to All
 Position Memory Number                               99CH                                                                   DVD-RW / DVD-R (DVD Video format)
 TV/CATV Switching                                    O                                                                     CD Type : CD / CD-R / CD-RW                     Yes to All
 Auto Channel Setting                                                                                                       Video Format : DVD / VCD /                      DVD/VCD/JPEG                          - JPEG : Hidden function
 - Auto Search & Memory                               O                                                                      SVCD / MPEG 4 / JPEG /Kodak pictuer CD
 - Auto Channel Sorting                               X                                                                     Audio Format : DVD-Audio / SACD /               CDDA / MP3
 - Auto Station Name Display                          O                                                                      HDCD / CDDA / MP3 / MP3 Pro / WMA
 Manual Channel Setting                                                                                                     Disc size                                       8cm/12cm
 - CH Direct Input                                    O                                                                     Regional Code                                   2
 - Manual Search & Memory                             O                                                                     NTSC / PAL Discs playback                       O/O
 - Manual Channel Clear                               O                                                                    VIDEO
 - Manual Channel Align                               O                                                                     Video output signal : NTSC / PAL /              NTSC
 Manual Fine Tuning                                   O                                                                     PAL 60Hz / PAL-50Hz / SECAM
 - Memory Available                                   O                                                                     Video Digital-to-analog converter               10bit/54MHz
 - E2PROM                                             O                                                                     Progressive Scanning                            O                                     - By Setup menu & RCU key
 RF Modulation Out                                    O                                                                     S-Video or RGB :                                O/O



                                                                        2                                                                                                                   3
 Smooth motion picture in reverse mode                            X                                             S-VHS Quasi Playback                 O
AUDIO                                                                                                           NTSC Playback on PAL TV              X
 Audio Digital-to-analog converter                                96kHz/24bit                                   NTSC , PAL Record                    X
 S/N Ratio                                                        90 dB                                         Caption                              X
 3D Virtual Surround for 2Ch Audio                                O                                             Canal Plus+ (Premiere)               O
 Dolby Digital Down Mix (5.1ch to LtRt out)                       O                                             Anti-Copy Guard                      X
 Dolby Digital Passthrough                                        O                                           SPECIAL PLAY
 DTS Digital Passthrough                                          O                                             Cue / Review Speed
 MPEG-2 Audio Passthrough                                         O                                             - SP                                 X5
 DVD Audio Passthrough                                            X                                             - LP                                 X9
 Dolby Digital 5.1-Ch decoding                                    X                                             - EP                                 X15
 DTS Digital 5.1-Ch decoding                                      X                                             Digital Shuttle                      X
 MPEG-2 Audio decoding                                            O                                             Still Picture                        O (5 mins)
 DVD Audio Decoding                                               X                                             - Frame Advance                      O (By NEXT Knob)
 Open MP3 Compatible (pre recorded MP3 Discs)                     O                                             Slow                                 O
 MP3 on the CD-R Playback                                         O                                             - Variable Slow Speed                1/5~1/30
 AC-3/PCM data Conversion                                         O/O                                           - Variable Slow Step                 6 Steps
 OSD Speaker : Configuration/Test Signal/Distance                 X/X/X                                         Reverse Play                         X
 Dynamic range compression                                        O                                             Double Speed Play                    X
 DSP Mode                                                         X                                             Encore                               X
 Equalizer                                                        X                                             Auto Repeat                          O                                - by pressing the [PLAY] Key of the RMC in the 5 seconds.
PLAYBACK FEATURES                                                                                               Repeat                               X
 Disc access time ( play ready time from drawer close press)      Less than 20 sec.                             Skew Correction Circuit              X
 Fast Scan Motion (FWD / REV) ; DVD                               (O/O)               - x 32                    Digital Memoried Sound System        X
 Fast Scan Motion (FWD / REV) ; VCD                               (O/O)                                         Movie Advace+                        X
 Fast Scan Motion (FWD / REV) ; CDDA                              (O/O)               -x2                       Jog & Shuttle                        No
 Slow Motion (FWD / REV) ; DVD                                    (O/O)               - x 1/8                   - Jog Dial                           X
 Slow Motion (FWD / REV) ; VCD                                    (O/O)                                         - Shuttle Ring                       X
 Still picture/freeze frame                                       O                                             Commercial Skip (CM Skip)            X
 Frame by Frame (forward / reverse)                               O/O                                           Commercial Advace+                   X
 Skip (FWD / REV)                                                 O/O                                         SYSCON
 2x audio during Scan Forward (CDDA)                              O                                             Auto Clear Time in Pause             About 5 mins
 Subtitle Selection (DVD)                                         O                                             Auto Tracking                        O
 2x Subtitle Display (DVD)                                        X                                             Manual Tracking                      O
 Repeat Function (DVD) : Disc / Title / Chapter / A-B             O/O/O/O                                       Power On at pressing any Key         O
 Repeat Function (VCD) : Disc / Track / A-B                       O/O/O                                         Count Reset                          O (Auto & MENU)
 Repeat Function (CD/MP3) : Disc / Dir./Track                     O/X/O                                         Zero Stop(Go to Zero)                O (MENU)
 Shuffle Play (DVD/VCD/CD/MP3)                                    O/O/X/X                                       VISS                                 O (MENU)
 Mark function (No. of Marks)                                     O                   - only DVD +RW / +R       - Scan Search                        O
 Time Search                                                      O                   - by the Display mode     - Skip Search                        X
 Zoom on Still / Running DVD Video (Zoom x)                       Zoom (magnify)      - 4X                      - Manual Marking on Play             X
 Zoom on Still / Running VCD (Zoom x)                             Zoom (magnify)                                Tape Select / Remain                 X
 Closed caption NTSC (DVD/VCD)                                    X                                             End of Tape
 Compatibility with Kodak Picture CD                              O                                           - PLAY, Forward Search, Slow           Rewind->Stop
 Resume play                                                      O                                           - FF                                   Stop
 PBC for VCD 2.0 or SVCD                                          O                                           - VISS (Index Search), Go-To Search    Stop
 Picture mode selector 4x3, 16x9, letterbox                       O                                           - Record (Except T.REC, & OTR)         Stop
 Multi-angle playback                                             O                                            - T.REC, OTR                          Power Off ( On when DVD play )
 Parental Edit on disks- A-B type deletion of unwanted scenes     X                                             Double Erase Protection              X
 Instant replay- one button push instantly plays back xx frames   X                                             Auto Function
 Selectable Audio Streams (total quantity)                        O                                             - Auto Power Off in RF Mode          O (5 min)
 Digest for VCD                                                   X                                             - Auto RF Out Setting                O
VCR Features                                                                                                    - Direct Power On & Go (Full Auto)   X
DECK                                                                                                            - Auto Power On                      O (Cst In)
 Deck Name                                                        T5-MECHA                                      - Auto Play                          O (Non-Tab Cst)
 Tape Speed on Play                                               SP/LP/EP                                      - Auto Rewind                        O (Except REC,FF)
 Tape Speed on Record                                             SP/EP                                         - Eject After Auto Rewind            X
 Full Loading                                                     O                                             - Eject at Power Off                 O
   - in case of Power Off                                         Unloading                                     - M.E.P. Eject at Record             O
 Quick Start (Stop -> Play)                                       About 1 sec                                 DVDR/VCR Common Area
 FF Time                                                          Under 130 sec       - T-120 tape            Front Panel DISPLAY
 REW Time                                                         Under 130 sec       - T-120 tape              VFD                                  VFD Display
 Dew Sensor                                                       X                                             Display Size                         20(H) X 135(D) mm
 Auto Head Cleaner                                                X                                             Display Color                        WHITE / RED / YELLOW / GREEN
 DLC Coated Drum                                                  X                                             Language                             English
 Flying Erase Head                                                X                                             Clock / Counter Change               O
VIDEO                                                                                                           - On Cassette Out                    Clock
 Sharpness                                                        X                                             - On Cassette In                     Clock / Counter
 Picture Quality Correction                                       X                                             Mode Display                         VFD DISPLAY
 - Rental Position (ASO)                                          X                                             Clock Display Method                 12 Hour
 - Super Clean circuit (CNR)                                      X                                             Counter Display Method               Real Time



                                                                                  4                                                                                 5
 Date Display                                 X
 Display On / Off                             X
 Dimmer at Power Off                          O
 Scrolling function on FL display             X
 Auto power off - 30 minutes                  X
REMOTE CONTROL
 Tool                                         VR-FA3
 Multi-brand TV Control                       X
 Code type                                    DAEWOO
 RF (Radio Frequency) Response                X
 IR (Infra-Red) Response                      O
 Back-lit remote                              X
 Batteries (included)                         O
 Joy Stick                                    X
 Jog/Shuttle on Remote                        X
Front Panel
 NO. of Local Keys                            13 EA
                                              Stanby/on, Ch-, Ch+, Rec, Open/close
                                              FF, Rew, Stop, Play/Pause
                                              VCR/DVD, Disc Menu, Rec Mode, Eject
                                              some more
 LED Indicator                                1EA
    REC
 Shuttle Ring                                 X
 Jog                                          X
 Standby Indicating LED                       X
 Headphone jack (3mm)                         X
 IEEE 1394 DV Input                           O                                      Option
 S-VIDEO Input                                X
 Front A/V jacks                              2EA FOR AUDIO, 1EA FOR VIDEO
Rear Panel
 S-video                                      Out 1 EA
 Video (composite)                            O
 component                                    Out 1 EA
 Progressive Scan Out                         O
 Audio (Analgo, RCA jacks for S-video pair)   Out 1 EA
 Analog 5.1CH Output                          X
 EURO AV (SCART)                              X
 RF                                           TV Out / Antenna In
 Digital Audio Output - Optical               X
 Digital Audio Output - Coaxial               O
 IEEE 1394/USB                                X/X
 IR Blaster (Cable Box Control)               X
Physical
 Tool/Design                                  Daewoo Design
 Graphic Design                               Daewoo
 DVD LOGO                                     Hologram(Silver)
 Carton Box                                   Daewoo
 Carton Size, mm                              TBD
 Shipping Weight, kg (lb)                     TBD
Accessories
 Batteris                                     O
 Blank DVD+RW Disc                            O
 RF cable                                     O
 Composite A/V Cable                          O
 Component Video Cable                        X
 S-video cable (4 pin mini DIN) - 6           X
  Mouse (Cable Box Control Line)              X
 21 pin Scart                                 X
 POP Material                                 X
 RCU                                          O
 IB/Safety Tips                               O
 Instruction Book                             O
 Warning Leaflet                              O
 Customer Guide                               O
 Guarantee Sheet                              O
Packing
 Box Material                                 EX300 x SCP150 x EX300
 - PAD Material                               Styrofoam Pad
 Box Assembling Method                        A-1
 - Packing Method                             Stapling or Taping




                                                                 6
7
8
9
10
11
RF




     12
1. POWER SUPPLY




                  13
2. REGULATION




                14
3. RF& MTS




             15
4. AV




        16
5. AUDIO MULTIPLEXER




                       17
6. AUDIO AD/DA




                 18
7. HiFi




          19
8. VIDEO IN/OUT




                  20
9. VIDEO SWITCH




                  21
10. OUTPUT JACK




                  22
11. MICOM




            23
12. 8602 CODEC




                 24
13. TERMINATION




                  25
14. DDR/SDRAM




                26
15. RST/AV/ELINK/CONNECTOR




                             27
16. FLASH/ATAPI




                  28
17. 1394 PHY




               29
18. POWER CONNECTOR




                      30
19. VIDEO DECORDER (SAA7115)




                               31
20. FRONT PANEL BOARD




                        32
33   34
35   36
37   38
39   40
1. POWER CIRCUIT(   )



                             POWER TOP(   )




                        41                    42
2. SYSTEM Circuit(   )


  1.




                              *              DV       DV
                                  Digital Board

                              * DV       : R642=0
                              * DV         : R643=0




                         43                  44
2.




          DDRAM1(ICM02)




          DDRAM2(ICM03)




     45                   46
3.        c.
a.




     47        48
e.   (1)




f.   (2)




           49   50
     3.

          A. EE




51                52
B.
                  2)
     1)DVD




             53        54
C.            VIDEO MAIN TOP

 1)DVD




 2)




         55                    56
VIDEO DIGITAL BOTTOM        VIDEO DIGITAL TOP




                       57                       58
4.

     A. DVD
                     b) JK102
     a) JK101




                     c) JK102




                     d)




                59              60
B.
a) RF E-E




            61   62
                    C.   Hi-Fi
b) LINE 1 EE




c) LINE 2 EE




                    D.




               63                64
     5. RF




             RF




             RF




65                66
RF         RF101




                   3, 4 RF




IIC




      67                     68
69
                                                   (http://svc.dwe.co.kr)
                                                                                                                                                                  LOC    PARTS_CODE PARTS_NAME      PARTS_DESCRIPTION        REMARK        LOC    PARTS_CODE PARTS_NAME      PARTS_DESCRIPTION        REMARK
LOC     PARTS_CODE PARTS_NAME                PARTS_DESCRIPTION        REMARK        LOC     PARTS_CODE PARTS_NAME             PARTS_DESCRIPTION          REMARK   C104   HCBK562KBA   C CHIP CERA   X7R 50V 5600PF K 1608                  C331   HCBK473KBA   C CHIP CERA   50V X7R 0.047MF K 1608
01      PVACPSN731   ACCESSROY AS            DC-B8CB1N-PS(N619,AAA)                 A1500 97SA319410     REEL BRKT TOTAL AS   T2-MECHA                            C109   HCFH104ZBA   C CHIP CERA   25V Y5V 0.1MF Z 1608                   C335   HCBK103KBA   C CHIP CERA   50V X7R 0.01MF K 1608
DP01    97P95600N0   MANUAL OWERNS           NTSC , MODEL                           A1501   7273300511   SCREW TAPPTITE       TT3 BIN 3X5 MFZN                    C110   HCQK240JBA   C CHIP CERA   50V CH 24PF J 1608                     C336   HCQK180JBA   C CHIP CERA   50V CH 18PF J 1608
DP02    97P880RN15   CABLE RF                NTSC 1.5M                              A1700   97S5500400   BELT REEL            CR68                                C111   HCBK103KBA   C CHIP CERA   50V X7R 0.01MF K 1608                  C342   HCBK103KBA   C CHIP CERA   50V X7R 0.01MF K 1608
DP03    97P0424100   COVER ACCESSORY         LD-PE T0.05                            A1800   97S2623200   LEVER RELAY          SECC T1.2                           C112   HCQK209CBA   C CHIP CERA   50V CH 2PF C 1608                      C343   HCBK103KBA   C CHIP CERA   50V X7R 0.01MF K 1608
DP04    486A716202   BATTERY                 AAA 1.5V(SUPERGARD)                    A1900   97S2709600   RACK FL              PBT(DY4410GF) NATURAL               C113   HCQK209CBA   C CHIP CERA   50V CH 2PF C 1608                      C405   HCBK103KBA   C CHIP CERA   50V X7R 0.01MF K 1608
DP08    97P880P815   CABLE RCA               3P-3P WEL-WHT-RED 1.5M                 A2000   97S2708200   GEAR CAM             DERLIN 100                          C114   HCFH104ZBA   C CHIP CERA   25V Y5V 0.1MF Z 1608                   C408   HCFH223ZBA   C CHIP CERA   25V Y5V 0.022MF Z 1608
02      PVPKCPN730   PACKING AS              DF-L71D1N-BJ(YW)                       A2100   97SA317150   PINCH LEVER TOT AS   T-MECHA                             C116   HCBK332KBA   C CHIP CERA   50V X7R 3300PF K 1608                  C411   HCBK103KBA   C CHIP CERA   50V X7R 0.01MF K 1608
CP01    97P4933300   PAD F/B                 EPS                                    B1910   97SA481050   PINCH ROLLER AS      D15(DAEJIN D2.6*D7*T4.5)            C117   HCBK332KBA   C CHIP CERA   50V X7R 3300PF K 1608                  C417   HCBK103KBA   C CHIP CERA   50V X7R 0.01MF K 1608
CP02    97P4809400   POLY BAG FOR SET        900*900*T0.5 PE-FOAM                   A2200   97SA318050   LC BRKT AS           T5-MECHA                            C120   HCBK223KBA   C CHIP CERA   50V X7R 0.022MF K 1608                 C603   HCBK103KBA   C CHIP CERA   50V X7R 0.01MF K 1608
CP03    97P5058120   BOX CARTON              541X453X175 SW-4 COLOR                 B2040   97P885X146   CONN AS              A/C HEAD(6P) SHIELD                 C121   HCQK809DBA   C CHIP CERA   50V CH 8PF D 1608                      C604   HCBK103KBA   C CHIP CERA   50V X7R 0.01MF K 1608
CP04    47P4502205   LABEL SERIAL A          PAPER (42X12X1EA)                      A2201   7273300611   SCREW TAPPTITE       TT3 BIN 3X6 MFZN                    C125   HCBK223KBA   C CHIP CERA   50V X7R 0.022MF K 1608                 C608   HCBK103KBA   C CHIP CERA   50V X7R 0.01MF K 1608
CP05    6520010020   STAPPLE                 M20                                    A2400   97SA317310   IDLER PLATE TOT AS   T2-MECHA                            C128   HCFH104ZBA   C CHIP CERA   25V Y5V 0.1MF Z 1608                   C609   HCBK103KBA   C CHIP CERA   50V X7R 0.01MF K 1608
03      PVMCASN744   CHASSIS MAIN AS         DF-L72B1N-BJ                           A2401   97S3108200   POLYWASHER           D2.6XD6.0XT0.5                      C131   HCFH104ZBA   C CHIP CERA   25V Y5V 0.1MF Z 1608                   C610   HCQK101JBA   C CHIP CERA   50V CH 100PF J 1608
A001    97P0613410   CHASSIS MAIN            HIPS(VO)                               A2600   97S2909400   TABLE REEL           POM(F20-03) BLACK                   C146   HCFH104ZBA   C CHIP CERA   25V Y5V 0.1MF Z 1608                   C611   HCQK101JBA   C CHIP CERA   50V CH 100PF J 1608
A0011   97P0800602   LEG                     PLASTOMER                              A2700   97SA317200   TENSION LVR TOT AS   T-MECHA                             C148   HCFH104ZBA   C CHIP CERA   25V Y5V 0.1MF Z 1608                   C612   HCBK471KBA   C CHIP CERA   50V X7R 470PF K 1608
A0013   97P0804401   LEG-B                   HI-PS(HB, SPRAY)                       A2800   97SA317400   S BRAKE AS           T-MECHA                             C150   HCFH104ZBA   C CHIP CERA   25V Y5V 0.1MF Z 1608                   C614   HCFH104ZBA   C CHIP CERA   25V Y5V 0.1MF Z 1608
A002    97P93617N0   LABEL SPEC              PE FILM(131*47)                        A2900   97SA317510   T BRAKE AS           T2-MECHA                            C168   HCBK103KBA   C CHIP CERA   50V X7R 0.01MF K 1608                  C616   HCBK103KBA   C CHIP CERA   50V X7R 0.01MF K 1608
A006    97P0996000   EARTH BACK              SUS 304 CSP T=0.2                      A3000   97S8023700   HEAD FE              HVFHP0042A                          C171   HCBK103KBA   C CHIP CERA   50V X7R 0.01MF K 1608                  C617   HCBK102KBA   C CHIP CERA   50V X7R 1000PF K 1608
A013    97P0995301   PLATE A/V BACK          PVC T0.3                               A3001   7174301011   SCREW TAPPTITE       TT2 RND 3X10 MFZN                   C201   HCBK103KBA   C CHIP CERA   50V X7R 0.01MF K 1608                  C618   HCBK222KBA   C CHIP CERA   50V X7R 2200PF K 1608
A040    97P0482110   COVER TOP               SECC T0.6+PAINT                        AD001 97PA296001     DRUM PRICE AS        CYN-T610R                           C203   HCBK272KBA   C CHIP CERA   50V X7R 2700PF K 1608                  C619   HCBK222KBA   C CHIP CERA   50V X7R 2200PF K 1608
A040A 97P4219500     CUSHION TOP             EVA 20X14                              AD002 7003300511     SCREW MACHINE        BIN 3X5 MFZN                        C204   HCBK821KBA   C CHIP CERA   50V X7R 820PF K 1608                   C621   HCBK222KBA   C CHIP CERA   50V X7R 2200PF K 1608
A040B 97P4219700     CUSHION TOP PLATE       EVA(SOFT) T=1 175*8                    AF001 97SA261070     F/L AS               TCE-COMBO                           C205   HCFH104ZBA   C CHIP CERA   25V Y5V 0.1MF Z 1608                   C622   HCBK222KBA   C CHIP CERA   50V X7R 2200PF K 1608
A041    7173300812   SCREW TAPTITE           TT2 BIN 3X8 BK                         AF002 7273300511     SCREW TAPPTITE       TT3 BIN 3X5 MFZN                    C207   HCBK103KBA   C CHIP CERA   50V X7R 0.01MF K 1608                  C624   HCBK103KBA   C CHIP CERA   50V X7R 0.01MF K 1608
A042    7173300812   SCREW TAPTITE           TT2 BIN 3X8 BK                         AN002 2291131304     GREASE               DELUXE 5221G(NAM-YOUNG)             C209   HCFH104ZBA   C CHIP CERA   25V Y5V 0.1MF Z 1608                   C626   HCBK103KBA   C CHIP CERA   50V X7R 0.01MF K 1608
A051    7174300811   SCREW TAPPTITE          TT2 RND 3X8 MFZN                       M200A 7174301211     SCREW TAPPTITE       TT2 RND 3X12 MFZN                   C211   HCFH104ZBA   C CHIP CERA   25V Y5V 0.1MF Z 1608                   C628   HCQK130JBA   C CHIP CERA   50V CH 13PF J 1608
A052    97P4220200   CUSHION LEG             EVA T4.0                               P602A 97P88F1M10     CABLE FFC            1.25 R 21P 100MM                    C213   HCQK100JBA   C CHIP CERA   50V CH 10PF J 1608                     C651   HCBK222KBA   C CHIP CERA   50V X7R 2200PF K 1608
A060    97P04822A6   COVER BOTTOM            SECC T0.8, PHONE                       PW01    97P69BY910   CORD POWER           USA LP-11W YH396 1.7M               C214   HCFH104ZBA   C CHIP CERA   25V Y5V 0.1MF Z 1608                   C652   HCBK102KBA   C CHIP CERA   50V X7R 1000PF K 1608
AJ01A 7173300812     SCREW TAPTITE           TT2 BIN 3X8 BK                         Z001    PVMPMSN730   PCB MAIN MANUAL AS   DF-L71D1N-BJ                        C216   HCQK821JBA   C CHIP CERA   50V CH 820PF J 1608                    C653   HCBK103KBA   C CHIP CERA   50V X7R 0.01MF K 1608
AP01A 7174300811     SCREW TAPPTITE          TT2 RND 3X8 MFZN                       AM01    2193100801   SOLDER WIRE          SN:PB=63:37 3PI(NO FLUX)            C217   HCFH104ZBA   C CHIP CERA   25V Y5V 0.1MF Z 1608                   C655   HCBK102KBA   C CHIP CERA   50V X7R 1000PF K 1608
AT01A 7274300412     SCREW TAPPTITE          TT3 RND 3X4 MFZN BK                    AM02    2193011100   SOLDER WIRE          60 SNA 1.2D                         C251   HCFH104ZBA   C CHIP CERA   25V Y5V 0.1MF Z 1608                   C656   HCFH104ZBA   C CHIP CERA   25V Y5V 0.1MF Z 1608
AZ01A 7174300811     SCREW TAPPTITE          TT2 RND 3X8 MFZN                       AM03    2291050305   FLUX LIQUID          RF-800KN                            C252   HCFH104ZBA   C CHIP CERA   25V Y5V 0.1MF Z 1608                   C658   HCFH104ZBA   C CHIP CERA   25V Y5V 0.1MF Z 1608
AZ04A 7174300811     SCREW TAPPTITE          TT2 RND 3X8 MFZN                       AM04    2291050306   FLUX THINNER         RF-800ADD                           C253   HCFH474ZBA   C CHIP CERA   25V Y5V 0.47MF Z 1608                  C659   HCBK102KBA   C CHIP CERA   50V X7R 1000PF K 1608
AZ04B 7174300811     SCREW TAPPTITE          TT2 RND 3X8 MFZN                       AM05    2291140501   WAX COVER                                                C254   HCFH474ZBA   C CHIP CERA   25V Y5V 0.47MF Z 1608                  C660   HCBK102KBA   C CHIP CERA   50V X7R 1000PF K 1608
D100    97P1R2KFA0   REMOCON HANDSET AS VR-F2KFA0 GY503A(AAA)                       AM06    97P93B2101   LABEL CD(PCB)        PAPER(13X25) ALL MODEL              C255   HCFH474ZBA   C CHIP CERA   25V Y5V 0.47MF Z 1608                  C662   HCFH104ZBA   C CHIP CERA   25V Y5V 0.1MF Z 1608
M01     97PP342013   PANEL FRONT AS          DF-L72B1N-BJ                           IC603   14SEK24D08   IC EEPROM            S-24C08ADP-01(8K DIP)               C256   HCFH474ZBA   C CHIP CERA   25V Y5V 0.47MF Z 1608                  C902   HCQK221JBA   C CHIP CERA   50V CH 220PF J 1608
Z03A    7173300811   SCREW TAPPTITE          TT2 RND 3*8 MFZN                       JK101   97P6318210   JACK PIN             DPAM-0274                           C257   HCFH474ZBA   C CHIP CERA   25V Y5V 0.47MF Z 1608                  C903   HCQK471JBA   C CHIP CERA   50V CH 470PF J 1608
M011    7174301011   SCREW TAPPTITE          TT2 RND 3X10 MFZN                      JK103   97Q6316200   JACK DIN             DUAE-9619                           C258   HCFH474ZBA   C CHIP CERA   25V Y5V 0.47MF Z 1608                  C904   HCQK471JBA   C CHIP CERA   50V CH 470PF J 1608
M021    7173401211   SCREW TAPPTITE          TT2 BIN 4X12 MFZN                      P201    97P62Y1318   CONN WAFER           DVW250 PLUG 2.5MM 8P                C268   HCBK682KBA   C CHIP CERA   50V X7R 6800PF K 1608                  C905   HCQK471JBA   C CHIP CERA   50V CH 470PF J 1608
M022    7174301211   SCREW TAPPTITE          TT2 RND 3X12 MFZN                      P202    97P62T14B2   CONN HOUSING         TMC-EX-B1 RECEP 2.0MM 2P            C274   HCBK682KBA   C CHIP CERA   50V X7R 6800PF K 1608                  C906   HCQK471JBA   C CHIP CERA   50V CH 470PF J 1608
M100    97QD021300   TOTAL DVD               BDR-L04P                               P301    97P62G06DA   CONN FFC             GF120-10S-TS 10P ST                 C278   HCFH104ZBA   C CHIP CERA   25V Y5V 0.1MF Z 1608                   C907   HCQK221JBA   C CHIP CERA   50V CH 220PF J 1608
M1000 PVDKARNB66     "DECK VCR AS(T50,F/L)   DRN-B610R NON,F/L                      P301A 97P0478200     CASE SHI PREAMP      ET T0.4                             C279   HCBK122KBA   C CHIP CERA   50V X7R 1200PF K 1608                  C909   HCBK182KBA   C CHIP CERA   X7R 50V 1800PF K 1608
A0100   97SA332200   MAIN BASE AS            T4.5-MECHA                             P601    97P62G06DM   CONN FFC             GF120-21S-TS 21P ST                 C281   HCFH104ZBA   C CHIP CERA   25V Y5V 0.1MF Z 1608                   C911   HCBK103KBA   C CHIP CERA   50V X7R 0.01MF K 1608
A0101   97S3102000   SCREW TAPPTITE          TT2 BIN-P 2.6X7 MFZN                   P603    97P62J012C   CONN B/B             JE612 PLUG 2.0 12P                  C285   HCFH104ZBA   C CHIP CERA   25V Y5V 0.1MF Z 1608                   C912   HCQK221JBA   C CHIP CERA   50V CH 220PF J 1608
A011    97P93B2102   LABEL CD(DECK)          PAPER(13X56) ALL MODEL                 PJ601   97P885X195   CONN AS              13H-13S 100MM                       C294   HCBK223KBA   C CHIP CERA   50V X7R 0.022MF K 1608                 C913   HCBK182KBA   C CHIP CERA   X7R 50V 1800PF K 1608
A0200   97SA316500   S SLANT POLE AS         T-MECHA                                PT01    97P6269000   CONN WAFER           00-8283-0612-00000                  C300   HCFH104ZBA   C CHIP CERA   25V Y5V 0.1MF Z 1608                   C914   HCQK221JBA   C CHIP CERA   50V CH 220PF J 1608
A0300   97SA316600   T SLANT POLE AS         T-MECHA                                RF101   97P7621300   TUNER 3 IN 1         LGTMI-US6                           C302   HCBK391KBA   C CHIP CERA   50V X7R 390PF K 1608                   C923   HCFH104ZBA   C CHIP CERA   25V Y5V 0.1MF Z 1608
A0400   97S8104200   MOTOR CAPSTAN           F2QVB37K                               S603    97P0S02500   SENSOR REEL          RPI-303N                            C303   HCFH104ZBA   C CHIP CERA   25V Y5V 0.1MF Z 1608                   C926   HCFH104ZBA   C CHIP CERA   25V Y5V 0.1MF Z 1608
A0600   97SA320500   AC HEAD AS              T-MECHA                                S604    97P0S02500   SENSOR REEL          RPI-303N                            C304   HCQK181JBA   C CHIP CERA   50V CH 180PF J 1608                    C927   HCFH104ZBA   C CHIP CERA   25V Y5V 0.1MF Z 1608
B0610   97SA326800   HEAD A/C                HVMXA1101A(ALPS)                       SW601 5SD0101100     SW DETE              MXS00921MPC0                        C311   HCFH104ZBA   C CHIP CERA   25V Y5V 0.1MF Z 1608                   C930   HCFH104ZBA   C CHIP CERA   25V Y5V 0.1MF Z 1608
A0601   7003300511   SCREW MACHINE           BIN 3X5 MFZN                           SW651 5S10104200     SW MODE              MMS01010ZMB0                        C318   HCBK103KBA   C CHIP CERA   50V X7R 0.01MF K 1608                  CS11   HCQK221JBA   C CHIP CERA   50V CH 220PF J 1608
A1000   97SA316800   L LOADING AS            T-MECHA                                T201    560202L692   COIL OSC             DEO-006                             C325   HCBK223KBA   C CHIP CERA   50V X7R 0.022MF K 1608                 CS5    HCQK471JBA   C CHIP CERA   50V CH 470PF J 1608
A1100   97SA316900   R LOADING AS            T-MECHA                                X101    5XJ18R4LAE   CRYSTAL QUARTZ       HC-49/S 18.43200MHZ 30PP            C328   HCBK103KBA   C CHIP CERA   50V X7R 0.01MF K 1608                  CS6    HCBK103KBA   C CHIP CERA   50V X7R 0.01MF K 1608
A1200   97S2709510   RACK LOADING            SECC T1.2                              Z0011   PVMPJ1N730   MAIN CHIP MOUNT A AS DF-L71D1N-BJ                        C329   HCFH104ZBA   C CHIP CERA   25V Y5V 0.1MF Z 1608                   CS7    HCQK471JBA   C CHIP CERA   50V CH 470PF J 1608
A1201   7008301911   SCREW MACHINE           WAS M3*19 MFZN                         C101    HCBK103KBA   C CHIP CERA          50V X7R 0.01MF K 1608               C330   HCBK473KBA   C CHIP CERA   50V X7R 0.047MF K 1608                 CS8    HCBK103KBA   C CHIP CERA   50V X7R 0.01MF K 1608
A1400   97S0904310   PLATE CONNECT-H         SECC T1.0                              C103    HCBK562KBA   C CHIP CERA          X7R 50V 5600PF K 1608


                                                                               70                                                                                                                                                     71
LOC     PARTS_CODE PARTS_NAME                   PARTS_DESCRIPTION                REMARK            LOC    PARTS_CODE PARTS_NAME   PARTS_DESCRIPTION      REMARK   LOC     PARTS_CODE PARTS_NAME             PARTS_DESCRIPTION       REMARK        LOC    PARTS_CODE PARTS_NAME    PARTS_DESCRIPTION           REMARK
IC101   1MSP3425G-   IC MTS                     MSP3425G-08                                        R254   HRFS393JBA   R CHIP     1/16 39K OHM J 1608             R439    HRFS229JBA   R CHIP               1/16 2.2 OHM J 1608                   C119   CEXF1C100A   C ELECTRO   16V RSM 10MF 5X7
IC102   1LA73054-E   IC CHIP VIDEO DRIVER       LA73054 6 CHANNEL Y/C-MAX 7/14MHZ LPF 36PIN        R255   HRFS272JBA   R CHIP     1/16 2.7K OHM J 1608            R441    HRFS182JBA   R CHIP               1/16 1.8K OHM J 1608                  C122   CEXF1A471V   C ELECTRO   10V RSS 470MF (8X11.5) TP
IC201   1SN74HCU0D   IC CHIP HEX INVERTER       SN74HCU04DR(SO14) 14 PIN                           R256   HRFS333JBA   R CHIP     1/16 33K OHM J 1608             R442    HRFS470JBA   R CHIP               1/16 47 OHM J 1608                    C123   CEXF1A471V   C ELECTRO   10V RSS 470MF (8X11.5) TP
IC251   1TDA9605H-   IC HI-FI                   TDA9605H                                           R257   HRFS470JBA   R CHIP     1/16 47 OHM J 1608              R444    HRFS103JBA   R CHIP               1/16 10K OHM J 1608                   C124   CEXF1A101V   C ELECTRO   10V RSS 100MF
IC253   1CD4052BMD   IC CHIP LOGIC              CD4052BM SOIC 16 REEL                              R258   HRFS103JBA   R CHIP     1/16 10K OHM J 1608             R445    HRFS242JBA   R CHIP               1/16 2.4K OHM J 1608                  C127   CEXF1C100A   C ELECTRO   16V RSM 10MF 5X7
IC301   1LA71207M-   IC A/V                     LA71207M QFP 80PIN                                 R261   HRFS242JBA   R CHIP     1/16 2.4K OHM J 1608            R446    HRFS242JBA   R CHIP               1/16 2.4K OHM J 1608                  C129   CEXF1H109A   C ELECTRO   50V RSM 1MF (4X7) TP
IC401   1CD4053BMD   IC CHIP LOGIC              CD4053BM SOIC 16 REEL                              R262   HRFS182JBA   R CHIP     1/16 1.8K OHM J 1608            R447    HRFS242JBA   R CHIP               1/16 2.4K OHM J 1608                  C130   CEXF1H339A   C ELECTRO   50V RSM 3.3MF 4X7
IC402   1CD4051BMD   IC CHIP LOGIC              CD4051BM SOIC 16 REEL                              R263   HRFS242JBA   R CHIP     1/16 2.4K OHM J 1608            R450    HRFS102JBA   R CHIP               1/16 1K OHM J 1608                    C132   CEXF1C220A   C ELECTRO   16V RSM 22MF (5X7)
IC601   168K37760H   IC MICOM                   M37760EFHGP                                        R264   HRFS182JBA   R CHIP     1/16 1.8K OHM J 1608            R451    HRFS203JBA   R CHIP               1/16 20K OHM J 1608                   C138   CEXF1C220A   C ELECTRO   16V RSM 22MF (5X7)
IC901   1PCM1754DD   IC CHIP DAC                PCM1754DBQ 16PIN SSOP REEL                         R281   HRFS153JBA   R CHIP     1/16 15K OHM J 1608             R452    HRFS203JBA   R CHIP               1/16 20K OHM J 1608                   C142   CEXF1A471V   C ELECTRO   10V RSS 470MF (8X11.5) TP
IC902   1PCM1802DD   IC CHIP AUDIO A/D CONVERTERPCM1802DBR SSOP 20PIN REEL                         R282   HRFS153JBA   R CHIP     1/16 15K OHM J 1608             R454    HRFS102JBA   R CHIP               1/16 1K OHM J 1608                    C145   CEXF1C100A   C ELECTRO   16V RSM 10MF 5X7
IC903   1NJM4580MC   IC CHIP AMP                NJM4580M                                           R283   HRFS102JBA   R CHIP     1/16 1K OHM J 1608              R455    HRFS242JBA   R CHIP               1/16 2.4K OHM J 1608                  C154   CEXF1H220V   C ELECTRO   50V RSS 22MF (5X11) TP
Q301    T2SA1037KB   TR CHIP                    2SA1037AKT146-R                                    R284   HRFS102JBA   R CHIP     1/16 1K OHM J 1608              R609    HRFS122JBA   R CHIP               1/16 1.2K OHM J 1608                  C158   CEXF1A101V   C ELECTRO   10V RSS 100MF
Q302    T2SC2412KB   TR CHIP                    2SC2412K-T146-BR                                   R285   HRFS203JBA   R CHIP     1/16 20K OHM J 1608             R610    HRFS102JBA   R CHIP               1/16 1K OHM J 1608                    C169   CEXF1C470A   C ELECTRO   16V RSM 47MF (5X7) TP
Q304    T2SC2412KB   TR CHIP                    2SC2412K-T146-BR                                   R286   HRFS203JBA   R CHIP     1/16 20K OHM J 1608             R611    HRFS102JBA   R CHIP               1/16 1K OHM J 1608                    C170   CEXF1A101V   C ELECTRO   10V RSS 100MF
Q401    T2SA1037KB   TR CHIP                    2SA1037AKT146-R                                    R296   HRFS153JBA   R CHIP     1/16 15K OHM J 1608             R614    HRFS201JBA   R CHIP               1/16 200 OHM J 1608                   C172   CEXF1C470A   C ELECTRO   16V RSM 47MF (5X7) TP
R107    HRFS101JBA   R CHIP                     1/16 100 OHM J 1608                                R297   HRFS153JBA   R CHIP     1/16 15K OHM J 1608             R615    HRFS273JBA   R CHIP               1/16 27K OHM J 1608                   C202   CEXF1C220A   C ELECTRO   16V RSM 22MF (5X7)
R108    HRFS101JBA   R CHIP                     1/16 100 OHM J 1608                                R301   HRFS363JBA   R CHIP     1/16 36K OHM J 1608             R629    HRFS103JBA   R CHIP               1/16 10K OHM J 1608                   C206   CEXF1C220A   C ELECTRO   16V RSM 22MF (5X7)
R112    HRFS750JBA   R CHIP                     1/16 75 OHM J 1608                                 R302   HRFS202JBA   R CHIP     1/16 2K OHM J 1608              R630    HRFS133JBA   R CHIP               1/16 13K OHM J 1608                   C208   CEXF1C220A   C ELECTRO   16V RSM 22MF (5X7)
R113    HRFS750JBA   R CHIP                     1/16 75 OHM J 1608                                 R303   HRFS182JBA   R CHIP     1/16 1.8K OHM J 1608            R632    HRFS000-BA   R CHIP               1/16 0 OHM 1608                       C210   CEXF1C470A   C ELECTRO   16V RSM 47MF (5X7) TP
R117    HRFS562JBA   R CHIP                     1/16 5.6K OHM J 1608                               R305   HRFS124JBA   R CHIP     1/16 120K OHM J 1608            R651    HRFS332JBA   R CHIP               1/16 3.3K OHM J 1608                  C212   CEXF1H479A   C ELECTRO   50V RSM 4.7MF 4X7
R118    HRFS750JBA   R CHIP                     1/16 75 OHM J 1608                                 R306   HRFS104JBA   R CHIP     1/16 100K OHM J 1608            R652    HRFS131JBA   R CHIP               1/16 130 OHM J 1608                   C215   CEXF1C470A   C ELECTRO   16V RSM 47MF (5X7) TP
R121    HRFS750JBA   R CHIP                     1/16 75 OHM J 1608                                 R308   HRFS182JBA   R CHIP     1/16 1.8K OHM J 1608            R653    HRFS131JBA   R CHIP               1/16 130 OHM J 1608                   C218   CEXF1C470A   C ELECTRO   16V RSM 47MF (5X7) TP
R124    HRFS562JBA   R CHIP                     1/16 5.6K OHM J 1608                               R309   HRFS182JBA   R CHIP     1/16 1.8K OHM J 1608            R901    HRFS102JBA   R CHIP               1/16 1K OHM J 1608                    C219   CEXF1C470A   C ELECTRO   16V RSM 47MF (5X7) TP
R139    HRFS101JBA   R CHIP                     1/16 100 OHM J 1608                                R310   HRFS684JBA   R CHIP     1/16 680K OHM J 1608            R904    HRFS103JBA   R CHIP               1/16 10K OHM J 1608                   C223   CEXF1H479A   C ELECTRO   50V RSM 4.7MF 4X7
R140    HRFS101JBA   R CHIP                     1/16 100 OHM J 1608                                R311   HRFS122JBA   R CHIP     1/16 1.2K OHM J 1608            R905    HRFS303JBA   R CHIP               1/16 30K OHM J 1608                   C224   CEXF1C470A   C ELECTRO   16V RSM 47MF (5X7) TP
R142    HRFS101JBA   R CHIP                     1/16 100 OHM J 1608                                R312   HRFS182JBA   R CHIP     1/16 1.8K OHM J 1608            R906    HRFS104JBA   R CHIP               1/16 100K OHM J 1608                  C225   CEXF1C470A   C ELECTRO   16V RSM 47MF (5X7) TP
R151    HRFS102JBA   R CHIP                     1/16 1K OHM J 1608                                 R313   HRFS822JBA   R CHIP     1/16 8.2K OHM J 1608            R907    HRFS104JBA   R CHIP               1/16 100K OHM J 1608                  C227   CEXF1C470A   C ELECTRO   16V RSM 47MF (5X7) TP
R152    HRFS243JBA   R CHIP                     1/16 24K OHM J 1608                                R319   HRFS103JBA   R CHIP     1/16 10K OHM J 1608             R908    HRFS303JBA   R CHIP               1/16 30K OHM J 1608                   C228   CEXF1C470A   C ELECTRO   16V RSM 47MF (5X7) TP
R153    HRFS303JBA   R CHIP                     1/16 30K OHM J 1608                                R322   HRFS132JBA   R CHIP     1/16 1.3K OHM J 1608            R909    HRFS103JBA   R CHIP               1/16 10K OHM J 1608                   C245   CEXF1C100A   C ELECTRO   16V RSM 10MF 5X7
R158    HRFS151JBA   R CHIP                     1/16 150 OHM J 1608                                R324   HRFS473JBA   R CHIP     1/16 47K OHM J 1608             R911    HRFS102JBA   R CHIP               1/16 1K OHM J 1608                    C248   CEXF1C100A   C ELECTRO   16V RSM 10MF 5X7
R159    HRFS151JBA   R CHIP                     1/16 150 OHM J 1608                                R331   HRFS363JBA   R CHIP     1/16 36K OHM J 1608             R917    HRFS302JBA   R CHIP               1/16 3K OHM J 1608                    C249   CEXF1C100A   C ELECTRO   16V RSM 10MF 5X7
R160    HRFS151JBA   R CHIP                     1/16 150 OHM J 1608                                R332   HRFS132JBA   R CHIP     1/16 1.3K OHM J 1608            R919    HRFS302JBA   R CHIP               1/16 3K OHM J 1608                    C250   CEXF1C100A   C ELECTRO   16V RSM 10MF 5X7
R161    HRFS151JBA   R CHIP                     1/16 150 OHM J 1608                                R335   HRFS104JBA   R CHIP     1/16 100K OHM J 1608            R921    HRFS223JBA   R CHIP               1/16 22K OHM J 1608                   C259   CEXF1C470A   C ELECTRO   16V RSM 47MF (5X7) TP
R162    HRFS151JBA   R CHIP                     1/16 150 OHM J 1608                                R336   HRFS473JBA   R CHIP     1/16 47K OHM J 1608             R923    HRFS472JBA   R CHIP               1/16 4.7K OHM J 1608                  C263   CEXF1C100A   C ELECTRO   16V RSM 10MF 5X7
R163    HRFS151JBA   R CHIP                     1/16 150 OHM J 1608                                R337   HRFS473JBA   R CHIP     1/16 47K OHM J 1608             R924    HRFS472JBA   R CHIP               1/16 4.7K OHM J 1608                  C264   CEXF1C470A   C ELECTRO   16V RSM 47MF (5X7) TP
R201    HRFS912JBA   R CHIP                     1/16 9.1K OHM J 1608                               R350   HRFS103JBA   R CHIP     1/16 10K OHM J 1608             R930    HRFS472JBA   R CHIP               1/16 4.7K OHM J 1608                  C265   CEXF1C470A   C ELECTRO   16V RSM 47MF (5X7) TP
R202    HRFS912JBA   R CHIP                     1/16 9.1K OHM J 1608                               R351   HRFS103JBA   R CHIP     1/16 10K OHM J 1608             R931    HRFS472JBA   R CHIP               1/16 4.7K OHM J 1608                  C266   CEXF1C470A   C ELECTRO   16V RSM 47MF (5X7) TP
R203    HRFS334JBA   R CHIP                     1/16 330K OHM J 1608                               R352   HRFS474JBA   R CHIP     1/16 470K OHM J 1608            R932    HRFS472JBA   R CHIP               1/16 4.7K OHM J 1608                  C267   CEXF1C100A   C ELECTRO   16V RSM 10MF 5X7
R204    HRFS181JBA   R CHIP                     1/16 180 OHM J 1608                                R353   HRFS474JBA   R CHIP     1/16 470K OHM J 1608            R934    HRFS472JBA   R CHIP               1/16 4.7K OHM J 1608                  C269   CEXF1C470A   C ELECTRO   16V RSM 47MF (5X7) TP
R205    HRFS273JBA   R CHIP                     1/16 27K OHM J 1608                                R354   HRFS474JBA   R CHIP     1/16 470K OHM J 1608            R940    HRFS472JBA   R CHIP               1/16 4.7K OHM J 1608                  C270   CEXF1C100A   C ELECTRO   16V RSM 10MF 5X7
R206    HRFS821JBA   R CHIP                     1/16 820 OHM J 1608                                R355   HRFS474JBA   R CHIP     1/16 470K OHM J 1608            R942    HRFS472JBA   R CHIP               1/16 4.7K OHM J 1608                  C271   CEXF1H229A   C ELECTRO   50V RSM 2.2MF (4X7) TP
R207    HRFS333JBA   R CHIP                     1/16 33K OHM J 1608                                R356   HRFS474JBA   R CHIP     1/16 470K OHM J 1608            R943    HRFS472JBA   R CHIP               1/16 4.7K OHM J 1608                  C272   CEXF1C100A   C ELECTRO   16V RSM 10MF 5X7
R208    HRFS622JBA   R CHIP                     1/16W 6.2K OHM J 1608                              R357   HRFS474JBA   R CHIP     1/16 470K OHM J 1608            RC02    HRFS209JBA   R CHIP               1/16 2 OHM J 1608                     C273   CEXF1C470A   C ELECTRO   16V RSM 47MF (5X7) TP
R210    HRFS101JBA   R CHIP                     1/16 100 OHM J 1608                                R358   HRFS474JBA   R CHIP     1/16 470K OHM J 1608            RC04    HRFS102JBA   R CHIP               1/16 1K OHM J 1608                    C275   CEXF1C100A   C ELECTRO   16V RSM 10MF 5X7
R212    HRFS751JBA   R CHIP                     1/16 750 OHM J 1608                                R359   HRFS474JBA   R CHIP     1/16 470K OHM J 1608            RC05    HRFS209JBA   R CHIP               1/16 2 OHM J 1608                     C277   CEXF1C100A   C ELECTRO   16V RSM 10MF 5X7
R214    HRFS391JBA   R CHIP                     1/16 390 OHM J 1608                                R360   HRFS102JBA   R CHIP     1/16 1K OHM J 1608              RJ019   HRFS000-BA   R CHIP               1/16 0 OHM 1608                       C280   CEXF1C470A   C ELECTRO   16V RSM 47MF (5X7) TP
R215    HRFS101JBA   R CHIP                     1/16 100 OHM J 1608                                R361   HRFS101JBA   R CHIP     1/16 100 OHM J 1608             RJ18    HRFS000-BA   R CHIP               1/16 0 OHM 1608                       C290   CEXF1C470A   C ELECTRO   16V RSM 47MF (5X7) TP
R221    HRFS103JBA   R CHIP                     1/16 10K OHM J 1608                                R402   HRFS242JBA   R CHIP     1/16 2.4K OHM J 1608            RS4     HRFS102JBA   R CHIP               1/16 1K OHM J 1608                    C301   CEXF1H109A   C ELECTRO   50V RSM 1MF (4X7) TP
R248    HRFS512JBA   R CHIP                     1/16 5.1K OHM J 1608                               R403   HRFS242JBA   R CHIP     1/16 2.4K OHM J 1608            Z0012   PVMPJRN730   PCB MAIN RADIAL AS   DF-L71D1N-BJ                          C305   CEXF1H109A   C ELECTRO   50V RSM 1MF (4X7) TP
R249    HRFS512JBA   R CHIP                     1/16 5.1K OHM J 1608                               R404   HRFS203JBA   R CHIP     1/16 20K OHM J 1608             C102    CEXF1C470A   C ELECTRO            16V RSM 47MF (5X7) TP                 C306   CEXF1C470A   C ELECTRO   16V RSM 47MF (5X7) TP
R250    HRFS225JBA   R CHIP                     1/16 2.2M OHM J 1608                               R406   HRFS242JBA   R CHIP     1/16 2.4K OHM J 1608            C107    CEXF1C100A   C ELECTRO            16V RSM 10MF 5X7                      C307   CEXF1C220A   C ELECTRO   16V RSM 22MF (5X7)
R251    HRFS225JBA   R CHIP                     1/16 2.2M OHM J 1608                               R407   HRFS101JBA   R CHIP     1/16 100 OHM J 1608             C108    CEXF1C100A   C ELECTRO            16V RSM 10MF 5X7                      C308   CEXF1H100A   C ELECTRO   50V RSM 10MF (5X7) TP
R252    HRFS333JBA   R CHIP                     1/16 33K OHM J 1608                                R408   HRFS751JBA   R CHIP     1/16 750 OHM J 1608             C115    CEXF1C470A   C ELECTRO            16V RSM 47MF (5X7) TP                 C309   CEXF1H109A   C ELECTRO   50V RSM 1MF (4X7) TP
R253    HRFS272JBA   R CHIP                     1/16 2.7K OHM J 1608                               R438   HRFS229JBA   R CHIP     1/16 2.2 OHM J 1608             C118    CEXF1C100A   C ELECTRO            16V RSM 10MF 5X7                      C312   CEXF1H100A   C ELECTRO   50V RSM 10MF (5X7) TP




                                                                                              72                                                                                                                                             73
LOC    PARTS_CODE PARTS_NAME       PARTS_DESCRIPTION          REMARK        LOC     PARTS_CODE PARTS_NAME            PARTS_DESCRIPTION           REMARK   LOC    PARTS_CODE PARTS_NAME        PARTS_DESCRIPTION          REMARK        LOC    PARTS_CODE PARTS_NAME        PARTS_DESCRIPTION   REMARK
C313   CEXF1H100A   C ELECTRO      50V RSM 10MF (5X7) TP                    L111    5CPX100J2T   COIL PEAKING        10UH(BRN-BLK)                        C332   CCZF1H473Z   C CERA          50V F 0.047MF Z                          R130   RD-AZ101J-   R CARBON FILM   1/6 100 OHM J
C314   CEXF1H109A   C ELECTRO      50V RSM 1MF (4X7) TP                     L201    5CPX101J2T   COIL PEAKING        100UH(BRN-BRN)                       C333   CBZP1C103M   C CERA SEMI     16V Y5S 0.01MF M (AXIAL)                 R131   RD-AZ101J-   R CARBON FILM   1/6 100 OHM J
C315   CEXF1H109A   C ELECTRO      50V RSM 1MF (4X7) TP                     L222    5CPX100J2T   COIL PEAKING        10UH(BRN-BLK)                        C337   CBZP1C103M   C CERA SEMI     16V Y5S 0.01MF M (AXIAL)                 R143   RD-AZ102J-   R CARBON



◦ Jabse Service Manual Search 2020 ◦ Jabse Pravopis ◦ Other service manual resources online : FixyaeServiceinfo
