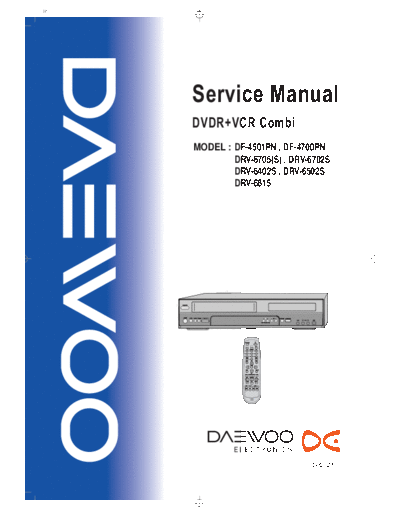

Image preview - the first page of the document
service


>> Download service documenatation <<

Text preview - extract from the document
DF-4501PN VE2.5 COMBO SVC   2007.10.9 12:59 PM      ` i   mac001   1200DPI 80LPI




                                                                   Service Manual
                                                                   DVDR+VCR Combi
                                                                   MODEL : DF-4501PN , DF-4700PN
                                                                           DRV-6705(S) , DRV-6702S
                                                                           DRV-6402S , DRV-6502S
                                                                           DRV-6815




                                                                                             Sep. 2007
DF-4501PN VE2.5 COMBO SVC      2007.10.9 12:59 PM          ` 1    mac001   1200DPI 80LPI




         CONTENTS

      SPECIFICATIONS ...............................................................................................................2
      TROUBLE SHOOTING....................................................................................................................3
      WAVEFORMS ................................................................................................................................24
      BLOCK DIAGRAM ........................................................................................................................27
      CIRCUIT DIAGRAM.......................................................................................................................28
      PCB CIRCUIT BOARD..................................................................................................................46
      INSTRUMENT DISASSEMBLY .....................................................................................................50
      ELECTRICAL PARTSLIST............................................................................................................51




                                                                             1
DF-4501PN VE2.5 COMBO SVC        2007.10.9 12:59 PM       ` 2    mac001   1200DPI 80LPI




         SPECIFICATIONS

         General                                                          Dynamic range                     More than 90 dB
         Power requirements 200--240V~, 50/60 Hz                          Resolution                        Over 500 lines (HQ Recording)
         Power consumption Operation : Maximum 26W
                               Standby : 5W                               Inputs
         Dimensions(approx.) 430 *92 *312 (w*h*d)                         Antenna In                        Antenna or CATV input, 75
         Mass (approx.)        4.96 Kg                                    Video In                          1.0 Vp-p 75 , sync negative,
         Operating temperature 5
