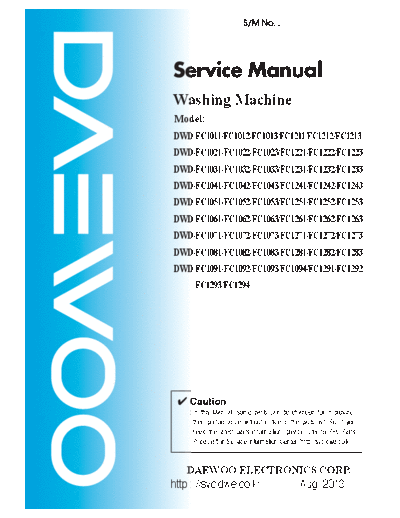

Image preview - the first page of the document
DAEWOO_DWD-FC_series_from-DWD-FC1011_to-DWD-FC1294


>> Download DAEWOO_DWD-FC_series_from-DWD-FC1011_to-DWD-FC1294 documenatation <<

Text preview - extract from the document
                        S/M No. :




Service Manual
Washing Machine
Model:
DWD-FC1011/FC1012/FC1013/FC1211/FC1212/FC1213
DWD-FC1021/FC1022/FC1023/FC1221/FC1222/FC1223
DWD-FC1031/FC1032/FC1033/FC1231/FC1232/FC1233
DWD-FC1041/FC1042/FC1043/FC1241/FC1242/FC1243
DWD-FC1051/FC1052/FC1053/FC1251/FC1252/FC1253
DWD-FC1061/FC1062/FC1063/FC1261/FC1262/FC1263
DWD-FC1071/FC1072/FC1073/FC1271/FC1272/FC1273
DWD-FC1081/FC1082/FC1083/FC1281/FC1282/FC1283
DWD-FC1091/FC1092/FC1093/FC1094/FC1291/FC1292/
    FC1293/FC1294




  Caution
   : In this Manual, some parts can be changed for improving,
     their performance without notice in the parts list. So, if you
     need the latest parts information, please refer to PPL(Parts
     Price List) in Service Information Center (http://svc.dwe.co.kr).


    DAEWOO ELECTRONICS CORP.
http : //svc.dwe.co.kr Aug. 2013
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER




                           Contents
         WASHING MACHINE

                           1. SPECIFICATIONS....................................................................................................................2


                           2. INSTALLATION .....................................................................................................................10
                                  Removing transit bolts ....................................................................................................10
                                  Installation place requirement.........................................................................................11
                                  BS Plug Safety Details (For U.K. User)..........................................................................11
                                  Connecting inlet hose .....................................................................................................12
                                  Installation of drain hose.................................................................................................13
                                  Level adjustment.............................................................................................................14


                           3. MAINTENANCE .....................................................................................................................15
                                 Cleaning your washer .....................................................................................................15
                                 Cold condition .................................................................................................................15
                                 Cleaning the water inlet filter ..........................................................................................16
                                 Cleaning the drain pump filter.........................................................................................16
                                 Cleaning the detergent case...........................................................................................17
                                 Cleaning the washing drum ............................................................................................17


                           4. DIRECTION FOR DISASSEMBLY........................................................................................18


                           5. EXPLODE VIEW AND PARTS LIST.....................................................................................21


                           6. FUNCTIONS OF THE CONTROL PANEL............................................................................39


                           7. FUNCTIONS OF THE CONTROLLER..................................................................................57


                           8. FUNCTION OF THE CONVENIENT SERVICE.....................................................................60


                           9. TROUBLESHOOTING GUIDE ..............................................................................................62


                           10. WIRING DIAGRAM ..............................................................................................................66
    1. SPECIFICATIONS

     DWD-FC1X1X SERIES
                                                  HOT       COLD
                                              (OPTION)



                         INLET HOSE




             DETERGENT CASE

                                                                                POWER CORD



                                                                               CONTROL PANEL




            DOOR

                                                                             HOSE DRAIN




                                       LOWER COVER                  ADJUSTABLE LEG




     DWD-FC1X2X SERIES
                                                     HOT           COLD
                                                 (OPTION)



                              INLET HOSE




                   DETERGENT CASE

                                                                                   POWER CORD



                                                                                  CONTROL PANEL




                DOOR

                                                                                 HOSE DRAIN




                                           LOWER COVER                    ADJUSTABLE LEG



2   SPECIFICATIONS
 DWD-FC1X3X SERIES
                                             HOT                  COLD
                                         (OPTION)




                         INLET HOSE




         DETERGENT CASE



                                                                                        POWER CORD




                                                                                         CONTROL PANEL




         DOOR

                                                                                 HOSE DRAIN




                                      LOWER COVER
                                                                          ADJUSTABLE LEG



                                               DWD-FC1011/FC1012/FC1013/FC1211/FC1212/FC1213
                 MODEL                         DWD-FC1021/FC1022/FC1023/FC1221/FC1222/FC1223
                                               DWD-FC1031/FC1032/FC1033/FC1231/FC1232/FC1233

   POWER SOURCE                                                     220-240V, 50Hz
   DiMENSION (WXDXH)                                          595mm x 540mm x 850mm
   WEIGHT                                                     59Kg(NET) / 63Kg(GROSS)
   WATER CONSUMPTION                                                     47~59
   POWER CONSUMPTION                                                     2200W
   MAXIMUM MASS                  WASH                                6 / 6.5 / 7 kg
   OF TEXTILE                    SPIN                                6 / 6.5 / 7 kg
   WASHER TYPE                                  DRUM TYPE (FRONT LOADING WASHING MACHINE)
   OPERATING WATER PRESSURE                                  0.3 ~ 8kgf/cm2 (29.4 ~ 784kPa)



  Accessories
            Inlet hose                              Manual                            Cap holder(3EA)




                                                                                                SPECIFICATIONS   3
     DWD-FC1X4X SERIES
                                                      HOT                 COLD
                                                  (OPTION)




                                  INLET HOSE




                 DETERGENT CASE



                                                                                               POWER CORD




                                                                                                CONTROL PANEL




                     DOOR

                                                                                           HOSE DRAIN




                                               LOWER COVER
                                                                                 ADJUSTABLE LEG



                       MODEL                                 DWD-FC1041/1042/1043/1241/1242/1243
      POWER SOURCE                                                    220-240V, 50/60Hz
      DiMENSION (WXDXH)                                           595mm x 540mm x 850mm
      WEIGHT                                                      59Kg(NET) / 63Kg(GROSS)
      WATER CONSUMPTION                                                    47~59
      POWER CONSUMPTION                                                     2200W
      MAXIMUM MASS                   WASH                                6 / 6.5 / 7 kg
      OF TEXTILE                     SPIN                                6 / 6.5 / 7 kg
      WASHER TYPE                                    DRUM TYPE (FRONT LOADING WASHING MACHINE)
      OPERATING WATER PRESSURE                                   0.3 ~ 8kgf/cm2 (29.4 ~ 784kPa)




     Accessories
                Inlet hose                              Manual                            Cap holder(3EA)




4   SPECIFICATIONS
 DWD-FC1X5X SERIES
                                         HOT
                                     (OPTION)               COLD




                                                                               POWER CORD




                                                                              CONTROL PANEL


          DOOR
                                                                             HOSE DRAIN




                                                                   ADJUSTABLE LEG
                       LOWER COVER



               MODEL                            DWD-FC1051/1052/1053/1251/1252/1253
 POWER SOURCE                                            220-240V, 50/60Hz
 DiMENSION (WXDXH)                                    595mm x 540mm x 850mm
 WEIGHT                                              59Kg(NET) / 63Kg(GROSS)
 WATER CONSUMPTION                                            47~59
 POWER CONSUMPTION                                             2200W
 MAXIMUM MASS           WASH                                6 / 6.5 / 7 kg
 OF TEXTILE             SPIN                                6 / 6.5 / 7 kg
 WASHER TYPE                         DRUM TYPE (FRONT LOADING WASHING MACHINE)
 OPERATING WATER PRESSURE                           0.3 ~ 8kgf/cm2 (29.4 ~ 784kPa)




 Accessories
          Inlet hose                    Manual                           Cap holder(3EA)




                                                                                          SPECIFICATIONS   5
     DWD-FC1X6X SERIES
                                                     HOT
                                                 (OPTION)           COLD



                              INLET HOSE




             DETERGENT CASE

                                                                                       POWER CORD




                                                                                       CONTROL PANEL


                 DOOR
                                                                                      HOSE DRAIN




                                                                            ADJUSTABLE LEG
                                   LOWER COVER



                     MODEL                              DWD-FC1061/1062/1063/1261/1262/1263
      POWER SOURCE                                               220-240V, 50/60Hz
      DiMENSION (WXDXH)                                       595mm x 540mm x 850mm
      WEIGHT                                                 59Kg(NET) / 63Kg(GROSS)
      WATER CONSUMPTION                                               47~59
      POWER CONSUMPTION                                                2200W
      MAXIMUM MASS                 WASH                             6 / 6.5 / 7 kg
      OF TEXTILE                   SPIN                             6 / 6.5 / 7 kg
      WASHER TYPE                                DRUM TYPE (FRONT LOADING WASHING MACHINE)
      OPERATING WATER PRESSURE                              0.3 ~ 8kgf/cm2 (29.4 ~ 784kPa)




     Accessories
                Inlet hose                         Manual                        Cap holder(3EA)




6   SPECIFICATIONS
 DWD-FC1X7X SERIES
                                              HOT
                                          (OPTION)              COLD



                       INLET HOSE




     DETERGENT CASE

                                                                                      POWER CORD




                                                                                      CONTROL PANEL


          DOOR
                                                                                     HOSE DRAIN




                                                                         ADJUSTABLE LEG
                            LOWER COVER


                 MODEL                               DWD-FC1071/1072/1073/1271/1272/1273
 POWER SOURCE                                                 220-240V, 50/60Hz
 DiMENSION (WXDXH)                                        595mm x 540mm x 850mm
 WEIGHT                                                   59Kg(NET) / 63Kg(GROSS)
 WATER CONSUMPTION                                                  47~59
 POWER CONSUMPTION                                                  2200W
 MAXIMUM MASS                 WASH                              6 / 6.5 / 7 / 8 kg
 OF TEXTILE                   SPIN                              6 / 6.5 / 7 / 8 kg
 WASHER TYPE                               DRUM TYPE (FRONT LOADING WASHING MACHINE)
 OPERATING WATER PRESSURE                                0.3 ~ 8kgf/cm2 (29.4 ~ 784kPa)




 Accessories
          Inlet hose                         Manual                            Cap holder(3EA)




                                                                                                  SPECIFICATIONS   7
     DWD-FC1X8X SERIES
                                                 HOT
                                             (OPTION)           COLD



                              INLET HOSE




             DETERGENT CASE

                                                                                       POWER CORD




                                                                                       CONTROL PANEL



                 DOOR
                                                                                     HOSE DRAIN




                                                                            ADJUSTABLE LEG
                               LOWER COVER



                     MODEL                   DWD-FC1081/FC1082/FC1083/FC1084/FC1281/FC1282/FC1283
      POWER SOURCE                                            220-240V, 50/60Hz
      DiMENSION (WXDXH)                                    595MM x 590MM x 850MM
      WEIGHT                                              59Kg(NET) / 63Kg(GROSS)
      WATER CONSUMPTION                                                50
      POWER CONSUMPTION                                             2200W
      MAXIMUM MASS                 WASH                         6 / 6.5 / 7 / 8 kg
      OF TEXTILE                   SPIN                         6 / 6.5 / 7 / 8 kg
      WASHER TYPE                             DRUM TYPE (FRONT LOADING WASHING MACHINE)
      OPERATING WATER PRESSURE                           0.3 ~ 8kgf/cm2 (29.4 ~ 784kPa)




     Accessories
                Inlet hose                      Manual                           Cap holder(3EA)




8   SPECIFICATIONS
 DWD-FC1X9X SERIES




                       INLET HOSE




          DETERGENT CASE



                                                                                        POWER CORD



                                                                                        CONTROL PANEL




          DOOR


                                                                                        HOSE DRAIN




                                       LOWER COVER
                                                                              ADJUSTABLE LEG




                 MODEL                        DWD-FC1091/FC1092/FC1093/FC1094/FC1291/FC1292/FC1293/FC1294
 POWER SOURCE                                                    220-240V, 50/60Hz
 DiMENSION (WXDXH)                                            595MM x 590MM x 850MM
 WEIGHT                                                      59Kg(NET) / 63Kg(GROSS)
 WATER CONSUMPTION                                                       50
 POWER CONSUMPTION                                                     2200W
 MAXIMUM MASS                   WASH                               6 / 6.5 / 7 / 8 kg
 OF TEXTILE                     SPIN                               6 / 6.5 / 7 / 8 kg
 WASHER TYPE                                    DRUM TYPE (FRONT LOADING WASHING MACHINE)
 OPERATING WATER PRESSURE                                   0.3 ~ 8kgf/cm2 (29.4 ~ 784kPa)




 Accessories
          Inlet hose                             Manual                           Cap holder(3EA)




                                                                                                     SPECIFICATIONS   9
     2. INSTALLATION

      Transit bolts
        The appliance is fitted with transit bolts to prevent internal damage during transport.


      Removing transit bolts
        1. To prevent internal damage during transport, the          2. Unscrew the 3 bolts with the spanner supplied,
           special 3 bolts are locked. Before operating the             and take out the 3 bolts with the rubber bungs.
           washer, remove the bolts along with the rubber               Keep the 3 bolts and the spanner for future use.
           bungs.
