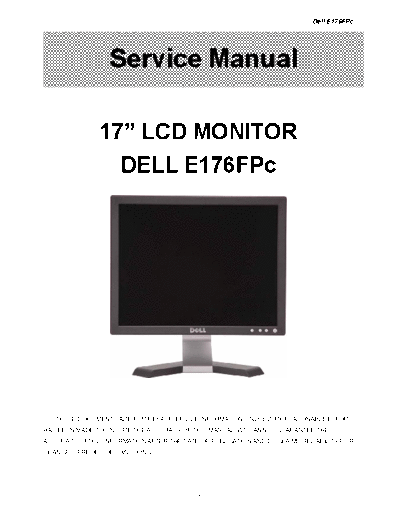

Image preview - the first page of the document
>> Download dell_e176fpc documenatation <<Text preview - extract from the document Dell E176FPc
Service Manual
17" LCD MONITOR
DELL E176FPc
THESE DOCUMENTS ARE FOR REPAIR SERVICE INFORMATION ONLY.EVERY REASONABLE EFFORT
HAS BEEN MADE TO ENSURE THE ACCURACY OF THIS MANUAL; WE CANNOT GUARANTEE THE
ACCURACY OFTHIS INFORMATION AFTER THE DATE OF PUBLICATION AND DISCLAIMS RELIABILITY FOR
CHANGES, ERRORS OR OMISSIONS.
1
Dell E176FPc
Revision List
Revision Release Date Revise history TPV model
T780KCDHK8DLNP
A00 Aug.-26-2005 Initial Release T780KGDHK8DZNP
T780KGDHK8DENP
A01 Mar.-31-2006 Add" Definition Of Pixel Defects"
Add" Max Brightness measurement"
A02 April-25-2006
on Page49
A03 Mar.-30-2007 Add Mechanical Instruction in item 6
Add the CBPC,PWPC Version
A04 Dec.-20--2007 information in BOM list All
2
Dell E176FPc
Table of contents
Table of contents ---------------------------------------------------------------------------------------------------------------- 03
1. Monitor Specifications ------------------------------------------------------------------------------------------------------04
2. LCD Monitor Description -------------------------------------------------------------------------------------------------- 05
3. Operation instructions --------------------------------------------------------------------------------------------------06
3.1 General Instructions ------------------------------------------------------------------------------------------------06
3.2 Control buttons --------------------------------------------------------------------------------------------------------06
3.3 On Screen Menu/Display (OSD) ---------------------------------------------------------------------------------------07
3.4 Adjusting the Picture - ----------------------------------------------------------------------------------------------08
4. Input/Output Specification ---------------------------------------------------------------------------------------------------13
4.1 Input Signal Connector --------------------------------------------------------------------------------------------13
4.2 Factory Preset Display Modes ----------------------------------------------------------------------------------------- 13
4.3 Power Supply Requirements ---------------------------------------------------------------------------------------- 14
4.4 Panel Specification ----------------------------------------------------------------------------------------------------- 15
5. Block Diagram ----------------------------------------------------------------------------------------------------------------18
5.1 Monitor Exploded View -----------------------------------------------------------------------------------------------18
5.2 Software Flow Chart ----------------------------------------------------------------------------------------------------19
5.3 Electrical Block Diagram ----------------------------------------------------------------------------------------------21
6. Mechanical Instruction ------------------------------------------------------------------------------------------------------23
7. Schematic Diagram -------------------------------------------------------------------------------------------------------------28
7.1 Main Board ---------------------------------------------------------------------------------------------------------------28
7.2 Power Board ---------------------------------------------------------------------------------------------------------------33
8. Layout ---------------------------------------------------------------------------------------------------------------------------- 35
8.1 Main Board ---------------------------------------------------------------------------------------------------------------- 35
8.2 Power Board -------------------------------------------------------------------------------------------------------------- 37
8.3 Key Board ----------------------------------------------------------------------------------------------------------------- 40
9. Maintainability ----------------------------------------------------------------------------------------------------------- 41
9.1 Equipments and Tools Requirement -------------------------------------------------------------------------------- 41
9.2 Trouble Shooting ------------------------------------------------------------------------------------------------------ 42
10. White Balance Adjustment --------------------------------------------------------------------------------------------- 48
11. EDID Content --------------------------------------------------------------------------------------------------------------- 49
12. ISP User Manual --------------------------------------------------------------------------------------------------------- 50
12.1 Connect ISP Writer preparation action ---------------------------------------------------------------------- 50
12.2 To Use ISP WRITER ------------------------------------------------------------------------------------------------ 51
12.3 Executing ISP -------------------------------------------------------------------------------------------------------------55
13. Check List --------------------------------------------------------------------------------------------------------------------56
14. BOM List ----------------------------------------------------------------------------------------------------------------- 59
15. Definition Of Pixel Defects-------------------------------------------------------------------------------------------------- 70
3
Dell E176FPc
1. Monitor Specifications
Screen type Active matrix - TFT LCD
LM170E01-TLB3/TLB4 (LPL)
Panel Type
CLAA170EA07 (CPT)
Size 430mm(17.0")
LCD Panel
Pixel pitch 0.264mm(H) x 0.264mm(V)
Viewable angle LM170E01-TLB3/TLB4: 70
