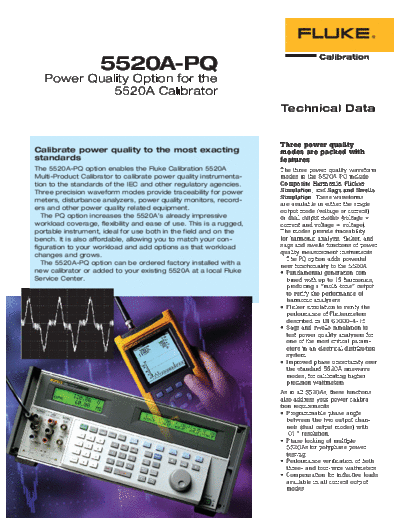

Image preview - the first page of the document



>> Download 1580738E_w documenatation <<

Text preview - extract from the document

                    5520A-PQ
   Power Quality Option for the
             5520A Calibrator
                                                                    Technical Data


                                                                    Three power quality
Calibrate power quality to the most exacting                        modes are packed with
standards                                                           features
The 5520A-PQ option enables the Fluke Calibration 5520A             The three power quality waveform
Multi-Product Calibrator to calibrate power quality instrumenta-    modes in the 5520A-PQ include
tion to the standards of the IEC and other regulatory agencies.     Composite Harmonic, Flicker
Three precision waveform modes provide traceability for power       Simulation, and Sags and Swells
meters, disturbance analyzers, power quality monitors, record-      Simulation. These waveforms
                                                                    are available in either the single
ers and other power quality related equipment.                      output mode (voltage or current)
   The PQ option increases the 5520A's already impressive           or dual output modes (voltage +
workload coverage, flexibility and ease of use. This is a rugged,   current and voltage + voltage).
portable instrument, ideal for use both in the field and on the     The modes provide traceability
bench. It is also affordable, allowing you to match your con-       for harmonic analysis, flicker, and
figuration to your workload and add options as that workload        sags and swells functions of power
changes and grows.                                                  quality measurement instruments.
                                                                      The PQ option adds powerful
   The 5520A-PQ option can be ordered factory installed with a      new functionality to the 5520A:
new calibrator or added to your existing 5520A at a local Fluke
