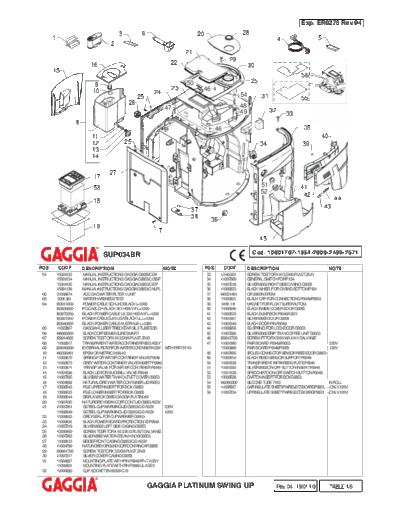

Image preview - the first page of the document
![er0278_rev.04__inglese_[1]](/pics/5c14a4054831a.gif)
>> Download er0278_rev.04__inglese_[1] documenatation <<
Text preview - extract from the document
Exp. ER0278 Rev.04
3 6 20 28
1 4 5
2
21
22 29
16 30
15
56
50 25
9
10 23 46
24 54
25 31 55
26
47 48
49 32 33
8
46 35
11 40
12 25 34 39
13
14
27
17
53 51 41
52 42
18 44
43
37
38
36
19
7
45
SUP034BR Cod. 10001707-1954-2009-2499-2571
POS CODE DESCRIPTION NOTE POS CODE DESCRIPTION NOTE
01 15001133 MANUAL INSTRUCTIONS GAGGIA G0053/C D/I 33 U140.001 SCREW TCB TORX 10 3,5X40 PLAST.ZN-N
15001134 MANUAL INSTRUCTIONS GAGGIA G0053/C GB/F 34 11007060 GENERAL SWITCH FOR P124
15001135 MANUAL INSTRUCTIONS GAGGIA G0053/C E/P 35 11007218 SILVER/8002 RIGHT SIDE CASING G0053
15001136 MANUAL INSTRUCTIONS GAGGIA G0053/C NL/PL 36 11000223 BLACK WHEEL FOR CASING BOTTOM P124
02 21000974 ACC GAG WATER FILTER 1 UNIT 37 140321461 OR 2018 IN EPDM
03 0301.961 WATER HARDNESS TEST 38 11003821 BLACK CAP FOR CONNECTIONS P0049/P0053
04 183911050 POWER CABLE SCHUKO BLACK L=1200 39 9161.111 MAGNET FOR FLOAT SUPERAUTOM.
183930650 PO.CABL.CH BLACK 3X1 H05VV-F L=1200 40 11005046 BLACK INSIDE COVER DOOR G0053
183970350 BLACK POWER CABLE UK 3X1 H05VV-F L=1200 41 11003533 BLACK DUMP BOX P0049 ASSY
183921950 POWER CABLE SJT3 USA BLACK UL L=1200 42 11007267 SILVER/8002 DOOR G0053
183940650 BLACK POWER CABLE AUSTRALIA L=1200 43 11001340 BLACK DOOR PIN P0049
05 11022867 GAGGIA KLUBER TRIBOSTAR SIL 2 TUBE 5GR. 44 11008956 SS SPRING FOR LOCK DOOR G0053
06 146680850 BLACK COFFEE MEASURE SMART 45 11007266 SILVER/8002 DRIP TRAY COFFEE UNIT G0053
07 129914002 SCREW TCB TORX 10 3,5X16 PLAST.ZN-B 46 129912702 SCREW PT TORX 3X10 WN 1411 GALVANIZ
08 11002017 TRANSPARENT WATER CONTAINER P0053 ASSY 47 11001360 PWR BOARD P0049/P0053 230V
09 224640200 EXTERNAL FILTER FOR WATER CONTAINER ASSY WITH PART.N◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
