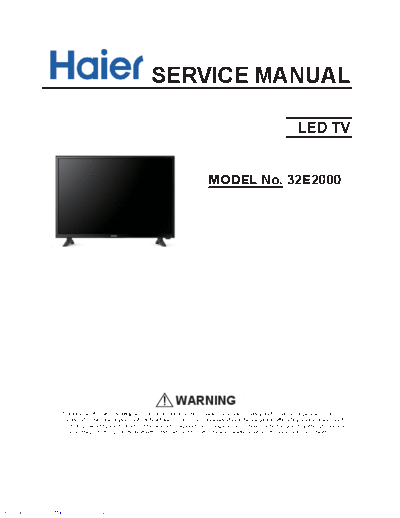

Image preview - the first page of the document
HAIER+32E2000


>> Download HAIER+32E2000 documenatation <<

Text preview - extract from the document
                                                                  SERVICE MANUAL

                                                                                                                                      LED TV


                                                                                            MODEL No. 32E2000




                                                                             WARNING
                        This service information is designed for experienced repair technicians only and is not designed for use by the general public.
                        It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
                        Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
                        or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.




Downloaded from www.Manualslib.com manuals search engine
                                                                                         Service Manual
                                                                                         Model No.: 32E2000




                                      Table of Contents
                    1. General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
                                   1-1. General Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . .3
                                   1-2. Important Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
                                   1-3. How to Read this Service Manual . . . . . . . . . . . . . . . .6
                    2. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
                    3. Location of Controls and Components . . . . . . . . . . . . . . . . . .8
                                   3-1 Component Location . . . . . . . . . . . . . . . . . . . . . . . . . . .8
                                   3-2 Main Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
                                   3-3 LED Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
                    4. Disassembly Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
                    5. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
                    6. Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
                                   6-1 Power Connection . . . . . . . . . . . . . . . . . . . . . . . . . . .18
                                   6-2 External Equipment Connections . . . . . . . . . . . . . . . .19
                    7. Operation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
                                   7-1 Side Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
                                   7-2 Rear Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
                                   7-3 Using Remote Control . . . . . . . . . . . . . . . . . . . . . . . .27
                    8. Electrical Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
                                   8-1 System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . .28
                                   8-2 Circuit Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
                                   8-3 Wiring Connection Diagram . . . . . . . . . . . . . . . . . . . .35




                                                                   -1-
Downloaded from www.Manualslib.com manuals search engine
                     Service Manual
                     Model No.:32E2000



                    9. Measurements and Adjustment . . . . . . . . . . . . . . . . . . . . . . .36
                                   9-1 Operation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
                                   9-2 Factory Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
                                   9-3 Software Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
                                   9-4 Hotel Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
                    10. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
                                   10-1 Simple Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
                                   10-2 Power supply                     . . . . . . . . . . . . . . . . . . . . . . . .47
                                   10-3 Display                          . . . . . . . . . . . . . . . . . . . . . . . .49
                                   10-4 Audio                   . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
                                   10-5 Function                . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51




                                                                   -2-
Downloaded from www.Manualslib.com manuals search engine
                                                                                                 Service Manual
                                                                                                 Model No.: 32E2000



                    1. General Information
                    1-1. General Guidelines
                               When servicing, observe the original lead dress. If a short circuit is found, replace all parts
                               which have been overheated or damaged by the short circuit.
                               After servicing, see to it that all the protective devices such as insulation barriers, insulation
                               papers shields are properly installed.
                               After servicing, make the following leakage current checks to prevent the customer from
                               being exposed to shock hazards.
                               1) Leakage Current Cold Check
                               2) Leakage Current Hot Check
                               3) Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive

                    1-2. Important Notice
                               1-2-1. Follow the regulations and warnings
                               Most important thing is to list up the potential hazard or risk for the service personnel to
                               open the units and disassemble the units. For example, we need to describe properly how
                               to avoid the possibility to get electrical shock from the live power supply or charged
                               electrical parts (even the power is off).
                                          This symbol indicates that high voltage is present inside.It is dangerous to make
                                          any king of contact with any inside part of this product.
                                          This symbol indicates that there are important operating and maintenance
                                          instructions in the literature accompanying the appliance.
                               1-2-2. Be careful to the electrical shock
                               To prevent damage which might result in electric shock or fire, do not expose this TV set to
                               rain or excessive moisture. This TV must not be exposed to dripping or splashing water,
                               and objects filled with water, such as vases, must be placed on top or above the TV.

                               1-2-3. Electrostatic discharge (ESD)
                               Some semiconductor (solid state) devices can be damaged easily by static electricity. Such
                               components commonly are called Electrostatically Sensitive (ES) Devices. The following
                               techniques should be used to help reduce the incidence of component damage caused by
                               electrostatic discharge (ESD).
                               1-2-4. About lead free solder (PbF)
                               This product is manufactured using lead-free solder as a part of a movement within the
                               consumer products industry at large to be environmentally responsible. Lead-free solder
                               must be used in the servicing and repairing of this product.
                               1-2-5. Use the specified parts
                               Special parts which have purposes of fire retardant (resistors), high-quality sound
                               (capacitors), low noise (resistors), etc. are used.
                               When replacing any of components, be sure to use only manufacture's specified parts
                               shown in the parts list.




                                                                       -3-
Downloaded from www.Manualslib.com manuals search engine
                     Service Manual
                     Model No.: 32E2000



                                   Safety Component
                                 Components identified by        mark have special characteristics important for safety.
                               1-2-6 Safety Check after Repair
                               Confirm that the screws, parts and wiring which were removed in order to service are put in
                               the original positions, or whether there are the positions which are deteriorated around the
                               serviced places serviced or not. Check the insulation between the antenna terminal or
                               external metal and the AC cord plug blades. And be sure the safety of that.
                                   General Servicing Precautions
                               1. Always unplug the receiver AC power cord from the AC power source before;
                                   a. Removing or reinstalling any component, circuit board module or any other receiver
                                      assembly.
                                   b. Disconnecting or reconnecting any receiver electrical plug or other electrical
                                      connection.
                                   c. Connecting a test substitute in parallel with an electrolytic capacitor in the receiver.
                               CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic
                               capacitors may result in an explosion hazard.
                               2. Test high voltage only by measuring it with an appropriate high voltage meter or other
                                  voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage
                                  probe.
                               3. Do not test high voltage by "drawing an arc".
                               4. Do not spray chemicals on or near this receiver or any of its assemblies.
                               5. Unless specified otherwise in this service manual, clean electrical contacts only by
                                  applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or
                                  comparable non-abrasive applicator; 10% (by volume) Acetone and 90% (by volume)
                                  isopropyl alcohol (90%-99% strength).
                               CAUTION: This is a flammable mixture. Unless other specified in this service manual,
                               lubrication of contacts is not required. Capacitors may result in an explosion hazard.
                               6. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by
                                  this service manual might be equipped.
                               7. Do not apply AC power to this instrument and/or any of its electrical assemblies unless
                                  all solid-state device heat sinks are correctly installed.
                               8. Always connect the test receiver ground lead to the receiver chassis ground before
                                  connecting the test receiver positive lead. Always remove the test receiver ground lead
                                  last. Capacitors may result in an explosion hazard.
                               9. Use with this receiver only the test fixtures specified in this service manual.
                               10. Remove the antenna terminal on TV and turn on the TV.
                               11. Insulation resistance between the cord plug terminals and the external exposure metal
                                   should be more than Mohm by using the 500V insulation resistance meter.
                               12. If the insulation resistance is less than M ohm, the inspection repair should be required.
                                   If you have not the 500V insulation resistance meter, use a Tester. External exposure
                                   metal: Antenna terminal Headphone jack.




                                                                       -4-
Downloaded from www.Manualslib.com manuals search engine
                                                                                               Service Manual
                                                                                               Model No.: 32E2000



                                   Electrostatically Sensitive (ES) Devices
                               Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such
                               components commonly are called Electrostatically Sensitive (ES) Devices. Examples of
                               typical ES devices are integrated circuits and some field-effect transistors and
                               semiconductor "chip" components. The following techniques should be used to help reduce
                               the incidence of component damage caused by static by static electricity.
                               1. Before handling any semiconductor component or semiconductor equipped assembly,
                                  immediately drain off any electrostatic charge on your body by touching a known earth
                                  ground. Alternatively, obtain and wear a commercially available discharging wrist strap
                                  device, which should be removed to prevent potential shock reasons prior to applying
                                  power to the unit under test.
                               2. After removing an electrical assembly equipped with ES devices, place the assembly
                                  on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup
                                  or exposure of the assembly.
                               3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
                               4. Use only an anti-static type solder removal device. Some solder removal devices not
                                  classified as "anti-static" can generate electrical charges sufficient to damage ES
                                  devices.
                               5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient
                                  to damage ES devices.
                               6. Do not remove a replacement ES device from its protective package until immediately
                                  before you are ready to install it.
                                    (Most replacement ES devices are packaged with leads electrically shorted together by
                                    conductive foam, aluminum foil or comparable conductive material).
                               7. Immediately before removing the protective material from the leads of a replacement
                                  ES device, touch the protective material to the chassis or circuit assembly into which
                                  the device will be installed.
                               CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other
                               safety precautions.
                               8. Minimize bodily motions when handling unpackaged replacement ES devices.
                               (Otherwise harmless motion such as the brushing together of your clothes fabric or the
                               lifting of your foot from a carpeted floor can generate static electricity sufficient to damage
                               an ES device.)

                               1-2-7. Ordering Spare Parts
                               Please include the following informations when you order parts. (Particularly the Version
                               letter)
                               1. Model number, Serial number and Software Version
                                  The model number and Serial number can be found on the back of each product and
                                  the Software Version can be found at the Spare Parts List.
                               2. Spare Part No. and Description
                                  You can find them in the Spare Parts List.




                                                                      -5-
Downloaded from www.Manualslib.com manuals search engine
                     Service Manual
                     Model No.: 32E2000



                               1-2-8. Photo used in this manual
                               The illustration and photos used in this Manual may not base on the final design of
                               products, which may differ from your products in some way.

                    1-3. How to Read this Service Manual
                               Icons:
                               Icons are used to attract the attention of the reader to specific information. The meaning of
                               each icon is described in the table below:

                               Note:
                               A "note" provides information that is not indispensable, but may nevertheless be valuable
                               to the reader, such as tips and tricks.

                               Caution:
                               A "caution" is used when there is danger that the reader, through incorrect manipulation,
                               may damage equipment, data loss, get an unexpected result or has to restart (part of) a
                               procedure.

                               Warning:
                               A "warning" is used when there is danger of personal injury.
                               Reference:
                               A "reference" guides the reader to other places in this binder or in this manual, where he/
                               she will find additional information on a specific topic.




                                                                     -6-
Downloaded from www.Manualslib.com manuals search engine
                                                                             Service Manual
                                                                             Model No.: 32E2000



                    2. Specifications

                       Model                                32E2000
                       Screen Size                          31.5 inch
                       Aspect Ratio                         16:9
                       Resolution                           1366 x 768
                       Response Time (ms)                   8
                       Angle of View                        H:178



◦ Jabse Service Manual Search 2020 ◦ Jabse Pravopis ◦ Other service manual resources online : FixyaeServiceinfo
