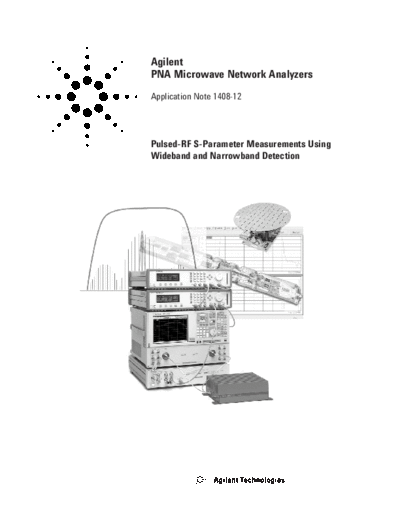

5989-4839EN


>> Download 5989-4839EN documenatation <<

Text preview - extract from the document
Agilent
PNA Microwave Network Analyzers
Application Note 1408-12




Pulsed-RF S-Parameter Measurements Using
Wideband and Narrowband Detection
Table of Contents   Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

                    Pulsed-RF measurement types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
                       Average and point-in-pulse pulse measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
                         Pulse profile measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
                         Pulse-to-pulse measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
                    Pulsed-RF Detection Techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
                         Overview of wideband detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
                         Overview of narrowband detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
                         Comparing the two techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
                         In-depth view of wideband detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
                         In-depth view of narrowband detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
                         Using spectral nulling for wider IF bandwidths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
                         Typical setup for forward pulsed-RF amplifier measurements . . . . . . . . . . . . . . . . . . .30
                         Pulling it all together with Option H08 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

                    More Configuration Choices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
                         Hardware setups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
                         Reference signal choices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
                         Pulse test sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
                         Pulse generators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
                         IF gain setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
                         Reference loop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
                         Measuring frequency converters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
                         Using power sweeps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

                    Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
                         S-parameter measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
                         Source power calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

                    Comparing the PNA and 8510 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

                    Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

                    Web Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48




2
Introduction   Vector network analyzers are the primary tool for accurate characterization of RF and
               microwave components, providing precision measurements of both magnitude and phase
               responses. For many devices, a continuous-wave (CW) stimulus/response configuration
               is sufficient.

               However, many RF and microwave amplifiers used in commercial and aerospace/defense
               applications require testing using a pulsed-RF stimulus. This application note focuses on
               new pulsed-RF S-parameter measurement techniques and capability provided by
               Agilent's PNA Series of microwave vector network analyzers. This application note
               discusses the advantages and disadvantages of the two detection techniques commonly
               used (wideband and narrowband detection), and compares and contrasts the PNA series
               network analyzers (including the PNA-L) with the former industry standard for pulsed
               S-parameter measurements, the 85108A pulsed RF-network analyzer system.

               Figure 1 shows an example of a modern microwave system
