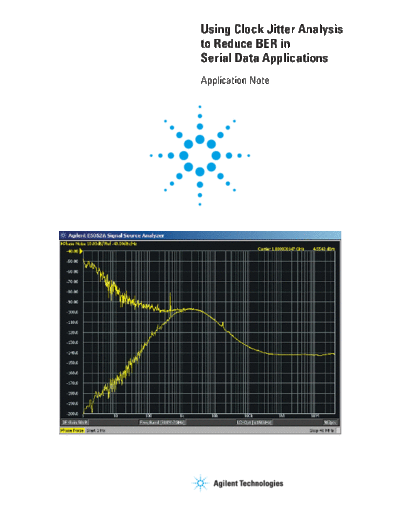

Image preview - the first page of the document
>> Download 5989-5718EN documenatation <<
Text preview - extract from the document
Using Clock Jitter Analysis
to Reduce BER in
Serial Data Applications
Application Note
Table of Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
The effects of jitter in serial data applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Introduction to jitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Why is jitter important? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Jitter caused by phase noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Jitter caused by amplitude noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
The jitter probability density function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Reference clocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Random and deterministic jitter, RJ and DJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
The characteristics of random jitter ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
