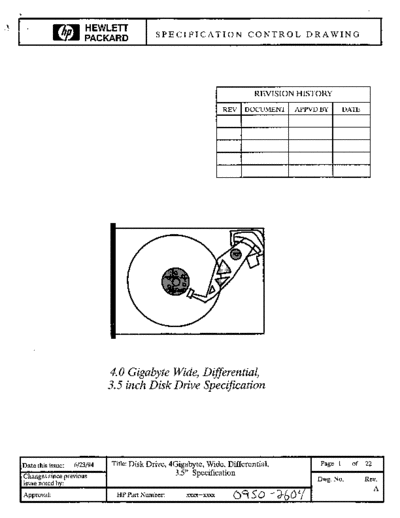

Image preview - the first page of the document
>> Download 0950-2604_4gb_3.5_Inch_Wide_Diff_Jun94 documenatation <<
Text preview - extract from the document
rL~ HEWLETT
~... PACKARD SPECIFICATION CONTROL DRAWING
REVISION HISTORY
REV DOCUMENT APPVDBY DATE
4.0 Gigabyte Wide, Differential,
3.5 inch Disk Drive Specification
Date this issue: 6/23/94 Title: Disk Drive, 4Gigabyte, Wide, Differential, Page 1 of 22
Changes since previous 3.5" Specification
Dwg.No. Rev.
issue noted by:
A
Approval: HP Part Number: xxxx-xxxx ()'1 SO -- 'J-b() Lj
rL~ HEWLETT
~.... PACKARD SPECIFICATION CONTROL DRAWING
1.0 TABLE OF CON1'ENTS ................................................. 2
2.0 IN1'RODUCTION ....................................................... 4
2.1 Scope ....................................................... 4
2.2 Applicable Documents ......................................... 4
3.0 REQUIRED DESIGN FEATURES ........................................ 5
3.1 MechanicallHardware ......................................... 5
3.2 Firmware ........................................ '............ 5
4.0 FUNCTIONAL SPECIFICATIONS ........................................ 6
4.1 General Specifications ......................................... 6
4.2 Performance Specification ...................................... 6
4.3 Reliability and Life ............................................ 7
4.4 Interface Specification ......................................... 8
4.5 Power Specifications' ........................................... 8
5.0 MECHANICAL SPECIFICATIONS ................................... , ... 9
5.1 Physical Specifications ......................................... 9
5.2 Mounting Orientation ......................................... 9
5.3 Acoustic Noise Level .......................................... 9
5.4 Power Interface ............................................... 10
5.5 Signal Interface ............................................... 10
5.6 Options ...................................................... 11
5.7 Cooling Requirements ......................................... 11
6.0 ENVIRONMENTAL SPECIFICATIONS ................................... 12
6.1 Operating Environment ........................................ 12
6.2 Non-Operating Environment ................................... 12
6.3 Transportation Environment .................................... 13
6.4 Product Safety & Emissions ..................................... 14
6.5- Labels and Markings ........................................... 15
7.0 DEFAULT VALUES ..................................................... 16
7.1 TID Jumpers ................................................. 16
7.2 Termination Power ............................................ 16
7.3 Mode Select Pages ............................................ 16
7.4 Bezel ........................................................ 16
Date this issue: 6/23/94 Title: Disk Drive, 4Gigabyte, Wide, Differential, Page 2 of 22
Changes since previous 3.5" Specification
Dwg.No. Rev.
issue noted by:
A
Approval: HP Part Number: xxxx-xxxx
HEWLETT
PACKARD SPECIFICATION CONTROL DRAWING
8.0 FIGURES AND TABLES ................................................ 16
Figure 1 Dimensions and Mounting .............................. 17
Figure 2 Combination Connector Pin Assignment ................... 18
Thble 1 Current Requirements .................................. 19
Thble 2 Signal Assignments for Auxiliary Connector ............... 20
Thble 3 SCSI Interface Signals .................................. 21
Thble 4 SCSI ID Settings ....................................... 22
Date this issue: 6/23/94 Title: Disk Drive, 4Gigabyte, Wide, Differential, Page 3 of 22
Changes since previous 3.5" Specification
Dwg.No. Rev.
issue noted by:
A
Approval: HP Part Number: xxxx-xxxx
Wl~ HEWLETT
SPECIFICATION CONTROL DRAWING
.:1'''' PACKARD
2.0 INTRODUCTION
2.1 SCOPE
This specification outlines the requirements for a 3.5 inch, 4.0 gigabyte, 1.6 inch high form
factor, SCSI rigid disk drive with 16 bit differential interface. This document specifies the
electrical, mechanical, environmental, reliability, and certification requirements of the
drive.
In the event of a difference between the manufacturer's specifications and those outlined
in this document the latter shall take precedence.
2.2 APPUCABLE DOCUMENTS
The following is a list of the documents by which this specification is based. For more detail, please
reference these documents as required.
"Enhanced Small Computer System Interface (SCSI - IT)",
X3T9.2/86-109 Rev. 10h, available through CBEMA
ISO 7779 "Acoustics - Measurement of airborne noise emitted by computer and business
equiptment
Plug and Play SCSI Specification Version 1.0 (March 30, 1994)
Small Form Factor Committee Specification for the Unitized Connector for Cabled
Aplication Rev 2.1 (October 9,1993)
HP A-xxxx-xxxx-24 Vendor Specific Information
Date this issue: 6/23/94 Title: Disk Drive, 4Gigabyte, Wide, Differential, Page 4 of 22
Changes since previous 3.5" Specification
Dwg.No. Rev.
issue noted by:
A
Approval: HP Part Number: xxxx-xxxx
rL~ HEWLETT
~~ PACKARD SPECIFICATION CONTROL DRAWING
3.0 REQUIRED DESIGN FEATURES
The device must contain and maintain certain design features that are required in the workstation
environment. The following is a list of the appropriate design requirements:
3.1 MECHANICAUHARDWARE
1) The device must automatically move the recording heads to a landing zone (completely
free of user data) and latch them there, upon the loss of DC power, without operator or
software intervention.
2) Not require any periodic or preventive maintenance.
3) Mechanism is to have a breather and filtration system in the HDA.
4) Provide dynamic braking of the disks on a power-down cycle.
5) Require no sequencing of power.
6) Device must have a minimum of a 32K dual port buffer system.
7) Be capable of supporting a minimum 48 bit ECC.
8) Glitchless drivers/receivers are to be used on the SCSI bus.
9) A set of adjacent pins, on the front of the drive, so that a cable for a remote LED
indicator can be used.
3.2 FIRMWARE
Refer to the Hewlett - Packard document "Standard Firmware for Disk Devices"
Date this issue: 6/Z3/94 Title: Disk Drive, 4Gigabyte, Wide, Differential, Page 5 of 22
Changes since previous 3.5" Specification
Dwg.No. Rev.
issue noted by:
A
Approval: HP Part Number: xxxx-xxxx
...
rl~ HEWLETT
SPECIFICATION CONTROL DRAWING
.:.1'''' PACKARD
4.0 FUNCTIONAL SPECIFICATIONS
The appropriate manufacturer's specifications contain information which must be used in conjunction
with this document. In the case of conflicting information, the HP specification shall take precedence.
4.1 GENERAL SPECIFICATIONS
4.1.1 Capacity
Unformatted: 4.2 GB (ref only)
Formatted (512): TBD blocks (must be exact)
MaxLBA TBD (must be exact)
4.2 PERFORMANCE SPECIFICATIONS
Note: The requirements of this section are to be met under all combinations of operating
environment and DC supply voltages of sections 5 and 6. Therefore it represents
worst-case requirements.
4.2.1 Seek Times (all numbers include settling time)
Track to track (read): 1 ms
Track to track (writes): 2 ms
Average (read): 8.5 ms
Average (writes): 10 ms
Maximum: 20 ms
4.2.2 Disk Speed 1Rotational Latency
Average Latency: 4.17 msec or less (ref only)
Disk Speed: 7200 RPM minimum +1-0.5% (ref only)
4.2.3 Data Transfer Rates
4.2.3.1 Internal (disk)
Burst: TBD mbits/sec
4.2.3.2 External (bus)
Async: 10MB/s
Sync: 20MB/s
4.2.4 Head Switching
Must be less than 2 msec
4.2.5 Command Overhead
Controller overhead: < 150 usee ( ref only)
4.2.6 Spin-up 1Spin-down time
Power-on to selection: 1 sec
Power -on to ready: 20 sec
Start command: 20 sec
Stop command: 20 sec
4.2.7 Interleaving
Interleave: 1:1
Date this issue: 6/23/94 Title: Disk Drive, 4Gigabyte, Wide, Differential, Page 6 of 22
Changes since previous 3.5" Specification
Dwg.No. Rev.
issue noted by:
A
Approval: HP Part Number: xxxx-xxxx
rL~ HEWLETT
~.... PACKARD SPECIFICATION CONTROL DRAWING
4.3 REUABILITY AND LIFE
The following information specifies the reliability, read and seek error rates, and the
expected life of the device. The requirements shall be met with no stabilization time and
with no regard to any particular environmental conditions under which the data was
written so long as it was within the operating range of section 5 and 6.
MTBF of the device: 800,000 hrs
MTTR of the device: 30 minutes
Design Component Life: 5 years
Preventive Maintenance: not required
Errors Rates (using retries and ECC)
Correctable Read Error Rate 1 in 10 10 bits read
Uncorrectable Read Error Rate: 1 in 1014 bits read
Seek Error Rate: 1 in 106 seeks
Media Defects:
The manufacturer shall identify all media defects and provide a list of their
locations that is retrievable by accessing the drive's primary defect list. The
defect list need not be attached physically to the outside of the drive, although it
can be. The drive will be shipped with all defects found during manufacturing,
mapped to spare blocks.
No more than a maximum of 2 additional defects shall be allowed during the
first 24 hours of operation. After the initial 24 hours of operation, a maximum
of 50 defects will be allowed during the life of the drive.
Power Cycling: 20,000
The head / media interface shall be able to withstand 10,000 power-on I
power-off cycles without suffering any permanent damage or loss of data.
Date this issue: 6/'23/94 Title: Disk Drive, 4Gigabyte, Wide, Differential, Page 7 of 22
Changes since previous 3.5" Specification
Dwg.No. Rev.
issue noted by:
A
Approval: HP Part Number: xxxx-xxxx
Wl'3
HEWLETT
SPECIFICATION CONTROL DRAWING
~~ PACKARD
4.4 INTERFACE SPECIFICATION
Unless otherwise noted the drive shall meet all of the requirements of the following
specification:
SCSI -2 ANSI X3T9.2/86-109 Rev. 10h
4.5 POWER SPECIFICATIONS
The following requirements are applicable to the main PCB board power interface
connector (J2).
Voltage Requirements: +5 Volts (1.2A max.)
+ 12 Volts (2.2 A max.)
(Refer to Thble 1 for specific requirements under typical use.)
Voltage Tolerance: 5 Volts +/-5%
12 Volts +/-5%
+/-10% during start-up
Allowable Ripple: 5 Volts: 100 mV p-p from 0 to 100 KHz
12 Volts: 120 mV p-p from 0 to 100 KHz
Power Consumption: 15 watts (idle)
18 watts (operational)
Voltage sequencing requirements: None
Date this issue: 6/23/94 Title: Disk Drive, 4Gigabyte, Wide, Differential, Page 8 of 22
Changes since previous 3.5" Specification
Dwg.No. Rev.
issue noted by:
A
Approval: HP Part Number: xxxx-xxxx
rl~ HEWLETT
~... PACKARD SPECIFICATION CONTROL DRAWING
5.0 MECHANICAL SPECIFICATIONS
5.1 PHYSICAL SPECIFICATIONS
The disk drive must conform to the industI)' standard low profile form factor and mounting
scheme. Dimensions do not include the face plate.
Width of the device: 101.6 mm (4.0")
Height of the device: 41.3 mm (1.63")
Depth of the device: 146.2 mm (5.75")
Weight of the device: .1.04 kg (2.31 bs)
5.2 MOUNTING ORIENTATION
The disk drive may be mounted in any orientation.
Mounting Specification: Refer to Figure 1
There should not be any additional clearance around the physical limits of the device
required to allow for movement.
5.3 ACOUSTIC NOISE LEVEL
The drive shall meet the acoustic requirements below. Output measured according to the
test procedures outlined in ISO 7779. The values listed are maximum allowable levels.
Idle: 32dbA (A weighted sound pressure)
4.3 bels (sound power)
Seeking: 34dbA (A weighted sound pressure)
4.5 bels (sound power)
Date this issue: 6/23/94 Title: Disk Drive, 4Gigabyte, Wide, Differential, Page 9 of 22
Changes since previous 3.5" Specification
Dwg.No. Rev.
issue noted by:
A
Approval: HP Part Number: xxxx-xxxx
Wl:tlHEWLETT
~ PACKARD
... SPECIFICATION CONTROL DRAWING
5.4 POWER INTERFACE
The power interface shall adhere to the following specifications:
1. Power connector: AMP mate-n-Iock (PIN 350543-1) or equivalent
2. Power connector pin assignment: see Figure 2
3. Power connector location: see Figure 1
4. Mating connector: AMP 1-480424-0 or equivalent
5. Ground: The HDA base and cover shall be connected to PCB
(DC) ground in order to provide noise shielding.
5.5 SIGNAL INTERFACE
Interface:
SCSI 16 bit differential (Ref. to ANSI SCSI spec X3.131)
SCSI signal pin assignments:
See Table 2
SCSI auxiliary connector pin assignment
See Thble TBD
SCSI connector:
A 68 pin, high density, unshielded, connector.
SCSI connector location:
See Figure 1
Termination:
Removable packs or disableable termination is to be used and must conform to the ANSI
standard.
Date this issue: 6/23/94 Title: Disk Drive, 4Gigabyte, Wide, Differential, Page 10 of 22
Changes since previous 3.5" Specification
Dwg.No. Rev.
issue noted by:
A
Approval: HP Part Number: xxxx-xxxx
rL3 HEWLETT
SPECIFICATION CONTROL DRAWING
a!1'''- PACKARD
5.6 OPTIONS
Reference section 7 for default values.
5.6.1 TID JUMPERS
The device must have a set of ID jumpers, consisting of two rows of male pins
with adjacent pins 2 mm apart.
5.6.2 TERMINATION POWER
The drive shall supply power to the onboard terminators and the TERM
POWER interface pin through a zener diode and a fuse.
5.6.3 SPINDLE CONTROL
The drive shall power-up automatically upon application of power.
5.6.4 BUS PARITY
The drive shall check parity on commands and data.
5.6.5 BARCODE
There shall be a barcode label affixed to the drive following the EIA - 556 code
39 standard with the serial number printed and barcoded.
5.7 COOUNG REQUIREMENTS
Per manufacting Product Specification or via natural convection if not specified.
Date this issue: 6/13/94 Title: Disk Drive, 4Gigabyte, Wide, Differential, Page 11 of 22
Changes since previous 3.5" Specification
Dwg.No. Rev.
issue noted by:
A
Approval: HP Part Number: xxxx-xxxx
rL~ HEWLETT
~... PACKARD SPECIFICATION CONTROL DRAWING
6.0 ENVIRONMENTAL SPEOFICATIONS
6.1 OPERATING ENVIRONMENT
Temperature: +Oto+55C
Temperature Gradient: 24 C per hour
Relative Humidity: 8% to 85% non-condensing
26.7 C maximum wet bulb non-condensing
Vibration:
Swept Sine: 0.5 G (O-peak), 5 - 500 Hz
Random: 0.0001 G 2/Hz, 5 - 500 Hz
There will also be a 5 minute dwell at every predominant resonance per axis.
Shock: 2 G (peak), 11 ms, 1/2 sine wave (no soft errors)
10 G (peak), 11 ms, 1/2 sine wave (no hard errors)
Altitude: -200 to 10,000 ft.
6.2 NON -OPERATING ENVIRONMENT
Temperature: -40 to +70C
Temperature Gradient: 24.0 C per hour
Relative Humidity: 10% to 90% non -condensing
26.7 C maximum wet bulb non-condensing
Vibration:
Swept Sine: 0.2 inches (peak to peak), 5-30 Hz
1.0 G (O-peak), 30 - 500 Hz
Random: 0.015 OZ/Hz, 5 - 500 Hz
Shock: 20G (peak), 11ms, 1/2 sinewave
25 G (peak), 26 ms, trapezoidal
Altitude: -1000 to 40,000 feet
Date this issue: 6/23/94 Title: Disk Drive, 4Gigabyte, Wide, Differential, Page 12 of 22
Changes since previous 3.5" Specification
Dwg.No. Rev.
issue noted by:
A
Approval: HP Part Number: xxxx-xxxx
rL3 HEWLETT
a!.1'.... PACKARD SPECIFICATION CONTROL DRAWING
6.3 TRANSPORTATION ENVIRONMENT
Every unit shall be shipped in a ESD bag with desiccant.
The original shipping container must be capable of withstanding (without functional or
cosmetic damage) three 30 inch free fall drops onto any face, edge and corner of the
shipping container.
Date this issue: 6/23/94 Title: Disk Drive, 4Gigabyte, Wide, Differential, Page 13 of 22
Changes since previous 3.5" Specification
Dwg.No. Rev.
issue noted by:
A
Approval: HP Part Number: xxxx-xxxx
~~ HEWLETT
~... PACKARD SPECIFICATION CONTROL DRAWING
6.4 PRODUCT SAFETY AND EMISSIONS
The device shall comply with the following agency regulations. The device when installed
in any system or subsystem for which its use is intended shall not prevent HP from
obtaining approval from anyageJ?CY.
1. UL 1950 (1 st edition), Safety of Information Technology Equipment
Including Electrical Business Equipment, UL RECOGNIZED.
2. CSA C22.2 No. 950-M89 Safety of Information Technology Equipment,
Including Electrical Business Equipment.
3. IEC 950 (1St edition), Safety of Information Technology Equipment
Including Electrical Business Equipment, TUV or VDE'Bauart Gepruft'
COMPONENT llCENSED.
4. ZH 1/618, Edition 10/80, safety Requlations for Display Work places in the
of Office Sector. Certified by Technischer UbeIWachungs-Verein or Verband
Deutscher Elektrotechniker.
5. This product shall demonstrate statistical compliance with the radiated
emission requirements of EN55022 class B. Statistical compliance shall be
determined by the methods of par. 7.2.3 of EN55022 using a sample size of no
less than 5 units.
A. IEC 801-3 : 1984
B. FCC Part 15, Class B with 6 db margin
C. EN 55022 (CISPER Class B) with 6dB margin
D. VCCI Class 1 ITE
E. IEC 801-2: 1991
Date this issue: 6/23/94 Title: Disk Drive, 4Gigabyte, Wide, Differential, Page 14 of 22
Changes since previous 3.5" Specification
Dwg.No. Rev.
issue noted by:
A
Approval: HP Part Number: xxxx-xxxx
HEWLETT
PACKARD SPECIFICATION CONTROL DRAWING
6.5 LABELS AND MARKINGS
The drive shall have the following markings and labels:
1. Manufacturer's Model, Serial, and Part numbers (with revision)
2. UL Recognition Mark
3. CSA Component Certification Mark
4. TUV or VDE "Bauart Gepruft" mark
5. The following label should be applied to both newly manufactured and customer service drives:
Model # Mfg. pIn Cust. Serv. pIn Cust Servo Exchange pIn
(your model #) aaaa-aaaa xxxxx-xxxxx yyyyy -yyyyy
aaaa-aaaa is HP Manufacturing pin
HP MANUFACTURING USE bbbbbbbbb is Supplier serial number
Part Number: aaaa-aaaa 11111111 is barcoded Supplier serial
Serial Number: bbbbbbbbbbb number (code 39 preferred)
11111111111111111111111111 xxxxx-xxxxx is HP Spare pin
yyyyy-yyyyy is HP Exchange pin
HP CUSTOMER SERVICE USE
Part Number: xxxxx-xxxxx HP Spare pin and HP Exchange pin
Exchange Part Number: yyyyy-yyyyy will change if there is a major quality
problem which requires rework.
Supplier may put information on parts in anyone of the following ways:
- A single additional label with all above information.
- 1Wo additional labels, one for HP Manufacturing, one for HP Customer
Service.
- Print this information on an existing label.
Supplier may customize the size and layout of the label to fit on part.
Date this issue: 617:3194 Title: Disk Drive, 4Gigabyte, Wide, Differential, Page 15 of 22
Changes since previous 3.5" Specification
Dwg.No. Rev.
issue noted by:
A
Approval: HP Part Number: xxxx-xxxx
HEWLETT
PACKARD SPECIFICATION CONTROL DRAWING
7.0 DEFAULT VALUES
7.1 TID JUMPERS
The drive is to be shipped at target ID 6.
7.2 TERMINATION AND TERMINATION POWER
The device is to be shipped with terminators removed or termination disabled.
7.3 BEZEL AND LED
The drive is to be shipped without a bezel.
The drive shall have a green LED mounted on the front ot the PCB.
8.0 FIGURES AND TABLES
Date this issue: 6/23/94 Title: Disk Drive, 4Gigabyte, Wide, Differential, Page 16 of 22
Changes since previous 3.5" Specification
Dwg.No. Rev.
issue noted by:
A
Approval: HP Part Number: xxxx-xxxx
HEWLETT
PACKARD SPECIFICATION CONTROL DRAWING
SIDE BOTTOM
(PC BOARD SIDE)
--"71'---
i ---r +-~4 16.00
k 60.33
+ 0.5
I 60.0
I +r.2 +-
I
(')
101.6
0.2
p -----------------C --...---
T - - - 146.2
44.45
I + 0.60
I
I
+1 0.5
I
I ~ -----------------c -~-
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
