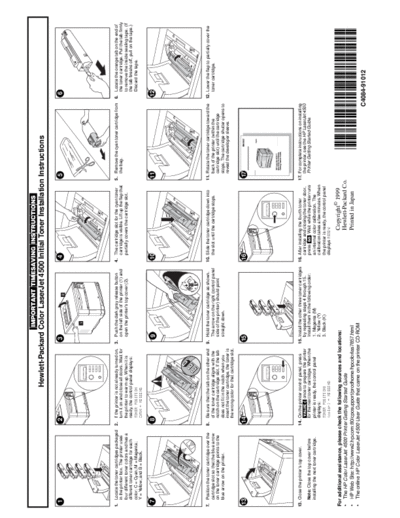

Image preview - the first page of the document

>> Download HP Color LaserJet 4500 Initial Toner Installation Instructions documenatation <<

Text preview - extract from the document

[IMPORTANT[TIMESAVING[INSTRUCTIONS]
Hewlett-Packard Color LaserJet 4500 Initial Toner Installation Instructions

1 C
2 3 2
4 5 6
M

Y 1
XXXXXXXXXXXXX
XXXXXXXXX

1. Locate the toner cartridges packaged 2. If the printer is not already turned on, 3. Push the dark gray release button 4. The cartridge slot for the cyan toner 5. Remove the cyan toner cartridge from 6. Locate the orange tab on the end of
in the printer box. The printer uses turn it on and close all doors. Wait for on the left side of the printer (1) and cartridge is visible. Lift up the flap that the bag. the toner cartridge. Pull the tab firmly
four different toner colors and has a the printer to warm up. When it is open the printer's top cover (2). partially covers the cartridge slot. to remove the inside sealing tape. (If
different toner cartridge for each ready, the control panel displays: the tab breaks off, pull on the tape.)
color: C = Cyan; M = Magenta; TONER POSITION Discard the tape.
Y = Yellow; and B = Black. CYAN = MISSING

7 8 9 10 11 12

7. Position the toner cartridge over the 8. Be sure that the tab on the other end 9. Hold the toner cartridge as shown. 10. Slide the toner cartridge down into 11. Rotate the toner cartridge toward the 12. Lower the flap to partially cover the
cartridge slot so that the blue arrow of the toner cartridge aligns with the The arrow on the right (control panel the slot until the cartridge stops. back of the printer (within the toner cartridge.
on the toner cartridge points to the notch on the cartridge slot. If the tab side of the printer) should point cartridge slot) until the cartridge
blue arrow on the printer. does not fit in the notch when you straight down. stops. The cartridge shutter opens to
insert the toner cartridge, the toner is reveal the developer sleeve.
the wrong color for that cartridge slot.

13 14 15 16 17
M

XXXXXXXXXXXXX
Y XXXXXXXXXXXXX
XXXXXXXXX XXXXXXXXX

13. Close the printer's top cover. 14. On the printer control panel, press 15. Install the other three toner cartridges 16. After installing the fourth toner 17. For complete instructions on installing
[VALUE +] once to prepare the printer by repeating steps 4 through 15. cartridge and closing the toner door, the printer, see the HP LaserJet 4500
Note: Close the top cover before for the next toner cartridge. When the Install them in the following order: press [GO]. Wait while the printer runs Printer Getting Started Guide.
installing the next toner cartridge. printer is ready, the control panel 1. Magenta (M) an internal color calibration. The
displays: 2. Yellow (Y) calibration takes a few minutes. When
TONER POSITION: 3. Black (K) the printer is ready, the control panel
(color) = MISSING displays READY.
