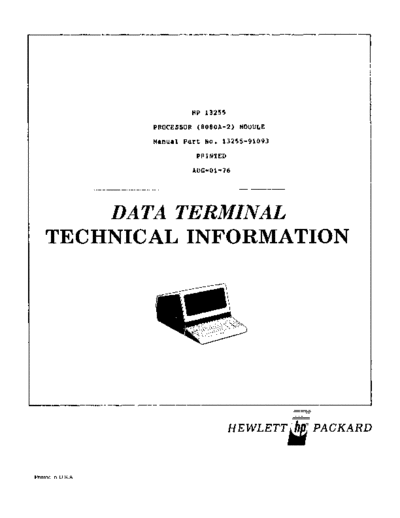

Image preview - the first page of the document
>> Download 13255-91093_8080_Module_Aug76 documenatation <<
Text preview - extract from the document
HP 13255
PROCESSOR (8080A-2) MODULE
Manual Part No. 13255-91093
PRINTED
AUG-01-16
DATA TERMINAL
TECHNICAL INFORMATION
_._._-------
HEWLETTiI PACKARD
Printed in U.S.A.
13255 13255-91093/02
Processor (8080A-2) Module Rev AUG-Ol-76
1.0 INTRODUCTION.
The Processor (8080A-2) Module functions as the main controlling unit
fOr the terminal. The processor fetches instructions from memory ana
performs I/O operations on other modules attached to the terminal data
bus (BaCKplane Assembly). The Processor (8080A-2) Module has the capa-
bility of accessing either the standard backplane bus or a special top
plane bus d~fIned later.
2.0 OPERATING PARAMETERS.
A summary 01 operating parameters for the Processor (8080A-2) Module
is contained in tables 1.0 through 5.1.
Table 1.0 Physical Parameters
===============================================:=======:::::::=:::::=:::=::::::=
SIze (L x W x 0) I Weight
Nomenclature +/-0.100 Inches I (Pounds)
=============1==============================1=======================1=========
02640-60093 Processor (8080A-2) peA 12.5 x 4.0 x 0.5 0.63
=====================================================================-=========
Number of Backplane Slots Required: 1
=====================================z==========================================
HP 13255
PROCESSOR (8080A-2) MODULE
Manual Part NO. 13255-91093
PRINTED
AUG-OI-76
---------------------,--------------------.---------------------------------------
NOTICE
The informatlon contained in this document Is subject to change
Without notice.
HEWLETT-PACKARD MAKES NO WARRANTY OF ANY KIND WlTH REGARD TO THIS
MATERIAL, INCLUDING, BUT NOT LIMITED TO THE IMPLI~D wARRANTIES OF
MERCHANlABILITY A~D FITNESS FOR A PARTICULAR PURPOSE. Hewlett-Packard
Shall not be liable for errors contained herein or for incidental or
Consequential damages in connection with the furnishing, performance,
or use of this material.
This document contains proprietary information whiCh is protected by
copyright. All rights are reserved. NO part of this document may be
Photocopied Or reproduced without the prior written consent of Hewlett-
Packard Company.
------------------------------------------------.--~-- --------------------------
Copyright c 1976 by HEWLETT-PACKARD COMPANY
NOTE: This document is part of the 264XX DATA TERMINAL product
series Technical Information Package (HP 13255).
13255 13255-91093/02
Processor (8080A-2) Module Rev AUG-01-76
1.0 INTRODUCTIUN.
The Processor (8080A-2) Module functions as the main controlling unit
for the terminal. The processor fetches instructions from memory ana
performs I/O operations on other modules attached to the terminal data
bus (BaCkplane Assembly). The Processor (8080A-2) Module has the capa-
bility of accessing either the standard backplane bus or a special top
plane bus defined later.
2.0 OPERATING PARAMETERS.
A summary of operating parameters for the Processor (8080A-2) Module
is contained in tables 1.0 through 5.1.
Table 1.0 Physical Parameters
===========:=========================:=========:================================
part Size (L x Wx 0) I Weight
Number Nomenclature ... /-0.100 Inches I (Pounds)
=============1==============================1=======================1=========
Processor (8080A-2) peA 12.5 x 4.0 x 0.5 0.63
======::======================================================================
Number of Backplane Slots Required: 1
=====:==========================================================================
13255 13255-91093/03
Processor (SOSOA-2) Module Rev AUG-01-76
Table 2.0 Reliability and Environmental Information
=====;==========================================================================
En .,ironmental:
1
( X ) HP Class B ( ) Other:
Restrictions: Type tested at product level
====:==========================================================================
Failure Rate: 1.267 (percent per 1000 hours)
=====::====================================:=====================================
Table 3.0 Power Supply and ClocK Requirements - Measured
(At +1-5% Unless Otherwise Specified)
=====::==========================================================================
... 5 VOlt Supply +12 Volt Supply -12 Volt supply +42 Volt Supply
~ 300 mA ~ 60 mA 2 mA mA
NOT APPLICABLE
:===::================================= =======================================
115 volts ac 220 volts ac
A A
NOT APPLICABLE NOT APPLICABLE
====::=========================================================================
Clock Frequency: 4.915 MHZ (+0.01% -0.01%)
z:===============================================================================
13255 13255-91093/04
Processor (S080A-2) Module Rev AUG-Ol-76
Table 4.0 Jumper Definitions
======:=========================================================================
Function
PCA
Desl~natlon
