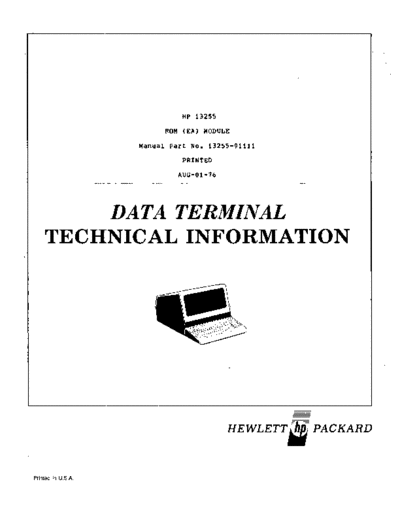

Image preview - the first page of the document
>> Download 13255-91111_ROM_EA_Module_Aug76 documenatation <<
Text preview - extract from the document
HP 13255
ROM (EA) MODULE
Manual Part No. 13255-91111
PRINTED
AUG-01-76
DATA TERMINAL
TECHNICAL INFORMATION
HEWLETTi:j PACKARD
Printed in U.S.A.
13255 13255-91111/02
ROM (t.A) Module Rev AUG-01-76
1.0 INTRODUCTION.
The ~OM (EA) Module contains space for up to 12K Of ROM for storing the
operating system firmware.
2.0 OPERATING PARAMETERS.
A summary of operating parameters for the ROM (EA) Module is contained
In tables 1.0 through 5.0.
Table 1.0 Physical Parameters
===-=================================================.===========================
part Size (L x W x D) Weight I
Number Nomenclature +1-0.100 Inches (Pounds) I
============= ===========:=c===========:==== ---_
_......... ... -
======================= ---_ ... _...... -
02640-60150 ROM (EA) PCA 12.5 x 4.0 x 0.5 0.44
======================================================================'========
Number of Backplane Slots Required: 1
======z================z=================:=====================:================
HP 13255
POM (EA) MODULE
Manual Part No. 13255-91111
PRINTED
AUG-01-76
NOTICE
'rhe information contained in this document is subject to change
'-i thout notice.
H~WLETT-PACKAHD MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS
MATERIAL, .. INCLUDING, BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Hewlett-Packard
:Shall not be liable for errors contained herein or for incidental or
consequential damages In connection with the furnishing, performance,
or use of this material.
'rhls document contains proprietary information which is protected by
copyright. All rights are reserved. No part of this document may be
Photocopied or reproduced without the prior written consent of Hewlett-
Packard Company.
----~-,----~-------------------------~----~----------- ---------------------------
Copyright c 1976 by HEWLETT-PACKARD COMPANY
NOTE: This document is part of the 264XX DATA TERMINAL product
series Technical Information Package (HP 13255).
13255 13255-91111/02
ROM (t.A) Module Rev AUG-Ol-76
1.0 INTRODUCTION.
The ROM (EA) Module contains space for up to 12K Of ROM for storing the
operating system firmware.
2.0 OPERATING PARAMETERS.
A summary of operating parameters for the ROM (EA) Module is contained
in tables 1.0 through 5.0.
Table 1.0 Physical Parameters
=====================================================.===========================
Size (L x W x D) Weight I
Nomenclature +1-0.100 Inches (Pounds) I
========z:==== =============================: ======================= -... - ... ... _... ---
- ... -_ --~----
02640-60150 ROM (EA) peA 12.5 x 4.0 x 0.5 0.44
==================================z====z=============================='========
Number of Baekplane Slots Required: 1
=====:z==================================:===================:==================
13255 13255-91111/03
ROM (EA) Module Rev AUG-Ol-76
Table 2.0 Reliability and Environmental Information
================================================================================
I:.nvironmental: ( X ) HP Class B ( ) Othe'r:
Restrictions: Type tested at product level
===========:===================================================================
Failure Rate: 1.169 (percent per 1000 hours)
================================================================================
Table 3.0 Power Supply and Clock Requirements - Measured
(At +1-5\ Unless Otnerwise Specified)
================================================================================
+5 Volt Supply +12 Volt Supply -12 Volt Supply -42 Volt Supply
, 200 mA I rnA ~ 150 mA I rnA
(with 6 ROMs (With 6 ROMS
loaded) NOT APPLICABLE loaded) NOT APPLICABLE
====================================== =======================================
115 volts ac 220 volts ac
A A
NOT APPLICABLE NOT APPLICABLE
==============================================================================
CloCk Frequency: 4.915 MHz +1-0.1%
================================================================================
13255 13255-91111/04
ROM (EA) Module Rev AUG-OI-76
Table 4.0 Jumper Definitions
========:===================z=========================:::::==::=::z:==::=::=:=::
Function
peA
Designation
-------------------------------------------------------------
In Out
================ ===============:============== ==============================
If all START ADDRESS
Jumpers are IN, then
START ADDR=O
START 16K Add 0 to START ADDR Add 16K to START ADDR
ADDR 32K Add 0 to START ADDR Add 32K to START ADDR
1_-
0- 2 0- 21< ROM Enabled 0- 21
