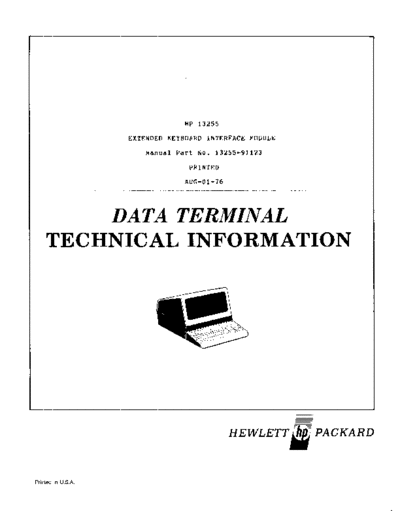

Image preview - the first page of the document



>> Download 13255-91123_Extended_Keyboard_Interface_Module_Aug76 documenatation <<

Text preview - extract from the document

                                                                                HP 13255
                                          EXTENDED KEYBOARD                           INTERFAC~    MOOULE
                                                Manual Part NO. 13255-91123
                                                                                PRINTED
                                                                                AUG-Ol-76
                    ---~-~   --   ~--------------~~~--~   ----   ~-   -   -~~   -----------~~------~-----~




        DATA TERMINAL
    TECHNICAL INFORMATION




                                                                                            HEWLETT          ifJ PACKARD
Printed in U.S.A.
13255                                                                      13255-91123/02
Extended Keyboard Interface Module                                         ~ev    AUG-01-1b




1.0        INTRODUCTION.
           The Extended Keyboard Interface Module replaces the standard Keyboard
           Interface PCA (02640-60019) described 1n module section 13255-91018.
           The Product/MOdule Cross-Reference Table indicates the products 1n
           which the replacement is applicable. Parts lists for 02640-60018,
           02640-&0041, and 02640-60081 are contained in module section 13255-
           91018.


2.0        OPERATING PARAMETERS.
           A summary of operating parameters for the Extended Keyboard Interface
           MOdul@ is contained in tables 1.0 through 6.7.




                             Table 1.0    Physical Parameters
=====================================-===========================================
       Part                                            Size (IJ x W x 0)           Weight
      Numoer               Nomenclature                 +/-0.100 Inches
