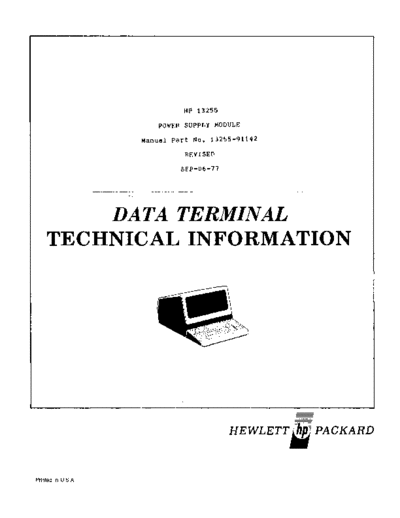

Image preview - the first page of the document
>> Download 13255-91142_Power_Supply_Module_Sep77 documenatation <<Text preview - extract from the document HP 13255
POWER SUPPLY MODULE
Manual Part No. 13255-91142
REVISED
SEP-06-77
-----~--- -.------- ----------"-- ---- ----_._--_.- - - - - - - - - - - - - - - - - - - - -
----
DATA TERMINAL
TECHNICAL INFORMATION
HEWLETT iii PACKARD
Printed in U.S.A.
13255 13255-91142/02
Power Supply Modul~ Rev SEP-06-77
1.0 INTRODUCTION.
The Pow~r Supply Module generates the following required voltages for
the 264XX Data Terminal product line: +5 volts at 12 amperes, +12
volts at 1.5 amperes, -12 volts at 1.5 amperes, and -42 volts at 0.6
amperes. Either one of the 12-volt supplies may be loaded to 3
amperes continuouslY, as long as the other 12-volt supply current is
reduced so tnat the total current from both supplies does notexceed
3 amperes. The maximum total power of all voltage outputs must not
exceed 110 Watts. Parts list for 02640-60083 is contained in module
section 13255-91004.
2.0 OPERATING PARAMEfERS.
A summary of operating parameters for the Power Supply Module is
contained in tables 1.0 through 3.1.
TabLe 1.0 Physical Parameters
-------------- ------------------------------------~-----------------~-~------~--
----------------------------------~---~-------~---------~----~----~-~-~-~---~---
I Part Size (L x x D) Weight
w~
I Number Nomenclature +1-0.100 Inches (Pounds)
1============= ============================== ======================= =========
I
I 02640-60083 Cable Assemoly N/A NIA
1
I 02640-60169 Power Supply Control peA 3.9 x 3.6 x 1.0 0.3
I
, 02640-60131) Power Suoply PCA 15.3 x 6.4 x 4.5 8.0
I
I 02640-60142 Power Supply Assembly NtA N/A
I
I 02640-60148 Cdble flssembly N/A N/A
I
1==============================================================================
I
I Number of BaCKplane Slots pequirea: NOT APPLICARLE
1
------------------------------------------------~----- -------------------~~---~~
------------------------------------------------------ --------------------------
HE> 13255
POWER SUPPLY MODULE
Manual Part No. 13255-91142
REVISED
SEP-06-77
--------------------------------- ------------~--.-------.--------
NOTICE
The information contained in this document is subject to change
without notice.
HEWLETT-PACKAKD MAKES NO wARRANTY OF ANY KIND WITH REGARD TO THIS
MATERIAL, INCLUDING, BUT 1-40T LIMITED 1'0 THE IMPLIED WARRANTIES OF
MERCHANTABILITY A~D FITNESS FOR A PARTICULAR PURPOSE. Hewlett-Packard
shall not be liable for errors contained herein or for incidental or
consequential damaqes in connection with the furnishing, performance,
or use of this mat~ridl.
This document contains proprietary information which is protected by
copyright. All rights are reserved. No part of this document may be
photocopied or reproduced witnout the prior written consent of Hewlett-
Packard Company.
Copyright c 1976 by HEWLETT-~ACKARD COMPANY
NOTE:: This document is part of the 264XX DATA TERMINAL product
series technical Information Package (HP 13255).
13255 13255-91142/02
Power Supply Module Rev SEP-06-77
1.0 INTRODUCTION.
The Power Supply Module generates the following required voltages for
the 264XX Data Terminal product line: +5 volts at 12 amperes, +12
volts at 1.5 amperes, -12 volts at 1.5 amperes, and -42 volts at 0.6
amperes. Either one of the 12-volt supplies may be loaded to 3
amperes continuously, as long as the other 12-volt supply current is
reduced so that the total current from both supplies does notexceed
3 amperes. The maximum total power of all voltage outputs must not
exceed 110 watts. Parts list for 02640-60083 is contained in module
section 13255-91004.
2.0 OPERATING PARAMEfERS.
A summary of operating parameters for the Power Supply Module is
contained in tables 1.0 through 3.1.
Table 1.0 Physical Parameters
--------------------------------------~---------------------------~---~-~---~---
-------------~ ----------------------------~----~------------~------~-~--~------
I Part Size (L x W~x D) Weight
I Number Nomenclature +/-0.100 Inches (Pounds)
1============= ============================== ======================= =========
I
I 02640-60083 Cable AssemolY N/A N/A
1
1 02640-60169 Power Supply Control PCA 3.9 x 3.6 x 1.0 0.3
I
, 02640-60130 Power Supply PCA 15.3 x 6.4 x 4.5 8.0
I
1 02640-60142 Power Supply Assembly N/A N/A
I
I 02640-60148 Cable Assembly N/A N/A
I
1==============================================================================
I
I Number of BaCKplane Slots Fequired: NOT APPLICARLE
I
--------------------------------------------------------------------------------
------------------------------------------------------ -----------~-~------~---~~
13255 13255-91142/03
Power Supply Module Rev SEP-06-77
Tabl@ 2.0 Reliability and Environmental Information
------~---------------------------~-----------------------------~-------~---~---
-----~-------------------~-----------------------------------------------~--~--~
Environmental: ( X ) HP Class ~ ( ) Other:
Restrictions: Type tested at product level
==============================================================~===============
Failure Rate: 1.552 (percent per 1000 hours)
--------------------------------~--------------------- --------------------------
-------------------------------~--------------------------------------------~---
13255 13255-91142/04
Power Supply Module Rev SEP-06-77
laole 3.0 Connector Information - Power Supply PCA
~------------------------------------~--------------~--------------------~---~-
-------------------------------------~---------------------------------------~--
Connector Signal Signal
and Pin NO. I Name I Description
==============1================ ----------------------------------------------
I
------------------------~---------------------
Jl, Pin -1
,
I Not Used
-2 +5V }
-3 +5v }
-4 +5V }
-5 +5V }
-6 GND }
-7 GNf) } Power Connection
-8 GI'JD } To Backplane
-9 GND }
-10 +12V }
-11 +12V }
-12 -12V }
-13 -12V }
-14 } Not
-15 } Used
J2, Pin -1 GND Ground
-2 GND Ground
-3 +5V Sense Line From 8acKplane +5V Output
Pin -4 }
through } Not Used
Pin -6 }
-7 +5C }
-8 +5C }
-9 +5C } Power Supply Which Runs
-10 +5C } Main Supply Logic
-11 +SC }
-12 SENSE RETURN Sense Line From Primary Current
Measuring Transformer
-13 } Not
-14 } Used
-15 CURRENT SENSE Sense Line From Primary Current Measuring
Transformer
I
