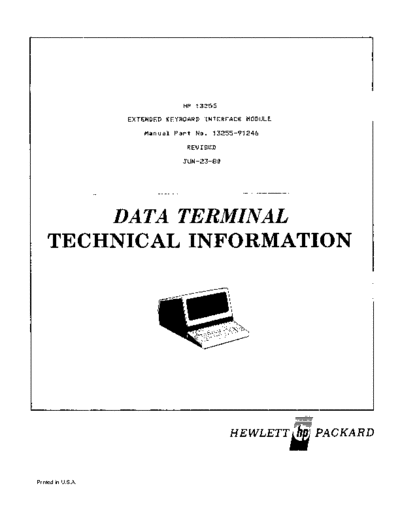

Image preview - the first page of the document
13255-91246_Extended_Keyboard_Interface_Module_Jun80


>> Download 13255-91246_Extended_Keyboard_Interface_Module_Jun80 documenatation <<

Text preview - extract from the document
                                 HP   132~j5

                    EXTENDED KEYBOARD INTERFACE MODULE
                       Manual Part No. 13255-91246

                                  REVISED
                                 JUN-23-80




        DATA TERMINAL
    TECHNICAL INFORMATION




                                               HEWLETTi:j PACKARD



Printed in U.S.A.
13255                                                                        13255-91246/0;.~

Extended Keyboard Interface Module                                           Rey   JUN-23-80




1 .0        INTRODUCTION.
            The Keyboard Interface acts as an interface between the keyboard
            and the terMinal bus.


2.0         OPERATING PARAMETERS.
            A sUMMary of operating paraMeters for the Extended Keyboard Interface
            Module is contained in tables 1.0 through 6.7.




                               Table
