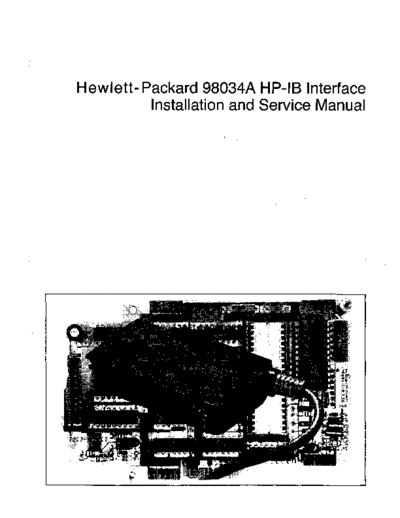

Hewlett- Packard 98034A HP-IB Interface
          Installation and Service Manual
                      HEWLETT       II    PACKARD


                           warranty Statement

Hewlett-Packard products are warranted against defects in materials and
workmanship. For Hewlett-Packard Desktop Computer Division products
sold in the U.S.A. and Canada, this warranty applies for ninety (90) days
from date of delivery. * Hewlett-Packard will, at its option, repair or replace
equipment which proves to be defective during the warranty period. This
warranty includes labor, parts, and surface travel costs, if any. Equipment
returned to Hewlett-Packard for repair must be shipped freight prepaid.
Repairs necessitated by misuse of the equipment, or by hardware,
software, or interfacing not provided by Hewlett-Packard are not covered
by this warranty.

NO OTHER WARRANTY IS EXPRESSED OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE. HEWLETT-PACKARD
SHALL NOT BE LIABLE FOR CONSEQUENTIAL DAMAGES.

* For other countries, contact your local Sales and Service Office to
  determine warranty terms.
    98034A HP-IB Interface
Installation and Service Manual




      Hewlett-Packard Desktop Computer Division
        3404 East Harmony Road, Fort Collins, Colorado 80525
       (For World-wide Sales and Service Offices see back of manual.)
                Copyright by Hewlett-Packard Company 1976
                                                                            Table of Contents   iii




                                        Table of Contents


Chapter 1 : General Information
    Introduction
        I/O ROM Cards,
        Technical Specifications
    Bus Functions and Messages , , , .                                                  4
    Data Transfer Rate,                                                                 6

Chapter 2:    Installation
    Unpacking and Inspection,                                                           7
    Installation.                                                                       7
    Interconnecting Cables,                                                             8
        Cable Length Restrictions, ,                                                    8
        Metric Conversion Kit. ,                                                        9
    Select Code                                                                         9
        Interrupt Priority. , , ,                                                     10
    Removing the I nterface Covers, , .
