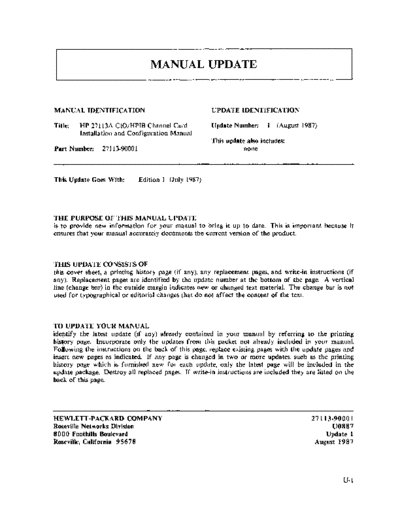

Image preview - the first page of the document

>> Download 27113-90001_27113A_CIO_HPIB_Installation_Aug87 documenatation <<

Text preview - extract from the document

MANUAL UPDATE

MANUAL IDENTIFICATION UPDATE IDENTIFICATION

Title: HP 27113A CIO/HPIB Channel Card Update Number: I (August) 987)
Installation and Configuration Manual
This update also includes:
Part Number: 27113-90001 none

This Update Goes With: Edition I (July 1987)

THE PURPOSE OF THIS MANUAL UPDATE
is to provide new information for your manual to bring it up to date. This is important because it
ensures that your manual accurately docnments the current version of the product.

THIS UPDATE CONSISTS OF
this cover sheet, a printing history page (if any), any replacement pages, and write-in instructions (if
any). Replacement pages are identified by the update number at the bottom of the page. A vertical
line (change bar) in the outside margin indicates new or changed text material. The change bar is not
used for typographical or editorial changes that do not affect the content of the text.

TO UPDATE YOUR MANUAL
identify the latest update (if any) already contained in your manual by referring to the printing
history page. Incorporate only the updates from this packet not already included in your manual.
Folilowing the instructions on the back of this page, replace existing pages with the update pages and
inscert new pages as indicated. If any page is changed in two or more updates, such as the printing
history page which is furnished new for each update, only the latest page will be included in the
update package. Destroy all replaced pages. If write-in instructions are included they are listed on the
back of this page.

HEWLETT-PACKARD COMPANY 27113-90001
RO$eville Networks Division U0887
8000 Foothills Boulevard Update 1
RO$eville, California 95678 August 1987

U-I
TECHNICAL MANUAL UPDATE
(27113-90001)

Note that "*" indicat.es a changed page.

UPDATE DESCRIPTION

1 A. Replace the following pages with new attached:
Title*/2
3*/blank
1-1*/1-2

U-2
HP 3000 Computer Family, Series 900

HP 27113A

CIO/HP-IB Channel Card

Installation and Configuration Manual

Card Assembly 27113-60301

FfJDW HEWLETT
a:~ PACKARD

Update 1 (August 1987)
Hewlett-Packard Company Manual Part Number 27113-90001
Roseville Networks Division E0787
8000 Foothills Boulevard Printed in U.S.A.
Roseville. California 95678 July 1987
Notice

The information contained in this document is subject to change without notice.

HEWLETf-PACKARD COMPANY MAKES NO WARRANTY OF ANY KIND WITH REGARD TO
THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Hewlett-Packard shall not be
liable for errors contained herein or for incidental or consequential damages in connection with the fur-
nishing, performance or use of this material.

Hewlett-Packard assumes no responsibility for the use or reliability of its software on equipment that is not
furnished by Hewlett-Packard.

This document contains proprietary information, which is protected by copyright. All rights are reserved.
No part of this document may be photocopied, reproduced or translated to another language without the
prior written consent of Hewlett-Packard Company.

2
Printing History

New editions are complete revisions of the manual. Update packages, which are issued between editions,
contain additional and replacement pages to be merged into the manual by the customer. The dates on the
title page change only when a new edition or a new update is published. No information is incorporated
into a reprinting unless it appears as a prior update; the edition does not change when an update is
incorpora ted.

A software code may be printed before the date; this indicates the version level of the software product at
the time the manual or update was issued. Many product updates and fixes do not require manual changes
and, conversely, manual corrections may be done without accompanying product changes. Therefore, do
not expect a one-to-one correspondence between product updates and manual updates.

Edition 1............................................................ July 1987
Update 1...................................................... August 1987

3
General Information 1

Introduction
The product designated 27113A Hewlett-Packard Interface Bus (HP-IB) Channel
Card implements IEEE Standard 488-1978 and Supplement 488-1978A-1980. As
an input/output (I/O) card. it is used with the Hewlett-Packard 3000 family.
series 900 computers.

The 27113A can connect up to 14 slow-speed to medium-speed peripheral devices
(such as instruments). or up to eight high-speed peripheral devices (such as disc
drives).

Standard Product
The standard HP 27113A HP-IB Channel Card has the following parts:

Part Number
1. HP-IB printed circuit card assembly 27113-60301
2. Four-metre HP-IB cable 27113-63001
3. One Installation & Configuration 27113-90001
Manual (this manual)
4. One HP-IB connector backing plate 30070-00043

The descriptors that identify this card are:

1. Product number: HP 27113A
2. Card assembly number: 27113-60301

The card assembly number and the date code are printed on a sticker attached to
the card. as well as on the title page of this manual.

Update 1 (August 1987)
1-1
General Information

Specifications

Maximum Transfer Rates:

Medium/Slow-Speed: 500 kbytes/second
High-Speed: 980 kbytes/second

(Note: transfer rates are host-computer and software dependent)

Data Settling Time:

Medium/Slow-Speed Operation: May exceed 500 ns (e.g. 2 pS)
High-Speed Operation: 350 ns minimum
