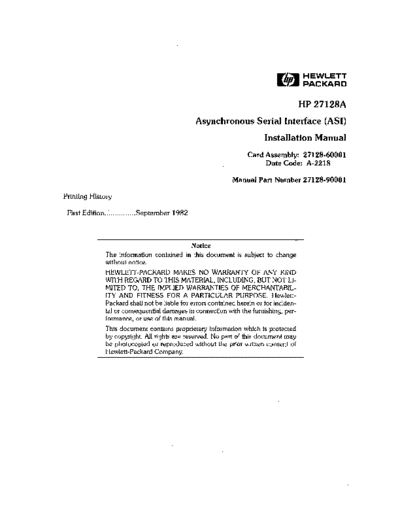

Image preview - the first page of the document
27128-90001_27128A_Asynchronous_Serial_Interface_Installation_Sep82


>> Download 27128-90001_27128A_Asynchronous_Serial_Interface_Installation_Sep82 documenatation <<

Text preview - extract from the document
                                                                             Flin-      HEWLETT
                                                                             a:~ PACKARD


                                                                                        HP 27128A
                                                Asynchronous Serial Interface (ASI)
                                                                         Installation Manual
                                                                  Card Assembly: 27128-60001
                                                                       Date Code: A-2218

                                                             Manual Part Number 27128-90001

Printing History

 First Edition ............... September 1982



                                              Notice
              The information contained in this document is subject to change
              without notice.
              HEWLETT-PACKARD MAKES NO WARRANTY OF ANY KIND
              WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LI-
              MITED TO, THE IMPLIED WARRANTIES OF MERCHANTABIL-
              ITY AND FITNESS FOR A PARTICULAR PURPOSE. Hewlett-
              Packard shall not be liable for errors contained herein or for inciden-
              tal or consequential damages in connection with the furnishing, per-
              formance, or use of this manual.
              This document contains proprietary information which is protected
              by copyright. All rights are reserved. No part of this document may
              be photocopied or reproduced without the prior written consent of
              Hewlett-Packard Company.
This manual provides information for you to install and verify correct operation of the HP
27128A Asynchronous Serial Interface (ASI) card. You will also need the appropriate computer
system installation manual. These two manuals should provide all the required information. If
your installation is such that you need additional information concerning the ASI card, order the
HP 27132A Technical Reference Package from the nearest Hewlett-Packard Sales and Service
Office.

Installation and Checkout
To install and check the operation of the ASI card, follow the steps below in the order given:

   1. Deterrnine if your computer system can supply the power needed for the ASI card. Refer
      to table 1 for power requirements.
   2. Set the switches on the card for proper operation in your system. Refer to tables 2 and 3
      for switch information.
   3. Install the card in the appropriate slot in the computer. Refer to the computer system
      installation manual to determine the correct slot.
   4. Connect the cable, supplied with the card, from J2 on the card to the peripheral device. If
      you have the diagnostic test hood, which exercises slightly more of the card's circuitry,
      and can be ordered (Hewlett Packard part number 1258-0207), connect it to J2 instead
      of connecting the cable.
   5. Turn on computer system power.
   6. A self-test is contained on the card. The host computer system dE?termines if the self-test
      is run automatically at power-on or must be invoked by the user. Refer to the appropriate
      manual for your system for a description of self-test initiation.

        a. If the diagnostic test hood is not installed when the self-test executes, the LED
           located on the card should light briefly and go out. This indicates that the card passed
           self-test. If the LED does not light at all, the card is defective. If the LED stays on, the
           card did not pass self-test. In either of the latter two cases, return the card to Hewlett-
           Packard (refer to the "RESHIPMENT" paragraph for details).
        b. If the diagnostic test hood is installed when the self-test executes, the LED located on
           the test hood should light briefly and go out if the card passed self-test. If the test
           hood LED stays on or does not light, the causes are the same as in step 6. a.

   7. Refer to your system documentation for information on determining if the system can talk
      to the ASI card.

Reshipment
If the ASI is to be shipped to Hewlett-Packard for any reason, attach a tag identifying the owner
and indicating the reason for shipment. Include the part number of the ASI.

Pack the card in the original factory packing material, if available. If the original material is not
available, good commercial packing material should be used. Reliable commercial packing and
shipping companies have the facilities and materials to repack the item. BE SURE TO
OBSERVE ANTI-STATIC PRECAUTIONS.




                                                  2
                              Table 1. Power Requirements

             Voltage                Current                Power Dissipation
                 + 5V                1.29A                       6.45W
                 +12V                0.054A                      0.65W
                 -12V                0.073A                      0.87W




                   Table 2. Configuration Switch Definitions

                                     Switch Number


SWI      SW2            SW3          SW4           SW5           SW6          SW7         SW8

                                           Function


Single   Hard-          No          8 Data         Baud          Baud         Baud        Baud
 Text    Wired         Parity         Bits         Rate          Rate         Rate        Rate
Term                                               Bit 3         Bit 2        Bit 1       Bit 0
{when    {when         {when        (open,
open)    open)         open)        8 bits;                      (open = logic 1,
                                    closed,                      closed   l'OgiC
                                                                               0)
                                    7 bits)
                                                            I                         I
                            Table 3. Baud Rate Switch Settings

                                Switches                      Baud Rate
                 SW5      SW6        SW7        SW8
                  0        0          0          0                 50
                  0        0          0          1                 75
                  0        0          1          0                110
                  0        0          1          1                134.5
                  0        1          0          0                150
                  0        1          0          1                300
                  0        1          1          0                600
                  0        1          1          1                900
                  1        0          0          0               1200
                  1        0          0          1               1800
                  1        0          1          0               2400
                  1        0          1          1               3600
                  1        1          0          0               4800
                  1        1          0          1               7200
                  1        1          1          0               9600
                  1        1          1          1              19200



                                               3
Table 4. RS-232-C Male Cable (Part Number 8120-4008) Pinouts

Cable       ASI Card
Connector   Connector J2
Pin No.     Pin No.                Function
1           Shield
2           A22                    Transmitted Data
3           A9                     Received Data
4           B15                    Request to Send
5           A8                     Clear to Send
6           A12                    Data Set Ready
7           B7,B8,B9,BI0           Signal Ground
            Bll,BI2,BI3,BI4,
8           A14                    Receiver Ready
9              -                   Not Used
10             -                   Not Used
11             -                   Not Used
12          B16                    Secondary Receiver Ready
13          A16                    Secondary Clear to Send
14          B17                    Secondary Tranmitted Data
15             -                   Not Used
16          B18                    Secondary Received Data
17             -                   Not Used
18             -                   Not Used
19          A17                    Secondary Request to Send
20          A15                    Data Terminal Ready
21             -                   Not Used
22          B19                    Incoming Call
23          B21                    Data Signal Rate Selector
24             -                   Not Used
25             -                   Not Used




                               4
Table 5. RS-232-C Female Cable (Part Number 8120-4012) Pinouts

 Cable        ASI Card
 Connector    Connector J2
 Pin No.      Pin No.               Function
 1            Shield
 2            A9                    Transmitted Data
 3            A22                   Received Data
 4            A8                    Request to Send
 5            815                   Clear to Send
 6            A15                   Data Set Ready
 7            87,88,89,810,         Signal Ground
              811,812,813,814
 8               -                  Not Used
 9               -                  Not Used
 10              -                  Not Used
 11              -                  Not Used
 12              -                  Not Used
 13           A17                   Secondary Clear to Send
 14              -                  Not Used
 15              -                  Not Used
 16              -                  Not Used
 17              -                  Not Used
 18              -                  Not Used
 19           A16                   Secondary Request to Send
 20           A12                   Data Terminal Ready
 21              -                  Not Used
 22              -                  Not Used
 23              -                  Not Used
 24              -                  Not Used
 25              -                  Not Used




                                5
                              Flin-   HEWLETT
                              ~~ PACKARD

Manual Part No. 27128-90001                     Hewlett-Packard Company
Printed in U.S.A                                         Roseville Division
September, 1982                                  8000 Foothills Boulevard
                                                Roseville, California 95678
