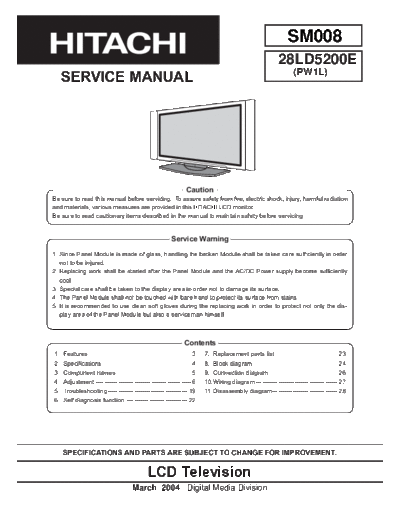

Image preview - the first page of the document
![Hitachi_PW1L_28LD5200E_[SM]](/pics/5c2364c68b93a.gif)
>> Download Hitachi_PW1L_28LD5200E_[SM] documenatation <<
Text preview - extract from the document
SM008
28LD5200E
(PW1L)
SERVICE MANUAL
Caution
Be sure to read this manual before servicing. To assure safety from fire, electric shock, injury, harmful radiation
and materials, various measures are provided in this HITACHI LCD monitor.
Be sure to read cautionary items described in the manual to maintain safety before servicing.
Service Warning
1. Since Panel Module is made of glass, handling the broken Module shall be taken care sufficiently in order
not to be injured.
2. Replacing work shall be started after the Panel Module and the AC/DC Power supply become sufficiently
cool.
3. Special care shall be taken to the display area in order not to damage its surface.
4. The Panel Module shall not be touched with bare hand to protect its surface from stains.
5. It is recommended to use clean soft gloves during the replacing work in order to protect not only the dis-
play area of the Panel Module but also a serviceman himself.
Contents
1. Features --------------------------------------------------3 7. Replacement parts list------------------------------- 23
2. Specifications --------------------------------------------4 8. Block diagram ----------------------------------------- 24
3. Component names -------------------------------------5 9. Connection diagram --------------------------------- 26
4. Adjustment -----------------------------------------------6 10.Wiring diagram ---------------------------------------- 27
5. Troubleshooting --------------------------------------- 19 11. Disassembly diagram-------------------------------- 28
6. Self diagnosis function ------------------------------ 22
SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT.
LCD Television
March 2004 Digital Media Division
28LD5000TA (PW1L)
CAUTION FOR SAFETY
Please read this page before repairing the monitor.
This page explains the following items to ensure the safety of set and prevent accidents
during repair work.
We explain by symbols what damage or injury may occur if errors are made.
Warning This symbol means "possible to cause death or serious injury"
Caution This symbol means "possible to cause damage or something may break"
We symbols below have the following meanings.
This symbol means "CAUTION" This symbol means "MUST"
This symbol means "POSSIBLE to
This symbol means "DO NOT"
ELECTRIC SHOCK"
WARNING
Should follow instructions.
Indicates cabinet, chassis and parts Should keep same style of wiring or component.
by label, which need special attention. Monitor uses tubes or tapes, which are
Please follow notes and Safety Instruc- insulators, and some components are
tions of User's Manual. kept a distance from surface of PWB for
Prevent electric shock. safety.
Please take care during working because Internal leads kept from hot part or high volt-
monitor has high voltage part and power age part by clamper or styling, so please
supply part. return to original condition to prevent elec-
Possible to die if you touch these tric shock or fire.
places by mistake. Should do safety check when finished.
Please disconnect power plug during Every part (removed screws, component
overhaul, reassembly or changing parts. and wiring) should be returned to previous
You could die or suffer from electric condition.
shock if you touch live part. Check around repair for possible
Use recommended components. damage by mistake and measure the
Please use same characteristic compo- insulated impedance by meg-ohm meter.
nent, which is same as original for your Confirm the value of impedance, that
safety and reliability. Especially those value is more than 4M ohm.
marked by in parts list and circuit dia- It could cause electric shock or fire if this
gram. value is less than 4M ohm.
It may cause electric shock or fire if you Nobody can check and repair the code
use non-recommended component. and combination circuit of HDCP.
Never remove the shield case, which is
attached to the code and combination
circuit of HDCP.
2
28LD5200E (PW1L)
PRECAUTIONS
How to clean the LCD screen panel of the monitor
Before cleaning the monitor, turn off the monitor and disconnect the power plug from the power outlet.
To prevent scratching or damaging the LCD screen face, do not knock or rub the surface with sharp or hard
objects. Clean the screen with a soft cloth moistened with warm water and dry with a soft cloth. If it is not
enough, then use a cloth with mild detergent. Do not use harsh or abrasive cleaners.
How to clean the cabinet of the monitor
Use a soft cloth to clean the cabinet and control panel of the monitor. When excessively soiled dilute a neutral
detergent in water, wet and wring out the soft cloth and afterward wipe with a dry soft cloth.
Never use acid/alkaline detergent, alcoholic detergent, abrasive cleaner, powder soap, OA cleaner, car wax,
glass cleaner, etc. especially because they would cause discoloration, scratches or cracks.
1. Features
Large-screen, high-definition LCD panel
The 28-inch color LCD panel, with a resolution of 1280 (H) x 768(V) pixels, creates a high-definition, large-screen
(aspect ratio : 15:9) and low-profile flat display. Free from electromagnetic interferences from geomagnetic sources
and ambient power lines, the panel produces high-quality display images free from color misconvergence and display
distortion.
High Performance Digital Processor
A wide range of personal computer signals can be handled, from 640 x 400, 640 x 480 VGA to 1600 x 1200 UXGA.
(RGB Analog input)
Easy-to-use remote control and on screen display system
The remote control included eases the work of setting display controls. Further, the on-screen display system,
displays the status of signal reception and display control settings in an easy-to-view fashion.
Power saving system
The International ENERGY STAR power saver feature saves power consumption automatically when input sig-
nals are not available.
When connected to a VESA DPMS-compliant PC, the monitor cuts its power consumption while it is idle.
TruBass
TruBass, SRS and ( ) symbol are trademarks of SRS Labs,Inc.
TruBass technology is incorporated under license from SRS Labs, Inc.
One mini D-sub terminal and one DVI-D terminal for RGB input
The D-sub terminal can also receive the RGB-component by On-Screen Display control.
One composite/S.video input terminal and two component video input terminals.
One component input is possible to switch to RGB signal input from the Menu screen.
One SCART terminal for the signal of the European standard.
It operates as composite/S.video input and RGB input terminal, or composite video output terminal.
One composite video output terminal as a monitoring output.
Various input/output terminals.
Tuner and TELETEXT receiver.
High performance type of the remote control.
3
28LD5200E (PW1L)
2. Specifications
Display
Approx. 28 inches (599.04 (H) x 359.42 (V) mm)
Panel dimensions
Resolution 1280 (H) x 768 (V) pixels
Net dimensions 854 (W) x 516 (H) x 277 (D) mm
Net weight 21.9kg
Ambient Temperature Operating : 5 C to 35 C, Storage : 0 C to 60 C
conditions Relative humidity Operating : 20% to 80%, Storage : 20% to 90% (non-condensing)
Power supply AC100 - 240V, 50/60Hz
Power consumption/at standby 155W / <1W
Audio output 12W + 12W (6 )
(RGB input)
RGB1 DVI input terminal (DVI-D)
RGB1 audio input terminal (3.5mm Stereo Mini Jack)
Input terminals
RGB2 analog RGB input terminal (D-sub 15-pin)
RGB2 audio input terminal (3.5mm Stereo Mini Jack)
Input signals 0.7 V/1.0 Vp-p, analog RGB (Recommended Signal)
Video signals
480i, 576i, 480p, 576p, 1080i/50, 1080i/60, 720p/60
H/V separate, TTL level [2K ]
Sync signals H/V composite, TTL level [2K ]
Sync on green, 0.3 Vp-p [75 ]
(Video input)
AV1: composite video input terminal (RCA)
AV1: Y PB PR video input terminal (RCA)
AV1: L/R audio input terminal (RCA)
AV2: composite video input terminal (RCA)
AV2: Y/G PB/B PR/R video input terminal (RCA)
Input terminals
AV2: L/R audio input terminal (RCA)
AV3: composite video input terminal (RCA)
AV3: S video input terminal (RCA)
Input signals AV3: L/R audio input terminal (RCA)
AV4: composite video / S video / RGB / L/R audio input terminal (Scart)
AV1: PAL, SECAM, NTSC3.58, NTSC4.43
AV1: 480i, 576i, 480p, 576p, 1080i/50, 1080i/60, 720p/60
AV2: PAL, SECAM, NTSC3.58, NTSC4.43
Video signals AV2: 480i, 576i, 480p, 576p, 1080i/50, 1080i/60, 720p/60, RGB
AV3: PAL, SECAM, NTSC3.58, NTSC4.43
AV4: PAL, SECAM, NTSC3.58, NTSC4.43
AV4: RGB
OUTPUT (MONITOR): composite video monitor-output terminal (RCA)
Video output Signal OUTPUT (MONITOR): L/R audio monitor- output terminal (RCA)
AV4: composite video / L/R audio output terminal (SCART)
(RF input)
Input terminals ANT : 75 Unbalanced
Input signals
RF Video System PAL B, G, H / I / D, K SECAM B, G / D, K / K1
Applicable video signals for each input terminal
Terminal RCA/SCART DVI D-sub
Signal CVBS S-video Component RGB PC STB RGB Component
AV1
AV2
AV3
AV4
RGB1
RGB2
( :Available)
4
28LD5200E (PW1L)
3. Component names
[ Main unit ]
Control panel
These buttons are located on the top.
INPUT SELECT button
(OK button)
PROGRAM UP button
( SELECT button)
SUB-POWER button
PROGRAM DOWN
button ( SELECT
button) VOLUME
UP/DOWN
MENU button buttons
( ADJUST buttons)
( ) indicates the function while the MENU is displayed on the screen.
[ Remote Control ]
CLE-958
5
28LD5200E (PW1L)
4.Adjustment
How to get to Adjustment mode
Using the front control buttons with the set turned off (standby) can activate it.
Press the SUB-POWER( ) button, INPUT SELECT( ) button and button at the same time, and hold
for more than 5 seconds.
The set turns on in adjustment mode with OSD.
Changing data and Selecting Adjustment code
When the set is in adjustment mode, the cursor , , , and OK buttons of the remote control or front
panel may be used as the adjustment keys.
, buttons are used for selecting adjustment code.
, buttons are used for changing data values.
OK button is used for confirming the data.
After finishing the necessary adjustment press MENU button. Adjustment mode is released and the set
returns to normal condition.
Memory Initialize operation
NOTE: The execution of this function returns the adjustment codes to the preset values, therefore, adjust-
ment data will be lost.
Procedure
(1) Enter Adjustment Mode.
(2) Select MEMORY INIT adjustment code (No.704) and change the data value from 0 to 1.
(3) Activate MEMORY INIT by pressing OK button for more than 3 seconds.
(4) Select No.374 and change data value from 1 to 0.
(5) Check that the receiving channel goes to AV1. Unit is set to preset values.
6
28LD5200E (PW1L)
Service adjustment items by I2C-bus control O : Should be adjusted
: Should be followed previous data
Function Changed Component
ADJ. Maximum Formatter VIDEO TUNER LCD
Adjustment Items Mode Default
No. Value PWB PWB PWB PANEL
0 R DRIVE1 [TV/VIDEO/DSUB-COMP] COOL 255 230 O
1 G DRIVE1 [TV/VIDEO/DSUB-COMP] COOL 255 230 O
2 B DRIVE1 [TV/VIDEO/DSUB-COMP] COOL 255 255 O
3 R DRIVE2 [TV/VIDEO/DSUB-COMP] NORMAL 255 230 O
4 G DRIVE2 [TV/VIDEO/DSUB-COMP] NORMAL 255 230 O
5 B DRIVE2 [TV/VIDEO/DSUB-COMP] NORMAL 255 230 O
6 R DRIVE3 [TV/VIDEO/DSUB-COMP] WARM 255 230 O
7 G DRIVE3 [TV/VIDEO/DSUB-COMP] WARM 255 230 O
8 B DRIVE3 [TV/VIDEO/DSUB-COMP] WARM 255 230 O
9 R DRIVE4 [TV/VIDEO/DSUB-COMP] BLACK & WHITE 255 230 O
10 G DRIVE4 [TV/VIDEO/DSUB-COMP] BLACK & WHITE 255 230 O
11 B DRIVE4 [TV/VIDEO/DSUB-COMP] BLACK & WHITE 255 230 O
12 R DRIVE1 [DVI-PC/DVI-STB/DSUB-RGB] COOL 255 230 O
13 G DRIVE1 [DVI-PC/DVI-STB/DSUB-RGB] COOL 255 230 O
14 B DRIVE1 [DVI-PC/DVI-STB/DSUB-RGB] COOL 255 255 O
15 R DRIVE2 [DVI-PC/DVI-STB/DSUB-RGB] NORMAL 255 230 O
16 G DRIVE2 [DVI-PC/DVI-STB/DSUB-RGB] NORMAL 255 230 O
17 B DRIVE2 [DVI-PC/DVI-STB/DSUB-RGB] NORMAL 255 230 O
18 R DRIVE3 [DVI-PC/DVI-STB/DSUB-RGB] WARM 255 230 O
19 G DRIVE3 [DVI-PC/DVI-STB/DSUB-RGB] WARM 255 230 O
20 B DRIVE3 [DVI-PC/DVI-STB/DSUB-RGB] WARM 255 230 O
21 R DRIVE4 [DVI-PC/DVI-STB/DSUB-RGB] BLACK & WHITE 255 230 O
22 G DRIVE4 [DVI-PC/DVI-STB/DSUB-RGB] BLACK & WHITE 255 230 O
23 B DRIVE4 [DVI-PC/DVI-STB/DSUB-RGB] BLACK & WHITE 255 230 O
24 Black Level(RGB_AMP) TV/VIDEO 254
25 Black Level(RGB_AMP) PC 254 127
26 Reference Amplitude(RGB_AMP) TV/VIDEO 254 127
27 Reference Amplitude(RGB_AMP) PC 254 127
28 Display for Max. Amplitude Level Main - -
29 Display for Max. Amplitude Level SUB - -
30 SUB_CONTRAST(RF) MAIN 15 7
31 SUB_CONTRAST (AV1) MAIN/SUB COMPOSITE mode 15 7
32 SUB_CONTRAST(RF) SUB 15 7
33 SUB_CONTRAST (AV4) MAIN/SUB COMPOSITE mode 15 7
34 SUB_COLOR(VIDEO-PAL/SECAM) MAIN 15 0
35 SUB_COLOR(RF-PAL/SECAM) MAIN 15 3
36 SUB_COLOR(VIDEO-NTSC) MAIN 15 0
37 SUB_COLOR(RF-NTSC) MAIN 15 11
38 SUB_COLOR(VIDEO-PAL/SECAM) SUB 15 0
39 SUB_COLOR(RF-PAL/SECAM) SUB 15 3
40 SUB_COLOR(VIDEO-NTSC) SUB 15 0
41 SUB_COLOR(RF-NTSC) SUB 15 11
42 TINT(VIDEO) MAIN 63 33 O
43 TINT(RF) MAIN 63 33 O
44 TINT(VIDEO) SUB 63 33 O
45 TINT(RF) SUB 63 33 O
46 S_B-Y_ADJ MAIN 15 8
47 S_R-Y_ADJ MAIN 15 8
48 S_B-Y_ADJ SUB 15 8
49 S_R-Y_ADJ SUB 15 8
50 BPF_Q (4.43MHz) MAIN 3 3
51 BPF_f0 (4.43MHz) MAIN 3 1
52 Y_DL (4.5MHz) For Asia MAIN 10 5
53 Y_DL (5.5MHz PAL/NTSC4.43) For Asia MAIN 10 3
54 Y_DL (5.5MHz SECAM) For Asia MAIN 10 0
55 Y_DL (6.0PAL/NTSC4.43) For Asia MAIN 10 9
56 Y_DL (6.0SECAM) For Asia MAIN 10 9
57 Y_DL (VIDEO PAL/NTSC4.43) MAIN 10 6
58 Y_DL (VIDEO SECAM) MAIN 10 8
59 Y_DL (VIDEO NTSC) MAIN 10 6
60 BELL_f0 MAIN 1 0
61 Y_OUT_LEVEL (VIDEO) MAIN 63 13
62 Initialize function for EEPROM of Video PWB board 1 0
63 Y_OUT_LEVEL (TEXT) MAIN 63 0
64 C_OUT_LEVEL (VIDEO) MAIN 63 21
65 Check condition of EEPROM of Video PWB board 0:Normal, 1:Abnormal(Fail or no assembly) 1 -
66 C_OUT_LEVEL (TEXT) MAIN 63 0
67 Y_OUT_LEVEL (TEXT) SUB 63 12
68 Y_OUT_LEVEL (VIDEO) SUB 63 13
69 Dispersion Time of Sustain current 0: 2 Times, 1: 4 times For Dynamic (Day) mode 1 0
70 C_OUT_LEVEL (TEXT) SUB 63 7
71 C_OUT_LEVEL (VIDEO) SUB 63 21
72 Dispersion Time of Sustain current 0: 2 Times, 1: 4 times For Natural (Night) mode 1 1
73 BPF_Q (4.43MHz) SUB 3 3
74 BPF_f0 (4.43MHz) SUB 3 1
75 Y_DL (4.5MHz) For Asia SUB 10 5
76 Y_DL (5.5MHz PAL/NTSC4.43) For Asia SUB 10 2
77 Y_DL (5.5MHz SECAM) For Asia SUB 10 0
78 Y_DL (6.0PAL/NTSC4.43) For Asia SUB 10 7
79 Y_DL (6.0SECAM) For Asia SUB 10 10
80 Y_DL (VIDEO PAL/NTSC4.43) SUB 10 8
81 Y_DL (VIDEO SECAM) SUB 10 6
82 Y_DL (VIDEO NTSC) SUB 10 5
83 BELL_f0 SUB 1 0
84 C_TRAP_SW (COMB=OFF-PAL/NTSC4.43/NTSC3.58) MAIN 1 0
85 C_TRAP_SW (COMB=OFF-PAL/NTSC4.43/NTSC3.58) SUB 1 0
86 MVM(VIDEO) - 1 0
87 AFC_GAIN (AV00) - 3 0
88 AFC_GAIN (AV1) - 3 0
89 AFC_GAIN (AV2) - 3 0
90 AFC_GAIN (AV3) - 3 0
91 AFC_GAIN (AV4) - 3 0
92 S_INHBT - 1 0
93 S_ID - 1 0
7
28LD5200E (PW1L)
O : Should be adjusted
: Should be followed previous data
Function Changed Component
ADJ. Maximum Formatter VIDEO TUNER LCD
Adjustment Items Mode Default
No. Value PWB PWB PWB PANEL
94 S_GP - 3 0
95 S_V_ID - 1 0
96 BELL/HPF - 3 3
97 Cb offset1 MAIN 15 8
98 Cr offset1 MAIN 15 8
99 Cb offset1 SUB 15 8
100 Cr offset1 SUB 15 8
101 Sharpness Gain(VIDEO) PAL MAIN 15 10
102 Sharpness Gain(RF) MAIN 15 5
103 Sharpness EQ(4.5MHz) MAIN 3 1
104 Sharpness EQ(5.5MHz) MAIN 3 1
105 Sharpness EQ(6.0/6.5MHz) MAIN 3 1
106 Sharpness EQ(VIDEO) MAIN 3 1
107 Sharpness f0(VIDEO) PAL MAIN 3 2
108 Sharpness f0(RF) MAIN 3 2
109 Sharpness Gain(VIDEO) PAL SUB 15 9
110 Sharpness Gain(RF) SUB 15 5
111 Sharpness EQ(4.5MHz) SUB 3 1
112 Sharpness EQ(5.5MHz) SUB 3 1
113 Sharpness EQ(6.0/6.5MHz) SUB 3 1
114 Sharpness EQ(VIDEO) SUB 3 1
115 Sharpness f0(VIDEO) PAL SUB 3 2
116 Sharpness f0(RF) SUB 3 2
117 LPF MAIN 1 0
118 LPF SUB 1 0
119 SECAM D-Trap MAIN/SUB 1 1
120 FILTER SW(RF) MAIN 1 0
121 FILTER SW(RF) SUB 1 0
122 NTSC Comb(Comb off) SUB 1 1
123 HS Phase MAIN 1 0
124 HS Phase SUB 1 0
125 P/N ID MAIN 1 0
126 P/N ID SUB 1 0
127 Y/C_SEP_MODE (COMB=OFF-PAL) - 3 0
128 Y-Pf0 - 1 0
129 Y-EQ_GAIN - 3 2
130 Y-EQ/N.C_LIM - 3 0
131 Y-LPF - 1 0
132 V-EMPH_GAIN - 7 3
133 V-EMPH_N.L - 7 3
134 V-EMPH_CORE - 3 1
135 D RANGE - 1 0
136 DY_GAIN MAIN NTSC mode 15 9
137 DC_GAIN MAIN NTSC mode 15 6
138 VAP_GAIN MAIN NTSC mode 7 5
139 VAP_INV MAIN NTSC mode 31 31
140 YH_CORE MAIN NTSC mode 3 0
141 YHCGAIN MAIN NTSC mode 1 1
142 CDL MAIN NTSC mode 7 3
143 YNRK MAIN NTSC mode 1 1
144 YNRINV MAIN NTSC mode 1 0
145 YNRLIM MAIN NTSC mode 3 1
146 CNRK 1 1
147 CNRINV 1 0
148 CNRLIM 3 1
149 YPFG 15 8
150 SEPA_LEVEL 480i/576i 3 2
151 SEPA_LEVEL 480p/576p 3 2
152 SEPA_LEVEL 1080i_50 3 2
153 SEPA_LEVEL 1080i_60/720p 3 2
154 AUTO_FM/AM(D11-D8) - 15 2
155 AUTO_FM/AM(D7-D0) - 254 189
156 A2_THRESHOLD(D11-D8) - 15 0
157 A2_THRESHOLD(D7-D0) - 254 112
158 PRE_AM Except 4.5MHz (Except Dual/Stereo mode) 254 17
159 VOL_SCART1 (D15-D8) - 254 115
160 VOL_SCART1 (D7-D5) - 7 0
161 PRE_SCART - 254 31
162 PRE_FM 4.5MHz(JAPAN) 254 34
163 PRE_FM 4.5MHz(Except BTSC-SAP mode) 254 32
164 PRE_FM 4.5MHz(BTSC-SAP) 254 60
165 PRE_FM 4.5MHz(Except KOREA-Dual/Stereo mode) 254 19
166 PRE_FM 4.5MHz(KOREA-Dual/Stereo) 254 34
167 PRE_FM Except 4.5MHz(Except Dual/Stereo mode) 254 17
168 PRE_FM Except 4.5MHz(Dual/Stereo mode) 254 27
169 PRE_NICAM - 254 57
170 Screen Saver-Picture shift amount 0:1pixel 1:2pixel 2:3pixel 2 0
171 Thermo sensor function available or not 0:None,1:Yes 1 0
172 Video Input function available or not at RGB1 & RGB2 mode 0:Not available, 1:Available 1 1
173 Screen Saver-Picture shift direction 0:dia 1:cross 2:up/down 3:left/right 3 0
174 AUDIO Function available 0:NO,1:YES 1 1
175 Remote Function available 0:NO,1:YES 1 1
176 Power Save On/Off Setting at Initialize,Reset and Shipping 0:Change 1: Don't Change 2 0
177 DVI-STB/RGB-COMPONENT Function available 0:NO,1:YES 1 0
178 Dynamic Backlight function 0:No, 1:Yes For LCD model 1 1
179 ISM Control for WVGA 1 1
180 Terminal Mode Function available 0:Not Available, 1:Available RS232C 1 0
181 Black insert function 0:Not available, 1:Available For Dynamic mode or Day mode (For LCD model only) 1 0
182 AGC_LEVEL AGCL ALL Mode 3 0
183 TEXT H sync delay - 127 0
184 TEXT V sync delay - 127 50
185 TEXT_H_POSITION - 254 42
186 TEXT_V_POSITION - 254 38
187 Lower Limits value for Sync Detect of 2ms interval For AFC at TV mode 254 25
8
28LD5200E (PW1L)
O : Should be adjusted
: Should be followed previous data
Function Changed Component
ADJ. Maximum Formatter VIDEO TUNER LCD
Adjustment Items Mode Default
No. Value PWB PWB PWB PANEL
188 Upper Limits Value for Sync Detect of 2ms interval For AFC at TV mode 254 40
189 Lower Limits value for Sync Detect of 2ms interval For Free Running at TV mode 254 30
190 Upper Limits Value for Sync Detect of 2ms interval For Free Running at TV mode 254 45
191 Lower Limits value for Sync Detect of 2ms interval For AUTO OFF at TV mode 254 25
192 Upper Limits Value for Sync Detect of 2ms interval For AUTO OFF at TV mode 254 35
193 Lower Limits value for Sync Detect of 2ms interval For Free Running at AV mode 254 30
194 Upper Limits Value for Sync Detect of 2ms interval For Free Running at AV mode 254 45
195 Counting time for discrimination of fV - 31 2
196 Dispersion Time of Sustain current 0: 2 Times, 1: 4 times For PC mode 1 1
197 Counting time for discrimination of SYNC - 31 2
198 Input Source of fV/fH judghment(0:M30625/TA1370) Component Mode 1 0
199 Counting time for discrimination of fV(M30625/TA1370) - 31 2
200 Y_DL (6.5MHz PAL/NTSC4.43) For Asia Main 10 7
201 Y_DL (6.5MHz SECAM) For Asia Main 10 10
202 Y_DL (6.5MHz PAL/NTSC4.43) For Asia Sub 10 4
203 Y_DL (6.5MHz SECAM) For Asia Sub 10 10
204 PDP-BLK ON/OFF 1:ON, 0:OFF 1 0
205 Counting time for discrimination of fH(M30625/TA1370) - 31 2
206 Sharpness f0(L) Sub 3 2
207 NJW1320_OUT1_GAIN VIDEO PWB 1 0
208 NJW1320_OUT2_GAIN VIDEO PWB 1 0
209 Sharpness f0(L') Sub 3 2
210 AFC_GAIN (Except AV00 mode) Except AV00 mode 3 0
211 Recovery to an error of OSC frequency of Ceramic resonator for timer 62 34
212 Brightness Center (CM) NT2/NT3/HD2/HD3/PAL2/PAL3/HD9/HD10/NT4/PAL4 254 128
213 Brightness Center (CM) HD1/HD4/HD5/HD6/HD7/HD8 254 128
214 Brightness Center (CM) MULTI PICTURE/NT1/PAL1 254 128
215 Reset function of accumulation time for WVGA/LCD Panel 0:Normal 1:Reset 1 0
216 Contrast Center (CM) Except WVGA & LCD TV/VIDEO(AV3/AV4 mode) 254 137
217 Power key function available or not (At Force AVC mode) 0:Available 1:Cannot 1 0
218 Color Center (CM) NT1/NT2/NT4/HD3/HD4/HD6/PAL4 127 46
219 Color Center (CM) PAL1/PAL2/HD8/HD9 127 50
220 Color Center (CM) NT3/HD1/HD2/HD5/PAL3/HD7/HD10 127 58
221 Tint Center (CM) PAL1 254 140
222 Tint Center (CM) NT1/NT2/NT4/HD3/HD4/HD6 254 130
223 Tint Center (CM) PAL2/HD8/HD10/PAL4 254 108
224 Tint Center (CM) NT3/HD1/HD2/HD5/PAL3/HD7/HD9 254 140
225 Center of Sharpness (HV Enhancer Gain for Y) For Europe TV 31 15
226 Center of Sharpness (HV Enhancer Gain for Y) For Europe VIDEO 31 15
227 Center of Sharpness (HV Enhancer Gain for Y) For Europe HD5/HD6 31 6
228 Center of Sharpness (HV Enhancer Gain for Y) For Europe HD1/HD4/HD7/HD8 31 10
229 Center of Sharpness (HV Enhancer Gain for Y) For Europe HD2/HD3/HD9/HD10 31 10
230 Center of Sharpness (HV Enhancer Gain for Y) For Europe NT2/NT3/PAL2/PAL3/NT4/PAL4 31 14
231 Center of Sharpness (HV Enhancer Gain for Y) For Europe TEXT(for split) 31 7
232 Maximum Value of Contrast at REAL/NORMAL mode 254 188
233 Offset Value of Contrast data at SPLIT mode 120 55
234 Offset value of gain for Black Stretch function Except OFF/LOW/HIGH mode 63 33
235 Demonstration [White] 0-3:None,4:0,5:+10W,6:+20W,7:+30W Mode(common) 7 5
236 Demonstration 0:Normal, 1:Peak Mode 1 1
237 Demonstration [Middle] 0:+0W,1:+10W,2:+20W,3:+30W Mode(common) 3 3
238 Demonstration 0:Normal, 1:Peak Mode 1 0
239 Horizontal Enhance TEXT 3 3
240 YNR Input Level at Low level for DVI-STV Mode 1080i-60/1080i-50/720p-60 7 2
241 YNR Input Level at Low level for DVI-STV Mode 480i/480p/576i/576p/VGA 7 2
242 CNR Input Level at Low level for DVI-STV Mode 1080i-60/1080i-50/720p-60 7 2
243 CNR Input Level at Low level for DVI-STV Mode 480i/480p/576i/576p/VGA 7 2
244 Vertical Enhance TEXT 3 3
245 Demonstration Mode 0:(Off), 1:(On) 1 0
246 WVGA sys_state For WVGA 1 0
247 WVGA BRIGHTNESS For WVGA 1 0
248 Enhancer gain of VH for C TEXT 31 0
249 YNR(NR) Input Level RF Mode 7 3
250 YNR Input Level at Low level for AV1-4 Mode VIDEO 7 3
251 YNR Input Level at Low level for AV1-4 Mode NT2/NT3/PAL2/PAL3/NT4/PAL4 7 3
252 YNR Input Level at Low level for AV1-4 Mode HD1/HD4/HD5/HD6/HD7/HD8 7 3
253 YNR Input Level at Low level for AV1-4 Mode HD2/HD3/HD9/HD10 7 3
254 CNR Input Level at Low level for AV1-4 Mode VIDEO 7 3
255 CNR Input Level at Low level for AV1-4 Mode NT2/NT3/PAL2/PAL3/NT4/PAL4 7 3
256 CNR Input Level at Low level for AV1-4 Mode HD1/HD4/HD5/HD6/HD7/HD8 7 3
257 CNR Input Level at Low level for AV1-4 Mode HD2/HD3/HD9/HD10 7 3
258 Heat APC function (HAPC) available 1 1
259 select(0:1.0 1:2.2 2:2.8) TV/VIDEO 2 1
260 select(0:1.0 1:2.2 2:2.8) DVI-PC/DVI-STB/DSUB-RGB 2 1
261 Select for APC function 1 0
262 "CCFMD" function TV/VIDEO 1 0
263 "CCFMD" function DVI-PC/DVI-STB/DSUB-RGB 1 0
264 NTSC/EBU(CCFORM) NT1/NT2/HD3/HD4/HD6/HD8/HD10/PAL1/PAL2 1 0
265 NTSC/EBU(CCFORM) TV/VIDEO/NT3/PAL3/HD1/HD2/HD5/HD7/HD9/NT4/PAL4 1 0
266 NTSC/EBU(CCFORM) DVI-PC/DVI-STB/DSUB-RGB 1 0
267 Correction for Tracking (DCBON) TV/VIDEO-Color Temp. : COOL 1 0
268 Correction for Tracking (DCBON) TV/AV-Col. Temp. : Nor/War 1 1
269 Correction for Tracking (DCBON) DVI-PC/DVI-STB/DSUB-RGB 1 1
270 Color Temp. Correction 3 2
271 Typical Value of Contrast OSD DYNAMIC 31 31
272 PC Power Save function (0:Impossible 1:Possible) 1 1
273 Waite Time for POWER SAVE function (s) VIDEO/PC 254 15
274 Lower Limits value for Sync Detect of 2ms interval For Power Save at AV mode 254 5
275 Upper Limits Value for Sync Detect of 2ms interval For Power Save at AV mode 254 200
276 Horizontal Position of OSD 60Hz 15 7
277 Vertical Position of OSD 60Hz 15 7
278 PinP Function 0:PinP, 1:Infomation1, 2:Infomaiton Split 2 0
279 Select for WIDE Mode 1 1
280 Temperature for Fun start (Temp_High) 254 58
281 Temperature for Fun stop (Temp_Low) 254 55
9
28LD5200E (PW1L)
O : Should be adjusted
: Should be followed previous data
Function Changed Component
ADJ. Maximum Formatter VIDEO TUNER LCD
Adjustment Items Mode Default
No. Value PWB PWB PWB PANEL
282 Display of internal temperature C◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
