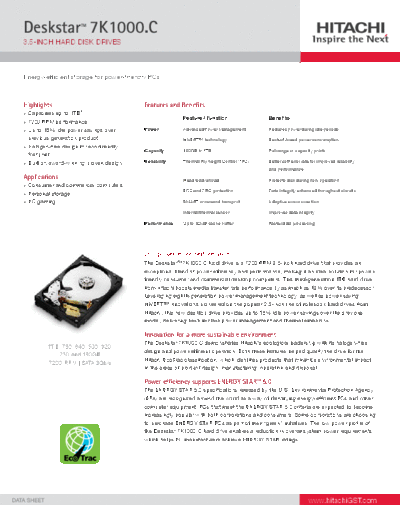

Image preview - the first page of the document
>> Download Hitachi Deskstar 7K1000.C documenatation <<
Text preview - extract from the document
DeskstarTM 7K1000.C
3.5-INCH HARD DISK DRIVES
Energy-efficient storage for power-friendly PCs
Highlights Features and Benefits
1
> C
apacitiesupto1TB
Feature / Function Benefits
> 7200 RPM performance
> Upto18%idlepowersavingsover Power Advanced Power Management Reduces power during idle periods
previous generation product HiVERTTM technology Best-of-breed power consumption
> Halogen-freedesignforeco-friendly
Capacity 160GB to 1TB Full range of capacity points
footprint
> Builtonaward-winningprovendesign Reliability Thermal Fly-height Control (TFC) Better soft error rate for improved reliability
and performance
Applications Head load/unload Protects disk during non-operation
> Consumerandcommercialcomputers
ECC and CRC protection Data integrity enhanced throughout circuits
> Personalstorage
> PCgaming SMART command transport Adaptive error correction
Internal thermal sensor Improves data integrity
Performance Up to 32MB cache buffer Faster data processing
Less power, more performance
The DeskstarTM 7K1000.C hard drive is a 7200 RPM 3.5-inch hard drive that provides an
exceptional blend of power efficiency and performance, making it an ideal solution for power-
friendly consumer and commercial desktop computers. This third-generation 1TB hard drive
from Hitachi boosts media transfer rate performance by as much as 13% over its predecessor.
Leveraging eighth-generation power management technology, as well as power-saving
HiVERTTM innovations pioneered on the popular 2.5-inch line of notebook hard drives from
Hitachi, this new desktop drive provides up to 18% idle power savings over the previous
model, delivering best-in-class power management and thermal emissions.
Innovation for a more sustainable environment
The Deskstar 7K1000.C demonstrates Hitachi's ecological leadership with its halogen-free
1TB, 750, 640, 500, 320,
design and power-efficient operation. Both these features helped qualify the drive for the
250 and 160GB
Hitachi EcoTrac classification, which identifies products that minimize environmental impact
7200 RPM | SATA 3Gb/s
in the areas of product design, manufacturing, operation and disposal.
Power efficiency supports ENERGY STARTM 5.0
The ENERGY STAR 5.0 specifications released by the U.S. Environmental Protection Agency
(EPA) are recognized around the world as a way of identifying energy-efficient PCs and other
computer equipment. PCs that meet the ENERGY STAR 5.0 criteria are expected to become
increasingly popular with both corporations and consumers. Some corporations are choosing
to purchase ENERGY STAR PCs as part of their "green" initiatives. The low power profile of
the Deskstar 7K1000.C hard drive enables a reduction in overall system power requirements,
which helps PC manufacturers achieve ENERGY STAR ratings.
www.hitachiGST.com
DeskstarTM 7K1000.C
Specifications Hitachi quality and service
Model(s) HDS721010CLA332 All Hitachi hard drives are designed to the
HDS721075CLA332 highest quality standards with field-proven
HDS721064CLA332
HDS721050CLA362
components. They are backed by Hitachi's
HDS721032CLA362 worldwide technical support and integration
HDS721025CLA382 services, enabling customers around the globe
HDS721016CLA382
to bring their products to market quickly.
Configuration
Interface SATA 3Gb/s
Capacity (GB)1 1TB / 750 / 640 / 500 / 320 / 250 / 160
How to read the Deskstar model number
Max. areal density (Gbits/sq. in.) 352 HDS721010CLA332 = 1TB, 32MB buffer
Performance H = Hitachi
D = Deskstar
Data buffer (MB)2 32 / 32 / 32 / 16 / 16 / 8 / 8
S = Standard model
Rotational speed (RPM) 7200
72 = 7200 RPM
Media transfer rate (Mbits/s, max) 1589
10 = Full capacity--1TB
Interface transfer rate (MB/s, max) 300 10 = Capacity this model, 10 =1TB
Reliability (75 = 750GB, 64 = 640GB, 50 = 500GB,
Error rate (non-recoverable, bits read) 1 in 1014 32 = 320GB, 25 = 250GB, 16 = 160GB)
Load/unloadcycles(at40◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
