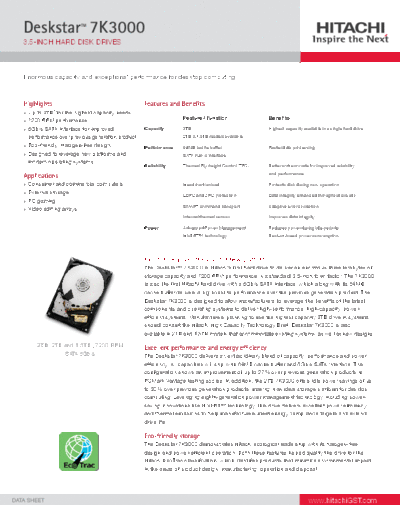

Image preview - the first page of the document
>> Download Hitachi Deskstar 7k3000 documenatation <<
Text preview - extract from the document
DeskstarTM 7K3000
3.5-InCH HARD DISK DRIVES
Enormous capacity and exceptional performance for desktop computing
Highlights Features and Benefits
> Up to 3TB1 for the highest capacity needs
Feature / Function Benefits
> 7200 RPM performance
> 6Gb/s SATA interface for improved Capacity 3TB Highest capacity available in a single hard drive
performance over previous generation product 2TB & 1.5TB models available
> Eco-friendly, Halogen-free design Performance 64MB cache buffer Faster data processing
> Designed to leverage new platforms and SATA 6Gb/s interface
modern operating systems
Reliability Thermal Fly-height Control (TFC) Better soft error rate for improved reliability
Applications and performance
> Consumer and commercial computers Head load/unload Protects disk during non-operation
> External storage
LDPC and CRC protection Data integrity enhanced throughout circuits
> PC gaming
SMART command transport Adaptive error correction
> Video editing arrays
Internal thermal sensor Improves data integrity
Power Advanced Power Management Reduces power during idle periods
HiVERTTM technology Best-of-breed power consumption
Big storage paves the way for new platforms
The DeskstarTM 7K3000 is Hitachi's first hard drive to deliver an enormous three terabytes of
storage capacity and 7200 RPM performance in a standard 3.5-inch form factor. The 7K3000
is also the first Hitachi hard drive with a 6Gb/s SATA interface, which along with its 64MB
cache buffer delivers a big boost to performance over the previous generation product. The
Deskstar 7K3000 is designed to allow manufacturers to leverage the benefits of the latest
components and operating systems to deliver high-performance, high-capacity, power-
efficient systems. Manufacturers planning to use the highest capacity 3TB drive in systems
should consult the Hitachi High Capacity Technology Brief. Deskstar 7K3000 is also
available in 2TB and 1.5TB models that accommodate existing systems, as well as new designs.
3TB, 2TB and 1.5TB | 7200 RPM Excellent performance and energy efficiency
SATA 6Gb/s The Deskstar 7K3000 delivers an extraordinary blend of capacity, performance and power
efficiency. All capacities will ship with 64MB cache buffer and 6Gb/s SATA interface. This
configuration shows an improvement of up to 27% over previous generation products in
PCMark Vantage testing scores. In addition, the 2TB 7K3000 offers idle power savings of up
to 30% over previous generation products, making it an ideal storage platform for desktop
computing. Leveraging eighth-generation power management technology, including power-
saving innovations like HiVERTTM technology, this drive delivers excellent power efficiency
and thermal emissions to help manufacturers meet energy compliance targets and extend
drive life.
Eco-friendly storage
The Deskstar 7K3000 demonstrates Hitachi ecological leadership with its halogen-free
design and power-efficient operation. Both these features helped qualify the drive for the
Hitachi EcoTrac classification, which identifies products that minimize environmental impact
in the areas of product design, manufacturing, operation and disposal.
www.hitachiGST.com
DeskstarTM 7K3000
Specifications Hitachi quality and service
Model(s) HDS723030ALA640 All Hitachi hard drives are designed to the
HDS723020BLA642 highest quality standards with field-proven
HDS723015BLA642
components. They are backed by Hitachi's
Configuration
worldwide technical support and integration
Interface SATA 6Gb/s
services, enabling customers around the globe
Capacity (TB)1 3 / 2 / 1.5
to bring their products to market quickly.
Sector size (bytes) 512
Max. areal density (Gbits/sq. in.) 411
How to read the Deskstar model number
Performance
HDS723030ALA640 = 3TB, 64MB buffer
Data buffer (MB)2 64
H = Hitachi
Rotational speed (RPM) 7200
D = Deskstar
Media transfer rate (Mbits/s, max) 1656 S = Series prefix
Interface transfer rate (MB/s, max) 600 72 = 7200 RPM
Reliability 30 = Full capacity--3TB
Error rate (non-recoverable, bits read) 1 in 1014 30 = Capacity this model, 30 = 3TB
