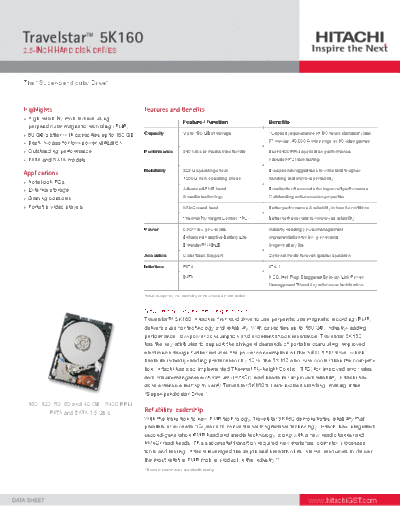

Image preview - the first page of the document
>> Download Hitachi Travelstar 5K160 documenatation <<
Text preview - extract from the document
TravelstarTM 5K160
2.5-INCH HARD DISK DRIVES
The "Super-pendicular Drive"
Highlights Features and Benefits
> High reliability mobile drive using
Feature/Function Benefits
perpendicular magnetic recording (PMR)
> 80 GB/platter, with capacities up to 160 GB Capacity Up to 160 GB of storage * Capacity equivalence of 160 hours standard video,
57 movies, 40,000 4-min songs or 80 video games
> Best-in-class for low-power utilization
> Outstanding performance Performance 540 Mb/sec media transfer rate Best 5400 RPM application performance
> PATA and SATA models based on PCMark testing
Reliability 325 G operating shock Exceptional ruggedness to withstand tougher
Applications
1000 G non-operating shock handling and improve portability
> Notebook PCs
> External storage Advanced PMR head Excellent soft error rate for improved performance
> Gaming consoles & media technology Outstanding anti-corrosion properties
> Portable video players IrMnCr read head Better performance & reliability in harsh conditions
Thermal Fly-height Control (TFC) Better soft error rate for improved reliability
Power 0.60W low power idle Industry-leading power management
Enhanced Adaptive Battery Life implementation for low-power and
ExtenderTM (ABLE) longer battery life
Acoustics Quiet Seek Support Optional mode for even quieter operation
Interface PATA ATA-7
SATA NCQ, Hot Plug, Staggered Spin-up, Link Power
ManagementTM and Asynchronous Notification.
*Actual storage may vary depending on the compression rate applied.
New technology exceeds expectations
TravelstarTM 5K160, Hitachi's first hard drive to use perpendicular magnetic recording (PMR),
delivers superior technology and reliability. With capacities up to 160 GB, industry-leading
performance, low-power consumption and excellent shock resistance, Travelstar 5K160
has the key attributes to support the stringent demands of portable computing. Improved
electronics design further reduces the power consumption of this 5400 RPM drive, which
beats its industry-leading predecessor by 10%; the 5K160 also runs cooler than the competi-
tion. Hitachi has also implemented Thermal Fly-height Control (TFC) for improved error rates,
and iridium-manganese-chromium (IrMnCr) read heads for improved reliability. Hitachi has
done extensive testing to verify Travelstar 5K160`s best-in-class standing, making it the
"Super-pendicular Drive."
160, 120, 80, 60 and 40 GB | 5400 RPM
PATA and SATA 1.5 Gb/s Reliability leadership
With the transition to new PMR technology, Travelstar 5K160 demonstrates reliability that
parallels or exceeds 50-year old conventional longitudinal technology. Hitachi has integrated
second-generation PMR head and media technology, along with a new read channel and
IrMnCr read heads. This successful transition required new materials, complex processes,
tools and testing. Hitachi leveraged the depth and breadth of its internal resources to deliver
the most reliable PMR mobile product in the industry.**
** Based on internal stress and reliability testing.
www.hitachiGST.com
Travelstar 5K160
Specifications Hitachi quality and service
Model(s) HTS541616J9AT00 HTS541616J9SA00 Hitachi Travelstar mobile hard disk drives are
HTS541612J9AT00 HTS541612J9SA00
designed to the highest quality standards and
HTS541680J9AT00 HTS541680J9SA00
HTS541660J9AT00 HTS541660J9SA00 contain field-proven components. Hitachi
HTS541640J9AT00 HTS541640J9SA00 provides worldwide technical support and
Interface ATA-7 Serial ATA 1.5 Gb/s integration services to enable global customers
Capacity (GB) 1 160 / 120 / 80 / 60 / 40 to bring their products to market quickly.
Sector size (variable, Bytes/sector) 512
Recording zones 24 Hitachi drives are backed by an array of technical
Data heads (physical) 4/4/2/2/1 support and services, which may include
Data Disks 2/2/1/1/1 customer and integration assistance. Hitachi is
Max. areal density (Gbits/sq. in.) 131.5 dedicated to providing a breadth of hard disk
Performance drive solutions to satisfy all of today's demanding
Data buffer (MB) 2 8 computing needs.
Rotational speed (RPM) 5400
Latency average (ms) 5.5
Media transfer rate (Mbits/sec, max) 540 HowtoreadtheTravelstarmodelnumber
Interface transfer rate (MB/sec, max)
100 Ultra DMA mode-5
150 HTS541616J9AT00 = 160 GB/8 MB buffer
16.6 PIO mode-4
H = Hitachi
Seek time (read, typical) (avg. ms) 3 11
T = Travelstar
Reliability
S = Standard (vs E for Enhanced Availability)
Load/unload 600,000 54 = 5400 RPM
Power 16 = Full capacity -- 160 GB
Requirement +5 VDC (+/-5%) 16 = Capacity this model, 16 =160 GB (12 = 120 GB,
Startup (W, peak, max.) 5.0 80 = 80 GB, 60 = 60GB, 40 = 40 GB)
Read / Write (W, avg.) 1.8 J = Generation code
Active idle (W, avg.) 0.80 0.85
9 = 9.5mm z-height
AT = ATA interface (SA = Serial ATA)
Low power idle (W, avg.) 0.60 0.65
0 = Reserved
Standby (W, avg.) 0.2 0.25
0 = Reserved
Sleep (W) 0.1 0.2
Physicalsize InformationandTechnicalSupport
z-height (mm) 9.5 www.hitachigst.com (Main Web site)
Dimensions (width x depth, mm) 70 x 100 www.hitachigst.com/partners (Partner Web site)
Weight (g, typ.) 102 / 102 / 95 / 95 / 95
Environmental(operating)
NorthAmerica
[email protected]
Ambient temperature 5 to 55 C
o o
Toll free: 1 888 426-5214, Direct: 1 507 322-2370
Shock (half-sine wave) 325 G (2ms), 160 G (1ms) AsiaPacific
Environmental(non-operating) [email protected] / 65 6840 9595
Ambient temperature -40o to 65o C EMEAandUK
Shock (half-sine wave) 1000 G (1ms) [email protected] / 44 20 7133 0032
Acoustics(A-weightedsoundpower) Germany
Idle (Bels, typ.) 2.5 / 2.5 / 2.2 / 2.2 / 2.2 [email protected] / 49 6929 993601
Op (Bels, typ.) 2.7 / 2.7 / 2.4 / 2.4 / 2.4
ProgramSupport
1 One GB is equal to one billion bytes; accessible capacity may be less
2 Upper 445KB of buffer capacity used for drive firmware
Partners FirstTM Program
3 Excludes command overhead [email protected]
