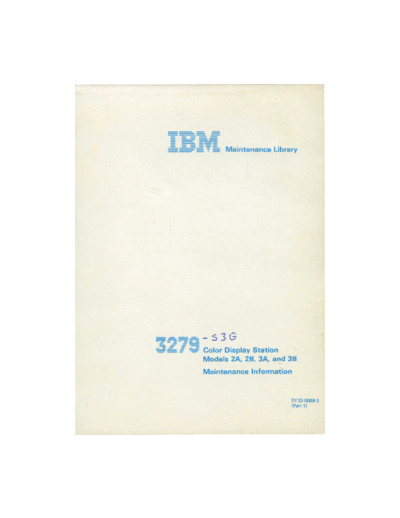

Image preview - the first page of the document



>> Download SY33-0069-3_3279_Color_Display_Terminal_Maintenance_Information_Part_1_Nov81 documenatation <<

Text preview - extract from the document

  ------ -
  - -- - - -
      - - --
  - -- ----
  - - --
  - -- ---
  - - - ---
  - -
  - -   - ~-       Maintenance Library




=-=-=-=- -     s   3G
=~ ffff: ~   Color Display Station
             Models 2A, 28, 3A, and 38
             Maintenance Infonnation



                                    SY33-0069-3
                                    (Part 1)
                  Maintenance Library




=~ff-;: ~   Color Display Station
            Models 2A, 28, 3A, and 38
            Maintenance Information



                                   SY33-0069-3
                                   (Part 1)
3279 MIM                                                                                                       ii

Preface


This publication contains the information needed to         Part 2 comprises the Maintenance Analysis
service and maintain the IBM 3279 Color Display             Procedures.
Station Models 2A, 2B, 3A, and 3B.
                                                            If this machine is fitted with any RPQ features, any
Part 1 comprises the Maintenance Information and            extra RPQ documentation can he found in a tray
Parts Catalog.                                              under the keyboard.




Fourth Edition, November 1981
This is a major revision of, and obsoletes, SY33-0069-2. The drawings
and specifications contained herein shall not he reproduced in whole or in
part without written permission.

IBM has prepared this maintenance manual for the use of IBM customer
engineers in the installation. maintenance, or repair of the specific
machines indicated. IBM makes no representations that it is suitable for
any other purpose.

Information contained in this manual is subject to change from time to
time. Any sllch change will be reported in subsequent revisions or
Technical Newsletters.

It is possible that this material may contain references to, or information
abollt, IBM products (machines or programs), programming, or services
that are not announced in your country. Such references or information
must not be construed to mean that IBM intends to announce such IBM
products, programming, or services in your country.

Publications are not stocked at the addresses given below; requests for
IBM publications should be made to your IBM representative or to the
IBM branch office serving your locality.

A form for reader's comments is provided at the back of this publication;
if the form has been removed, comments may be addressed to either:
