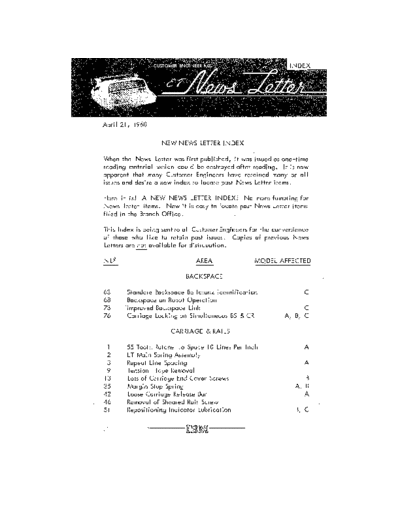

Image preview - the first page of the document
>> Download ET_News_Letter_Index_Apr60 documenatation <<
Text preview - extract from the document
Apri I 21, 1960
NEW NEWS LETTER INDEX
When the News Letter was first published, it was issued as one-time
reading material which could be destroyed after reading. It is now
apparent that many Customer Engineers have retained many or all
issues and desire a new index to locate past News Letter items.
Here it is! A NEW NEWS LETTER INDEX! No more fumbling for
News letter items. Now it is easy to locate past News Letter items
filed in the Branch Office.
This Index is being sent to all Customer Engineers for the convenience
of those who like to retain past issues. Copies of previous News
Letters are not avai lable for distrubution.
AREA MODEL AFFECTED
BACKSPACE
63 Standard Backspace Bellcrank Identification C
68 Backspace on Robot Operati on
73 Improved Backspace Link
76 Carriage Locking on Simultaneous BS & CR
CARRIAGE & RAI LS
1 55 Tooth Ratchet to Space 10 Lines Per Inch A
2 ET Main Spring Assembly
3 Repeat Li ne Spad ng A
9 Tension Tape Removal
13 Loss of Carriage End Cover Screws B
35 Margin Stop Spring A, B
42 Loose Carriage Release Bar A
46 Removal of Sheared Rai I Screw
51 Repositioning Indicator Lubrication
CARRIAGE & RAILS (CONTINUED)
52 Reducing Margin Set Lever Bending A, B
52 Margin Stop Spring Installation A, B
56 Carriage Binds?? - - Or is it Mainspring
57 Another Check Point for Carriage Binds
57 Margin Set Finger Hanging Under Margin Stop A, B
65 Escapement Pawl Wear C
66 Carriage Tension Tape Coming Off B, C
63 Excessive Side Play - Index Pawl Carrier C
67 Wear of Detent Release Lever C
68 Repositioning Wire Replacement B, C
68 Removing Platen Variable Button
68 Linespace Problems C
71 41 Tooth Linespacing - Field Conversions C
73 Loose Repositioning Indicator Lever B, C
73 Model C Card Holder Adjustment C
74 Margin Control Lever Widened C
74 Index Pawl Stud Improvement C
74 Easy Adjustment - Line Gage Card Holder C
74 Linespacing Fai lures - 66 T Ratchets
74 Reinserting Paper Correctly on Writing Line
75 Correct Adjustment -Final LH Margin Stop Eccentric C
76 "Neutral" Rail Guards are Light Green
CARRIAGE RETURN
31 Carriage Return Cam Lock-Up
39 Partial Carriage Return on Standard ET's B
43 Carriage Return Tapes Coming Loose
58 Model "A" C. K. o. Link Replacement A
71 Carriage Return Tape Wear C
71 Carriage Return Tape Guidance B, C
72 Carriage Return Tape Wear C
73 Spring Starter to Replace Clutch Plate C
74 Carriage Return Clutch Unlatching Adjustment C
74 Carriage Return Clutch Plate Improvement C
74 Type Piling - Clutch Pulley Binds C
COVERS AND MOUNTING
65 Top Cover Spring C
72 Failure of R.H. Carriage End Cover to Close C
72 New Cover Latches C
71 Leveling ET's on Desk
2
COVERS AND MOUNTING (CONTINUED)
71 Prevention of Machine Slippage on Desk
74 Keyplate Binds - Tab Set & Clear Buttons C
ESCAPEMENT - EXECUTIVE
26 Executive Escapement B
27 Escapement Pawl Block Removal A, B
21 Un-Even Executive Margin L. H.
30 Floating Interposer Cage B, C
39 Executive Type Crowding
53 Sticking Interposers
54 Check Points for Executive Skipping
57 Executive Pawl Spring Replacement
ESCAPEMENT - STANDARD
38 Removal of U-Bar B
53 Type Piling B
65 Type Piling
74 Escapement Trip Lever Improvement C
75 Easy Adjustment - Model C U-Bar C
GOVERNOR - CARRIAGE TENSION - DECELERATOR
34 Field Installation of Centrifugal Governor
46 Removal of Tab Governor Cover
56 Friction Governor Adjustment A, B
59 Centrifugal Governor Binding B, C
68 Main Spring - Tension - Decelerator Removal C
69 Arm Movement in Restoring C
69 Insufficient Side Play - Decelerator Arms C
69 Position of Carriage Return Spring Clutch Clamp C
69 Binding on Carriage Return C
KEYBOARD LOCK AND BELL
12 Line Lock
63 Overprinting at Right Margin
72 Interference with Line Lock Springs
MOTOR AND DRIVE
1 Disassembly of D.C. Motor
10 Condenser Change
3
MOTOR AND DRIVE (CONTINUED)
11 D.C. Installation
27 Electrical Interference
74 Modified Internal Plug Eliminates Wire Cutting C
74 14 - 16T Motor Pulley Still Available
75 Safety - Secure Loose End of Ground Wi re
RIBBON - FABRIC
4 Ribbon Lift Mechanism
22 Ribbon Feed Cam
43 Ribbon Feed
49 Faster Ribbon Control Operation
54 Ribbon Tracking
60 Top Cover Interlock C
62 Button Latch Lug Adjustment C
62 Right Hand Spool Gate C
62 Uneven Tracking C
62 Fabric Ribbon Clean Clip C
62 Ribbon Bunching C
62 Ribbon Link Drive Mechanism C
62 Ribbon Reverse Fa i lure C
67 Ribbon Bunching C
68 Forming Rear Lug on Ribbon Lift Plate
72 Stronger Fabric Ribbon Anchor Clip Spring C
72 Breakage of Ribbon Lift Bail Mounting Stud C
72 Fabric Ribbon Bunching C
73 Ribbon Drive & Reverse Gear Sleeve C
74 Interference with Right Hand Spool Gate C
76 Dual Ribbon Feed Improvement C
RIBBON - CARBON
23 Carbon Ribbon Feed A, B
31 Acetate Ribbon Feed
58 A Quick Repair C
61 Improved Ribbon Guide C
62 Excessive Carbon Ribbon Feed C
62 Eliminate Carbon Ribbon Twist C
71 Rewind Release Latch Spring C
73 Lubrication of Carbon Ribbon Take-up Spring C
74 Carbon Ribbon Guide Improvement C
75 Carbon Ribbon Supply Spool Improvement C
76 Quick Fix Outer Rewind Flange C
4
SHIFT
13 Shift Trouble
21 Type Basket Setting
29 Spring Stud Change A, B
31 Beating the Shift
60 Model "C" Shift Adjustment C
67 Shift Failure
68 Shift Cam Slipping on Power Roll
72 Shift Toggle Plate Assemblies
72 Shift Lock Fai Iure to Restore C
76 Check Shift Toggle Plate for Alignment Trouble C
SPACE BAR
25 3 Unit Space Bar Interposers
38 Repeating of Spacebar Cams A
44 Space Bar Cam Slippage
47 Reversing Executive Spacebars
48 Repeating Spacebar with Heavy Touch B
49 Loose Spacebar Bushing A, B
60 Crippling Spacebar C
68 Spacebar Touch C
72 Spacebar Clip Interference with Key Buttons C
72 Crippling 3 Unit Spacebar Typamatic Action C
TABULAR
14 Easy Removal of Model "A" Tab Lever A
37 Bent Tab Lever Overthrow Stop B
52 Tab Through L. H. Margin
75 Easy Replacement - Model B Tab Lever B
TYPE BAR OPERATING
5 Cam Trip Levers
19 Cam Latch Springs
34 Upper &. Lower Case Impression B
37 Upper & Lower Case Impression B
15 Typebar Rest Pad A
43 Improvement of Touch B
49 Locating Slugs on Typebar
50 Heavy Touch B
47 Handy Tool
56 Alignment of End Typebars
5
TYPE BAR OPERATING (CONTINUED)
57 Cam Bearing Support Adjustment B
60 Letter Cam Identification Bf C
60 "C" Keylever Removal C
60 "C" Keybuttons Affected by Cleaning Fluid C
65 Impression Indicator Creeping
65 Alignment of Changeable Typebars
66 Two Piece Keylever C
71 Cam Clearance - Model "C" - Power Roll C
72 Intermittent Type Piling C
73 Substitution of Type Styles
73 Letter Cam Assemblies
73 Power Roll Date Coding
74 Power Rolls - Care in Handling
76 Hi gh Useage Typebars
PAPER FEED
4 Paper Feed Difficulties A
8 Paper Feed
11 Model "B" Paper Feed B
21 Paper Feed Bf C
22 Bail Roll Tension
29 Offset Paper Masters
38 Polishing Feed Roll Hubs B, C
41 Line Spacing to Bottom of Page B
43 Spreading the Paper Table B
47 Improving Paper Rollback B, C
66 ~ard Holders B
SPECIAL MACHINES & ATTACHMENTS
20 I BM Form Line Selector Form Line Selector
41 Model B Dec. Tab Backspace Adjustment Dec. Tab
64 Model C Dec. Tab Dec. Tab
73 Dec. Tab Cage Lubrication Dec. Tab
51 Model B Hektowriter Service Hints Hektowri ter
53 Hektowriter Adjustment Hints Hektowriter
55 Hektowriter Ribbon Feed Adjustment Hektowriter
63 Hektowriter Plastic Ribbon Guide Adjustment Hektowriter
66 Hektowriter Auxilary Carriage Binds Hektowriter
24 Paper Deflector Retaining Springs Lift Platen
30 Standard Pin Feed Release Lever Spring Pin Feed
30 Standard Pin Feed Cam Anchor Rod Pin Feed
6
SPECIAL MACHINES AND ATTACHMENTS (CONTINUED)
41 Pin Feed Platen Pin Feed
57 "Cocked" Pin Feed Platen Ratchet Housing Pin Feed
58 Pin Feed Nicking Scales Pin Feed
74 Pi n Feed LP B/ M Change Model B Pin Feed
7 Air Cylinder Partial Carr. Return
7 Model 3 Toll Biller Toll Biller
8 Toll Biller Toll Biller
22 Toll Biller Toll Biller
MISCELLANEOUS
29 Segment Guide Springs
57 A Quick Springholder
60 Service Savers
61 Serv i ce Savers
66 Clevis Spinner
67 Use A "Plastic Steel"
72 Tool Number for Valve Spout Oiler
72 Positioning of Valve Spout Oiler Spout
74 Installing Nuts in Hard to Reach Places
74 Cotton Swabs for Cleaning
74 Assignment of Serial Numbers to ET's
75 Quick Fix for Plastic Parts Boxes
76 Aligning Wrench Modifications for Wide Type Faces
