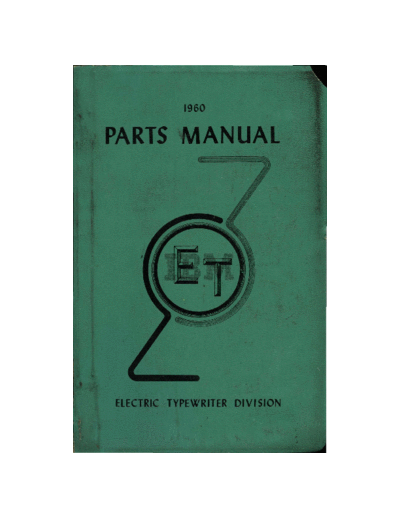

Image preview - the first page of the document



>> Download 1262087_ET_Parts_Manual_Jan60 documenatation <<

Text preview - extract from the document

           1960


PARTS MANUAL                    <




                                    .'




ELECTRIC TYPEWRITER DIVI SION
             THESE ADJECTIVES TO BE USED ONLY BY REPORTING OFFICES

01                                           23   Re-cdjust/Lefr/Out (Tab Rack,

02
      Bent
      Bindin!'l/Sticking
                                      ..          K. O. Screws, etc.)

                                             24   Rc-odjust/Rlght/ln (Tab Rock,
03    Broken                                      K. O. Screws, etc.)

04    Burned/PitIed                          25   Re-aiign/Left

05    B;Jrred/Nicked                         26   Ro-a Iign/~i gh t

06    Cord Jam                               27   Re-olign/Up

07    Ch ipped/Cracked                       28   Re-a Iign/Down

08    Corroded/D irty                        29   Re-a!:gn/Ring Light/Cylinder
                                                  Heavy
09    Defective Tub.s; or Pluggable
      Unit        ... .                      30   Re-c:olign/Cylinder Light/Ring
                                                  Heavy
10    Hard/Heavy
                                             31   Re-solder
11    Intermittent
                                             32   Reversed
12    Lubrication
                                             33   Shorted/Gr~unded
13    Marking/Identification
                                             34   Stripped
14    Noi~y
                                                  .....
                                             35    ;Imlng
15    Off/Off Registration (Punch, Mylar
      Tape, Sensirog Unit)                   36   Voll'Clge High
16    Open                                   37   Voltage Low

17    Overheated                             38   Weak

18    Printing (Over)                        39   Wiring Error

19    Printing (Under)                       40   Worn

20    Random Error                           41   Wrong Spec:iflc(Jtions

21    Re-adi ust/Ti ghten/Shorter (Li nks,   42   No trouble found
      Feed Rolls, etc.)
22    Re-adiust/Loosen/Longer (Links,
      Feed Rolls, etc.)
