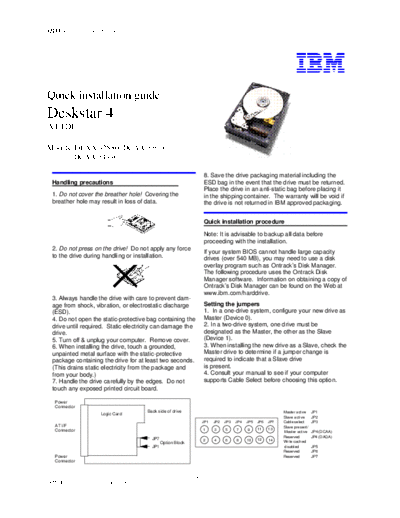

Image preview - the first page of the document
>> Download Deskstar 4 Quick Installation Guide v3.0 documenatation <<
Text preview - extract from the document
IBM storage products
Quick installation guide
Deskstar 4
AT/IDE
Models: DCAA-32880, DCAA-33610,
DCAA-34330
8. Save the drive packaging material including the
Handling precautions ESD bag in the event that the drive must be returned.
Place the drive in an anti-static bag before placing it
1. Do not cover the breather hole! Covering the in the shipping container. The warranty will be void if
breather hole may result in loss of data. the drive is not returned in IBM approved packaging.
Quick installation procedure
Note: It is advisable to backup all data before
proceeding with the installation.
2. Do not press on the drive! Do not apply any force
If your system BIOS cannot handle large capacity
to the drive during handling or installation.
drives (over 540 MB), you may need to use a disk
overlay program such as Ontrack's Disk Manager.
The following procedure uses the Ontrack Disk
Manager software. Information on obtaining a copy of
Ontrack's Disk Manager can be found on the Web at
www.ibm.com/harddrive.
3. Always handle the drive with care to prevent dam-
age from shock, vibration, or electrostatic discharge Setting the jumpers
(ESD). 1. In a one-drive system, configure your new drive as
4. Do not open the static-protective bag containing the Master (Device 0).
drive until required. Static electricity can damage the 2. In a two-drive system, one drive must be
drive. designated as the Master, the other as the Slave
5. Turn off & unplug your computer. Remove cover. (Device 1).
6. When installing the drive, touch a grounded, 3. When installing the new drive as a Slave, check the
unpainted metal surface with the static-protective Master drive to determine if a jumper change is
package containing the drive for at least two seconds. required to indicate that a Slave drive
(This drains static electricity from the package and is present.
from your body.) 4. Consult your manual to see if your computer
7. Handle the drive carefully by the edges. Do not supports Cable Select before choosing this option.
touch any exposed printed circuit board.
Power
Connector
Back side of drive Master active JP1
Logic Card
Slave active JP2
JP1 JP2 JP3 JP4 JP5 JP6 JP7 Cable select JP3
AT I/F Slave present/
Connector 1 3 5 7 9 11 13
Master active JP4 (DCAA)
Reserved JP4 (DAQA)
JP7 2 4 6 8 10 12 14
Option Block Write cached
JP1 disabled JP5
Reserved JP6
Power Reserved JP7
Connector
Page 1
IBM Hard Disk Drive Technical Support Center version 3.0
IBM storage products
Attaching the drive return to your original configuration and contact
1. Turn off the computer, unplug the power cord, and technical support.
open the case.
2. Match pin 1 of the 40-pin cable to pin 1 of the drive
interface connector. Pin 1 is usually denoted by a
stripe along the edge of the cable.
3. Attach a power plug to either the 3- or 4-pin power
connector.
