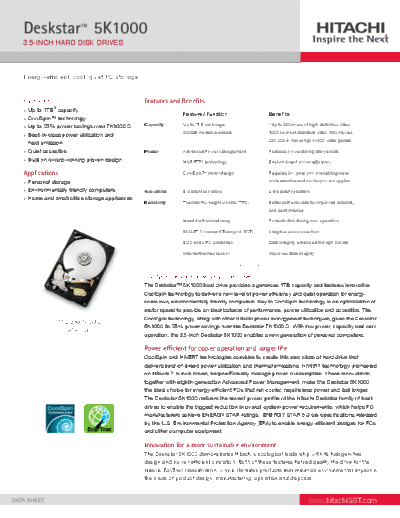

Image preview - the first page of the document
>> Download Deskstar 5K1000 datasheet documenatation <<
Text preview - extract from the document
DeskstarTM 5K1000
3.5-INCH HARD DISK DRIVES
Energy-efficient, cool, quiet PC storage
Highlights Features and Benefits
> Up to 1TB1 capacity
Feature / Function Benefits
> CoolSpinTM technology
> Up to 25% power savings over 7K1000.C Capacity Up to 1TB of storage, * Up to 250 hours of high-definition video,
500GB models available 1000 hours of standard video, 350 movies,
> Best-in-class power utilization and
250,000 4-min songs or 500 video games
heat emission
> Quiet acoustics Power Advanced Power Management Reduces power during idle periods
> Built on award-winning proven design HiVERTTM technology Best-of-breed power efficiency
Applications CoolSpinTM motor design Requires low peak power enabling more
> Personal storage cost-effective and cooler power supplies
> Environmentally friendly computers Acoustics Excellent acoustics Ultra quiet operation
> Home and small office storage appliances
Reliability Thermal Fly-height Control (TFC) Better soft error rate for improved reliability
and performance
Head load/unload ramp Protects disk during non-operation
SMART Command Transport (SCT) Adaptive error correction
ECC and CRC protection Data integrity enhanced through circuits
Internal thermal sensor Improves data integrity
*Actual storage may vary depending on the compression rate applied. Capacities represented may not be combined.
CoolSpin design for desktop computers
The DeskstarTM 5K1000 hard drive provides a generous 1TB capacity and features innovative
CoolSpin technology to deliver a new level of power efficiency and quiet operation for energy-
conscious, environmentally friendly computers. Key to CoolSpin technology is an optimization of
motor speed to provide an ideal balance of performance, power utilization and acoustics. The
CoolSpin technology, along with other Hitachi power management techniques, gives the Deskstar
1TB and 500GB
5K1000 its 25% power savings over the Deskstar 7K1000.C. With low power, capacity and cool
SATA 3Gb/s
operation, the 3.5-inch Deskstar 5K1000 enables a new generation of personal computers.
Power efficient for cooler operation and longer life
CoolSpin and HiVERT technologies combine to create this new class of hard drive that
delivers best-of-breed power utilization and thermal emissions. HiVERT technology, pioneered
on Hitachi 2.5-inch drives, helps efficiently manage power consumption. These innovations,
together with eighth-generation Advanced Power Management, make the Deskstar 5K1000
the ideal choice for energy-efficient PCs that run cooler, require less power and last longer.
The Deskstar 5K1000 delivers the lowest power profile of the Hitachi Deskstar family of hard
drives to enable the biggest reduction in overall system power requirements, which helps PC
manufacturers achieve ENERGY STAR ratings. ENERGY STAR 5.0 are specifications released
by the U.S. Environmental Protection Agency (EPA) to enable energy-efficient designs for PCs
and other computer equipment.
Innovation for a more sustainable environment
The Deskstar 5K1000 demonstrates Hitachi's ecological leadership with its halogen-free
design and power-efficient operation. Both of these features helped qualify the drive for the
Hitachi EcoTrac classification, which identifies products that minimize environmental impact in
the areas of product design, manufacturing, operation and disposal.
www.hitachiGST.com
DeskstarTM 5K1000
Specifications (Preliminary) Hitachi quality and service
Model(s) HDS5C1010CLA382 All Hitachi hard drives are designed to the highest
HDS5C1050CLA382 quality standards with field-proven components. They
Configuration are backed by Hitachi worldwide technical support
Interface SATA 3Gb/s and integration services, enabling customers around
Capacity (GB)1 1TB / 500 the globe to bring their products to market quickly.
Max. areal density (Gbits/sq. in) 353
How to read the Desktar model number
Performance
HDS5C1010CLA382 = 1TB/8MB buffer
Data buffer (MB)2 8
H = Hitachi
Media transfer rate (Mbits/sec, max.) 1267
D = Deskstar
Interface transfer rate (MB/sec, max.) 300 S = Standard
Reliability 5C = CoolSpin technology
Error rate (non-recoverable, bits read) 1 in 1014 10 = Full capacity -- 1TB
Load/unload cycles 300,000 10 = Capacity this model, 10 = 1TB (50 = 500GB)
Availability3 (hrs/day x days/wk) 24x7 C = Generation code
Power
L = 26.1mm z-height
+5 VDC (+/-5%)
A3 = SATA 3Gb/s
Requirement 8 = 8MB buffer
+12 VDC (+/-10%)
Startup (max. A) 1.1 (+5V) & 1.7 (+12V) 2 = Reserved
Performance idle (W, avg.) 1TB 3.3 Information and Technical Support
500GB 2.9
www.hitachigst.com (Main Web site)
Physical size
www.hitachigst.com/partners (Partner Web site)
z-height (mm, max.) 26.1
North America
Dimensions (width x depth, mm, typical) 101.6 x 147 [email protected]
Weight (g, max.) 1TB 680 Toll free: 1 888 426-5214, Direct: 1 507 322-2370
500GB 400
Asia Pacific
Environmental (operating) [email protected] / 65 6840 9595
Ambient temperature 0o to 60o C EMEA and UK
Relative humidity (non-condensing) 8% to 90% [email protected] / 44 20 7133 0032
Shock (half-sine wave (G 2ms)) 70 Germany
Vibration, random (G RMS) 0.67 (XY)
[email protected] / 49 6929 993601
Environmental (non-operating) Program Support
Ambient temperature -40o to 70o C Partners FirstTM Program
[email protected]
Relative humidity (non-condensing) 5% to 95%
Shock (half-sine wave (G 2ms)) 350
Vibration, random (G RMS) 1.04 (XYZ)
Acoustics (A-weighted sound power)
Operating (Bels, typical) 2.4
1 One GB is equal to one billion bytes when referring to hard drive capacity. Accessible capacity may be less.
2 Portion of buffer capacity used for drive firmware
3 Intended for low duty cycle, non mission-critical applications in PC, nearline, and consumer electronics environments, which may vary from
application to application. Note that customer environments may vary from application to application.
