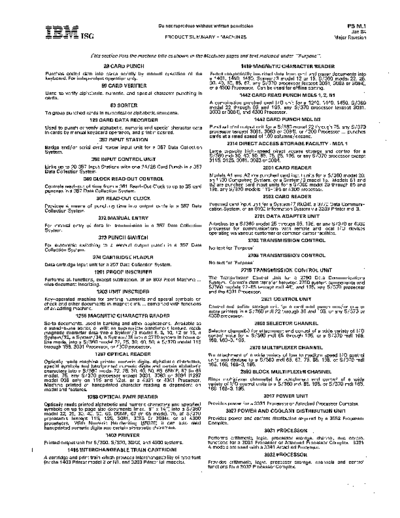

Image preview - the first page of the document
>> Download 198401_01_Product_Summary_Machines documenatation <<
Text preview - extract from the document
--- -
-----
- ----
Do not reproduce without written permission PS M.1
Jan 84
=- - :S~E: ISG PRODUCT SUMMARY - MACHINES Major Revision
This section lists the machine title as shown in the Machines pages and text included under "Purpose".
29 CARD PUNCH 1419 MAGNETIC CHARACTER READER
Punches coded data into cards serially by manual operation of the Reads magnetically inscribed data from card and paJler documents into
keyboard. For independent operation only. a 1401, 1410, 1460, System/3 model 12 or 15, S/360 model 22,25,
30, 40, 50, 65, 67, any S/370 processor (except 3081, 3083 or 3084),
59 CARD VERIFIER or a 4300 Processor. Can be used for offline sorting.
Used to verify alphabetic, numeric, and special character punching in 1442 CARD READ PUNCH MDLS 1,2, N1
cards.
A combination punched card I/O unit for a 1240, 1440, 1450, S/360
83 SORTER model 22 through 85 and 195, any S/370 processor (except 3081,
To group punched cards in numerical or alphabetic sequence. 3083 or 3084), and 4300 Processor.
129 CARD DATA RECORDER 1442 CARD PUNCH MOL N2
Used to punch or verify alphabetic, numeric and special character data Punched card output unit for a S/360 model 22 through 75, any S/370
in cards by manual keyboard operation, and print if desired. processor (except 3081, 3083 or 3084), or 4300 Processor ... punches
cards at a rated speed of 160 columns/second.
357 INPUT STATION
2314 DIRECT ACCESS STORAGE FACILITY - MOL 1
Badge and/or serial c~rd reader input unit for a 357 Data Collection
System. Large capacity high-speed direct access storage and control for a
S/360 mdl 30, 40, 50, 65, 75, 85, 195, or any S/370 processor except
358 INPUT CONTROL UNiT 3115,3125,3081,3083 or 3084.
Links up to 20 357 Input Stations with one 24/26 Card Punch in a 357 2501 CARD READER
Data Collection System.
Models A1 and A2 are punched card input units for a S/360 model 20,
360 CLOCK READ-OUT CONTROL an 1130 Computing System, or a System/3 model 15. Models B1 and
Controls read-out of time from a 361 Read-Out Clock to up to 35 card B2 are punched card input units for a S/360 model 20 through 85 and
p~nches in a 357 Data Collection System. 195, any S /370 models 115-195 or 4300 processor.
361 READ-OUT CLOCK 2502 CARD READER
Provides a means of punching time into output cards in a 357 Data Punched card input unit for a System/7 (5024), a 3770 Data Communi-
Collection System. cation System, or an 8100 Information System via 3289 Printer mdl 3.
372 MANUAL ENTRY 2701 DATA ADAPTER UNIT
For manual entry of data for transmission in a 357 Data Collection Attaches to a S/360 model 25 through 85, 195, or any S/370 or 4300
System. processor for communications with remote and local I/O devices
operating via various customer or common carrier facilities.
373 PUNCH SWITCH
2702 TRANSMISSION CONTROL
For automatic switching to a second output punch in a 357 Data
Collection System. No text for 'Purpose'
374 CARTRIDGE READER 2703 TRANSMISSION CONTROL
Data cartridge input unit for a 357 Data Collection System. No text for 'Purpose'
1201 PROOF INSCRIBER 2715 TRANSMISSION CONTROL UNIT
Performs all functions, except subtraction, of an 803 Proof Machine ... The Transmission Control Unit for a 2790 Data Communications
plus document inscribing. System. Controls data transfer between 2790 system components and
S/360 models 22-85 (except mdl 44), and 195, any S/370 processor
1203 UNIT INSCRIBER and the 4331 Processor.
Key-operated machine for printing numerals and special symbols on 2821 CONTROL UNIT
check and other documents in magnetic ink ... combined with functions
of an adding machine. Control and buffer storage unit for a card read punch and / or one or
more printers in a S/360 mdl 22 through 85 and 195, or any S/370 or
1255 MAGNETIC CHARACTER READER 4300 processor.
Sorts documents, used in banking and other applications. Available as 2860 SELECTOR CHANNEL
a stand-alone sorter, or with an appropriate attachment feature, reads
magnetic character data into a System /3 model 6, 8, 10, 12 or 15, a Selector channel(s) for attachment and control of a wide variety of I/O
System/32, a System/34, a System/36 into a 2770 system in home or control units for a S/360 mdl 65 through 195, or a S/370 mdl 165,
line mode, into a S/360 model 22, 25,30,40,50, a S/370 model 115 168, 168-3, 195.
through 158, 3031 Processor, or 4300 processor. 2870 MULTIPLEXER CHANNEL
1287 OPTICAL READER For attachment of a wide variety of low to medium speed I/O control
Optically reads machine printed numeric digits, alphabetic characters, units and devices to a S/360 mdl 65, 67, 75, 85, 195, or S/370 mdl
special symbols and handprinted numeric digits and certain alphabetic 165, 168, 168-3, 195.
characters into a S/360 model 22, 25, 30, 40, 50, 65, 65MP, 67 (in 65 2880 BLOCK MULTIPLEXER CHANNEL
mode), 75, any S / 370 processor except 3081, 3083 or ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
