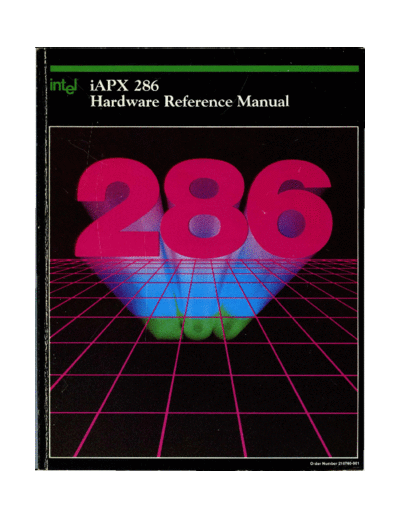

Image preview - the first page of the document



>> Download 1983_iAPX_286_Hardware_Reference documenatation <<

Text preview - extract from the document

                                      LITERATURE

 1983 will be a year of transition for Intel's catalog program. In order to better serve you, our
 customers, we are reorganizing many of our catalogs to more completely reflect product groups.

 In addition to the new product line handbooks listed below, an INTEL PRODUCT GUIDE (Order No.
 210846) will be available free of charge in March. This GUIDE will contain a listing of Intel's complete
 product line along with information on quality/reliability, packaging and ordering, customer training
 classes and product services.

, Consult the Intel Literature Guide (no charge, Order No. 210620) for a complete listing of Intel
  literature. Literature is presently available in other forms for those handbooks that will not be
  published until later in the year. Write or call the Intel Literature Department, 3065 Bowers Avenue,
  Santa Clara, CA 95051, (800) 538-1876, or (800) 672-1833 (California only).



                                           HANDBOOKS
Memory Components Handbook (Order No. 210830)
 Contains all application notes, article reprints, data sheets and other design
                                              2
 information on RAMs, DRAMs, EPROMs, E PROMs, Bubble Memories.

 Microcontroller Handbook (Available in May)
  Contains all application notes, article reprints, data sheets, and other user information
  on the MCS-48, MCS-51 (8-bit) and the new MCS-96 (16-bit) product families.

 Military Handbook (Order No. 210461)
  Contains complete data sheets on all military products.

 Microprocessor and Peripherals Handbook (Order No. 210844)
  Contains data sheets on all microprocessors and peripherals. (Individual User
  Manuals are also available on the 8085, 8086, 8088, 186, 286, etc.)

 Development Systems Handbook (Available in April)
  Contains data sheets on development systems and supporting software.

 OEM Systems Handbook (Available in May)
  Contains all application notes, article reprints and data sheets for OEM boards
  and systems.

 Software Handbook (Available in May)
  Contains software product overview as well as data sheets for all Intel software.

 Quality/Reliability Standards Handbook (Available in April)
     inter




 iAPX 286
HARDWARE
REFERENCE
