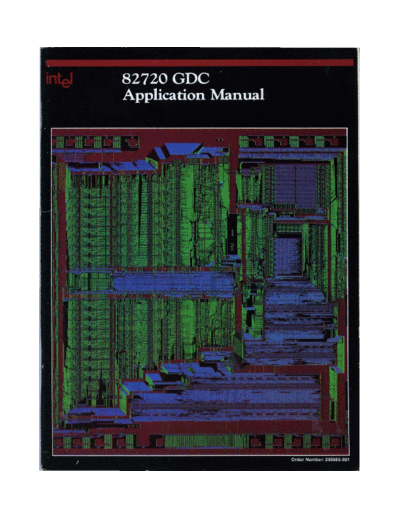

Image preview - the first page of the document



>> Download 230685-001_82720_GDC_Applications_Manual_Jul83 documenatation <<

Text preview - extract from the document

                                    LITERATURE

1983 will be a year of transition for Intel's catalog program. In order to better serve you, we are
reorganizing many of our catalogs to more closely reflect product groups.

In addition to the new product line handbooks listed below, the INTEL PRODUCT GUIDE (Order No.
210846) is available free of charge. This GUIDE serves as a handy reference tool to Intel's complete
product line along with information on quality/reliability, packaging and ordering, customer training
classes and product services.

Consult the INTEL LITERATURE GUIDE (no charge, Order No. 210620) for a complete listing of Intel
literature. Write or call the Intel Literature Department, 3065 Bowers Avenue, Santa Clara, CA 95051,
(800) 538-1876, or (800) 672-1833 (California only).
        I




                                         HANDBOOKS
Memory Components Handbook (Order No. 210830)
 Contains all application notes, article reprints, data sheets and other design
 information on RAMs, DRAMs, EPROMs, E2 PROMs, Bubble Memories.

Microcontroller Handbook (Order No. 210918)
 Contains all application notes, article reprints, data sheets, and other user information
 on the MCS-48, MCS-51 (8-bit) and the new MCS-96 (16-bit) product families.

Military Handbook (Order No. 210461)
 Contains complete data sheets on all military products.

Microprocessor and Peripherals Handbook (Order No. 210844)
 Contains data sheets on all microprocessors and peripherals. (Individual User
 Manuals are also available on the 8085, 8086, 8088, 186,286, etc.)

Development Systems Handbook (Order No. 210940)
 Contains data sheets on development systems and supporting software.

OEM Systems Handbook (Order No. 210941)
 Contains all application notes, article reprints and data sheets for OEM boards
 and systems.
                inter



   82720/GDC
APPLICATIONS
     MANUAL




          JULY 1983




    ORDER NUMBER: 230685-001
Reprinted with permission of NEC Electronics U.S.A. Inc.

Intel Corporation mak~s no warranty for the use of its products and assumes no responsibility for any errors which may
appear 'in this, document nor does it make a commitment to update the information contained herein.

Intel retains the right to make changes to these specifications at any time. without notice.

Contact your local sales office to obtain the latest   specifica~ions   before placing your order.

The following are trademarks of Intel Corporation and may only be used to identify Intel Products:

                                                    2
                            BXP, CREDIT. i. ICE. 1 1CE. ICS." iDBP. iDIS. iLBX. i m . iMMX.
                            Insite. INTEL. intel. Intelevision. Intellee. inteligent Identifier''''
                            intelBOS. inteligent Programming'". Intellink. iOSP. iPDS.
                            iRMS.
