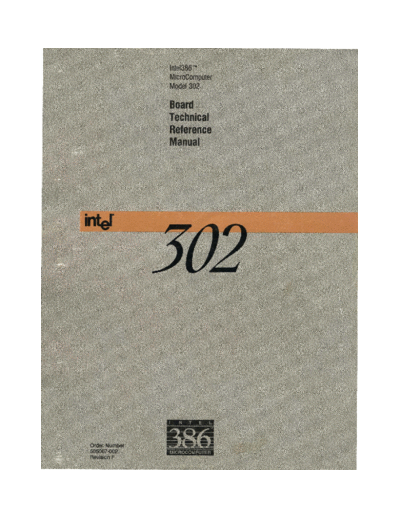

Image preview - the first page of the document



>> Download Intel_386_Model_302_Board_Technical_Reference_Jan90 documenatation <<

Text preview - extract from the document

Intel386TM MicroComputer
Model 302 Board
Technical Reference .
Manual




          Order Number: 505067-002
          Revision F
     WARNING
     This equipment has been tested with a Class B computing device and
     has been found to comply with the limits for a class B computing device,
     pursuant to subpart J of part 15 FCC rules. Only peripherals (computer
     inpuVoutput devices, terminals, printers, etc.) which comply with the class
     B limits may be attached to this computer product. Operation with non-
     compliant peripherals is likely to result in interference to radio and 1V
     reception.

     All cables used to connect to peripherals must be shielded and
     grounded. Operation with cables, connected to peripherals, which are
     not shielded and grounded may result in interference to radio and 1V
     reception.

     This equipment meets or exceeds requirements for safety in the US
     (UL 478 5th Edition), Canada (CSA C22.2 No. 220), and Europe
     (IEC 380, IEC 435, IEC 950, and VDE 0806).

     This equipment has been tested for radio frequency emissions and has
     been verified to meet VDE 0871 Class B.

     This digital apparatus does not exceed the Class B limits for radio noise
     emissions set out in the radio interference regulations of the Canadian
     Department of Communications.

     Ce dispositif digital, s'il est utilise suivant les instructions et
     recommandations du constructeur, ne depasse pas les limites de la
     Classe B pour Ie bruit des frequences radio, etablies par les Regles sur
     I'interference radio du Ministere Canadian des Communications.




ii
                   RADIO FREQUENCY INTERFERENCE NOTICE

This equipment generates and uses radio frequency energy and if not installed properly, that
is, in strict accordance with the manufacturer's instructions, may cause interference to radio
and television reception. It has been type-tested and found to comply with the limits for a
Class B computing device in accordance with the specifications in Subpart J of Part 15 FCC
rules, which are designed to provide reasonable protection against interference in a
residential installation. However, there is no guarantee that interference will not occur in a
particular installation. If the equipment does cause interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
