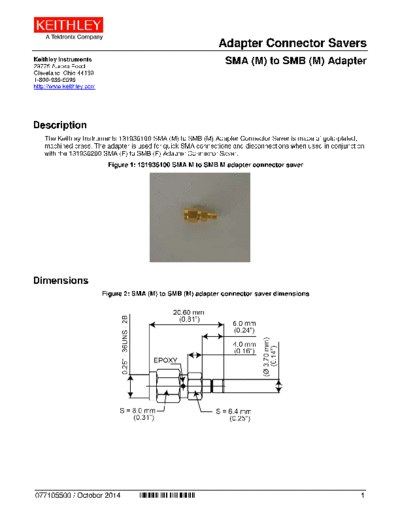

077105500 (Oct 2014)(131936100)


>> Download 077105500 (Oct 2014)(131936100) documenatation <<

Text preview - extract from the document
                                                             Adapter Connector Savers
Keithley Instruments
28775 Aurora Road
                                                               SMA (M) to SMB (M) Adapter
Cleveland, Ohio 44139
1-800-935-5595
http://www.keithley.com




Description
    The Keithley Instruments 131936100 SMA (M) to SMB (M) Adapter Connector Saver is made of gold-plated,
    machined brass. The adapter is used for quick SMA connections and disconnections when used in conjunction
    with the 131936200 SMA (F) to SMB (F) Adapter Connector Saver.
                           Figure 1: 131936100 SMA M to SMB M adapter connector saver




Dimensions
                          Figure 2: SMA (M) to SMB (M) adapter connector saver dimensions




077105500 / October 2014             *P077105500*                                                          1
Adapter Connector Savers


Electrical characteristics
