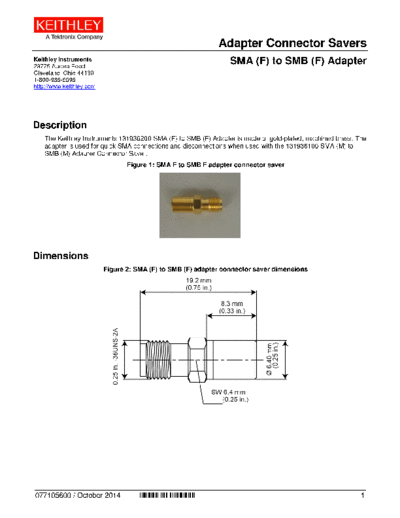

077105600 (Oct 2014)(131936200)


>> Download 077105600 (Oct 2014)(131936200) documenatation <<

Text preview - extract from the document
                                                             Adapter Connector Savers
Keithley Instruments
28775 Aurora Road
                                                                SMA (F) to SMB (F) Adapter
Cleveland, Ohio 44139
1-800-935-5595
http://www.keithley.com




Description
    The Keithley Instruments 131936200 SMA (F) to SMB (F) Adapter is made of gold-plated, machined brass. The
    adapter is used for quick SMA connections and disconnections when used with the 131936100 SMA (M) to
    SMB (M) Adapter Connector Saver.
                                 Figure 1: SMA F to SMB F adapter connector saver




Dimensions
                          Figure 2: SMA (F) to SMB (F) adapter connector saver dimensions




077105600 / October 2014             *P077105600*                                                          1
Adapter Connector Savers


Electrical characteristics
